Special Tools

Special Tools and Equipment

Illustration	Tool Number/Description
Courtesy of GENERAL MOTORS CORP.	J 26792 Spark Tester
Courtesy of GENERAL MOTORS CORP.	J 34730-1A Fuel Pressure Gage
Courtesy of GENERAL MOTORS CORP.	J 34730-375 Harness Test Lamp
Courtesy of GENERAL MOTORS CORP.	J 35616-A Connector Test Adapter Kit
Courtesy of GENERAL MOTORS CORP.	J 37027-1A IAC Motor Driver
Courtesy of GENERAL MOTORS CORP.	You may also use an IAC Motor Driver from one of the approved manufacturers listed below: OTC Thexton CTI Snap On MAC Tools NAPA/Balkamp
Courtesy of GENERAL MOTORS CORP.	J 37088-A Fuel Line Disconnect Tool Set
Courtesy of GENERAL MOTORS CORP.	J 38500-A Fuel Injector Cleaner
Courtesy of GENERAL MOTORS CORP.	J 39021 Fuel Injector Coil and Balance Tester
Courtesy of GENERAL MOTORS CORP.	J 39021-210 Injector Switch Box
Courtesy of GENERAL MOTORS CORP.	J 39021-301 Injector Harness Connector
Courtesy of GENERAL MOTORS CORP.	J 39194-B Oxygen Sensor Wrench
Courtesy of GENERAL MOTORS CORP.	J 39765 Fuel Sender Locknut Wrench
Courtesy of GENERAL MOTORS CORP.	J 41413 EVAP Pressure/Purge Diagnostic Station
Courtesy of GENERAL MOTORS CORP.	J 41413-200 Evaporative Emissions System Tester (EEST)
Courtesy of GENERAL MOTORS CORP.	J 41413-SPT High Intensity White Light
Courtesy of GENERAL MOTORS CORP.	J 41413-VLV EVAP Service Port Vent Fitting
Courtesy of GENERAL MOTORS CORP.	J 41415-40 Fuel Tank Cap Adapter
Courtesy of GENERAL MOTORS CORP.	J 41416 Ultrasonic Leak Detector
Courtesy of GENERAL MOTORS CORP.	J 42873-1 Fuel Line Shutoff Valve
Courtesy of GENERAL MOTORS CORP.	J 42873-2 Return Pipe Shutoff Valve
Courtesy of GENERAL MOTORS CORP.	J 44175 Fuel Composition Tester

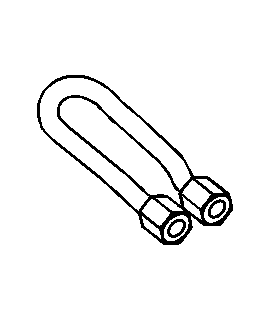

Courtesy of GENERAL MOTORS CORP.	J 44466-1 Fuel Recirculation Hose

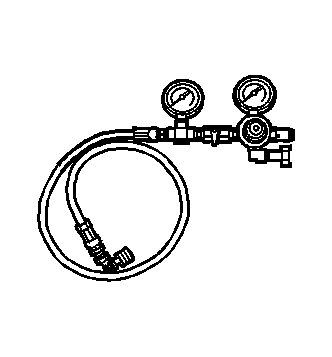

Courtesy of GENERAL MOTORS CORP.	J 44466-10 Regulation and Hose Assembly

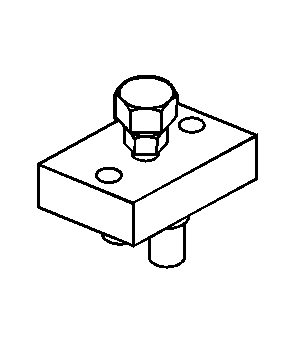

Courtesy of GENERAL MOTORS CORP.	J 44466-12 Fuel Metering Body Jumper Block
Courtesy of GENERAL MOTORS CORP.	J 44466-13 Screws
Courtesy of GENERAL MOTORS CORP.	P/N 7000081 Tech 2 Diagnostic Scan Tool
