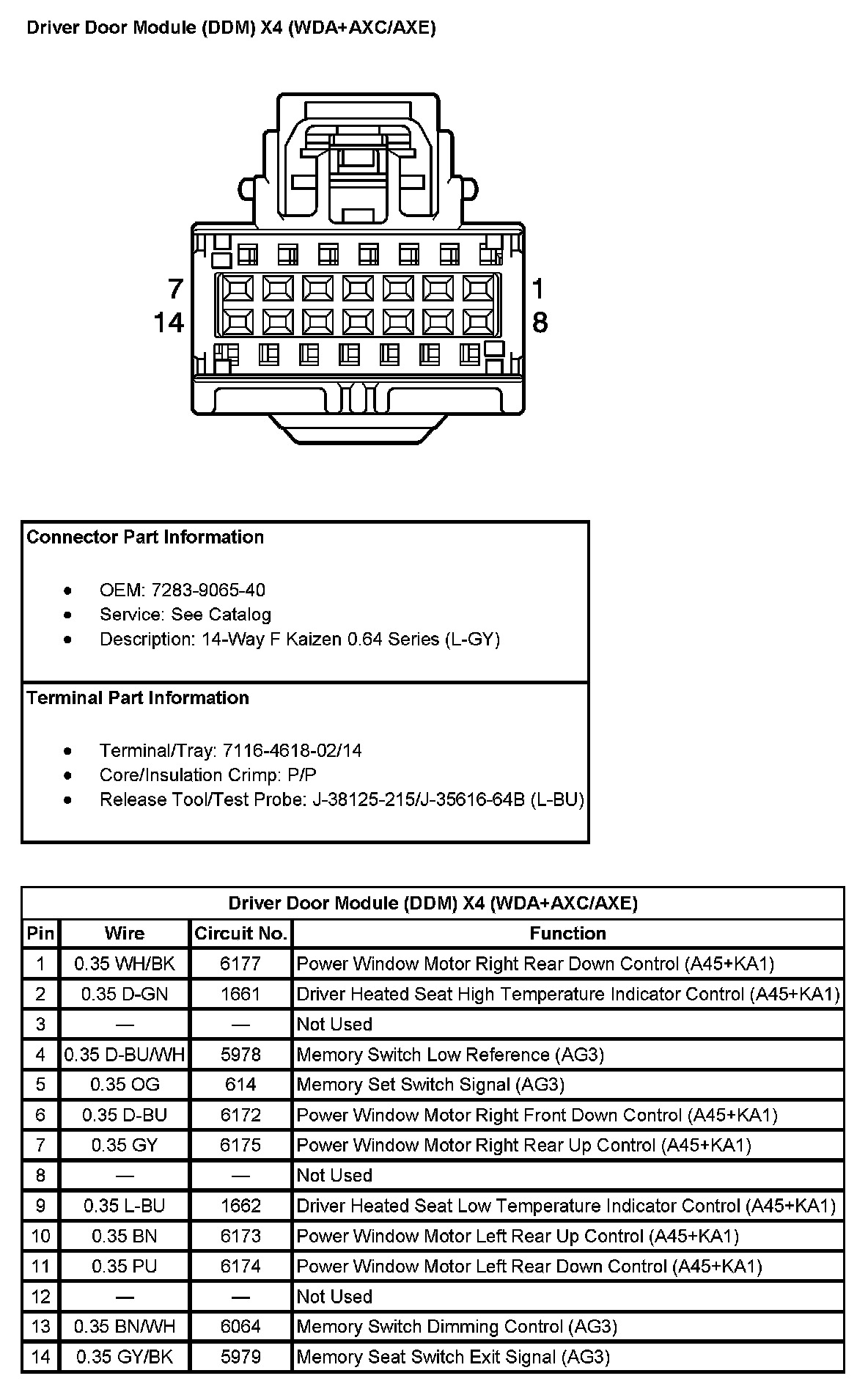

Driver Door Module (DDM) X4 (With RPO Code WDA+AXC/AXE)
Driver Door Module (DDM) X4 (With RPO Code WDA+AXC/AXE) Pin 1 To 14:
