Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the exhaust manifold lower heat shield.

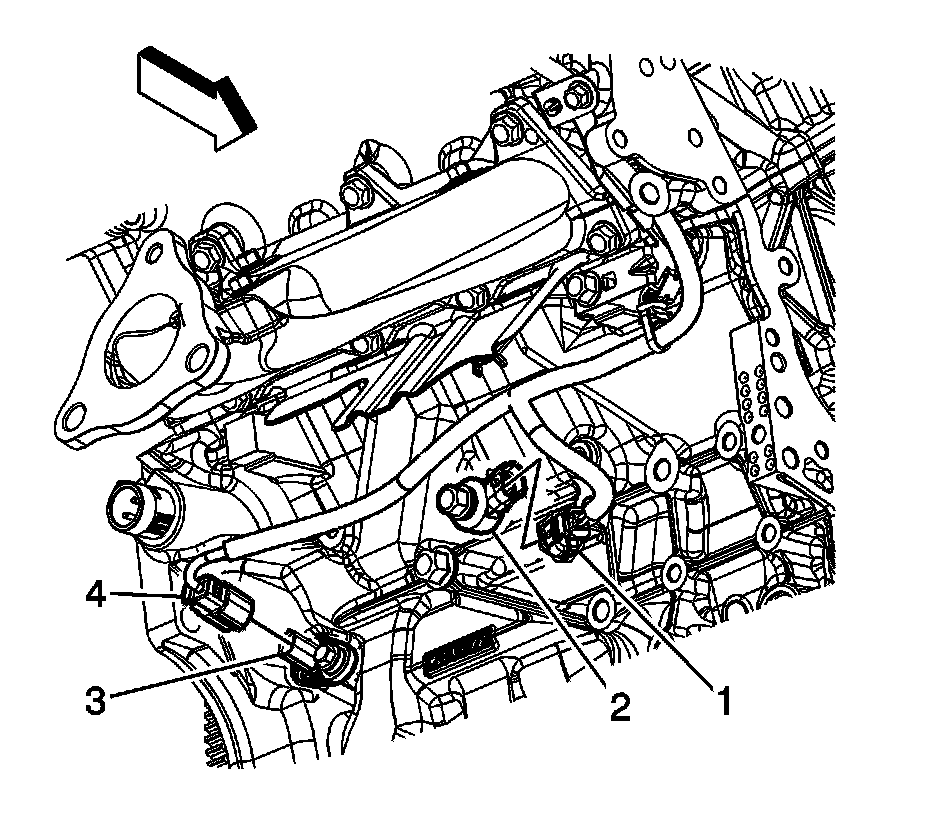

2. Disconnect the engine wiring harness electrical connector (3) from the crankshaft position (CKP) sensor (4).




3. Remove the crankshaft sensor bolt.
4. Remove the crankshaft sensor.

INSTALLATION PROCEDURE

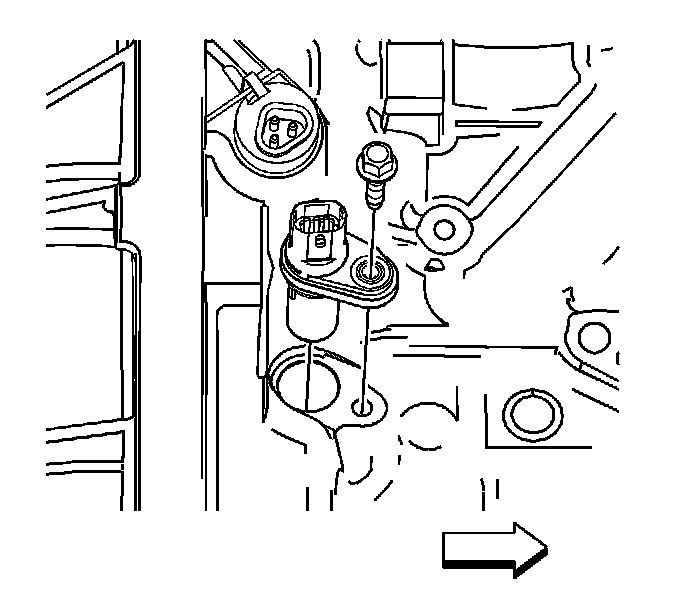

1. Install the crankshaft position sensor.

2. NOTE: Refer to Fastener Notice.

Install the crankshaft position sensor bolt.

Tighten the bolt to 10 N.m (89 lb in).




3. Connect the engine wiring harness electrical connector (3) to the CKP sensor (4).
4. Install the exhaust manifold lower heat shield.
