Windshield Heated Washer Fluid Module X2 (XA7) Connector

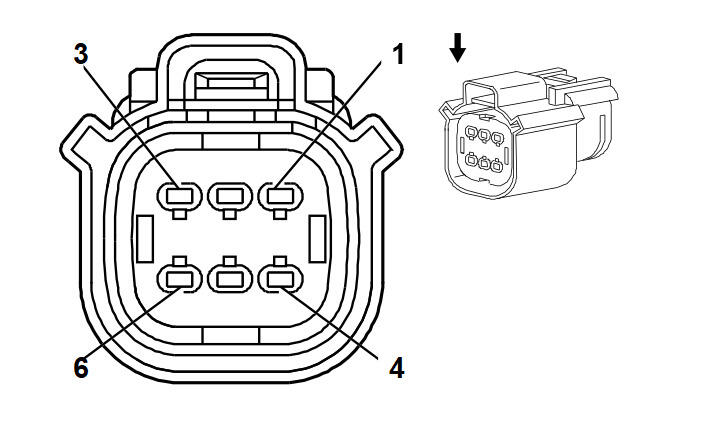

Fig 1: Windshield Heated Washer Fluid Module X2 (XA7) Connector End View

Courtesy of GENERAL MOTORS CORP.

Windshield Heated Washer Fluid Module X2 (XA7) Connector Parts Information

Connector Part Information

Terminal Part Information

Windshield Heated Washer Fluid Module X2 (XA7) Connector Terminal Identification

Pin	Wire	Circuit No.	Function
1	0.35 L-GN	6096	Washer Fluid Heated Control Switch Signal
2	0.35 D-BU/WH	5970	Washer Fluid Heated Control Switch LED Supply Voltage
3	-	-	Not Used
4	0.35 BK	1450	Ground
5	0.35 PK	94	Windshield Washer Switch Signal
6	0.35 OG	300	Power Mode
