License Lamp - Left

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

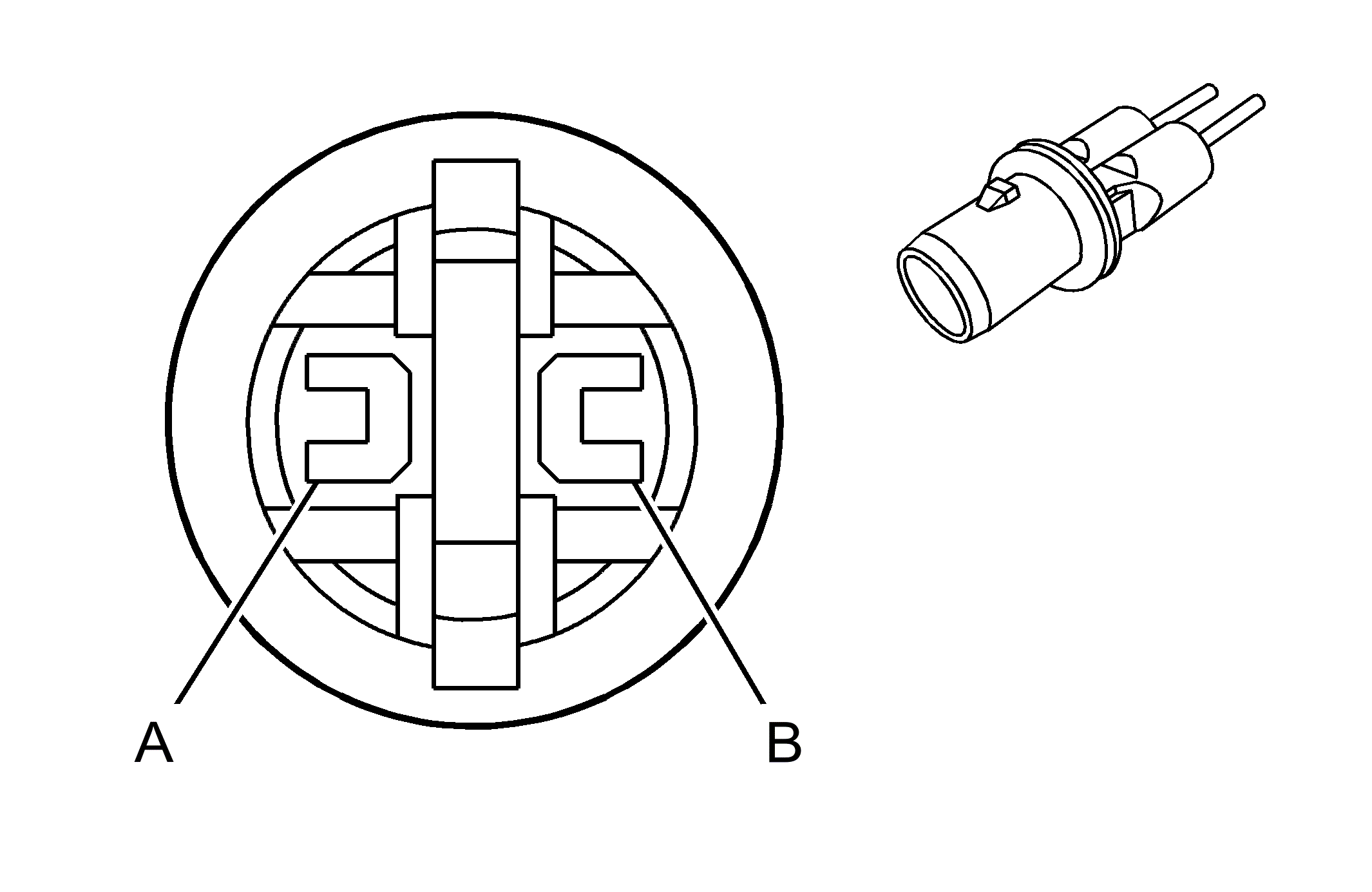

Fig 1: License Lamp (Left) Connector End View
GM1667405Courtesy of GENERAL MOTORS CORP.
License Lamp (Left) Connector Part Information

Connector Part Information
  • OEM: N/A
  • Service: See Catalog
  • Description: 2-Way Lamp Socket (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
License Lamp (Left) Connector Terminal Identification

Pin Wire Color Circuit No. Function
A D-BU 2209 Park Lamps Supply Voltage
B BK 850 Ground
