Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

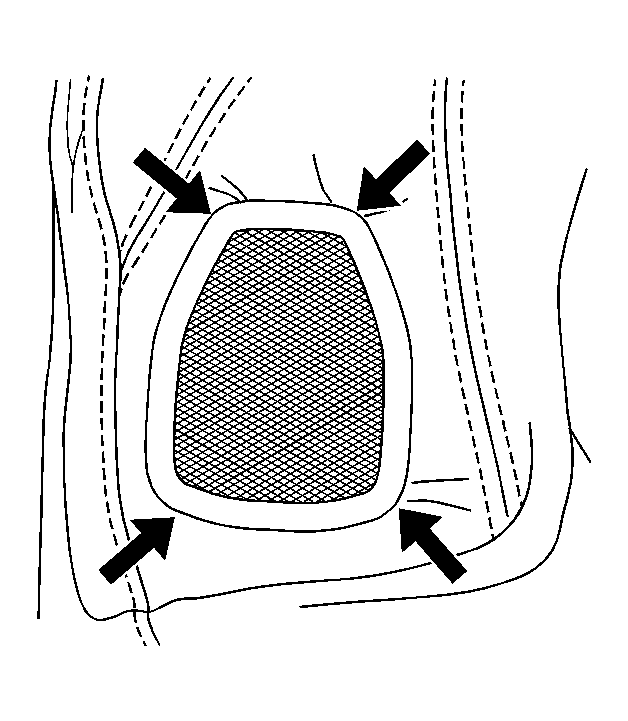

    Fig 1: View Of Speaker Grille
    GM1292814Courtesy of GENERAL MOTORS CORP.
  1. Insert a plastic flat-bladed tool at the base of the speaker grille and pry upward to disengage the retaining clips.

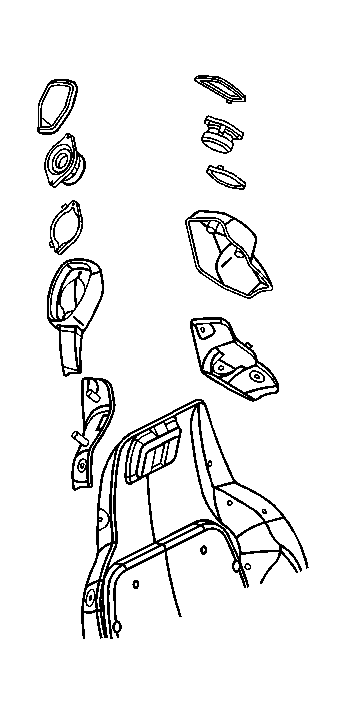

    2. Fig 2: View Of Driver Seat Speaker Components
    GM1292641Courtesy of GENERAL MOTORS CORP.
  2. Remove the speaker grille from the seat.
  3. Remove the screws which retain the speaker to the seat.
  4. Route the speaker from the seat and disconnect the speaker harness lead.
  5. Remove the speaker grille retainer.
