Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Door Trim Panel Replacement .

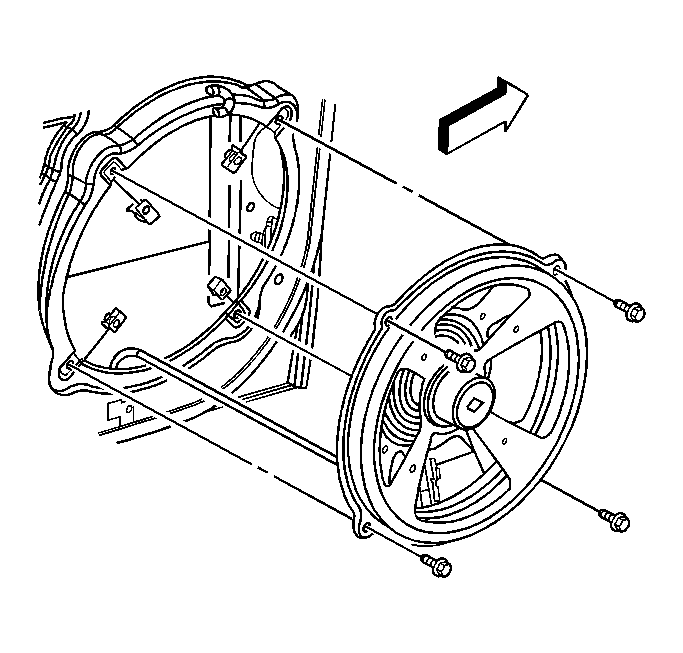

    2. Fig 1: View Of Front Door Speaker Assembly & Screws
    GM1237200Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The speaker assembly is only held in place by retaining screws. Be sure to support the speaker assembly upon removal.
  2. Remove the screws retaining the front door speaker assembly to the door.
  3. Disconnect the electrical/audio connector from the front door speaker.
  4. Remove the front door speaker assembly.
