Cellular Communication Component Views
WARNING: This page is about a different car, the 2005 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

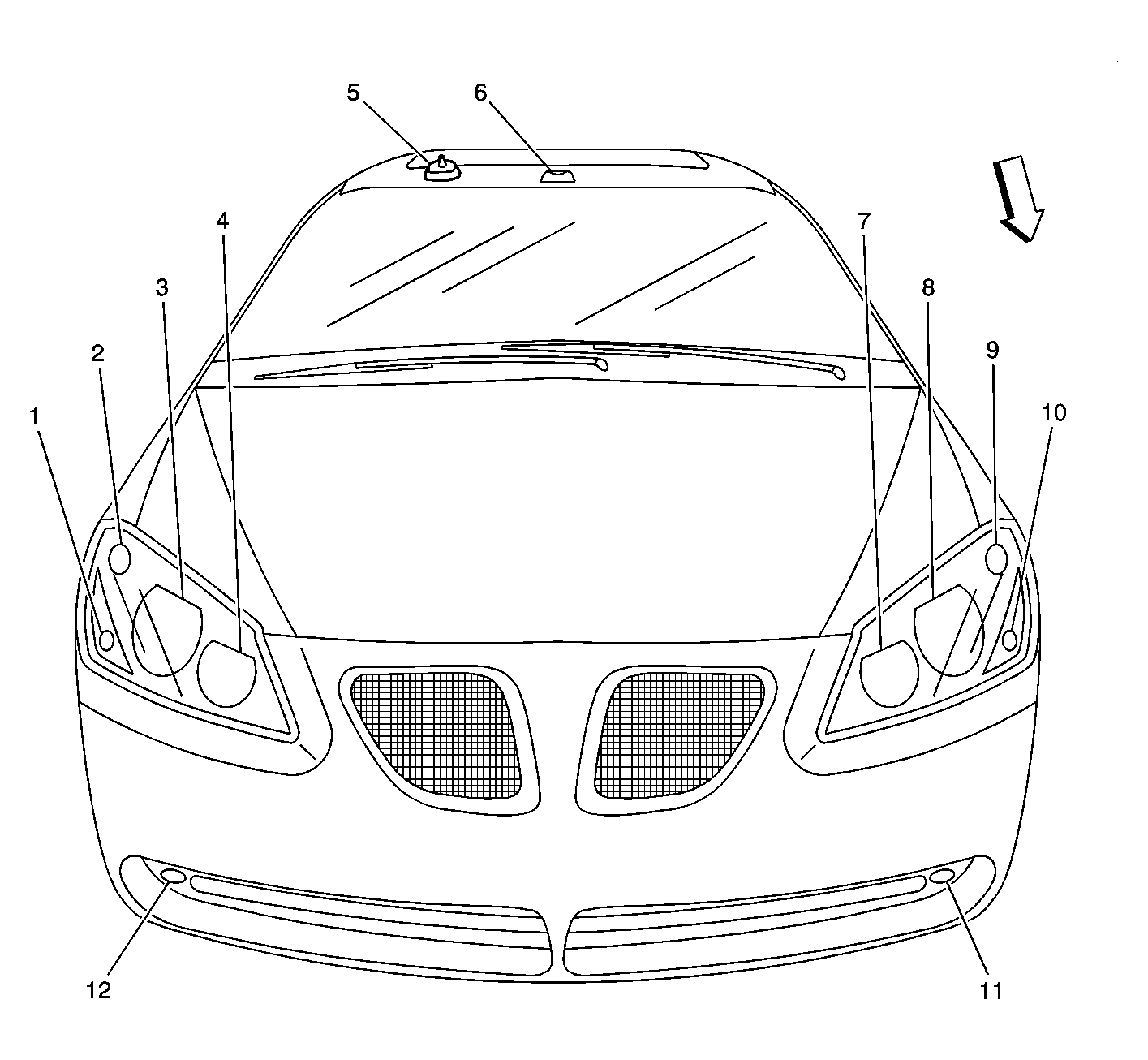

| Callout | Component Name |
|---|---|
| 1 | Marker Lamp - RF |
| 2 | Park/Turn Signal/DRL Lamp - RF |
| 3 | Headlamp - Low Beam - Right |
| 4 | Headlamp - High Beam - Right |
| 5 | Digital Radio Antenna (U2K) |
| 6 | Cellular and Navigational Antenna (UE1) |
| 7 | Headlamp - High Beam - Left |
| 8 | Headlamp - Low Beam - Left |
| 9 | Park/Turn Signal/DRL Lamp - LF |
| 10 | Marker Lamp - LF |
| 11 | Fog Lamp - LF |
| 12 | Fog Lamp - RF |
| Callout | Component Name |
|---|---|
| 1 | Courtesy/Reading Lamp - LF |
| 2 | Cellular Microphone (UE1) |
| 3 | Sunroof Switch (CF5/C3Y) |
| 4 | Courtesy/Reading Lamp - RF |
| 5 | Dome/Reading Lamp (w/o C3Y) |
| 6 | Sunroof (CF5/C3Y) |
| 7 | Vanity Mirror Lamp - Right |
| 8 | Inside Rearview Mirror |
| 9 | OnStar Keypad (UE1) |
| 10 | Vanity Mirror Lamp - Left |
| Callout | Component Name |
|---|---|
| 1 | Vehicle Communication Interface Module (VCIM)(UE1) |
