Remote Function Schematics

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

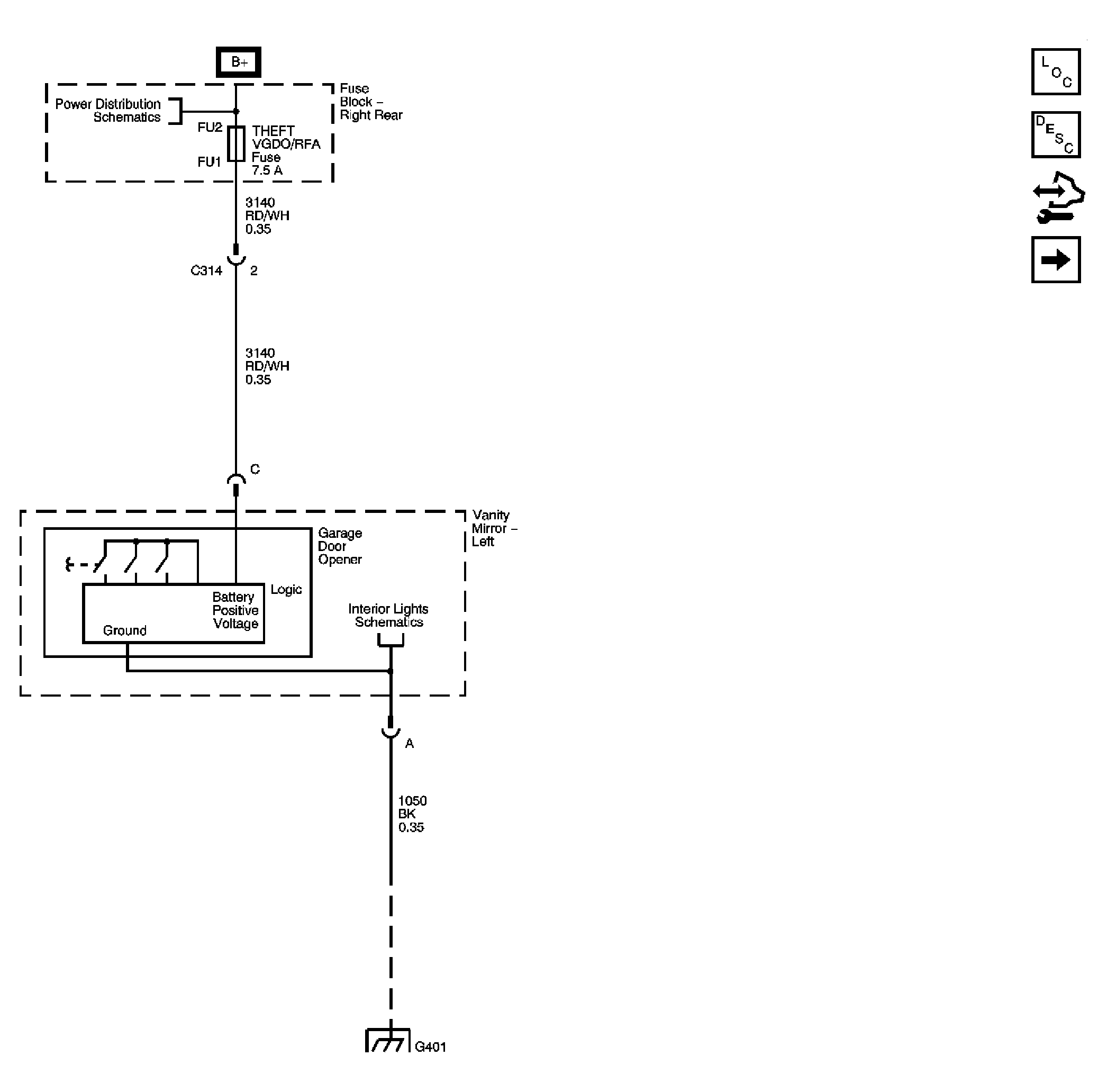

Fig 1: Garage Door Opener Schematic
GM1750424Courtesy of GENERAL MOTORS CORP.

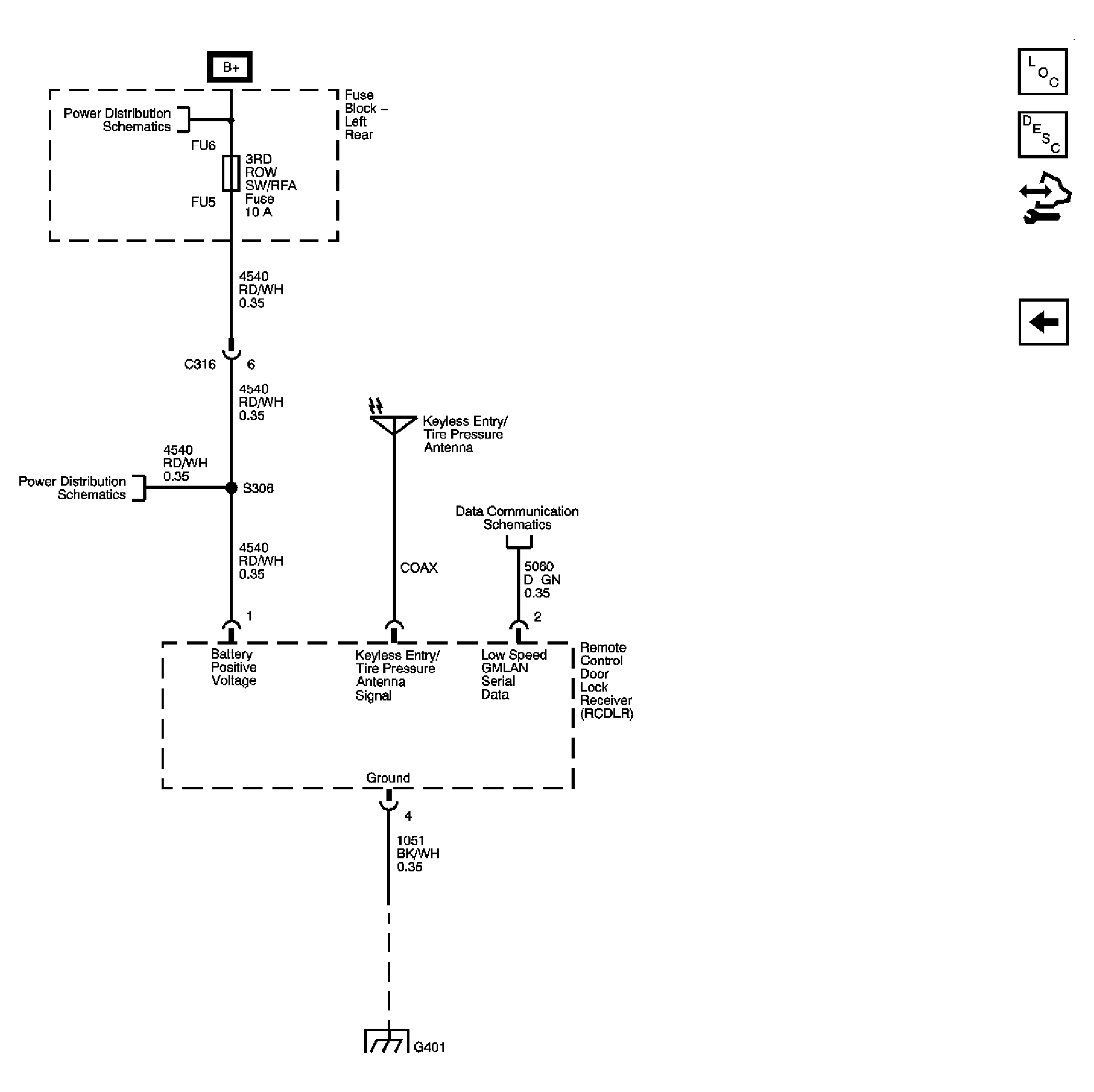

Fig 2: Keyless Entry Schematic
GM1750428Courtesy of GENERAL MOTORS CORP.
