Window Systems Component Views

Fig 1: Locating Driver Door Components
GM1863144Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror - Driver
2 Memory Seat Switch (AG3)
3 Driver Door Module (DDM) (AXC/AXE)
4 Speaker - LF Door
5 Inflatable Restraint Side Impact Sensing Module (SISM) - Left
6 Door Latch Assembly - Driver
7 Window Motor - Driver
8 Turn Signal Lamp (Part of Outside Rearview)
Fig 2: Locating Passenger Door Components
GM1863143Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror - Passenger
2 Turn Signal Lamp (Part of Outside Rearview Mirror) (DNP/DS3)
3 Window Motor - Passenger
4 Door Latch Assembly - Passenger
5 Inflatable Restraint Side Impact Sensing Module (SISM) - Right Front
6 Speaker - RF Door
7 Window Switch - Passenger and Door Lock Switch Passenger (without AXC/AXE)/Passenger Door Module (PDM) (AXC/AXE)

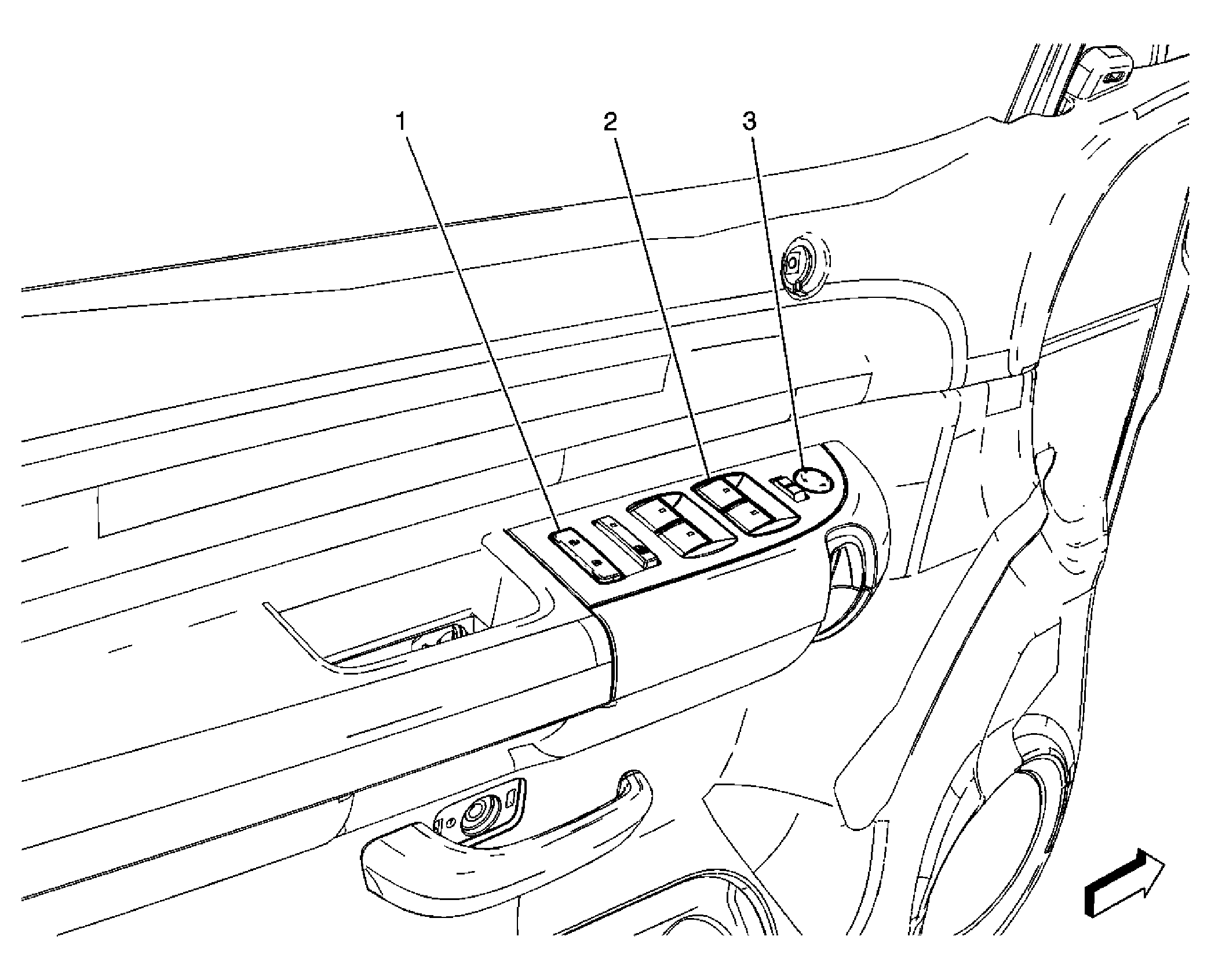

Fig 3: Identifying Driver Door Switches (AXA)
GM1867848Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Switch - Driver
2 Window Switch - Driver
3 Outside Rearview Mirror Switch
Fig 4: Locating LR Door Components
GM1863142Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Latch Assembly - LR
3 Window Switch - LR
4 Speaker - LR Door
5 Window Motor - LR
6 Inflatable Restraint Side Impact Sensing Module (SISM) - LR
Fig 5: Locating RR Door Components
GM1863146Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Latch Assembly - RR
2 Window Switch - RR
3 Speaker - RR Door
4 Inflatable Restraint Side Impact Sensing Module (SISM) - RR
5 Window Motor - RR
Fig 6: Identifying Liftgate Components
GM1863122Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Liftgate Object Sensor - Right (E61)
2 Rear Window Defogger Grid
3 Rear Window Wiper Motor
4 Liftgate Object Sensor - Left (E61)
5 Courtesy Lamp - Liftgate - Left
6 Liftgate Switch - Interior (E61)
7 Liftgate Latch Assembly
8 Courtesy Lamp - Liftgate - Right
9 Liftgate Switch - Exterior
