Transfer Case Control Component Views

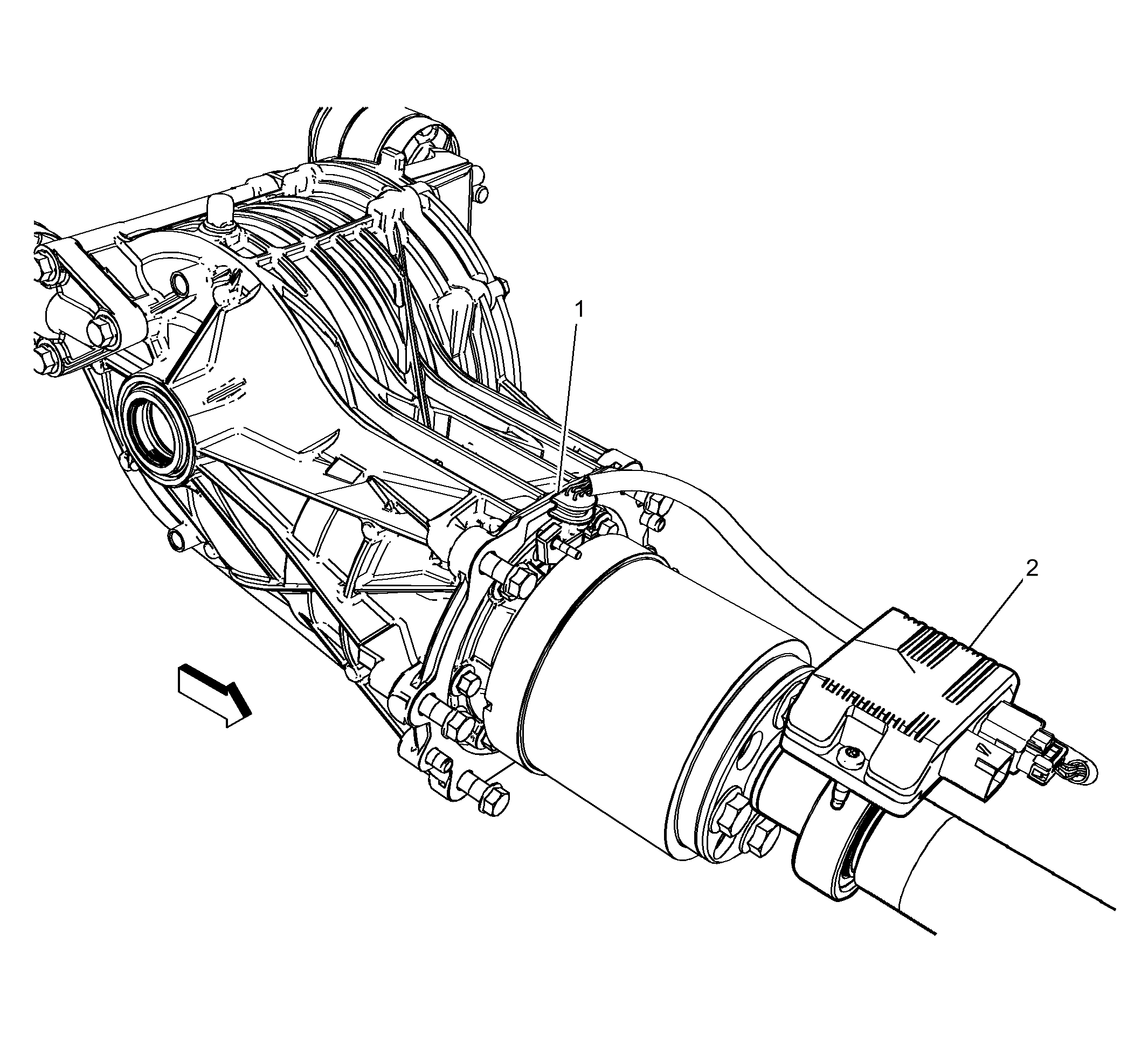

Fig 1: Near The Rear Differential
GM1867822Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Differential
2 Rear Wheel Drive Module Clutch (MH6)
3 Rear Differential Clutch Control Module (MH6)
4 Drive Axle
