Body Control Module (BCM) C1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

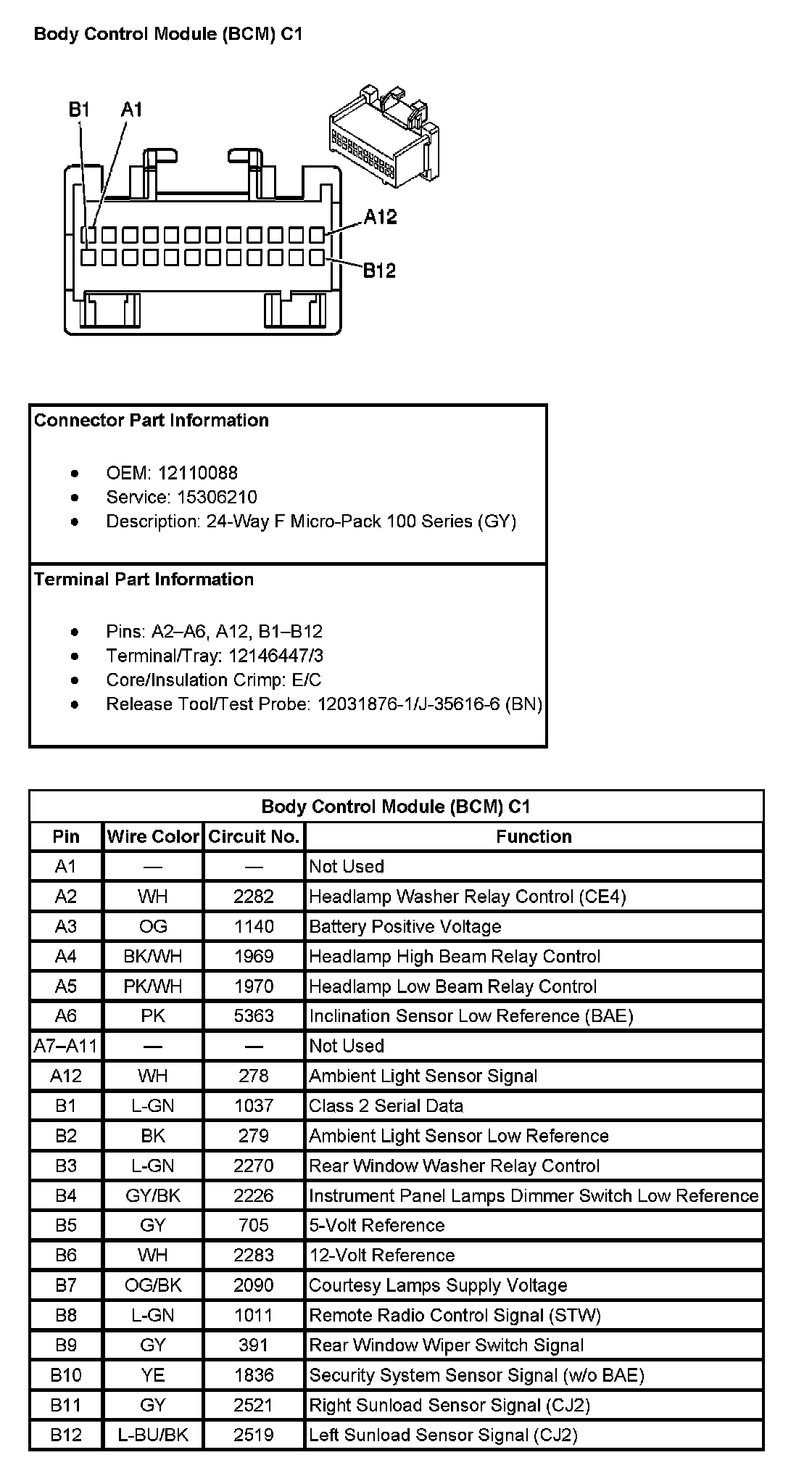

Body Control Module (BCM) C1
Body Control Module (BCM) C1:
