Knock Sensor: Locations

Engine Controls Component Views

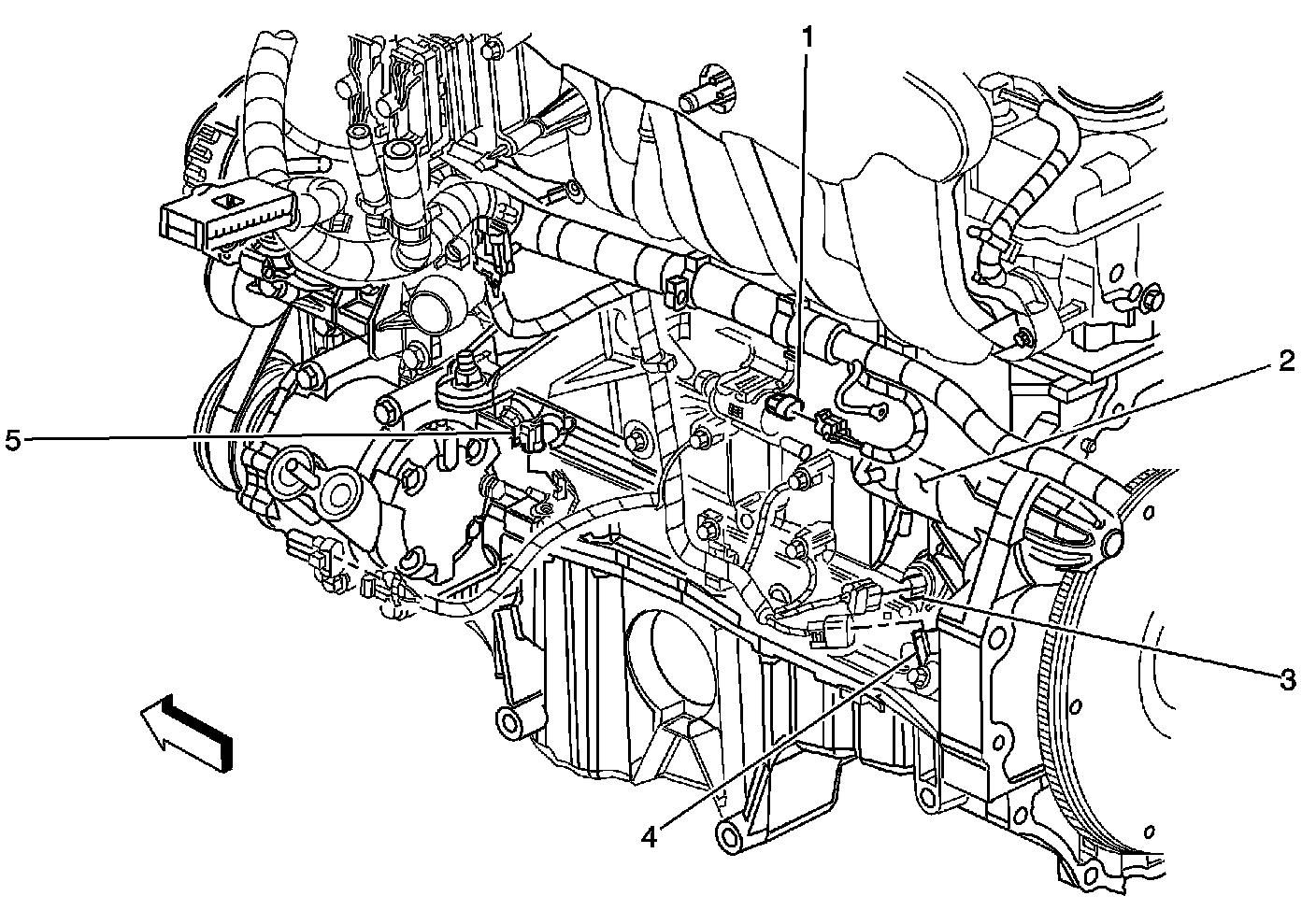

Lower Left Side of the Engine




1 - Evaporative Emission (EVAP) Canister Purge Solenoid
2 - Starter
3 - Crankshaft Position (CKP) Sensor
4 - Knock Sensor (KS) 2 - Rear
5 - Knock Sensor (KS) 1 - Front
