Timing Cover

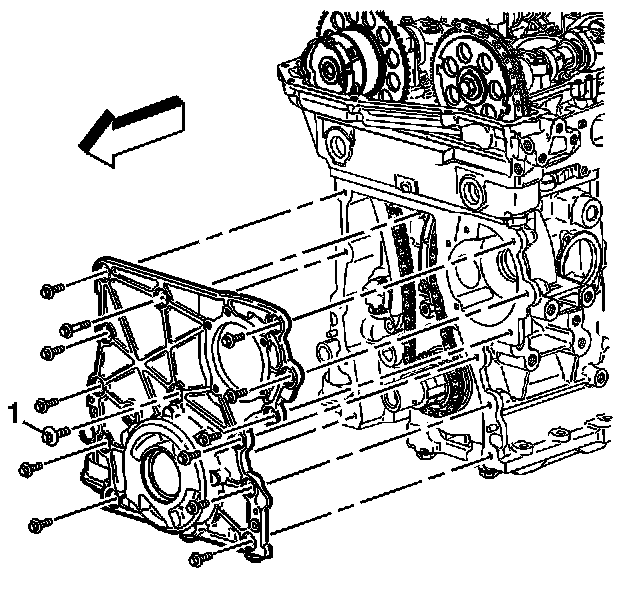

Engine Front Cover
Install the engine front cover.
Install the engine front cover bolts.
Tighten the engine front cover bolts to 10 N.m (89 lb in).
Tighten the small center bolt (1) last to 10 N.m (89 lb in).
Engine Front Cover Spacer Bolt 10 N.m (89 lb in)
Engine Front Lift Bracket Bolt 50 N.m (37 lb ft)
