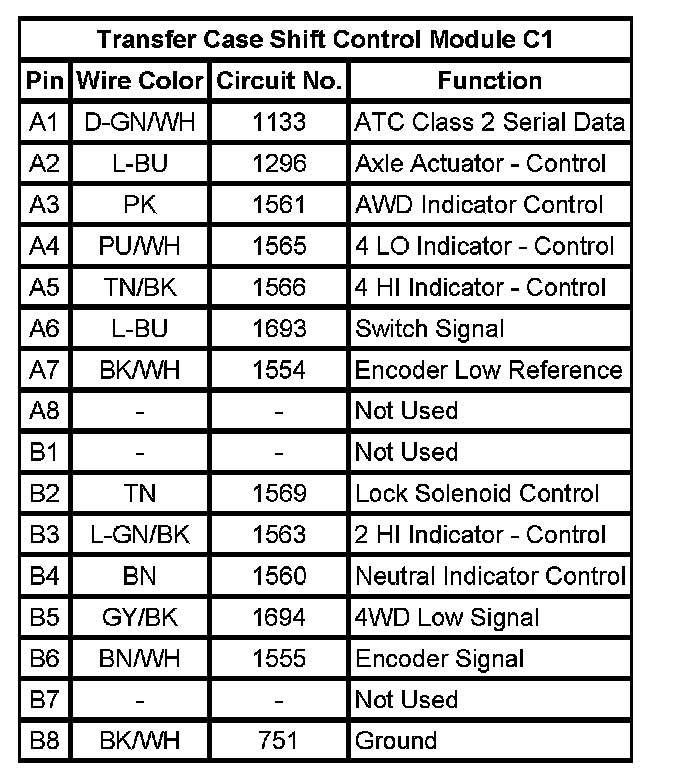

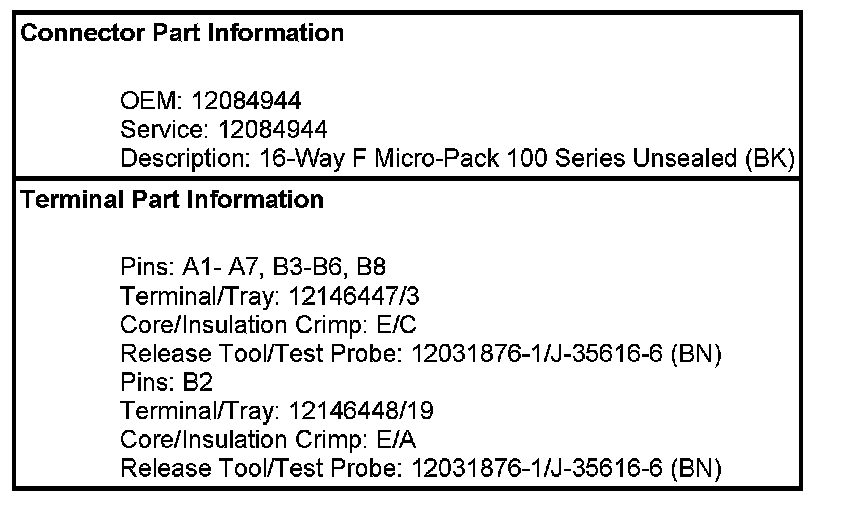

Transfer Case Shift Control Module C1



Transfer Case Shift Control Module C1

Transfer Case Shift Control Module - C1:







Transfer Case Shift Control Module C1:
