Engine Control Module
Engine Control Module Connector End Views
Engine Control Module X1

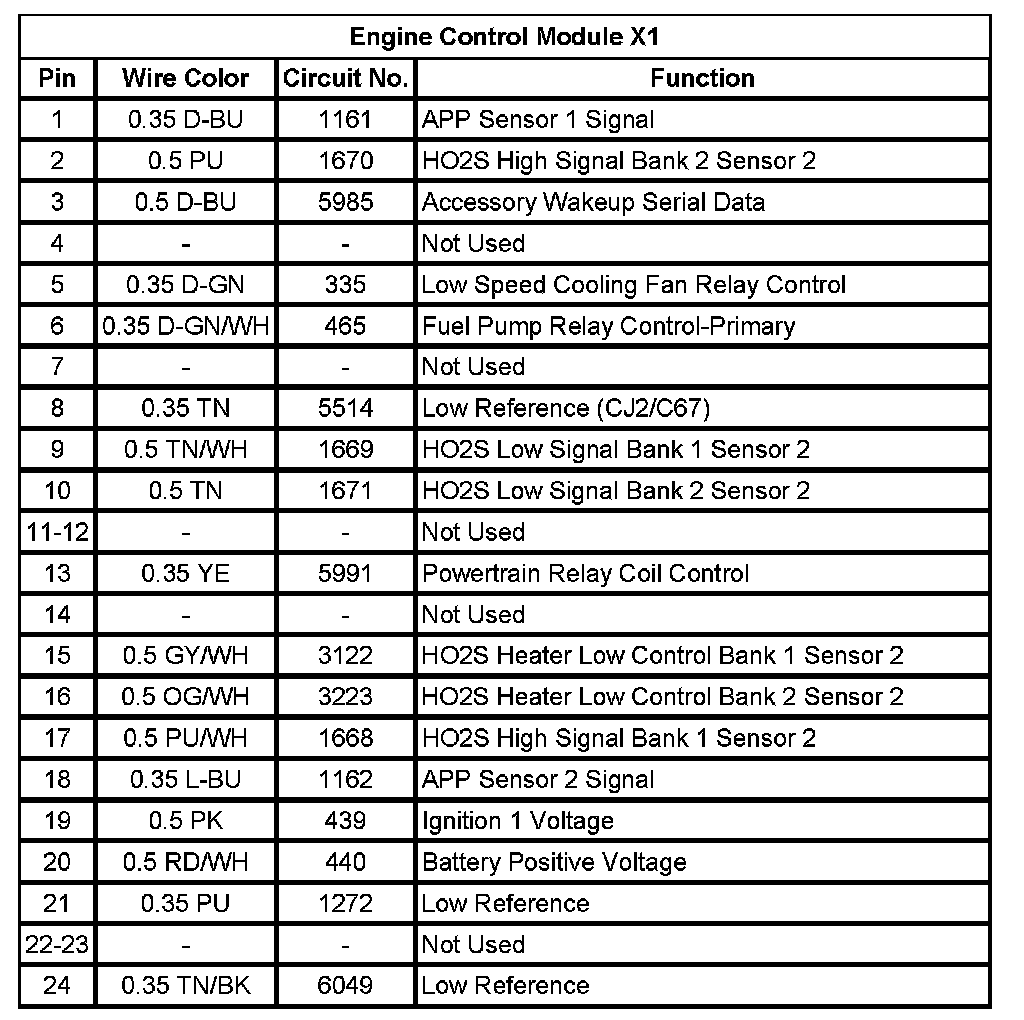

Engine Control Module X1 (Pin 1 To 24):

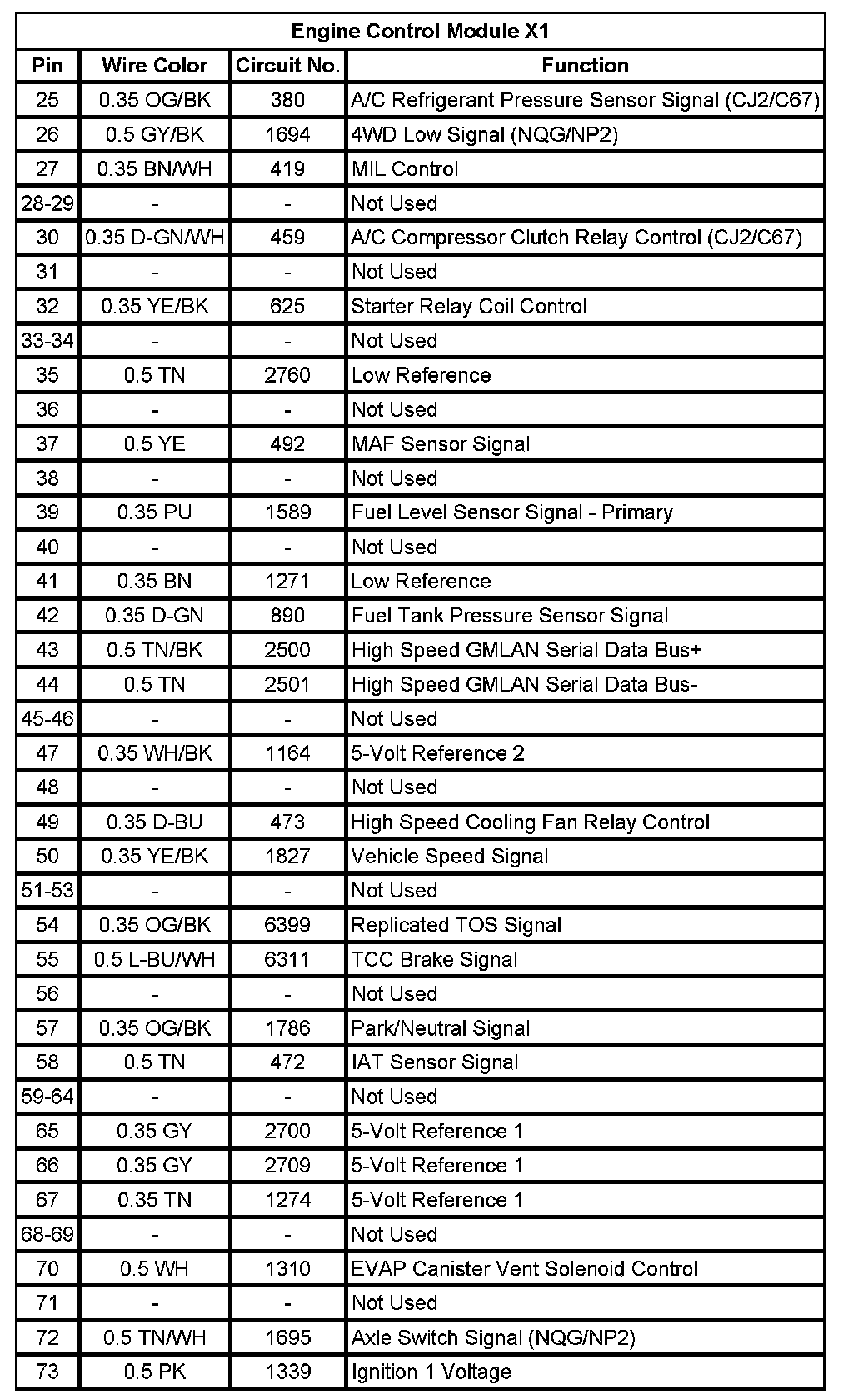

Engine Control Module X1 (Pin 25 To 73):
Engine Control Module X2

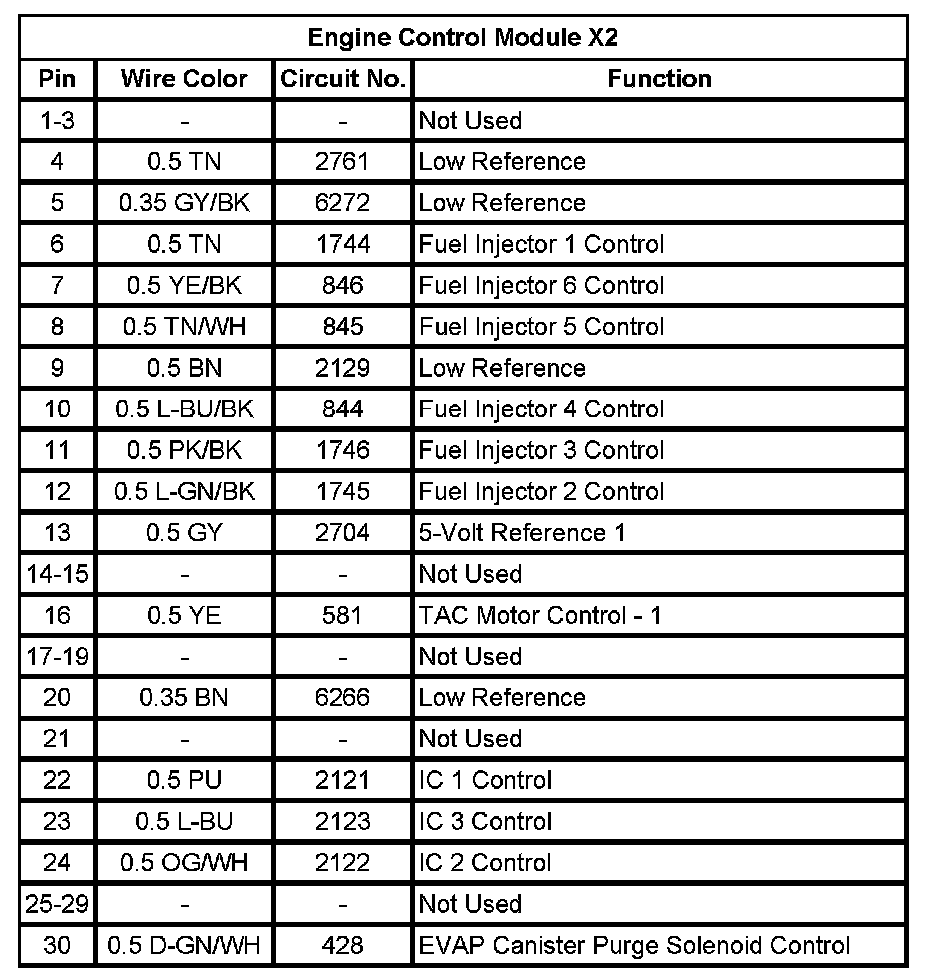

Engine Control Module X2 (Pin 1 To 30):

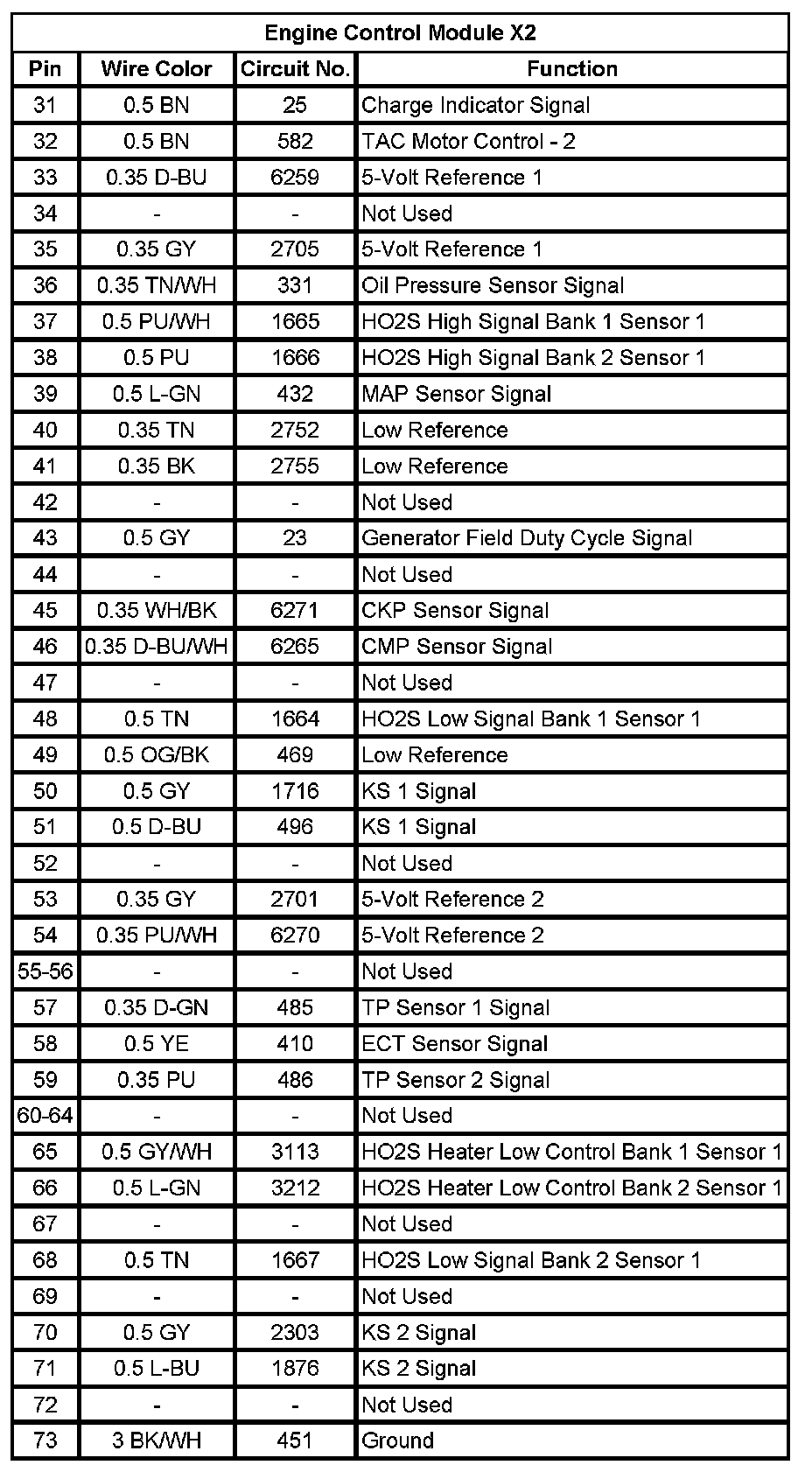

Engine Control Module X2 (Pin 31 To 73):
