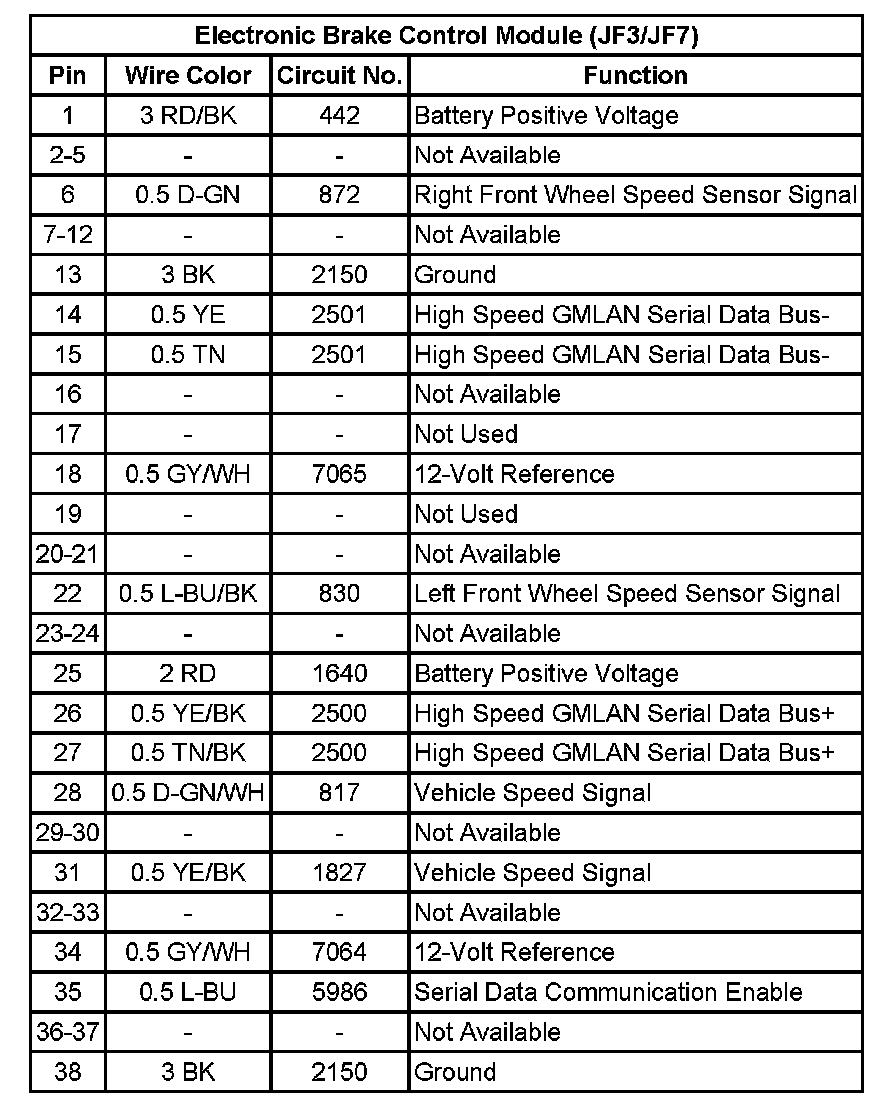

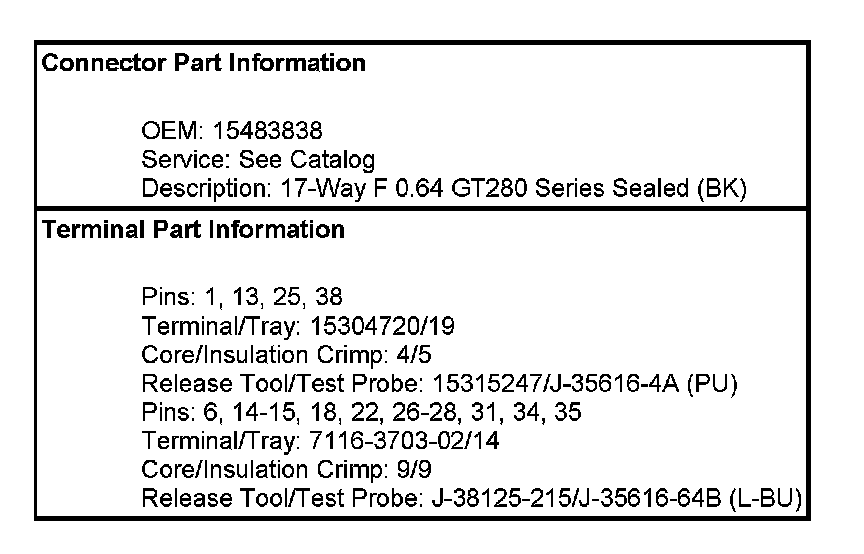

Electronic Brake Control Module (JF3/JF7)



Electronic Brake Control Module (JF3/JF7)







Electronic Brake Control Module (JF3/JF7):
