Trailer Brake Control Module



Trailer Brake Controller Module (TBCM)

Electronic Suspension Control (ESC) Module:

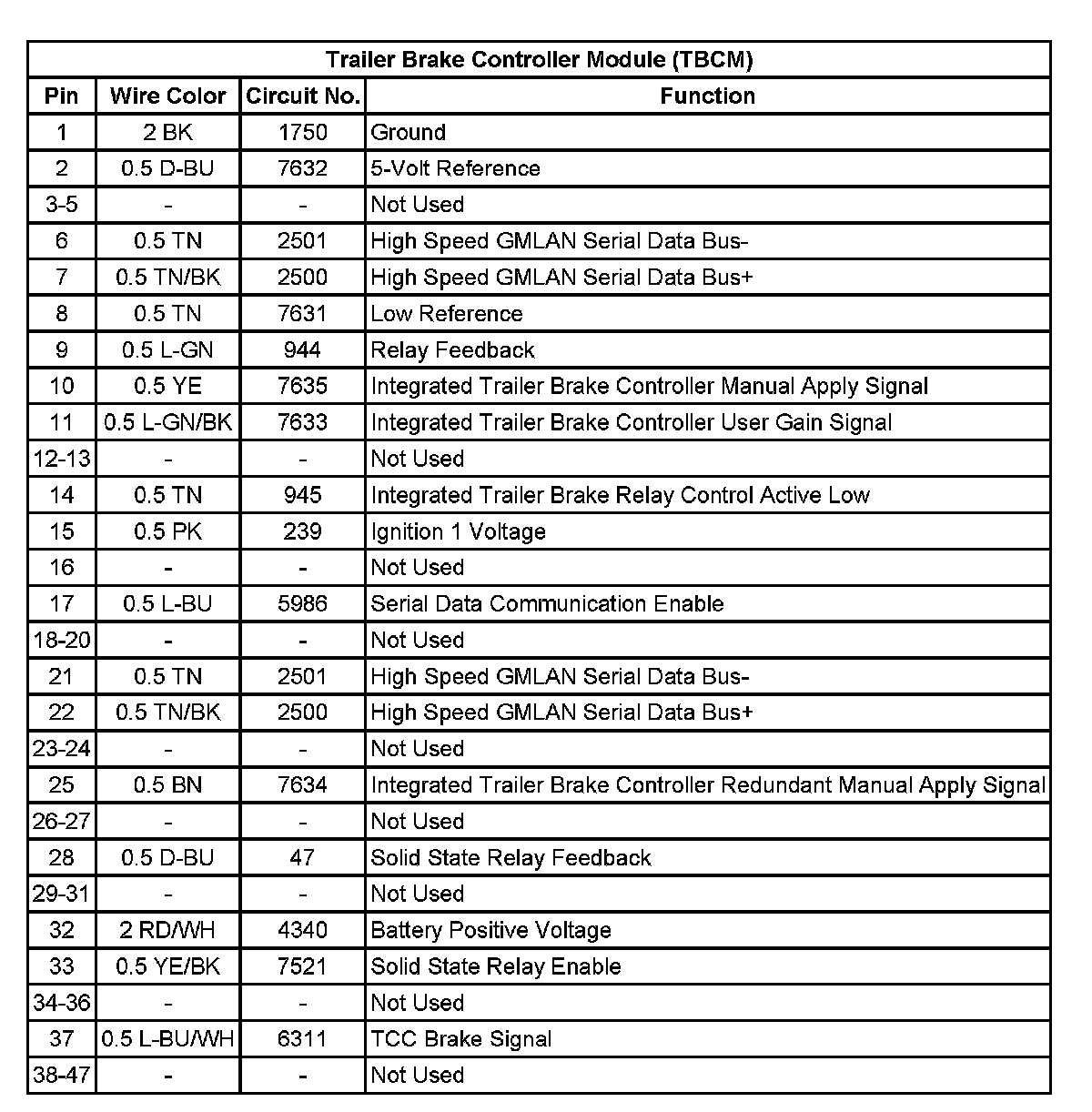

Trailer Brake Controller Module (TBCM):
