Connector Views
Engine Control Module Connector End Views

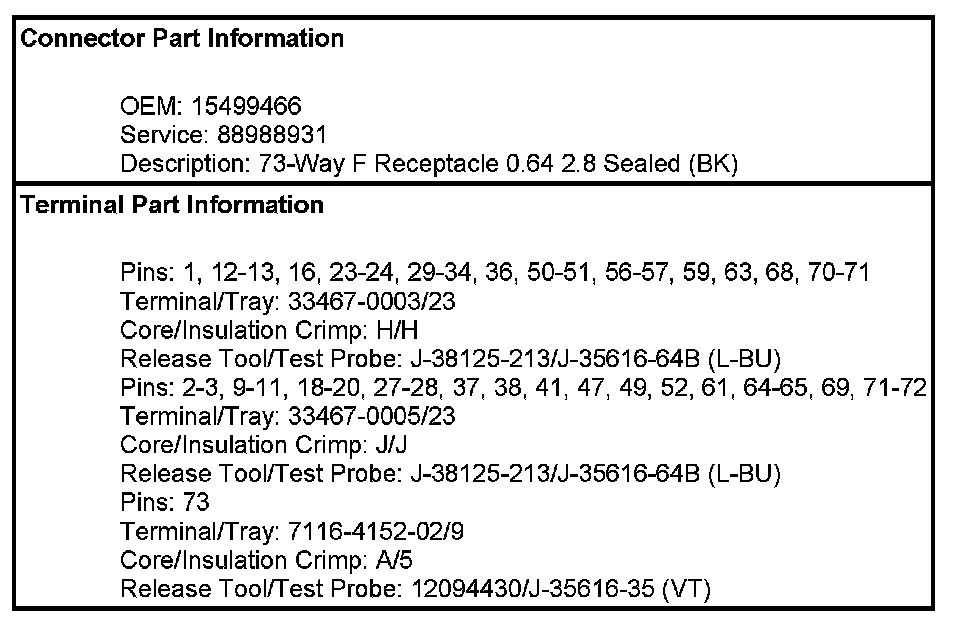

Engine Control Module X1

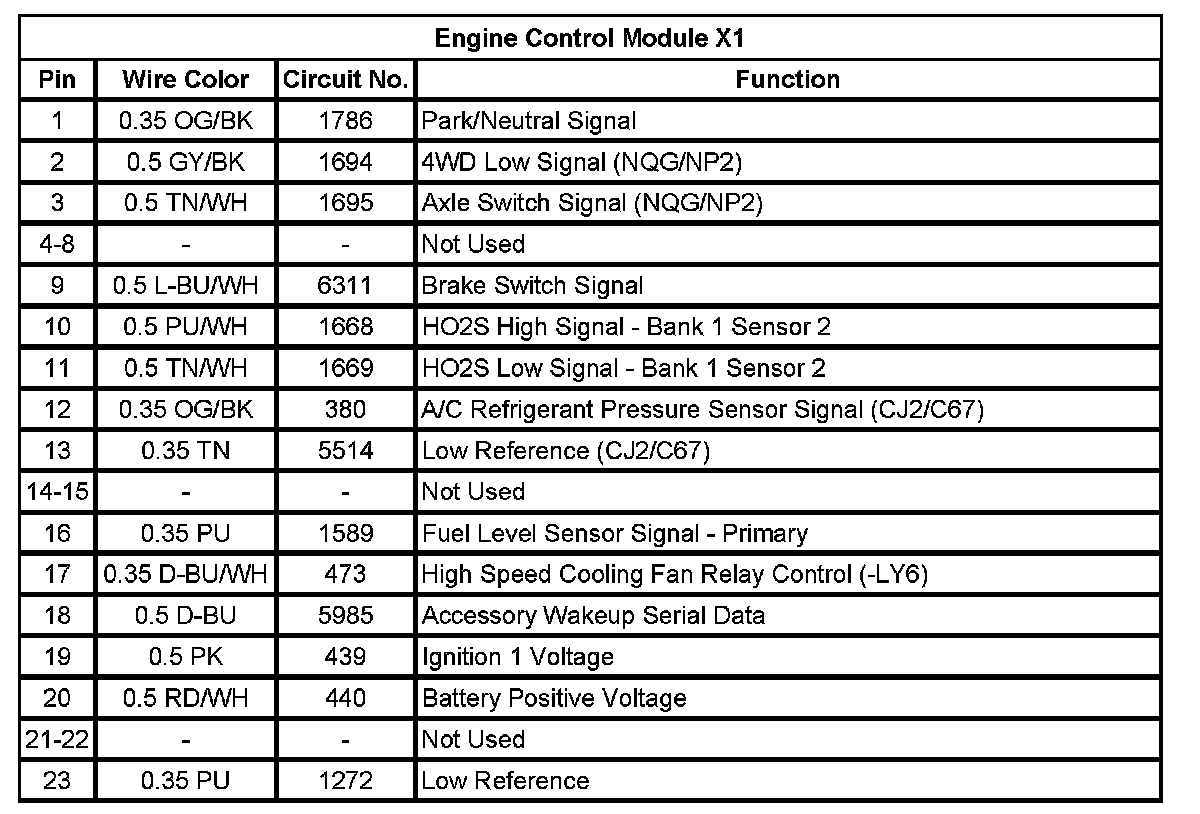

Engine Control Module X1 (Pin 1 To 23):

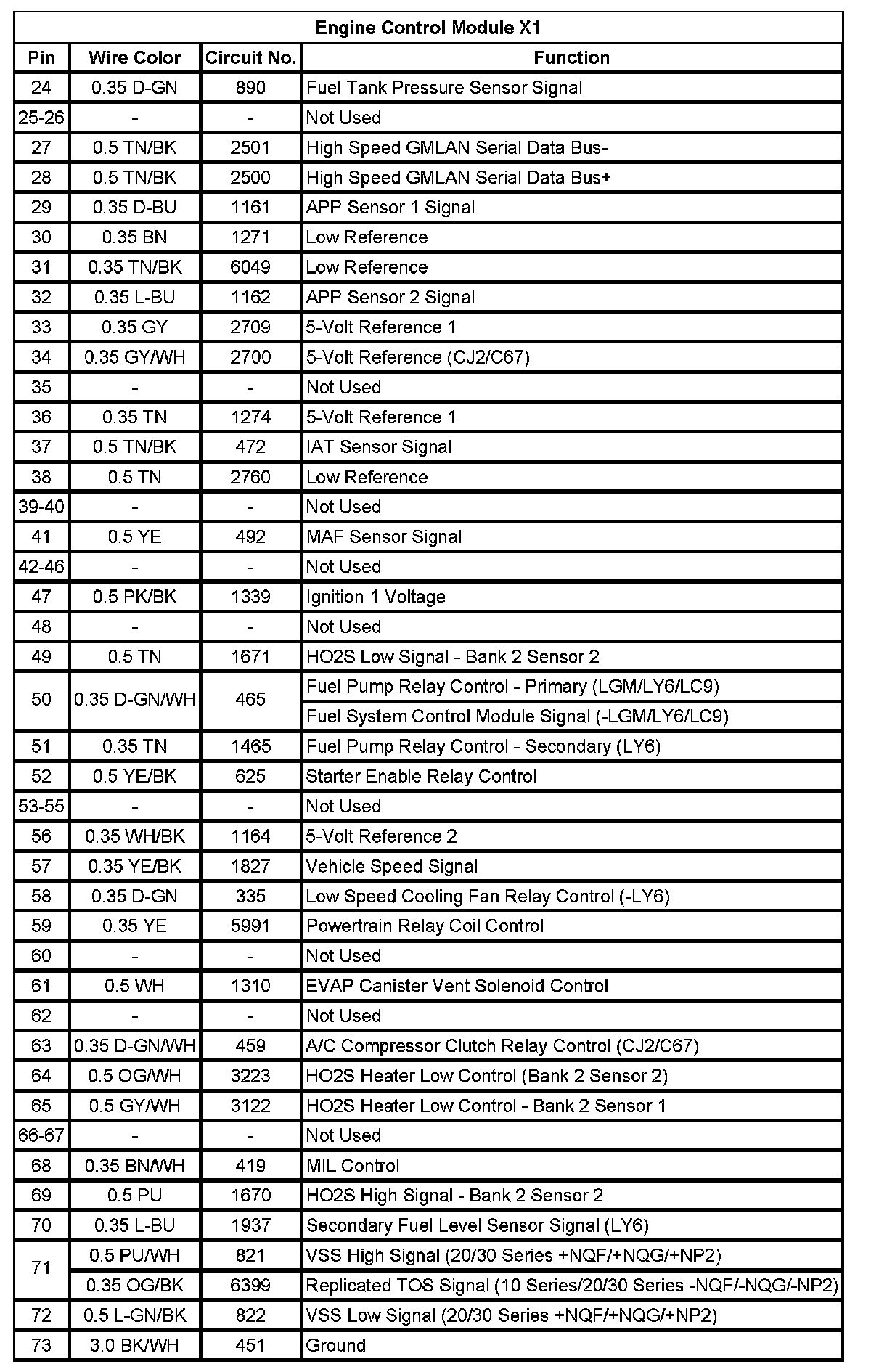

Engine Control Module X1 (Pin 24 To 73):

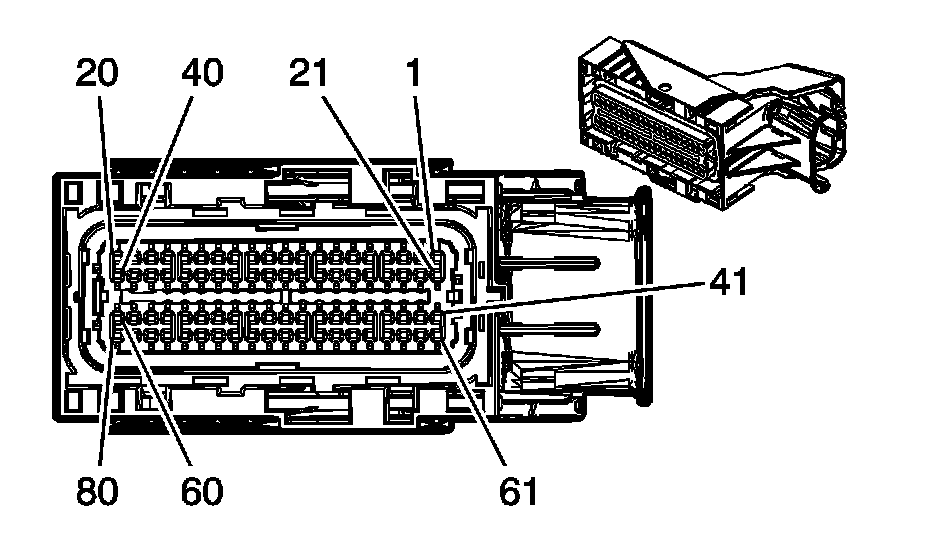

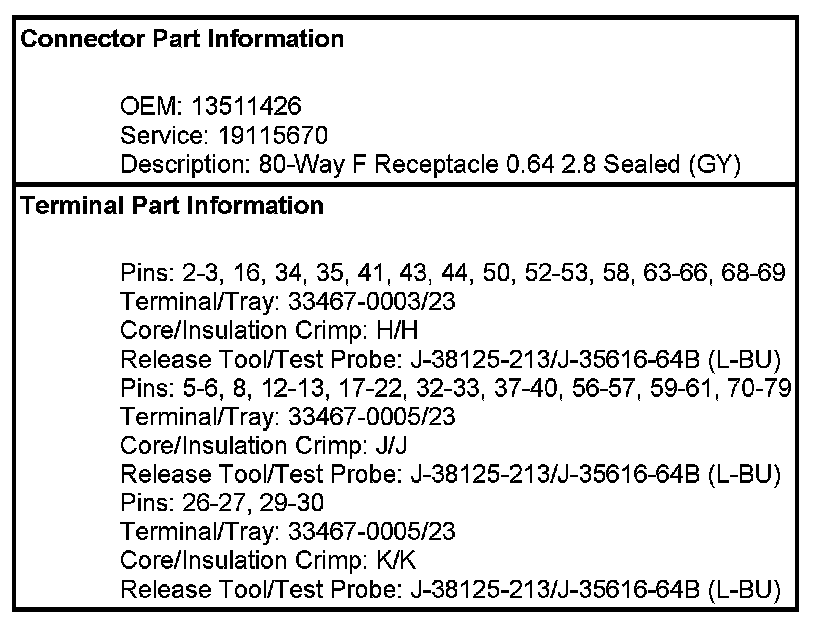

Engine Control Module X2

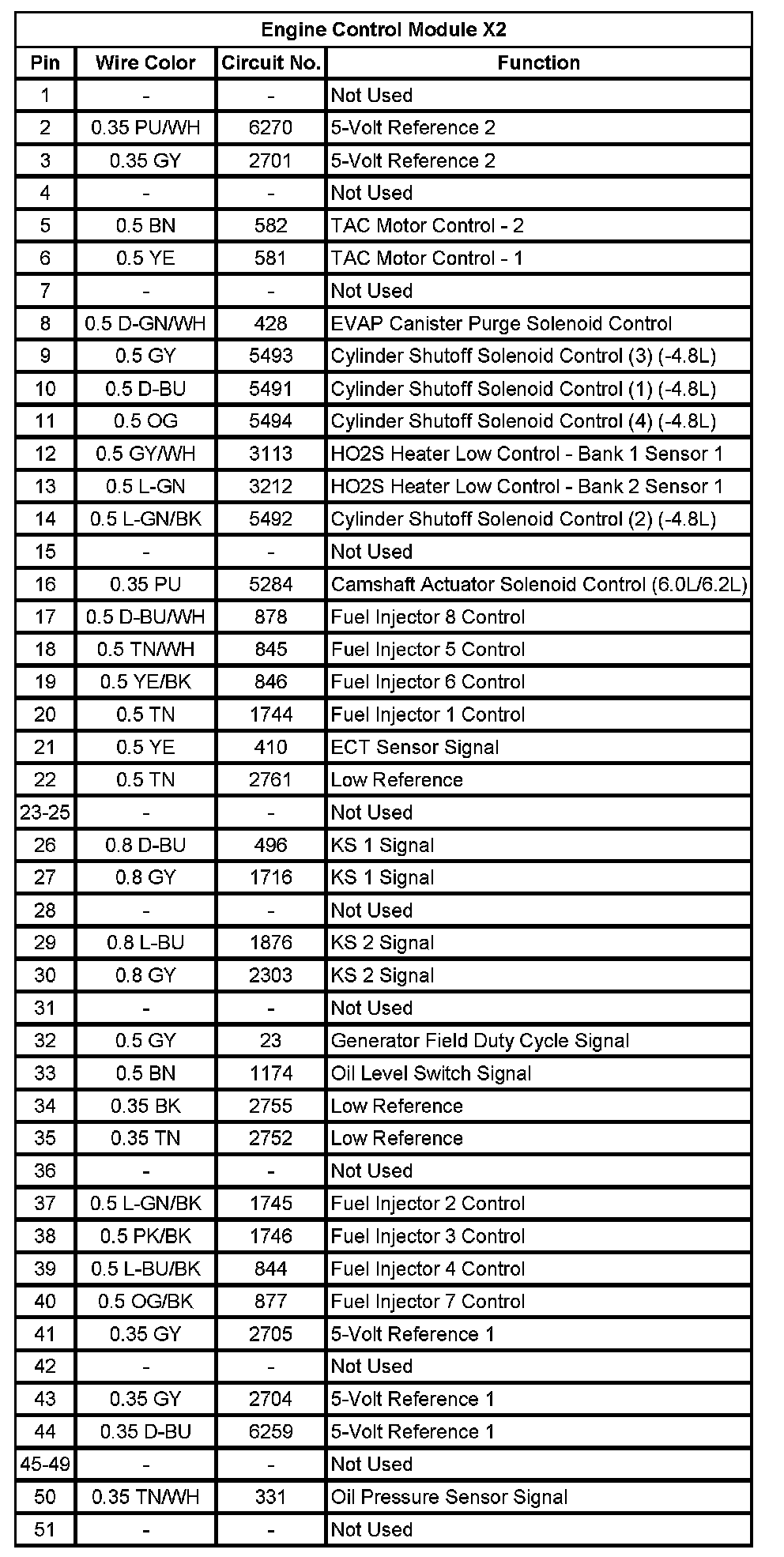

Engine Control Module X2 (Pin 1 To 51):

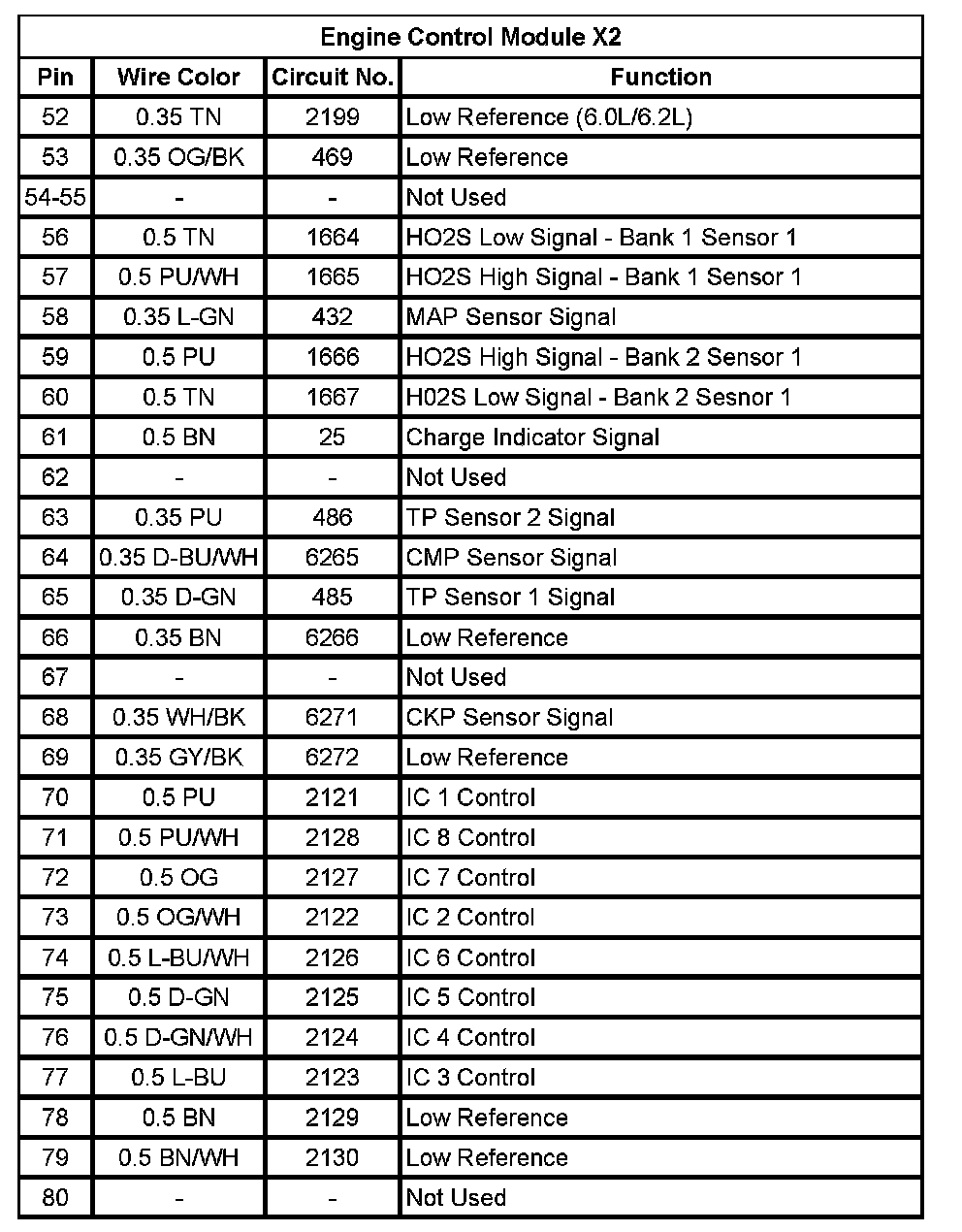

Engine Control Module X2 (Pin 52 To 80):
