Power Window Switch: Locations

Window Systems Component Views

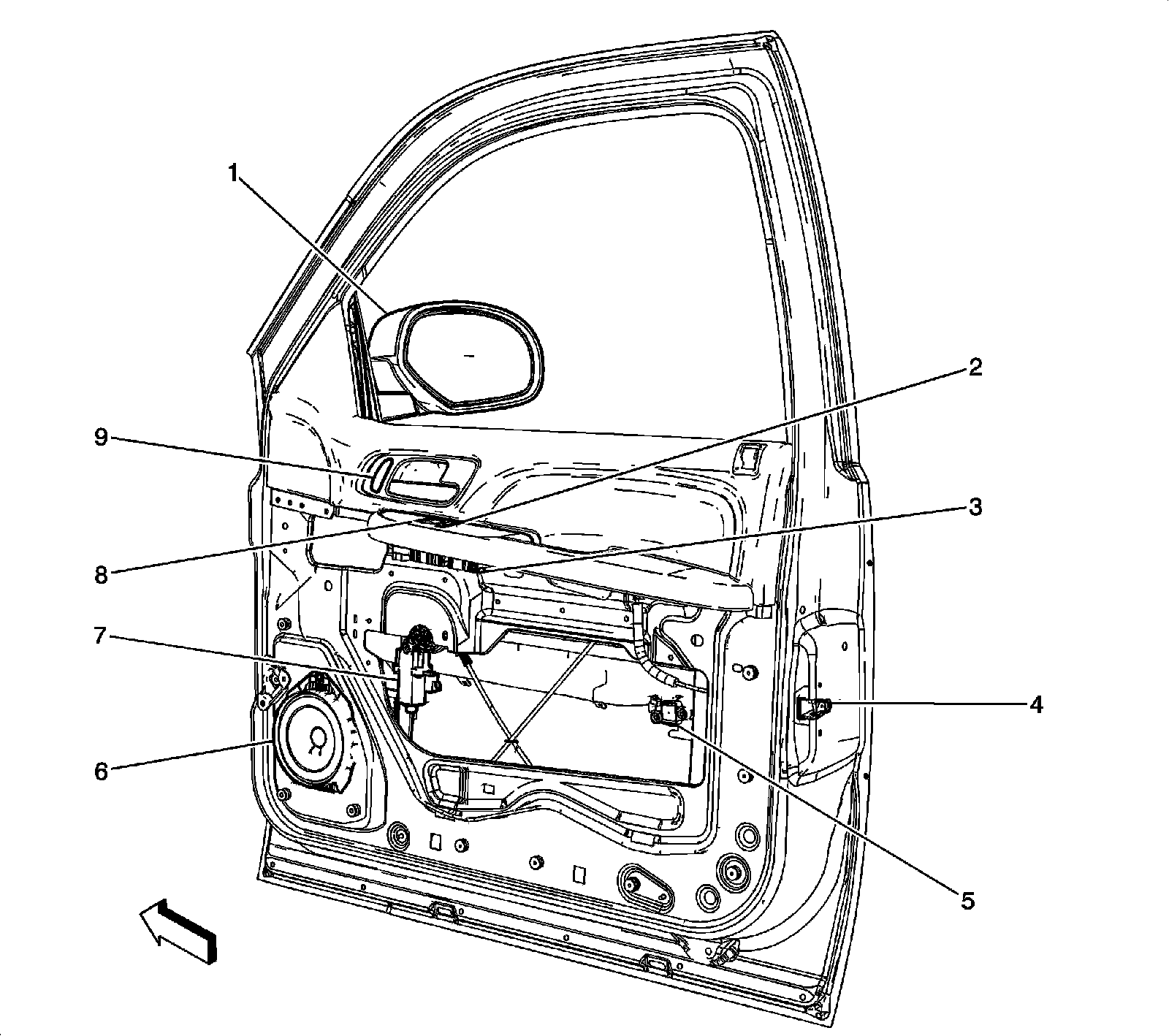

Passenger Door




1 - Outside Rearview Mirror - Passenger
2 - Door Lock Switch - Passenger (AU3 -AN3/DL3)
3 - Passenger Door Switch (PDS) (AN3/DL3)
4 - Door Latch Assembly - Passenger
5 - Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)
6 - Speaker - Right Front
7 - Window Motor - Passenger (A31)
8 - Window Switch - Passenger (A31 -AN3/DL3)
9 - Heated Seat Switch - Passenger (AN3)

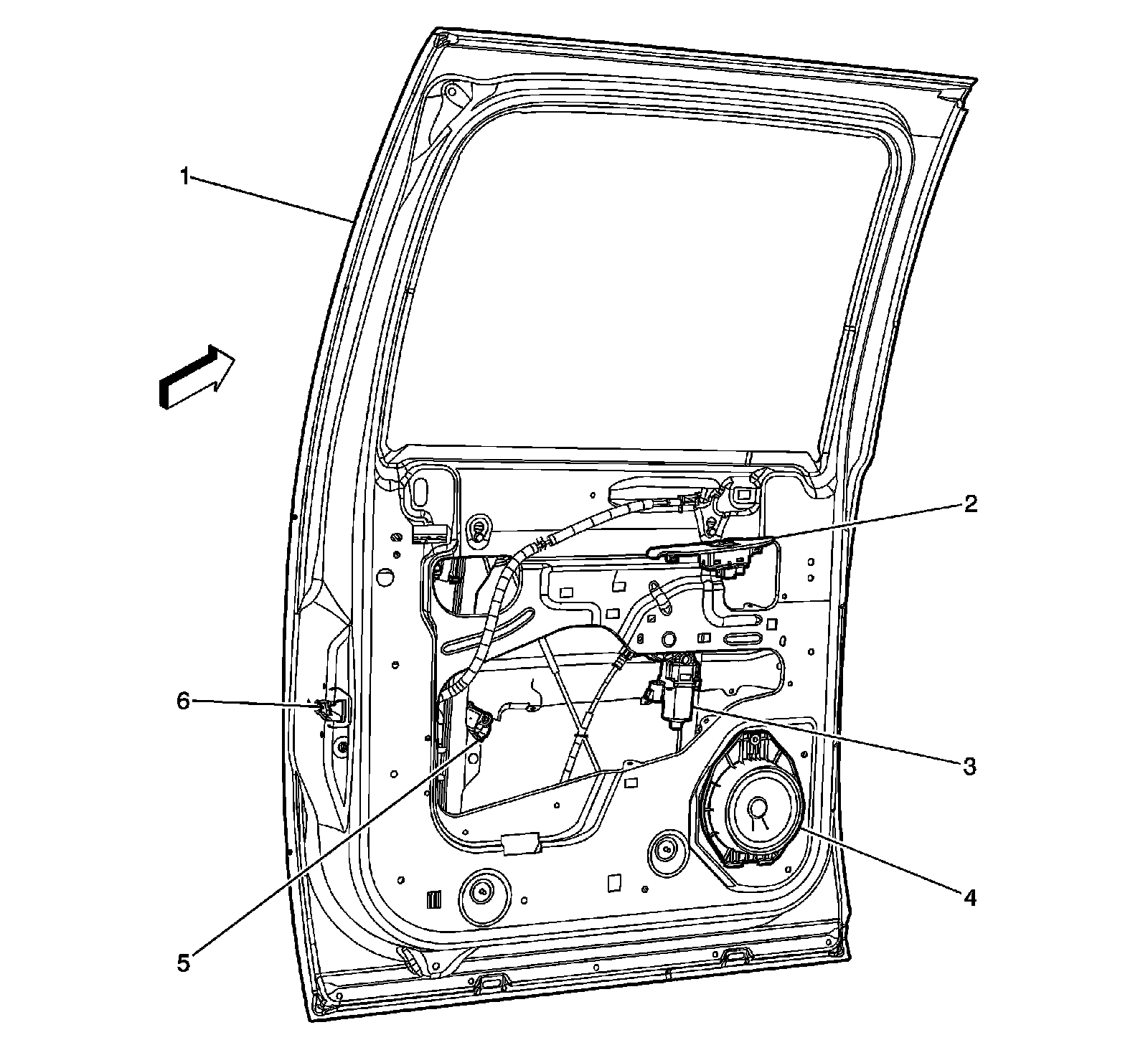

Left Rear Door (Crew Cab)




1 - Door Frame
2 - Window Switch - Left Rear (A31)
3 - Window Motor - Left Rear (A31)
4 - Speaker - Left Rear Door
5 - Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (ASF)
6 - Door Latch Assembly - Left Rear

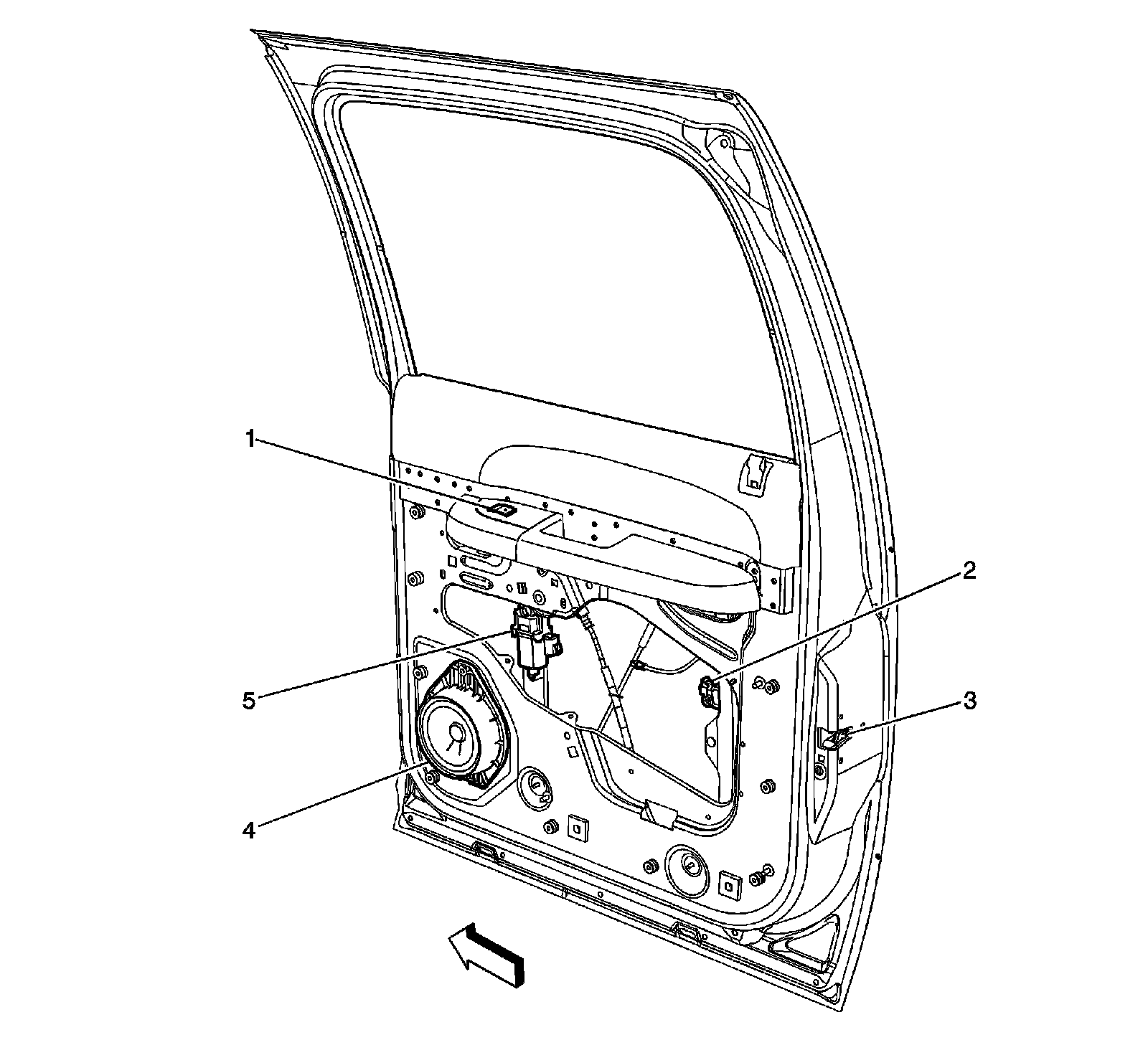

Right Rear Door (Crew Cab)




1 - Window Switch - Right Rear (A31)
2 - Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (ASF)
3 - Door Latch Assembly - Right Rear
4 - Speaker - Right Rear Door
5 - Window Motor - Right Rear (A31)

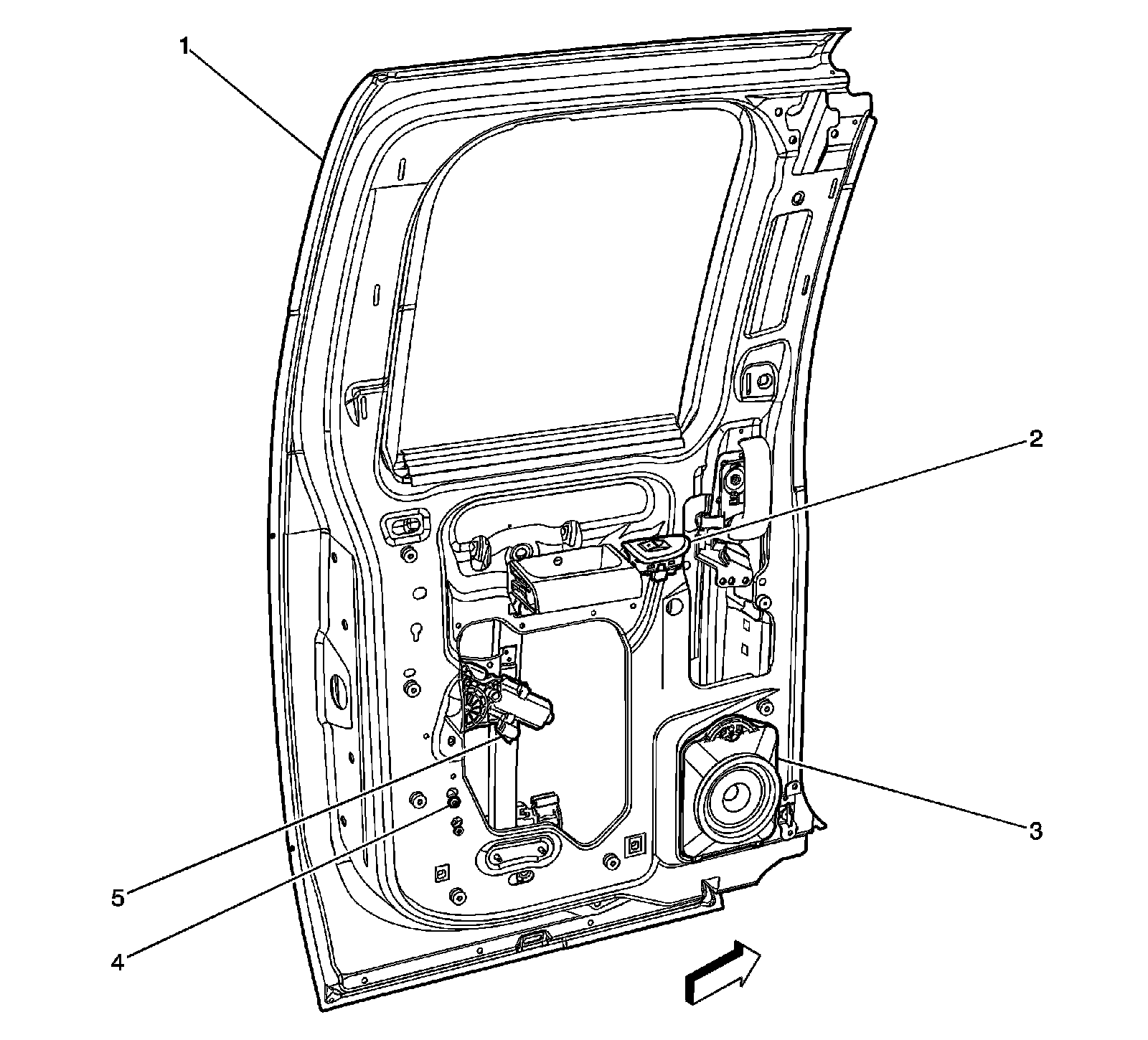

Left Rear Door (Extended Cab)




1 - Door Frame
2 - Window Switch - Left Rear (ABV)
3 - Speaker - Left Rear Door
4 - Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (ASF)
5 - Window Motor - Left Rear (ABV)

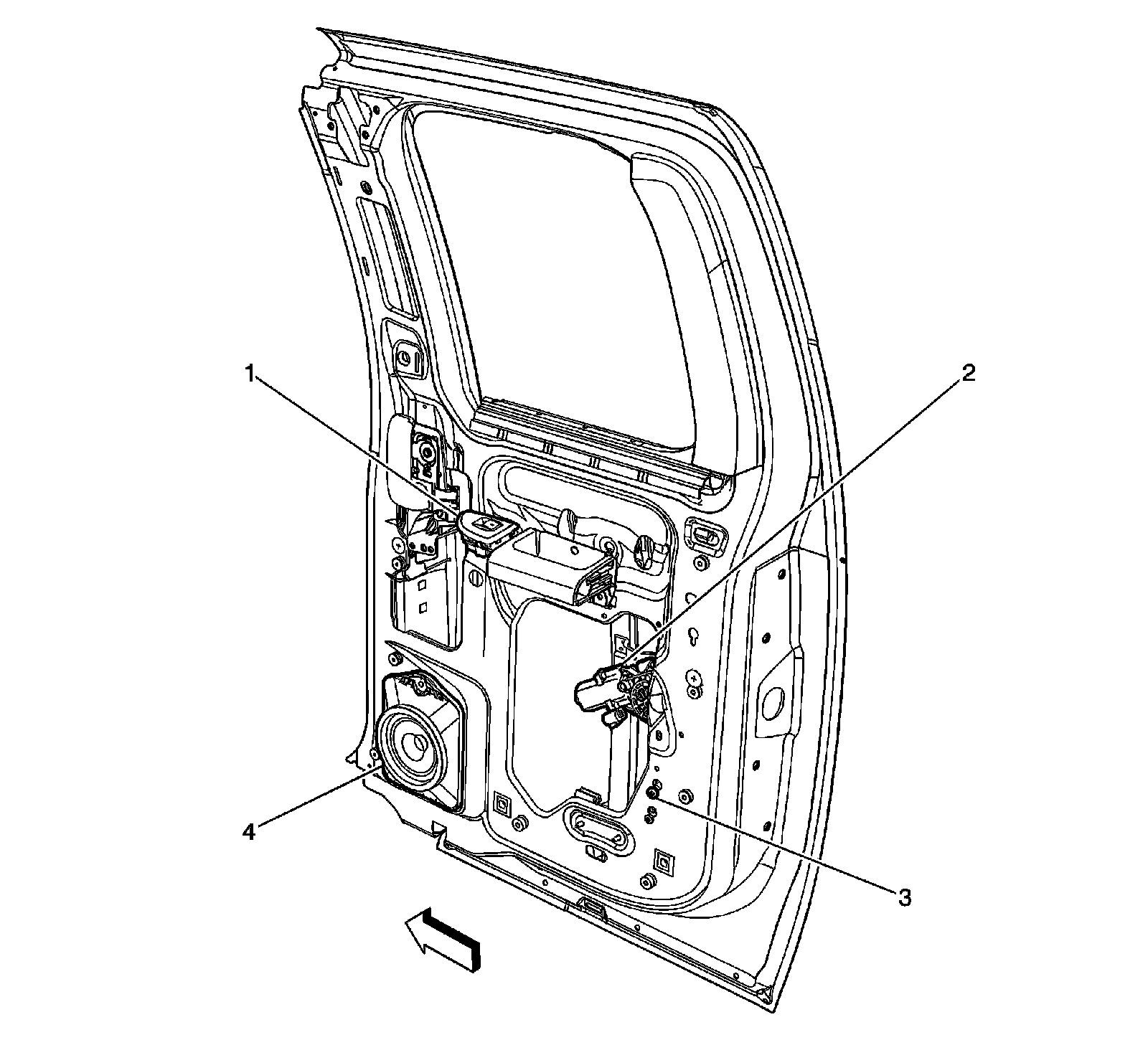

Right Rear Door (Extended Cab)




1 - Window Switch - Right Rear (ABV)
2 - Window Motor - Right Rear (ABV)
3 - Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (ASF)
4 - Speaker - Right Rear Door
