Engine Control Module

Engine Control Module (ECM) Connector End Views

Component Locator

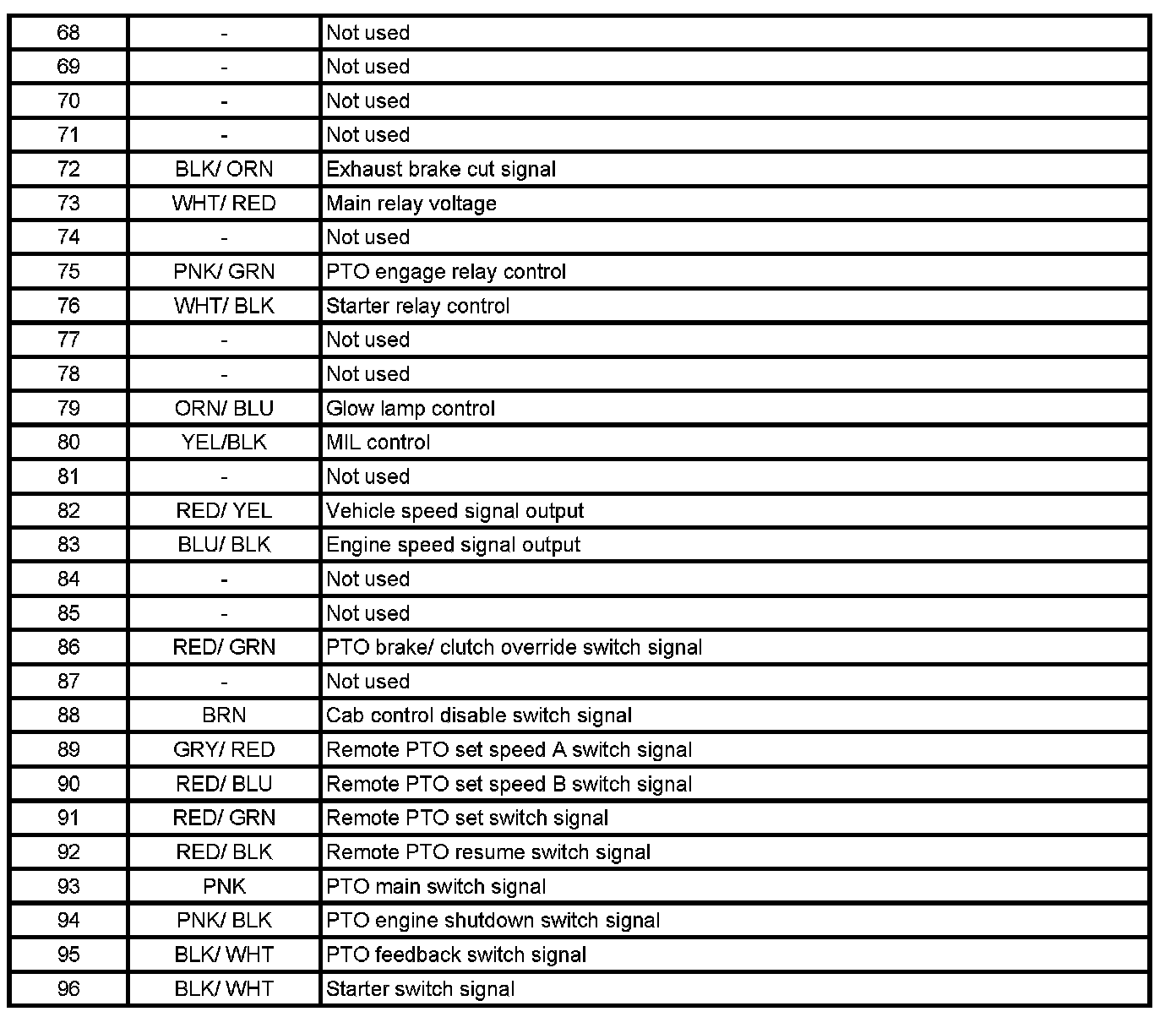

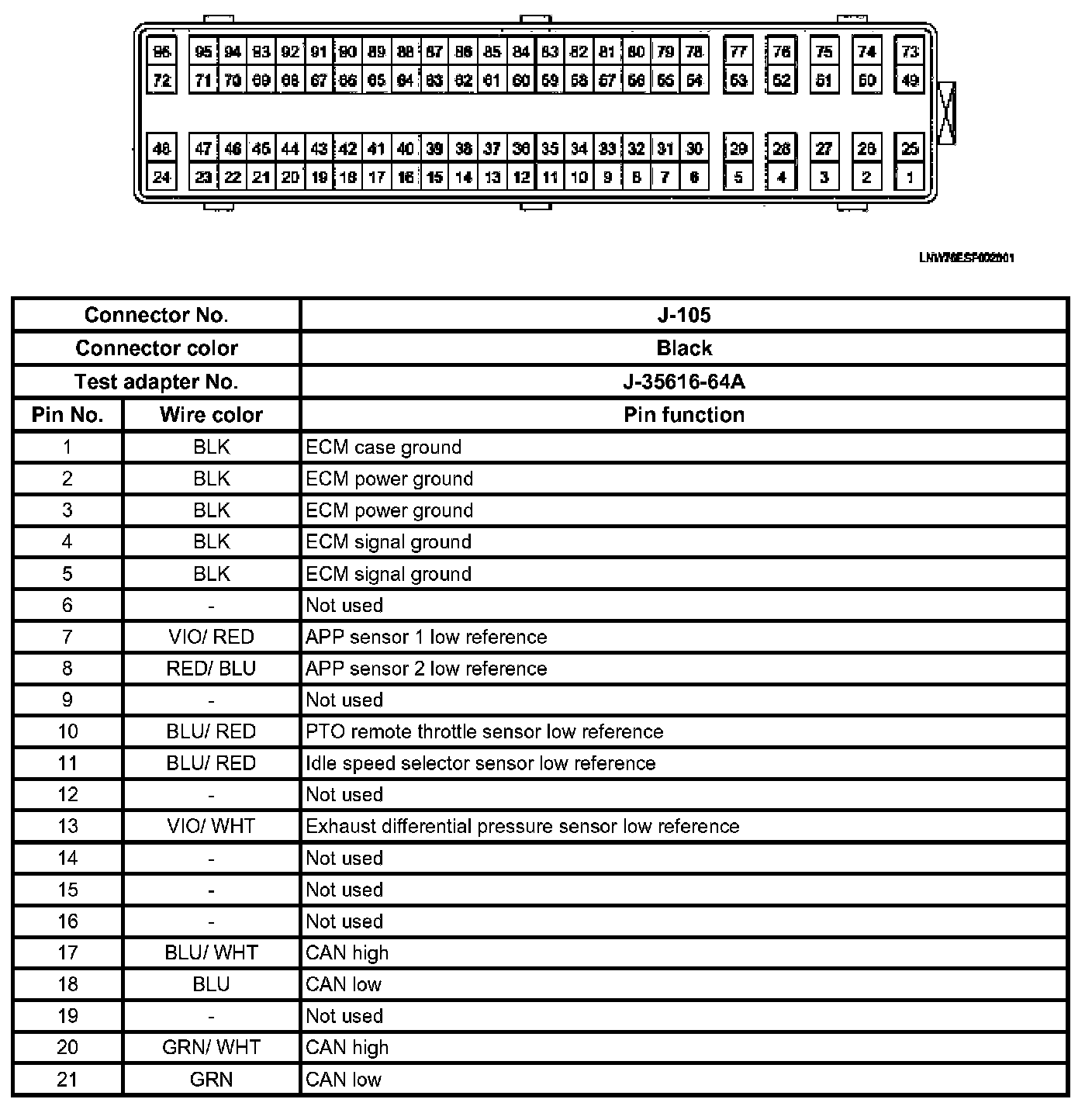

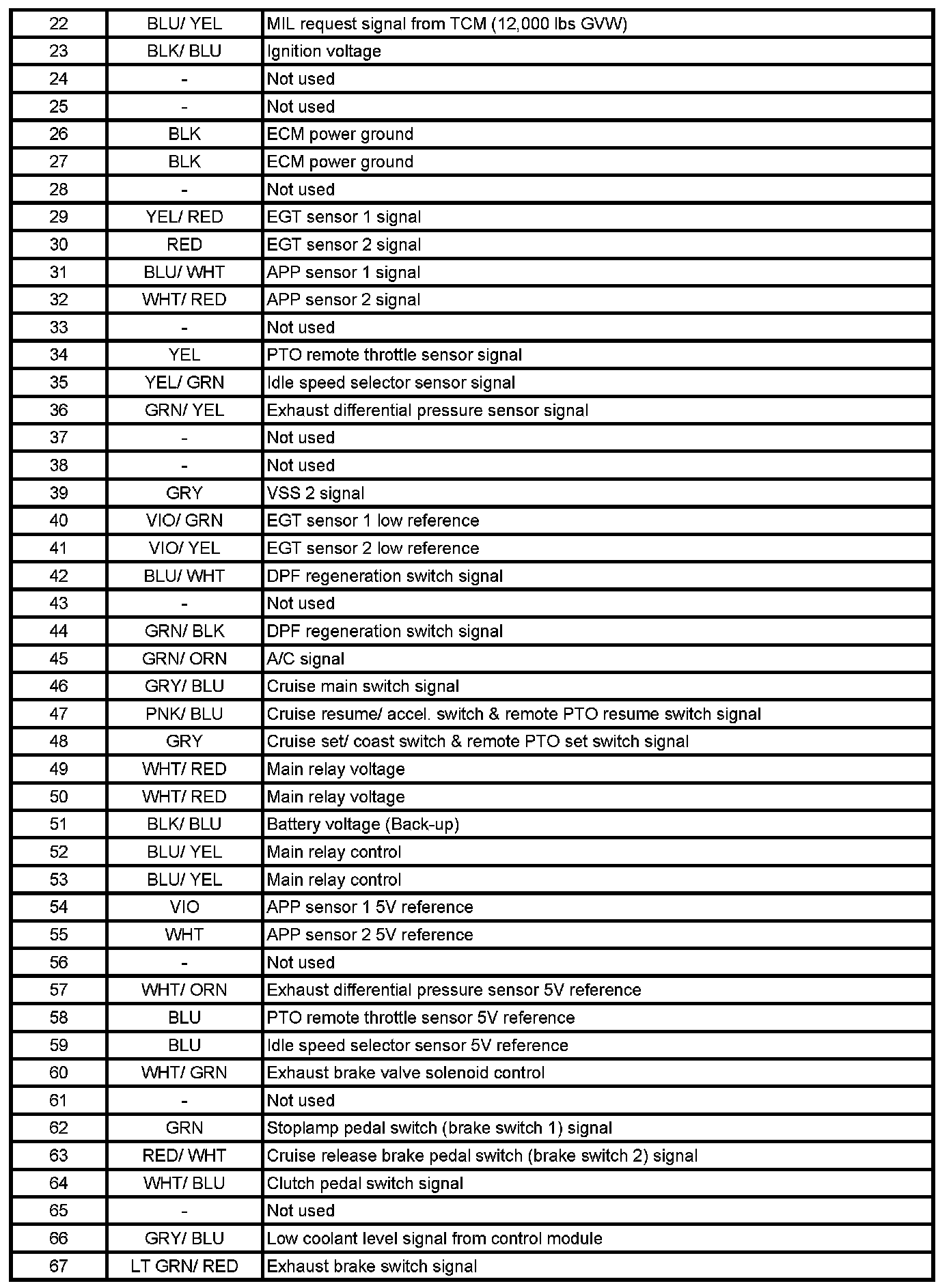

ECM (96 pins connector)

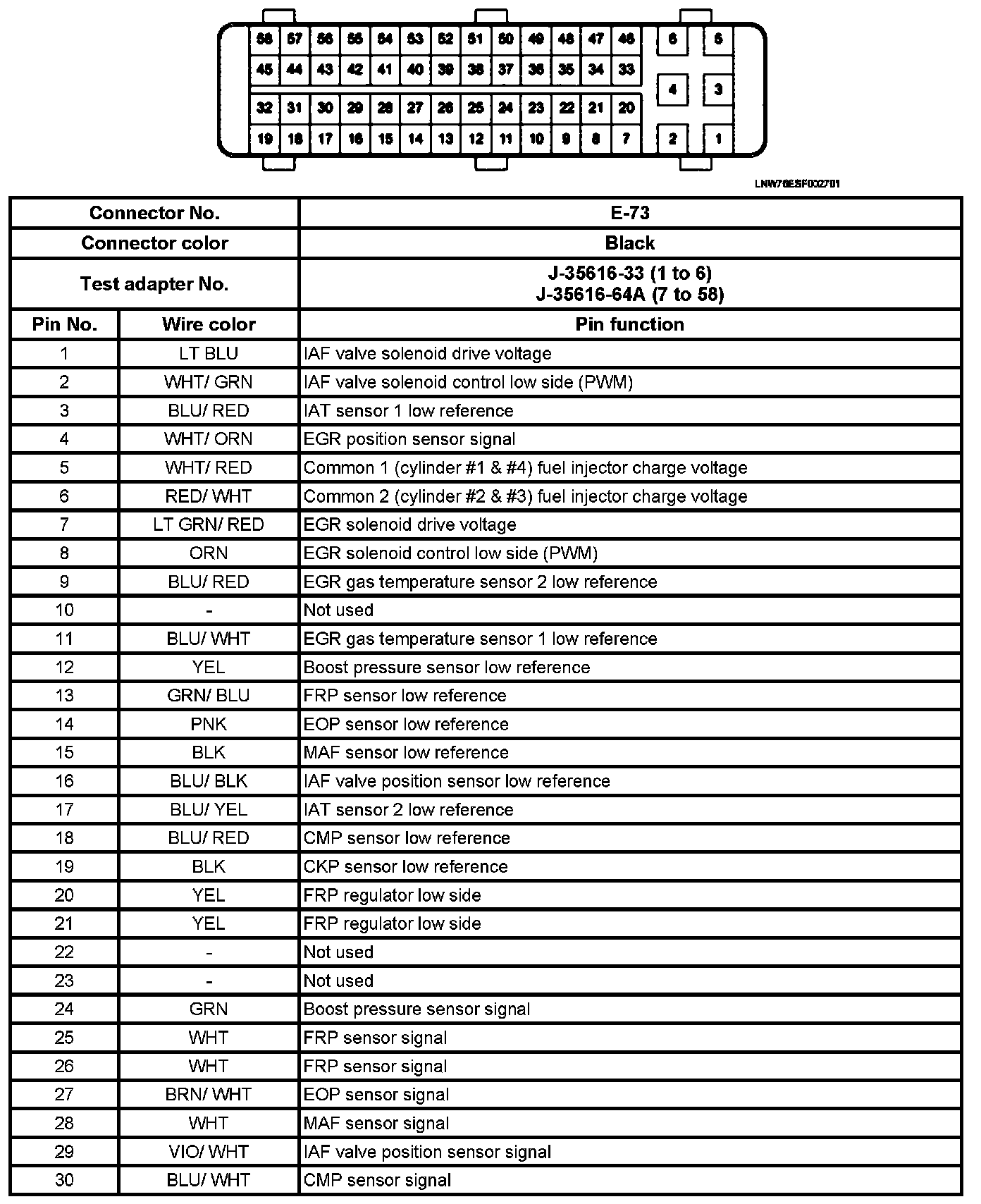

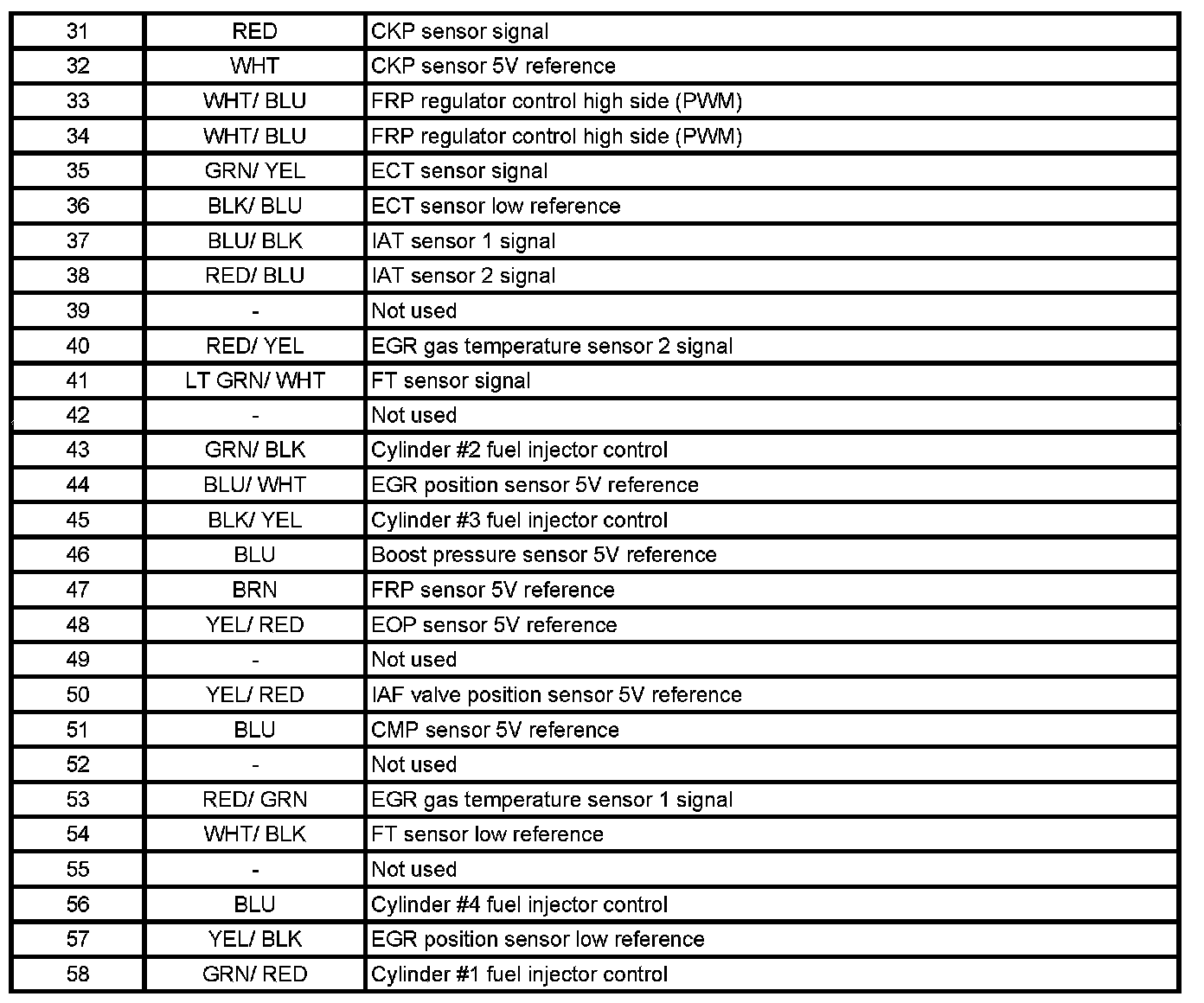

ECM (58 pins connector
