Installation

Mass Air Flow (MAF) Sensor

Installation

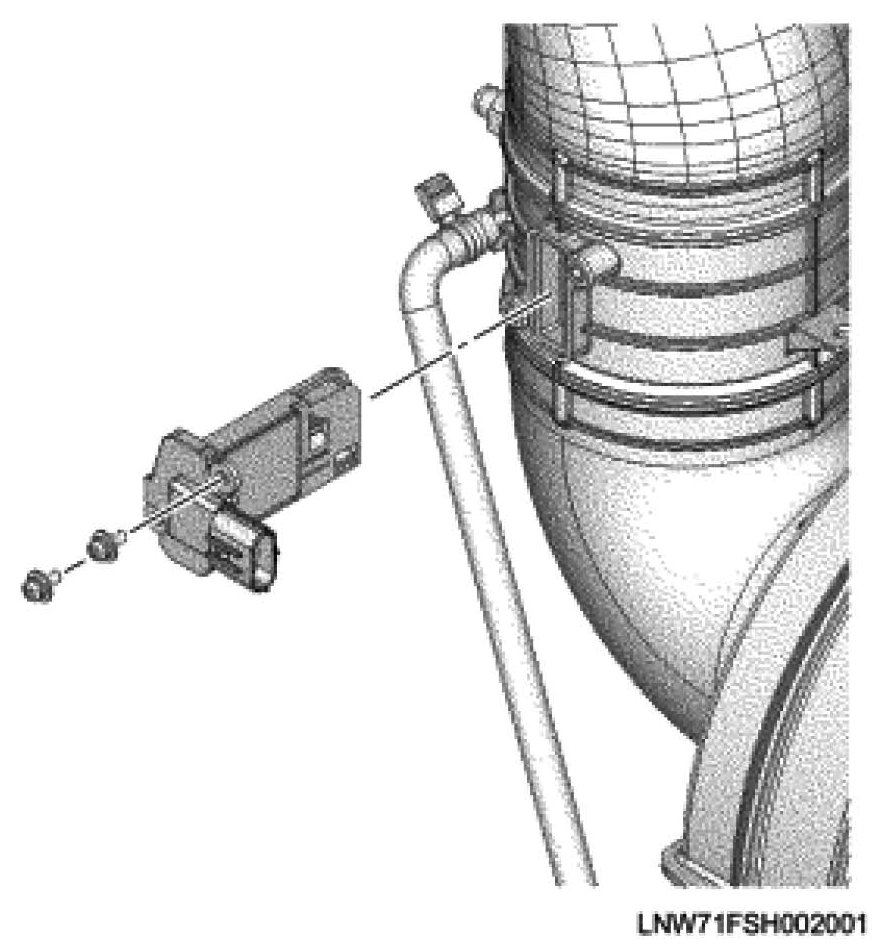

1. Install the MAF sensor.







2. Connect the harness connector to the MAF sensor.
