Installation

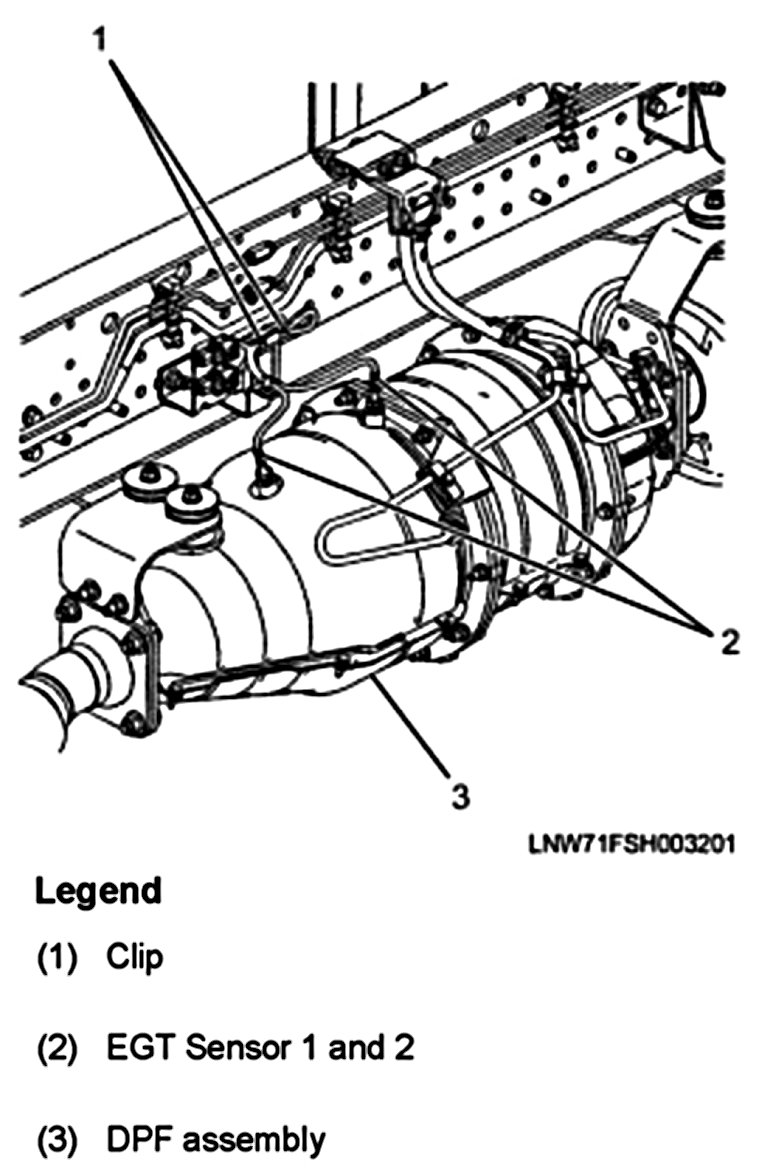

Exhaust Gas Temperature (EGT) Sensor

Installation
1. Install the EGT sensor (2) of the DPF.
2. Install the EGT sensor (1) of the DPF.

NOTE: Do not mistake the front and rear directions.

3. Connect the harness connectors of the EGT sensors 1 and 2 to the DPF.

Tightening torque: 30 N.m (22 lb.ft)
