Oil Pressure Sensor: Service and Repair

Engine Oil Pressure (EOP) Sensor

Engine Mechanical (4HK1-TC)

Removal
1. Turn off the ignition.
2. Disconnect the harness connector to the engine oil pressure (EOP) sensor.

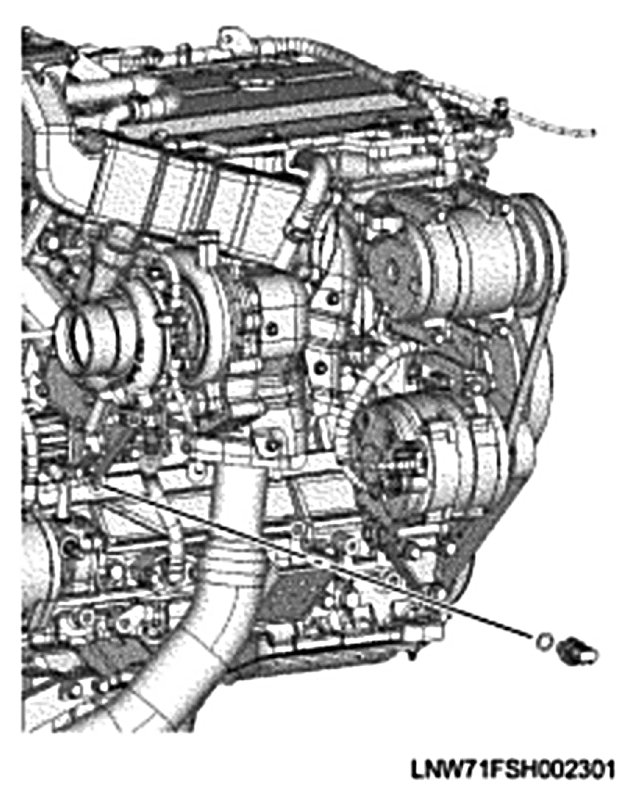

3. Remove the EOP sensor.






Installation

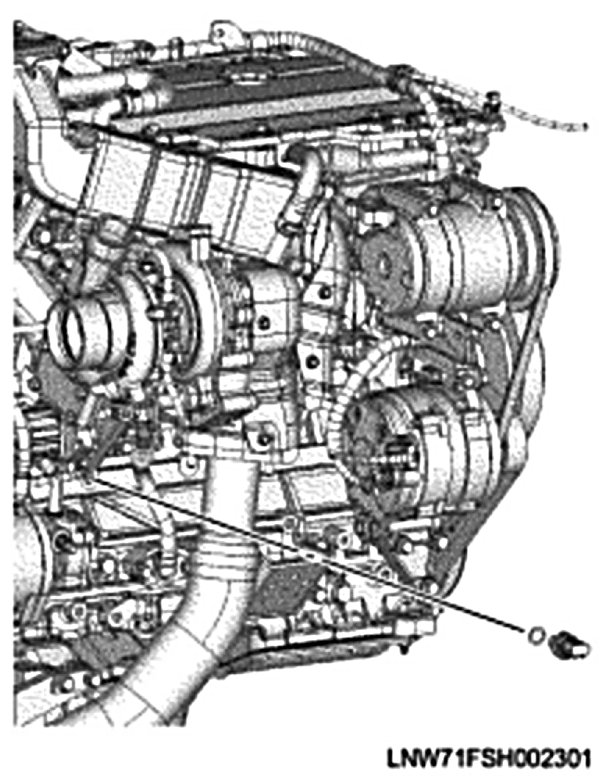

1. Install the EOP sensor.

Tightening torque: 41 N.m (30 lb.ft)







2. Connect the harness connector to the EOP sensor.
