Engine Control Module (ECM) C1

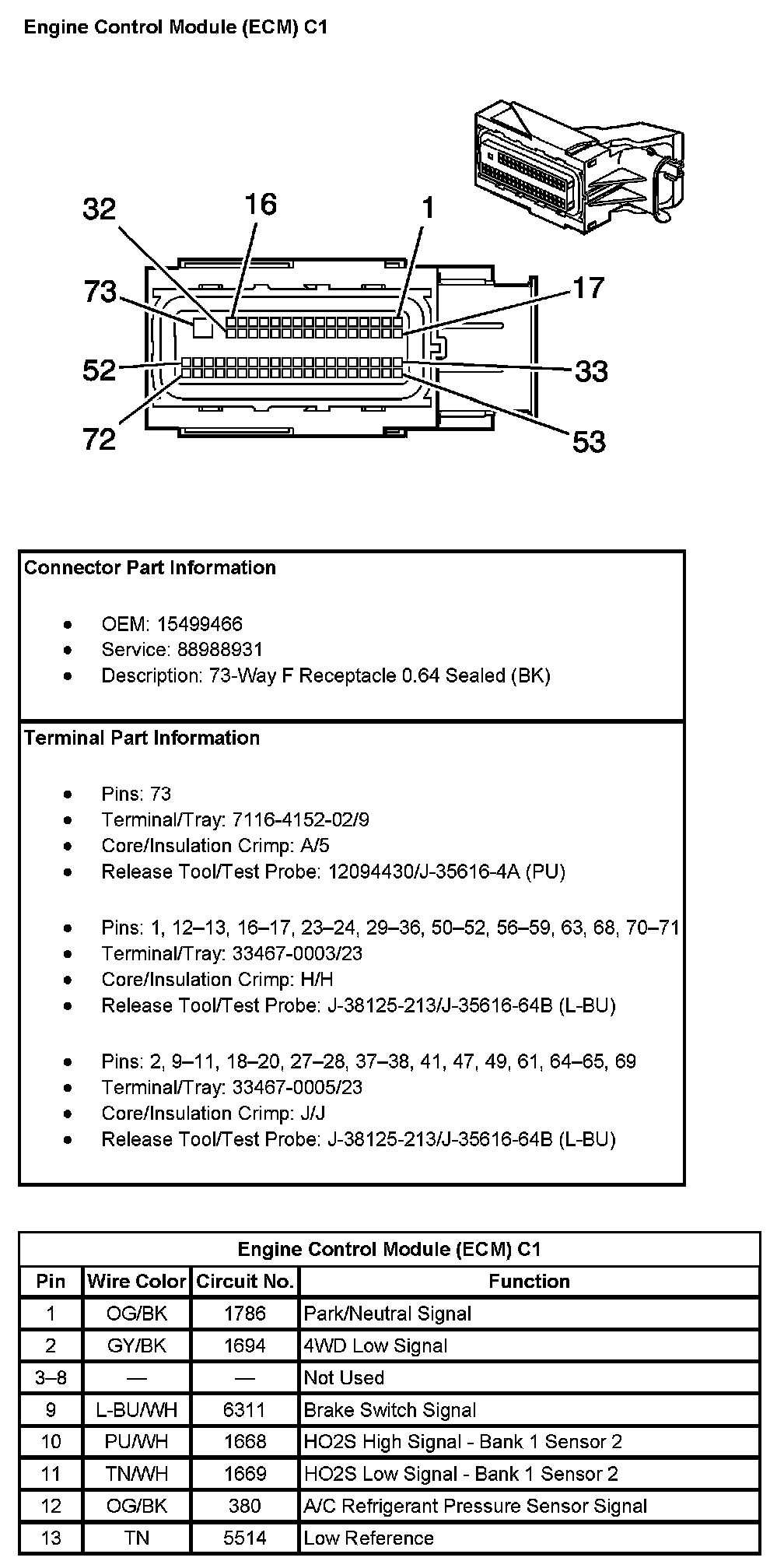

Engine Control Module (ECM) C1 (Pin 1 To 13):

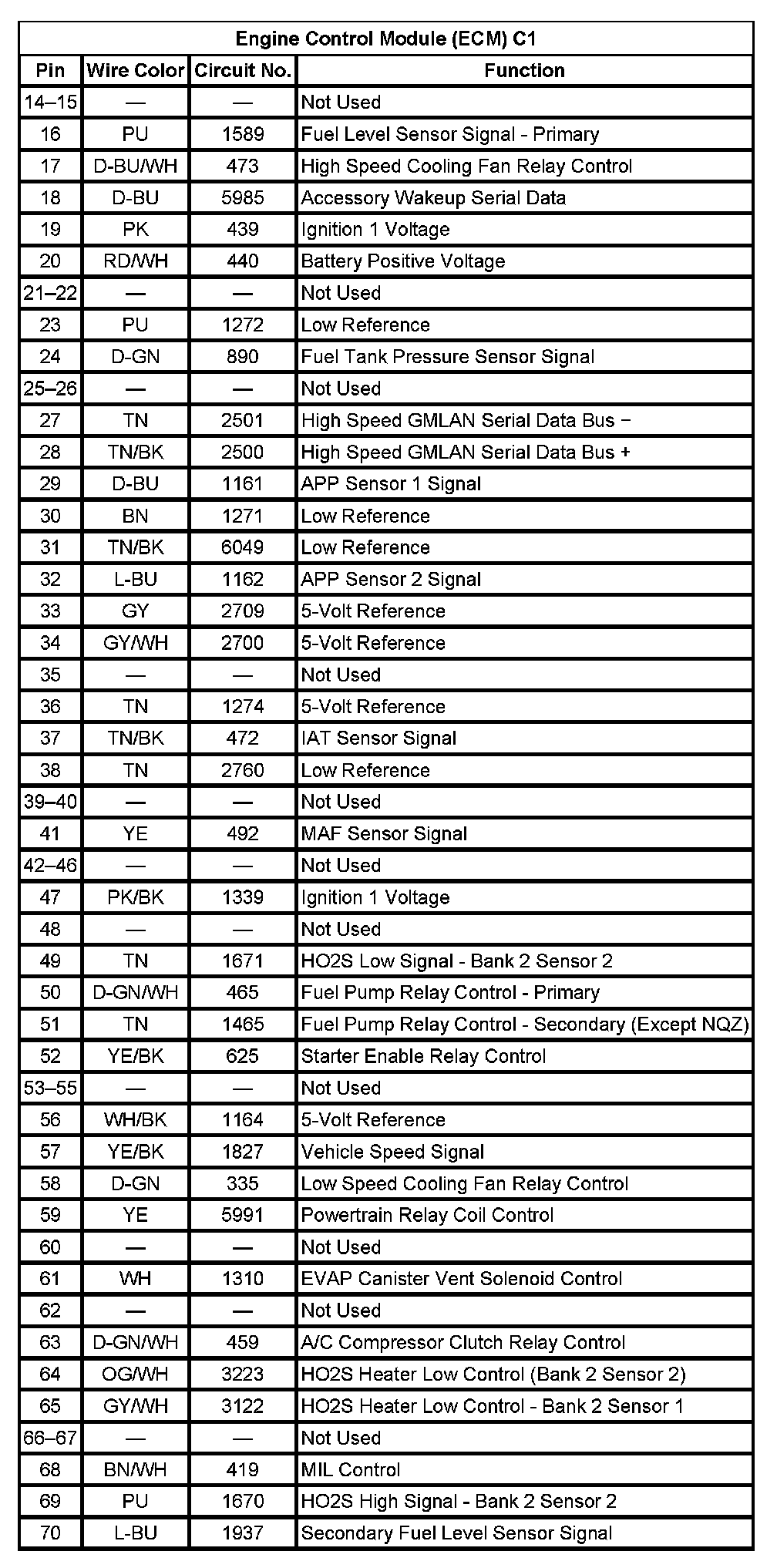

Engine Control Module (ECM) C1 (Pin 14 To 70):



Engine Control Module (ECM) C1 (Pin 71 To 73):
