Power Trunk / Liftgate Control Module





Power Liftgate Module

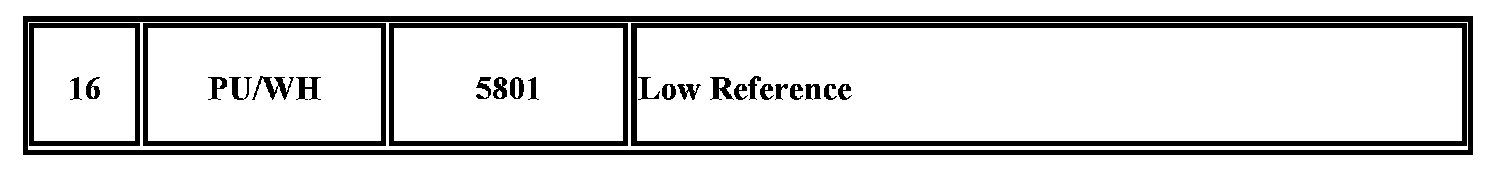

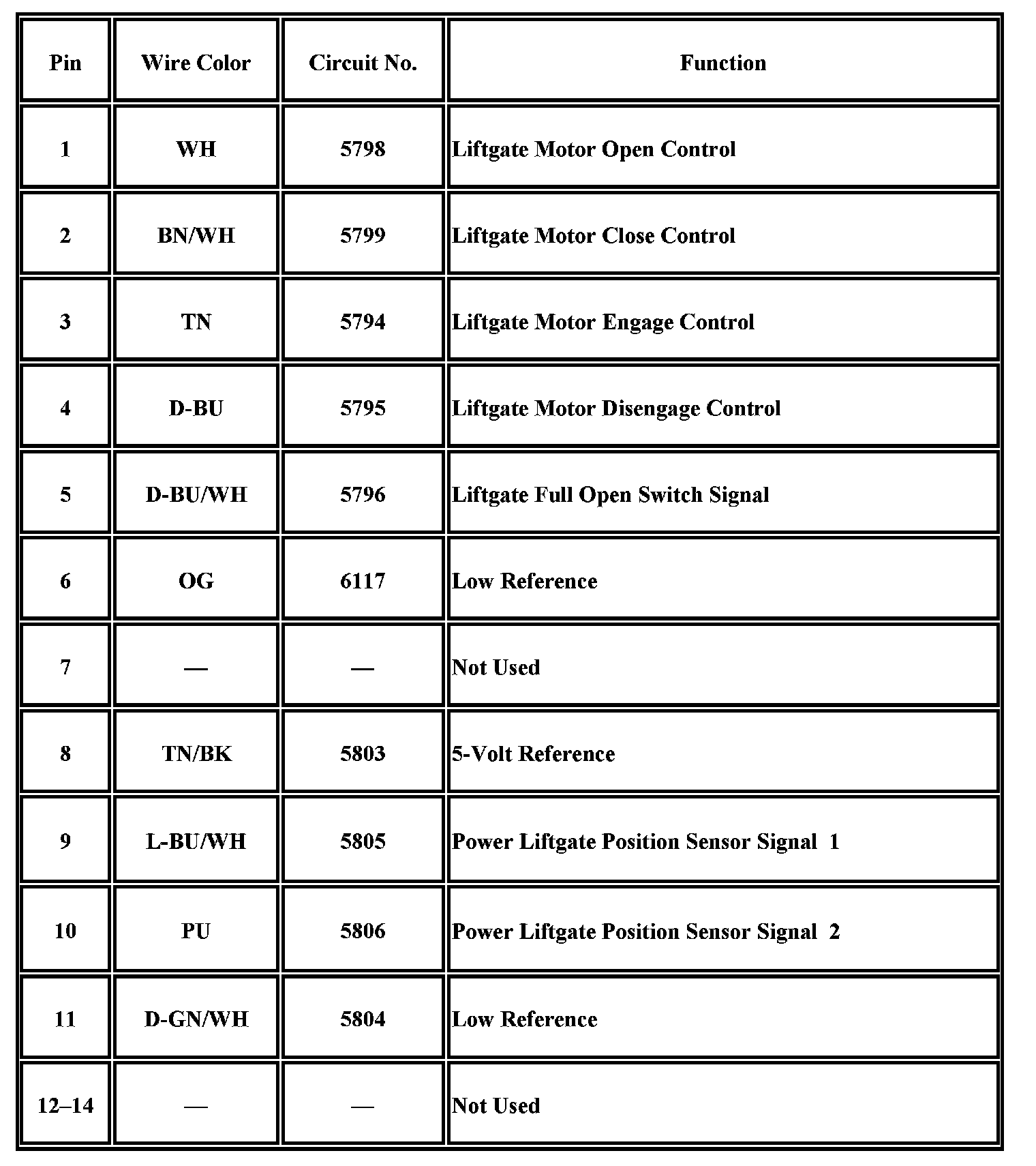

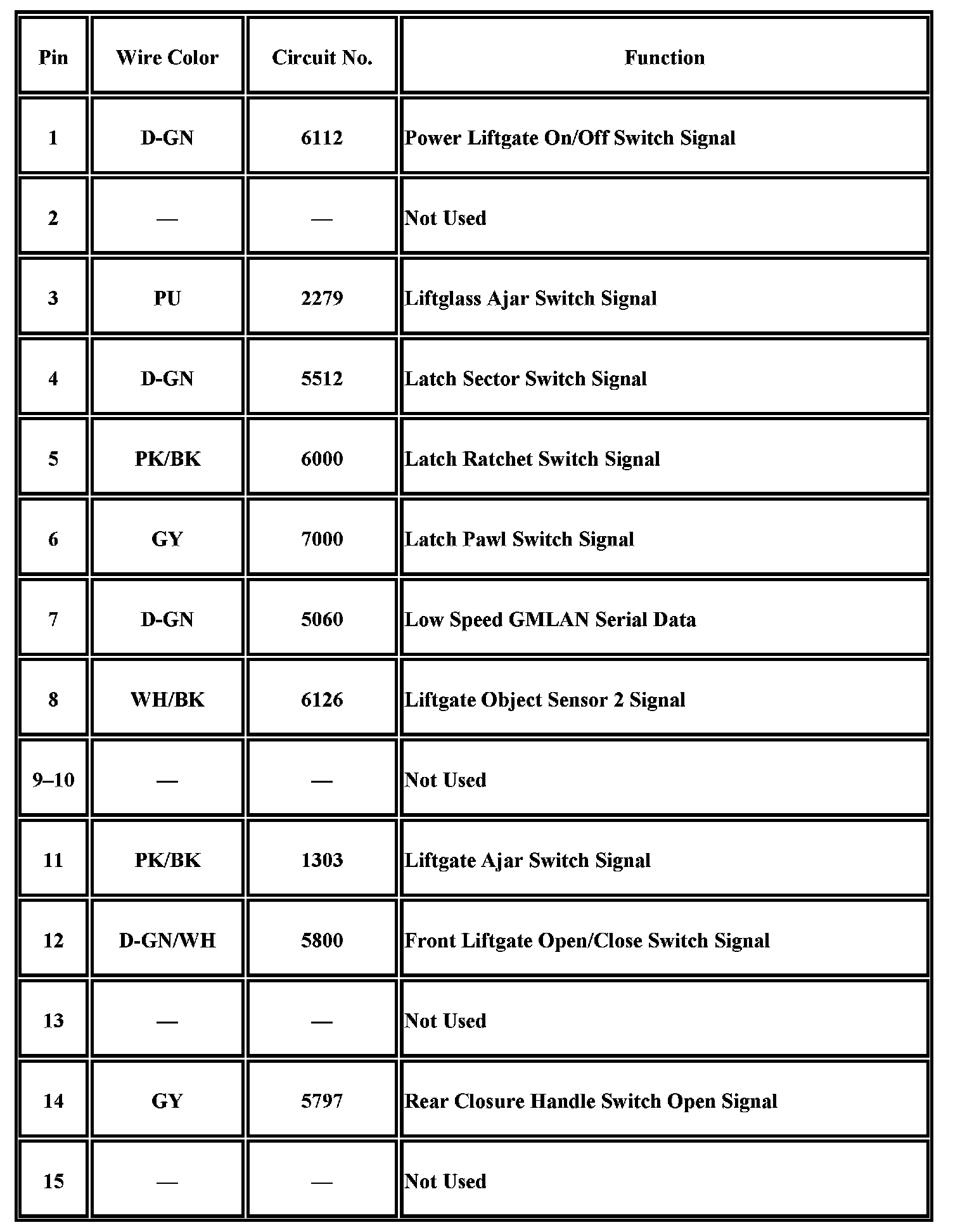

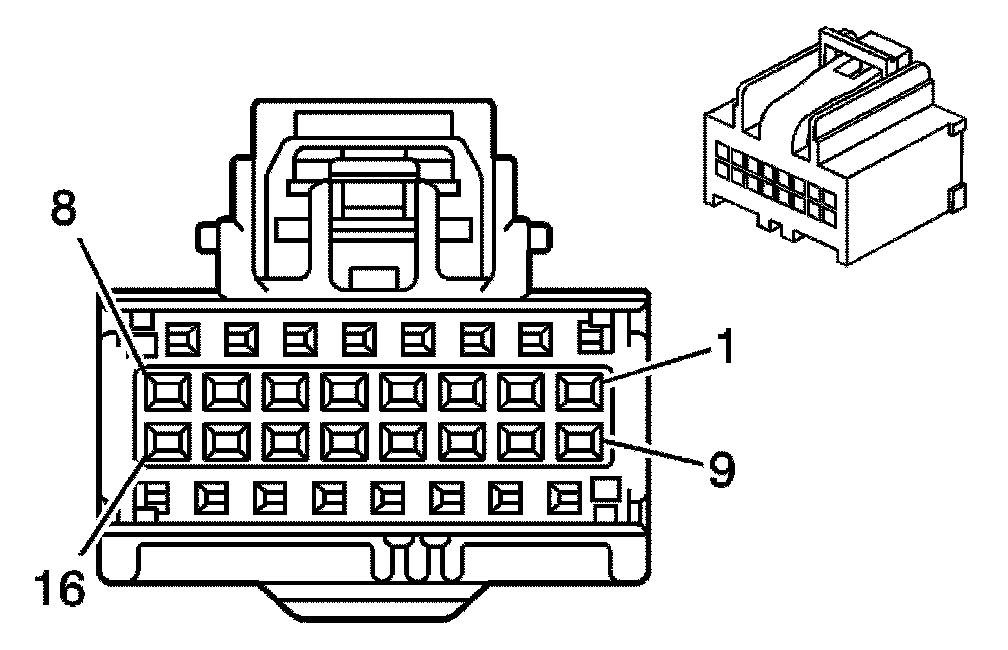

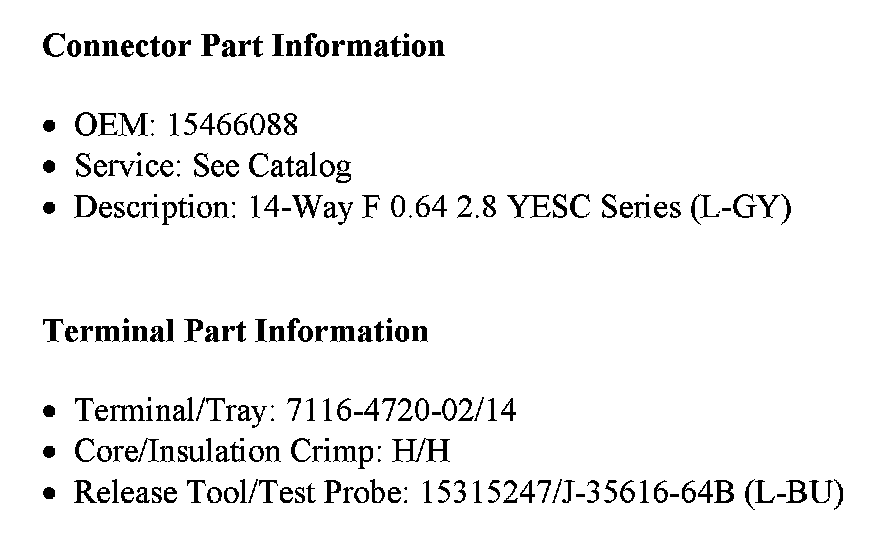

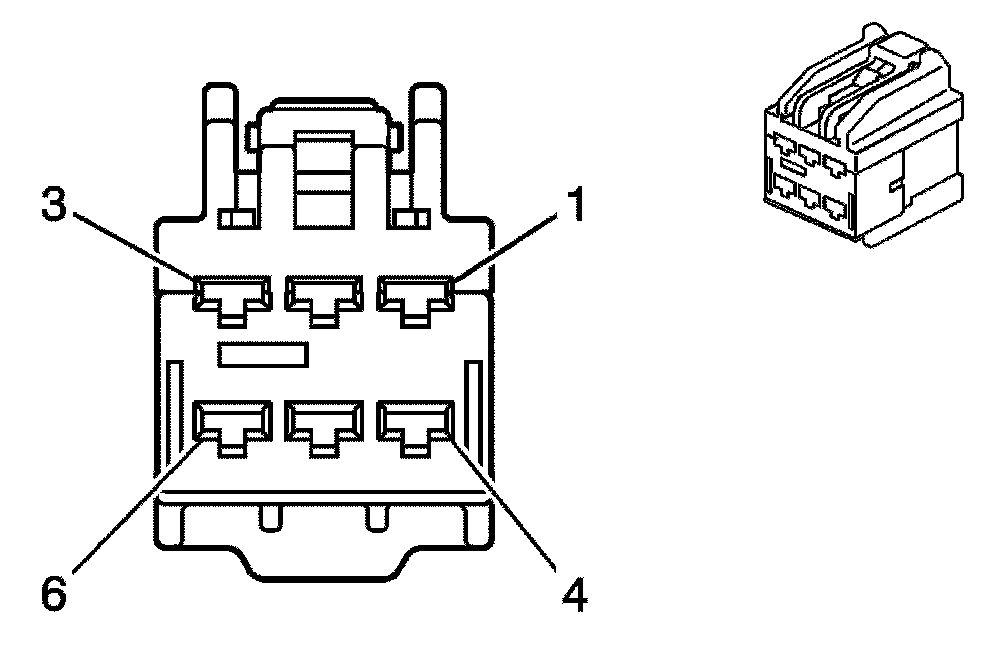

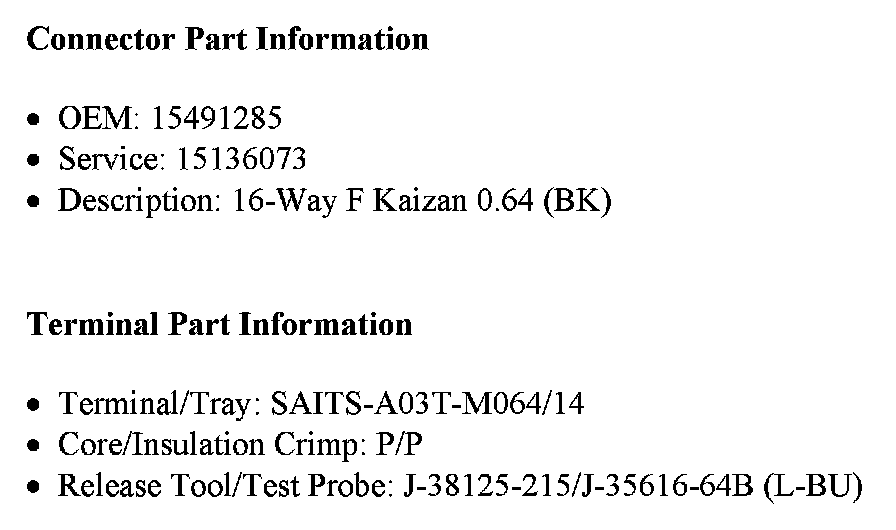

Power Liftgate Module C1 (E61)

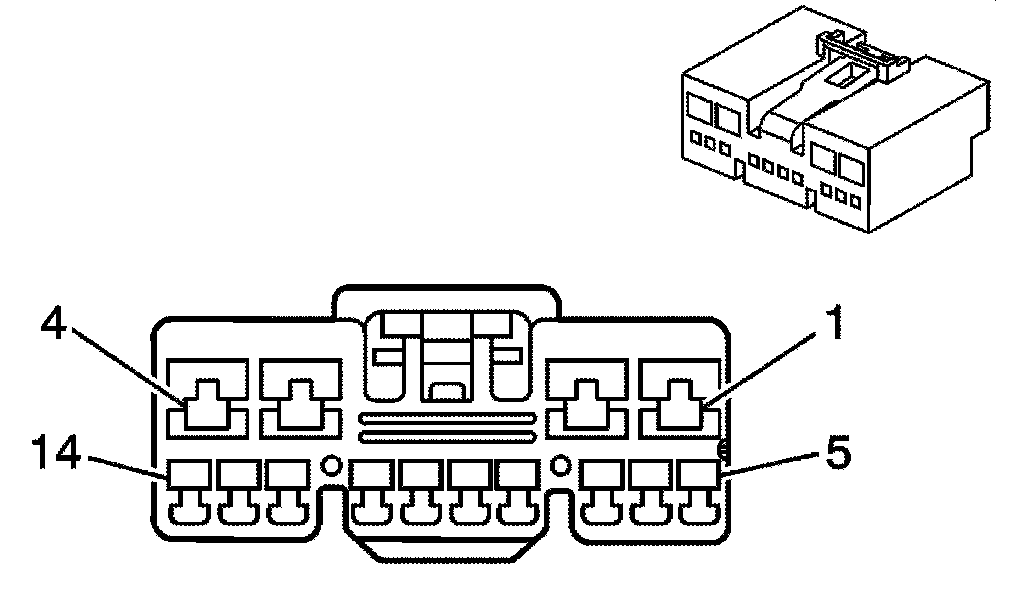

Power Liftgate Module C2 (E61)

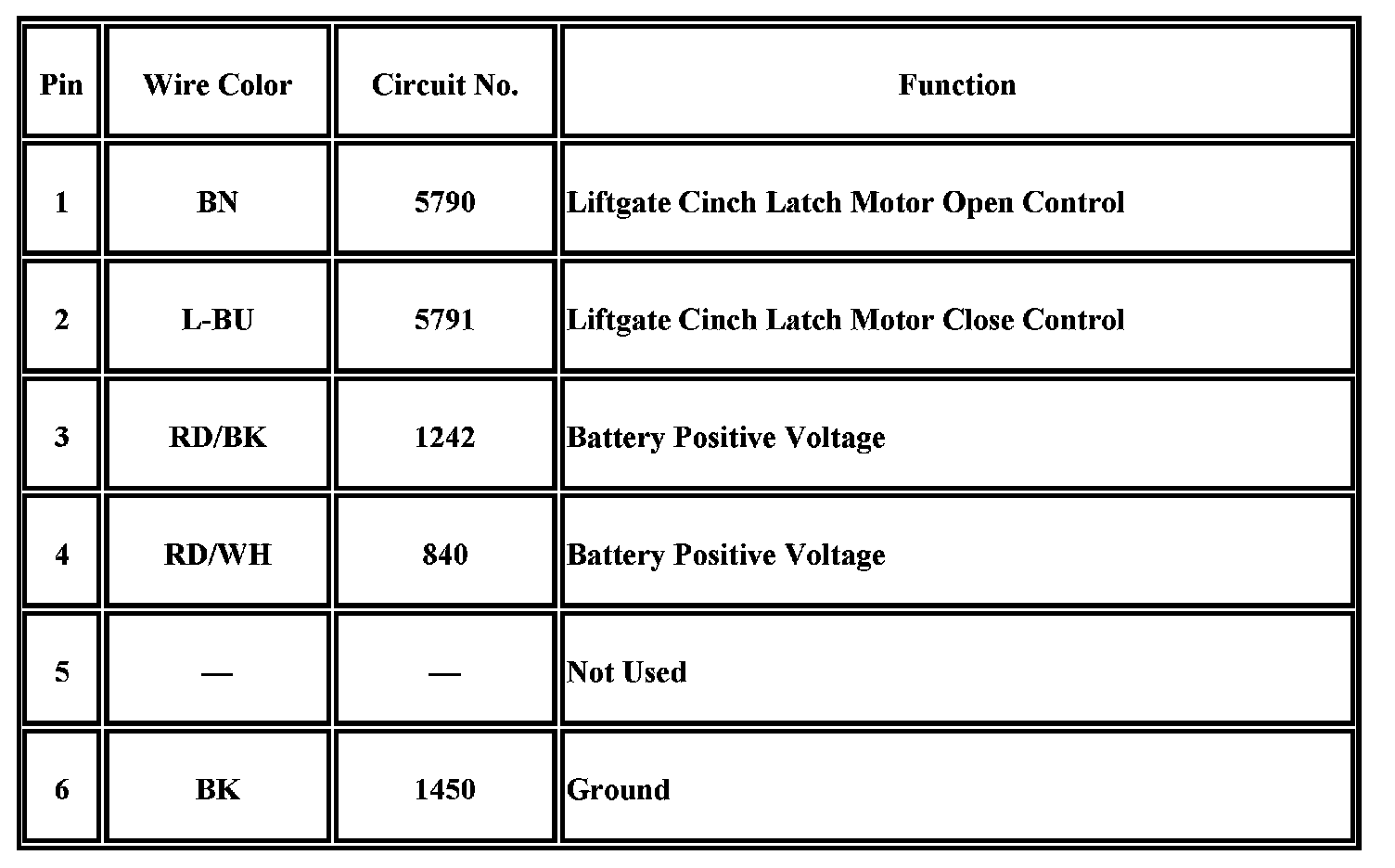

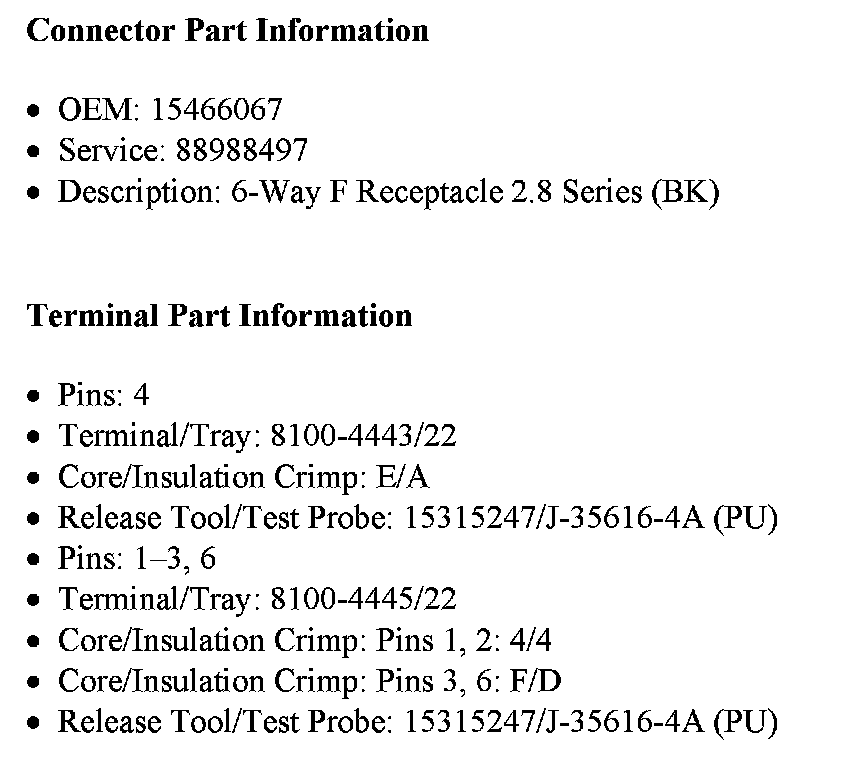

Power Liftgate Module C3 (E61)
