Automatic Volume Control

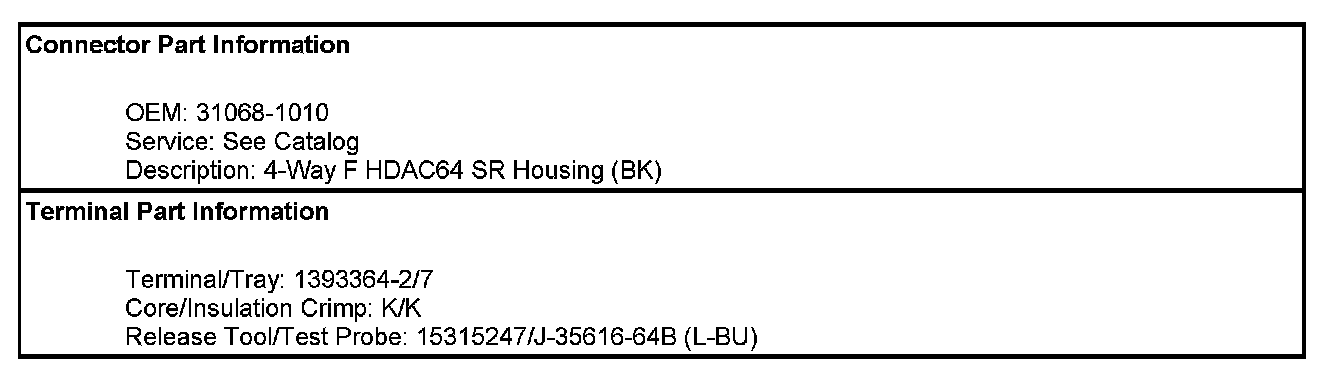

Component Connector End Views - Continued

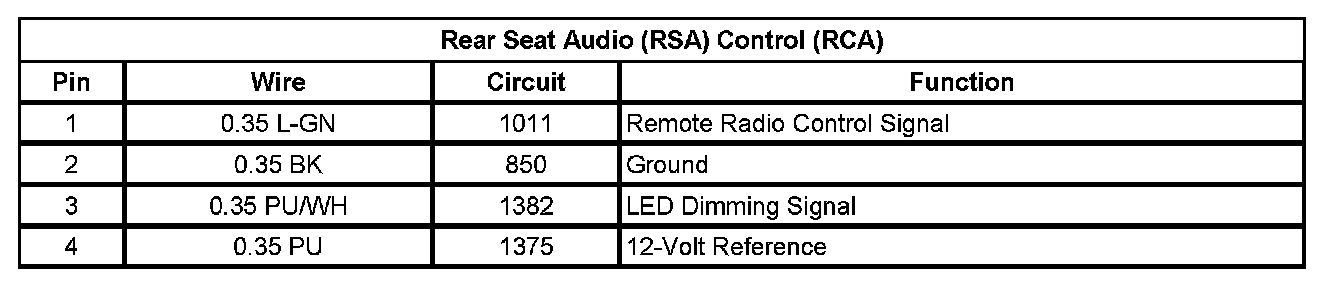

Rear Seat Audio (RSA) Control (RCA)
