Headlamp Control Module



Component Connector End Views

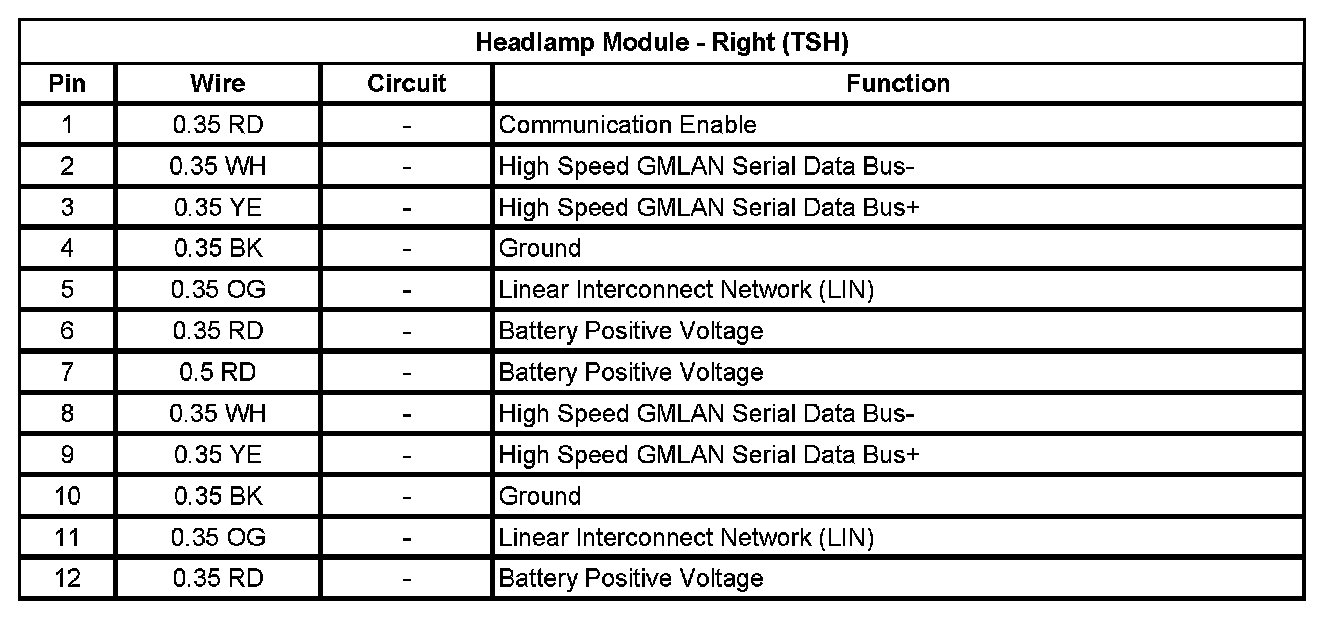

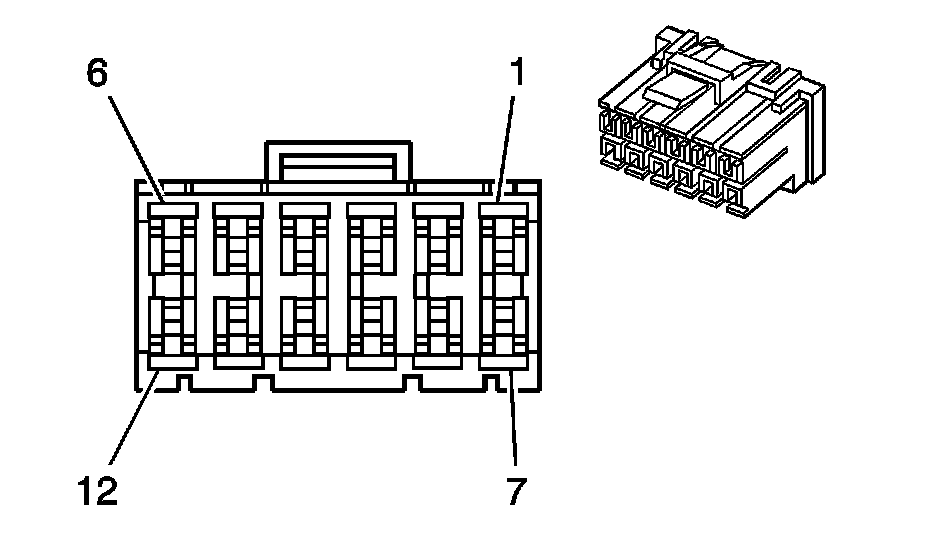

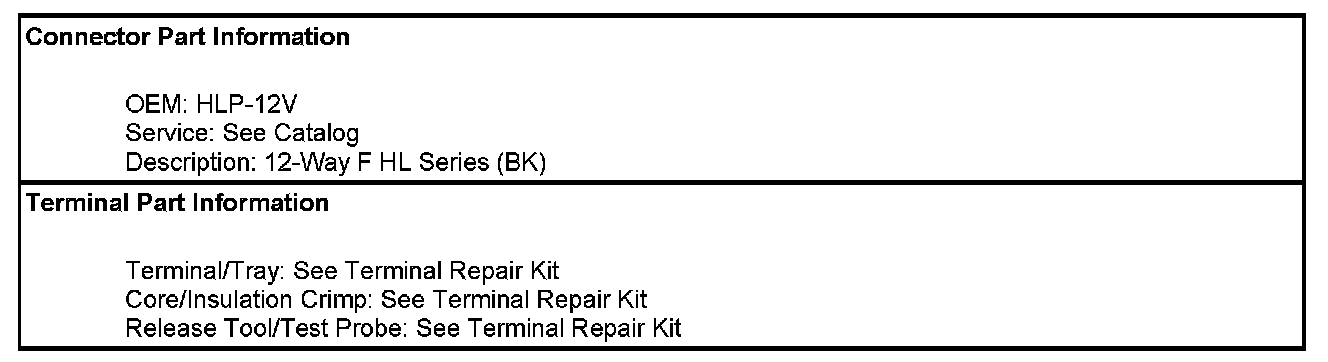

Headlamp Module - Right (TSH)

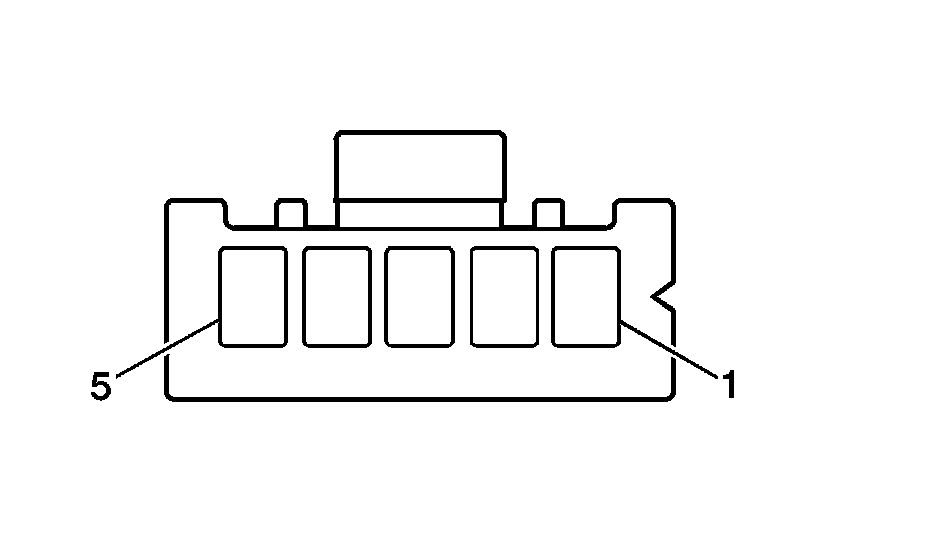

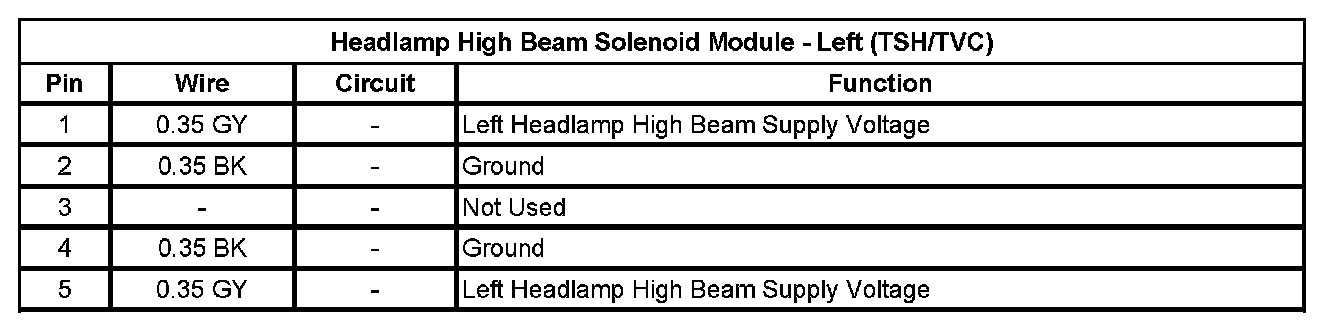

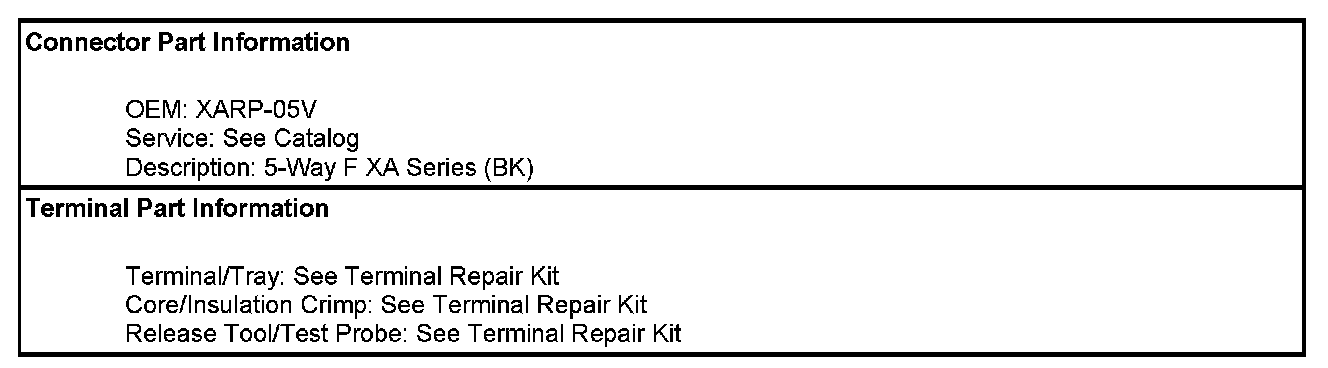

Headlamp High Beam Solenoid Module - Left (TSH/TVC)

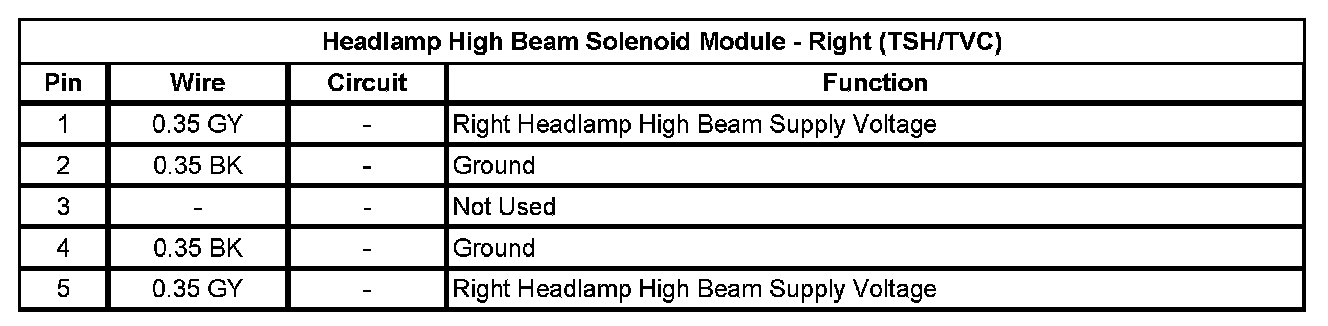

Headlamp High Beam Solenoid Module - Right (TSH/TVC)
