Seat Horizontal Motor - Driver (AG1/AG3/AH5)
Courtesy of GENERAL MOTORS CORP. Seat Horizontal Motor - Driver (AG1/AG3/AH5)
| Pin |
Wire |
Circuit |
Function |
| 1 |
2 TN |
285 |
Driver Seat Horizontal Motor Forward Control (AG1/AH5) |
| 1 TN |
285 |
Driver Seat Horizontal Motor Forward Control (AG3) |
| 2 |
2 L-GN |
284 |
Driver Seat Horizontal Motor Rearward Control (AG1/AH5) |
| 1 L-GN |
284 |
Driver Seat Horizontal Motor Rearward Control (AG3) |

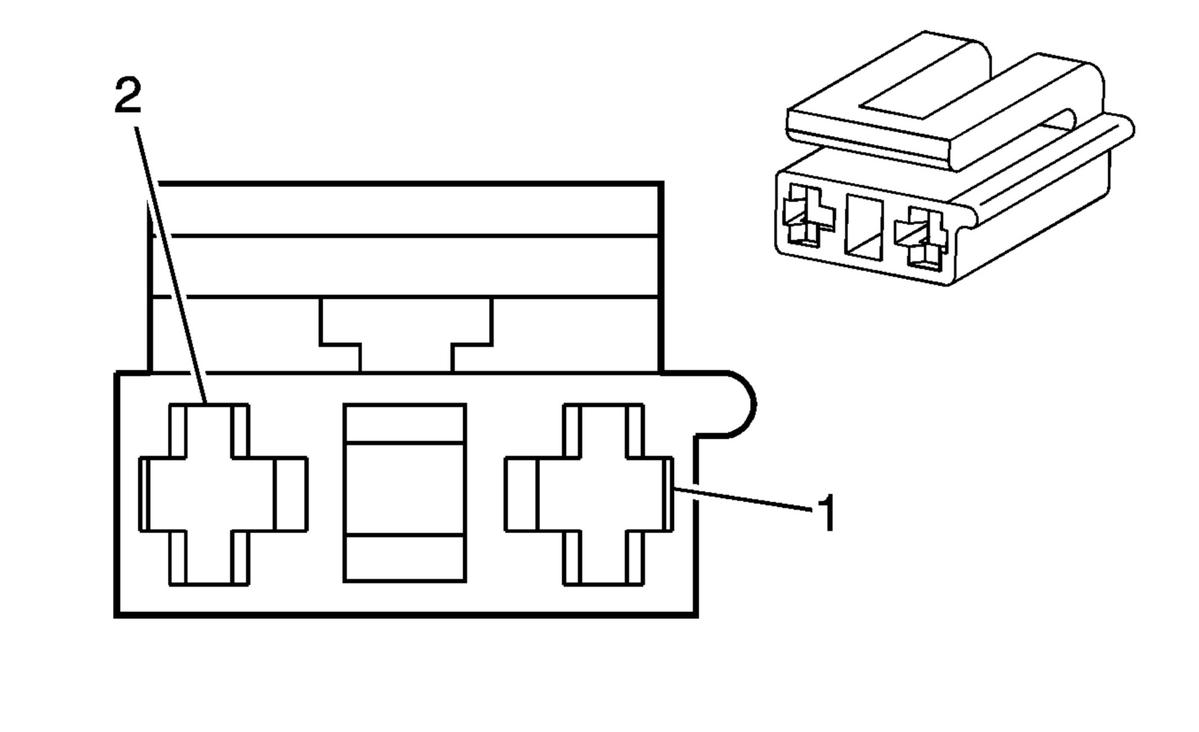

Connector Part Information
- OEM: 623346-1
- Service: See Catalog
- Description: 2-Way F (GY)
|
Terminal Part Information
- Terminal/Tray: 4-965999-1/25
- Core/Insulation Crimp: 4/A
- Release Tool/Test Probe: 12093647/J-35616-4A (PU)
|
