Air Temperature Sensor - Lower Left (CJ2)

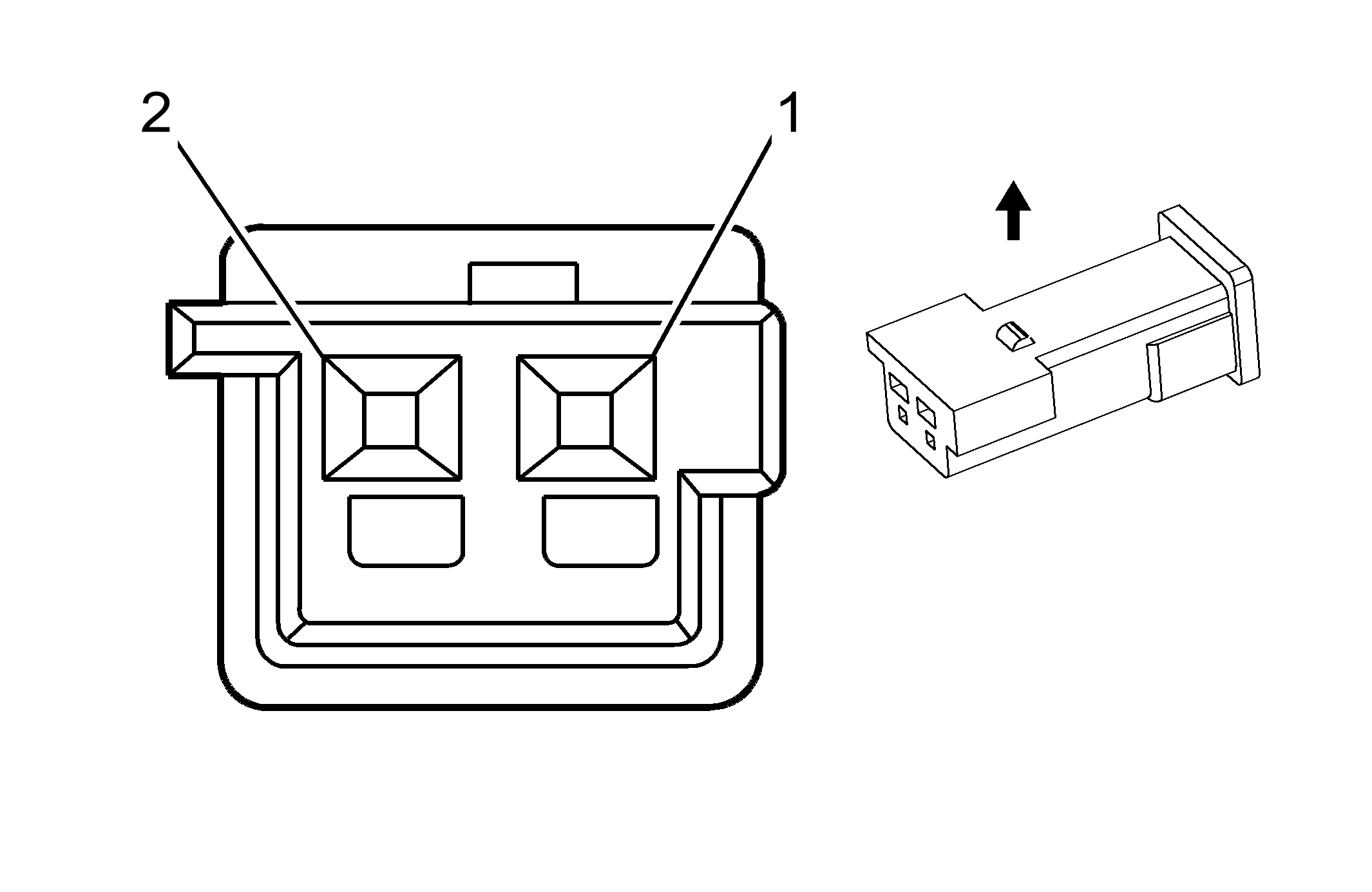

Fig 1: Air Temperature Sensor - Lower Left (CJ2) Connector End View
GM1459283Courtesy of GENERAL MOTORS CORP.
Air Temperature Sensor - Lower Left (CJ2)

Pin Wire Circuit Function
1 0.35 TN 518 Lower Left Air Temperature Sensor Signal
2 0.35 TN 552 Low Reference
Connector Part Information
  • OEM: 1-968704-1
  • Service: See Catalog
  • Description: 2-Way F MQS Series (BK)
Terminal Part Information
  • Terminal/Tray: 928999-5/15
  • Core/Insulation Crimp: H/H
  • Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
