Windshield Heated Washer Fluid Module X1 (XA7)

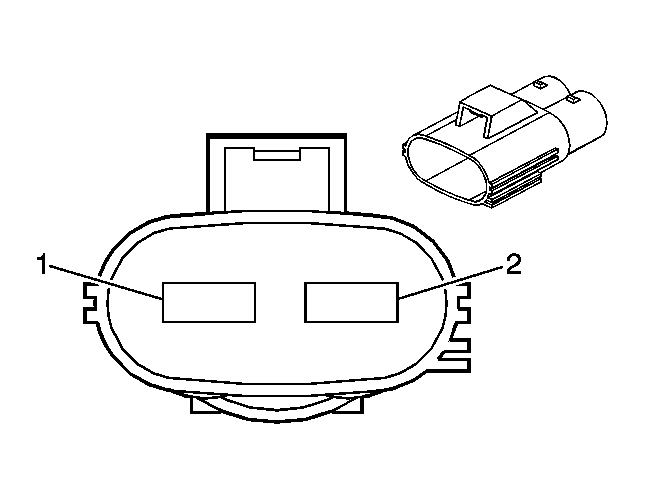

Fig 1: Windshield Washer Solvent Heater X1 (XA7) Connector End View
GM1715214Courtesy of GENERAL MOTORS CORP.
Windshield Heated Washer Fluid Module X1 (XA7)

Pin Wire Circuit Function
1 5 RD/WH 1440 Battery Positive Voltage
2 5 BK 1750 Ground
Connector Part Information
  • OEM: 7282-3214-30
  • Service: 19115654
  • Description: 2-Way M Y-Type 9.5 Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 7114-3250/14
  • Core/Insulation Crimp: G/3
  • Release Tool/Test Probe: 12094430/J-35616-21 (RD)
