Memory Positioning Module: Diagrams



Component Connector End Views - Continued

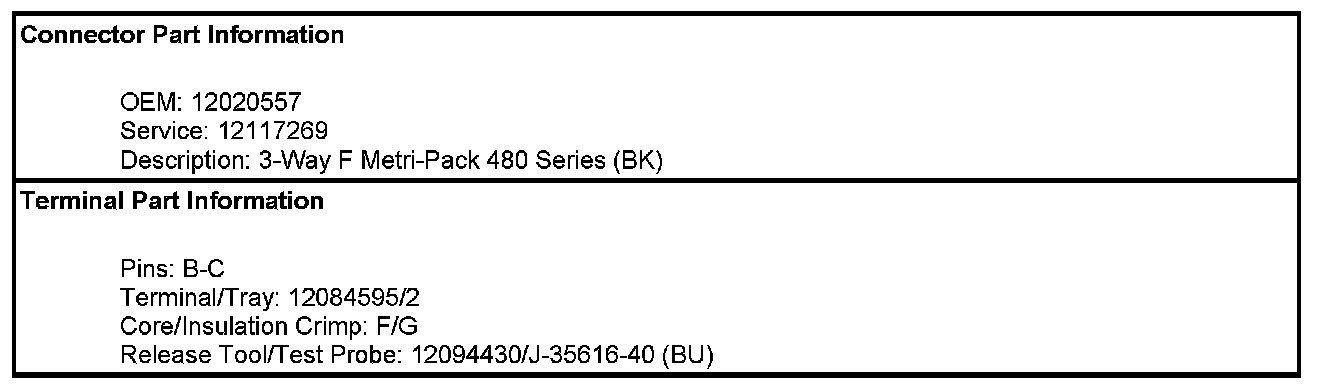

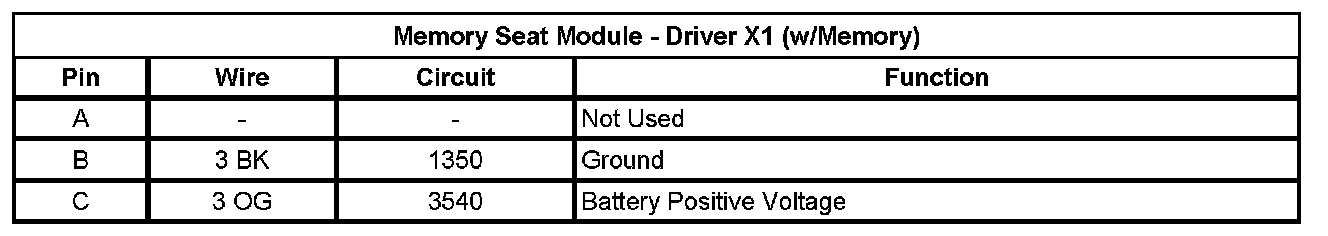

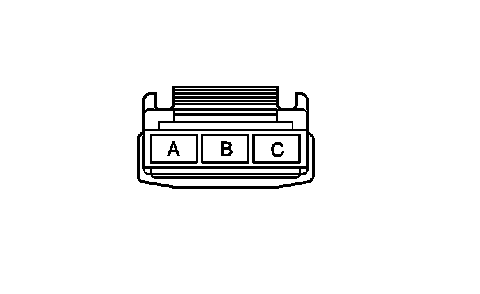

Memory Seat Module - Driver X1 (w/Memory)

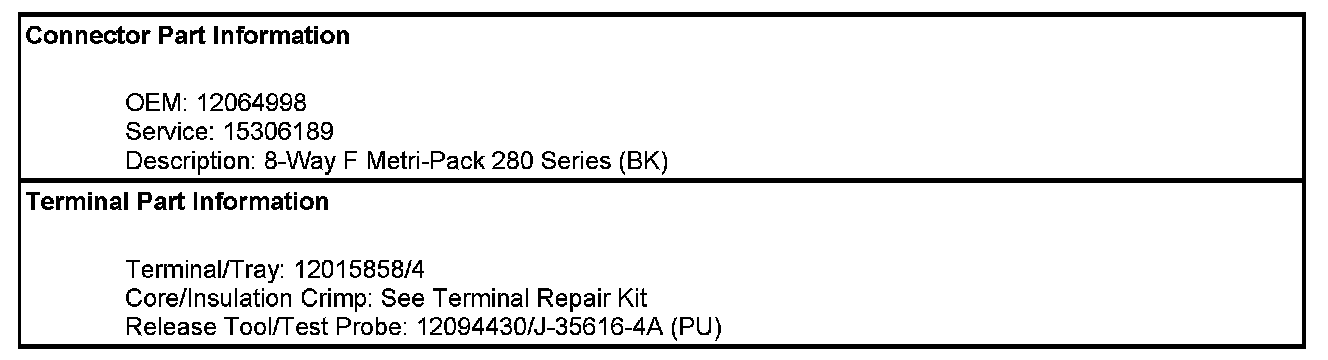

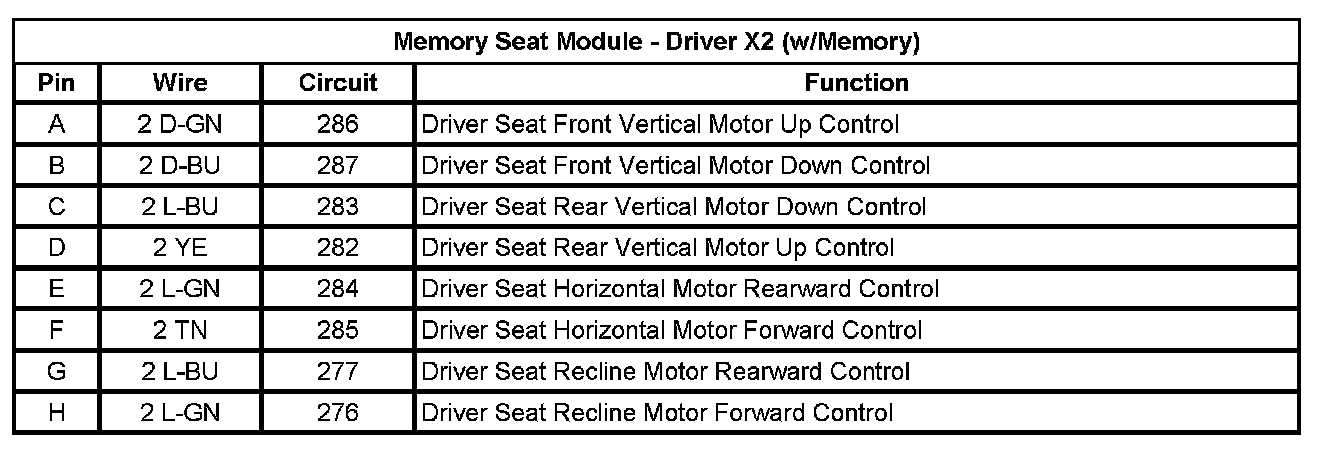

Memory Seat Module - Driver X2 (w/Memory)

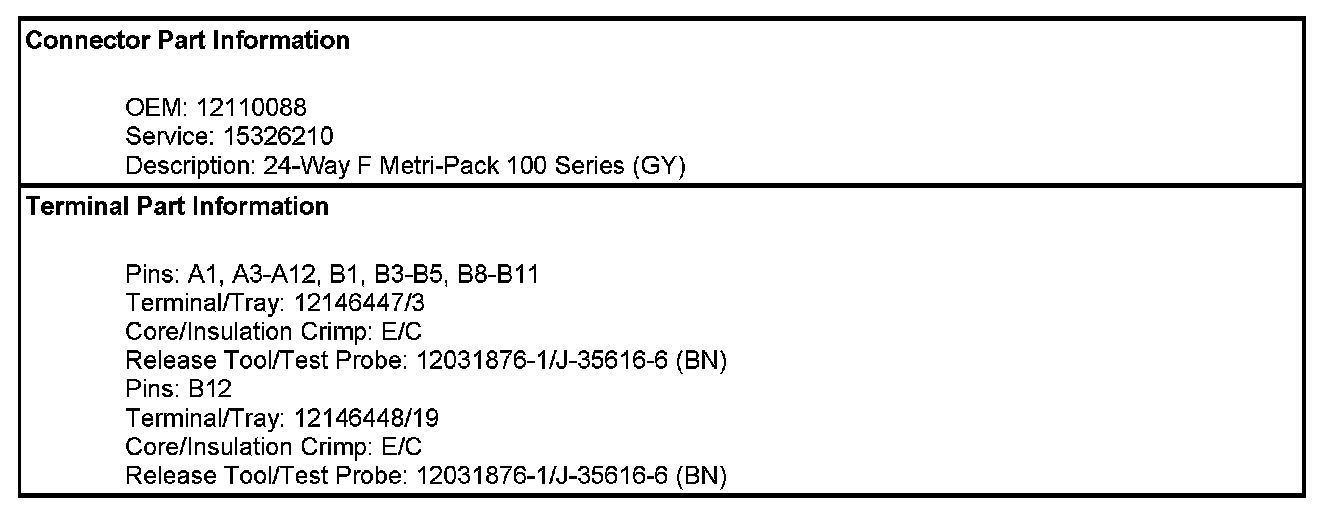

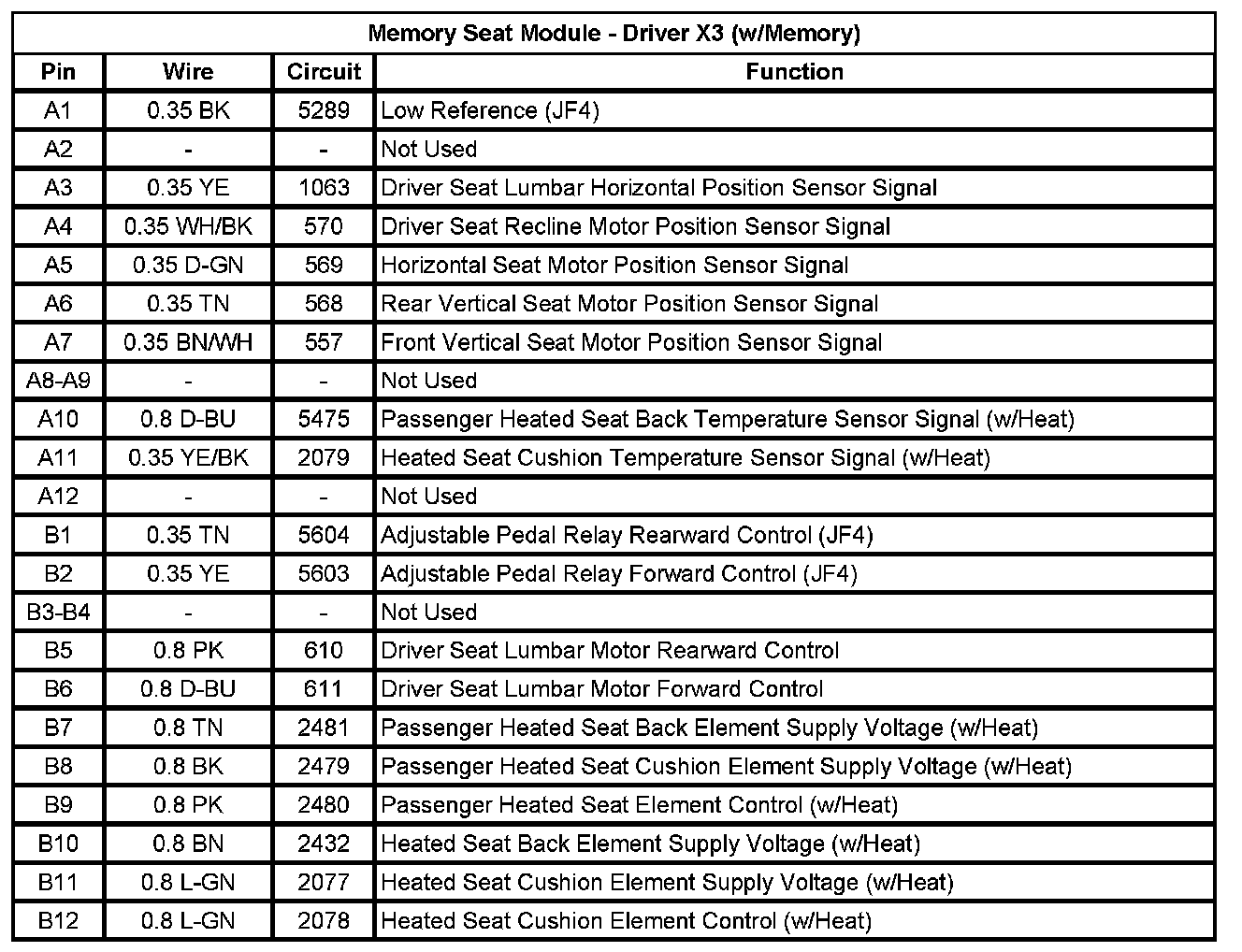

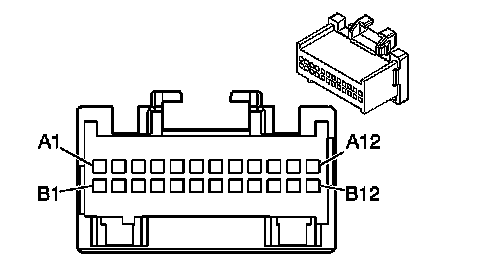

Memory Seat Module - Driver X3 (w/Memory)

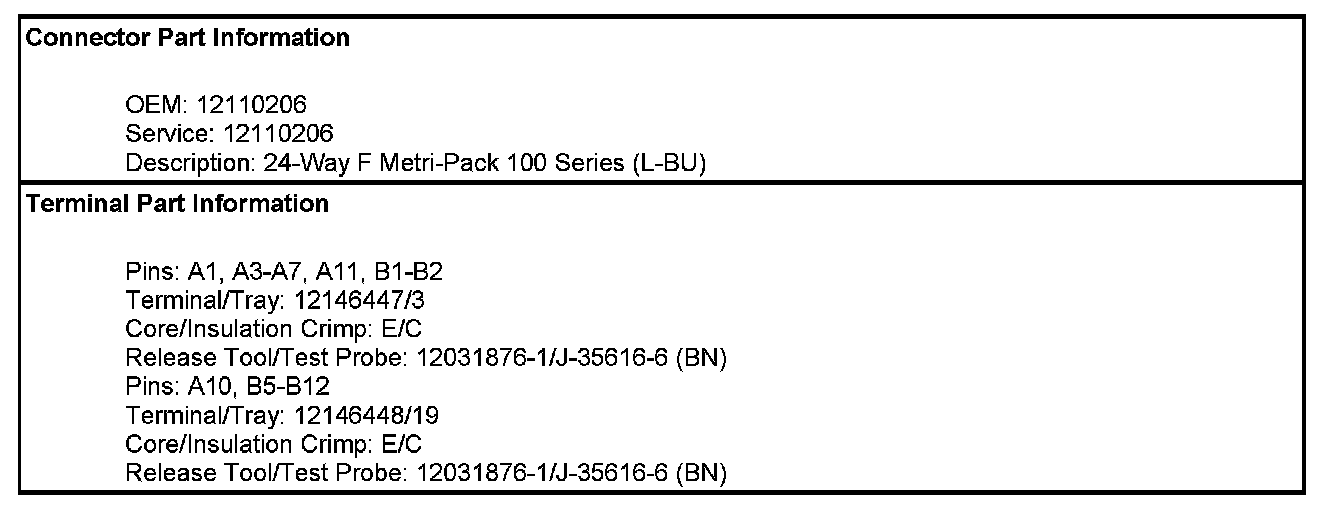

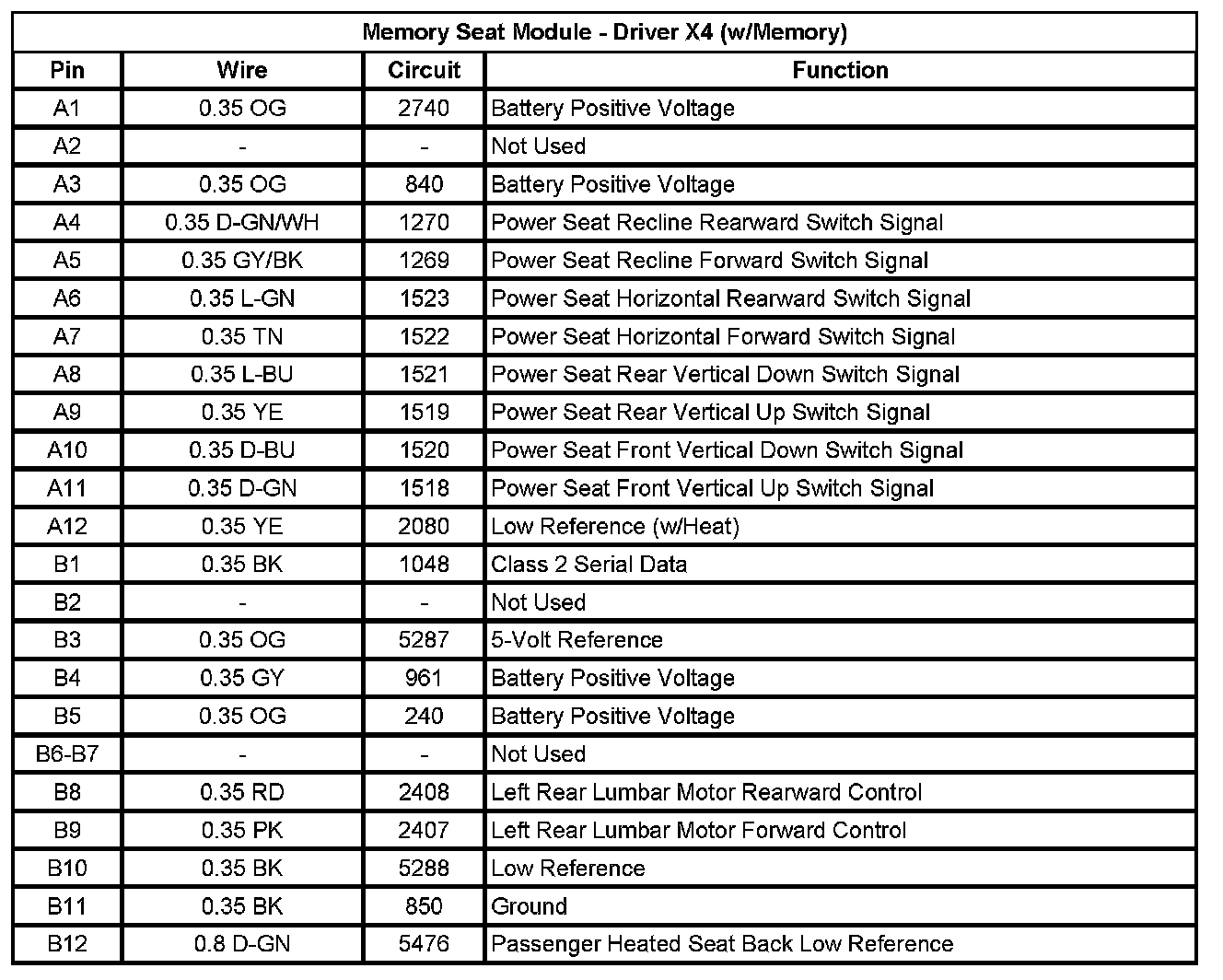

Memory Seat Module - Driver X4 (w/Memory)
