Air Bag Control Module



Component Connector End Views - Continued

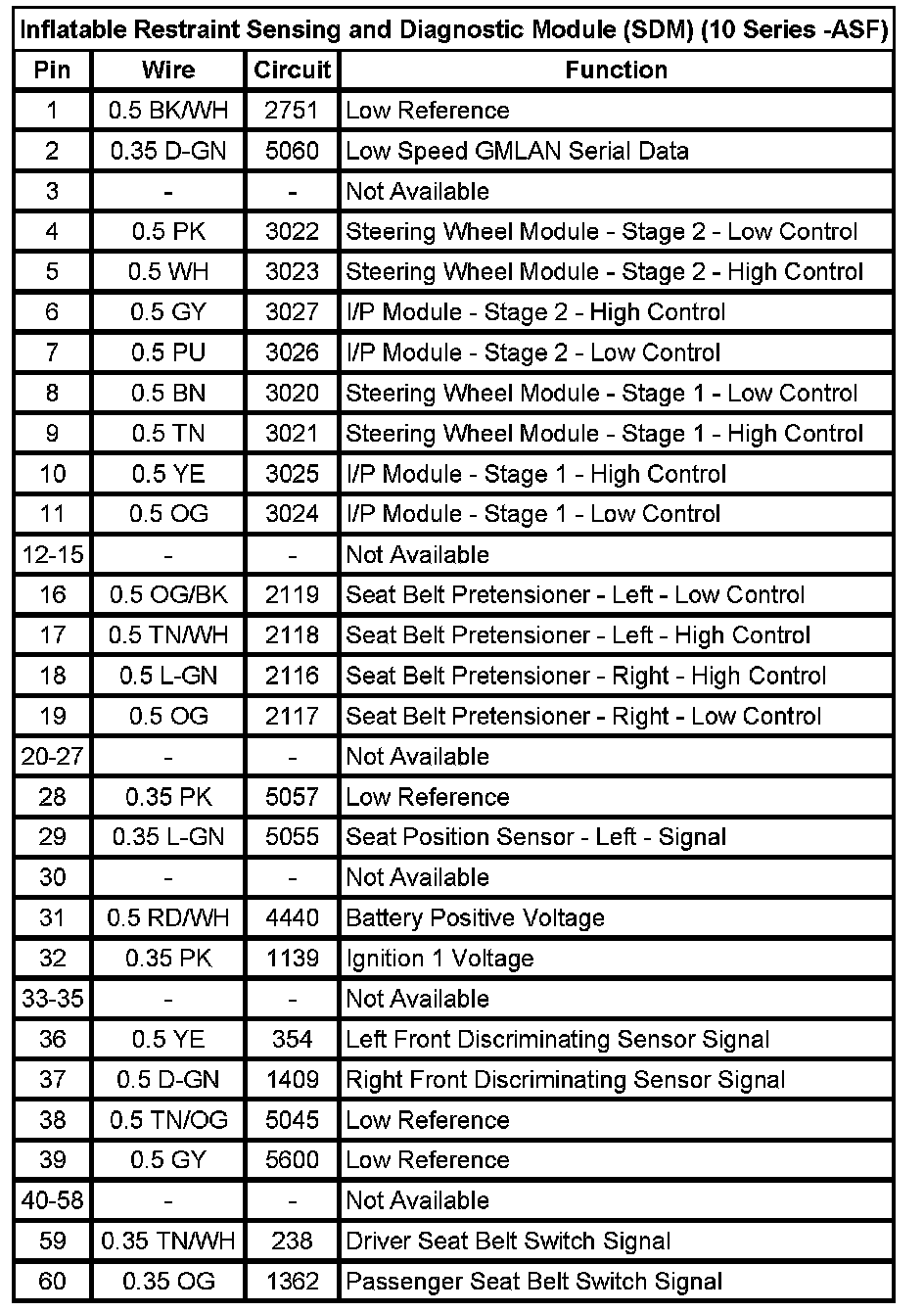

Inflatable Restraint Sensing and Diagnostic Module (SDM) (10 Series -ASF)

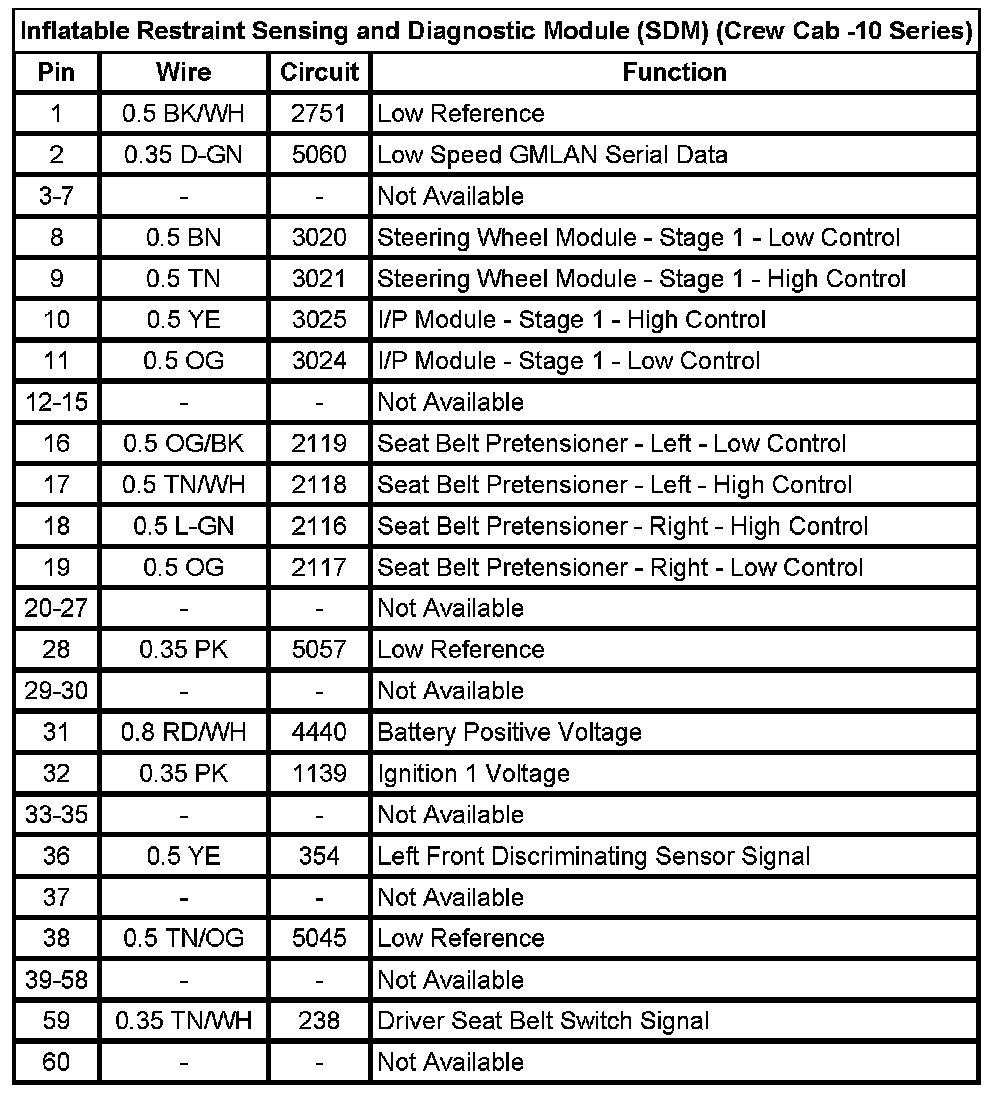

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Crew Cab -10 Series)














Inflatable Restraint Sensing and Diagnostic Module (SDM) (Extended/Crew Cab +10 Series +ASF)

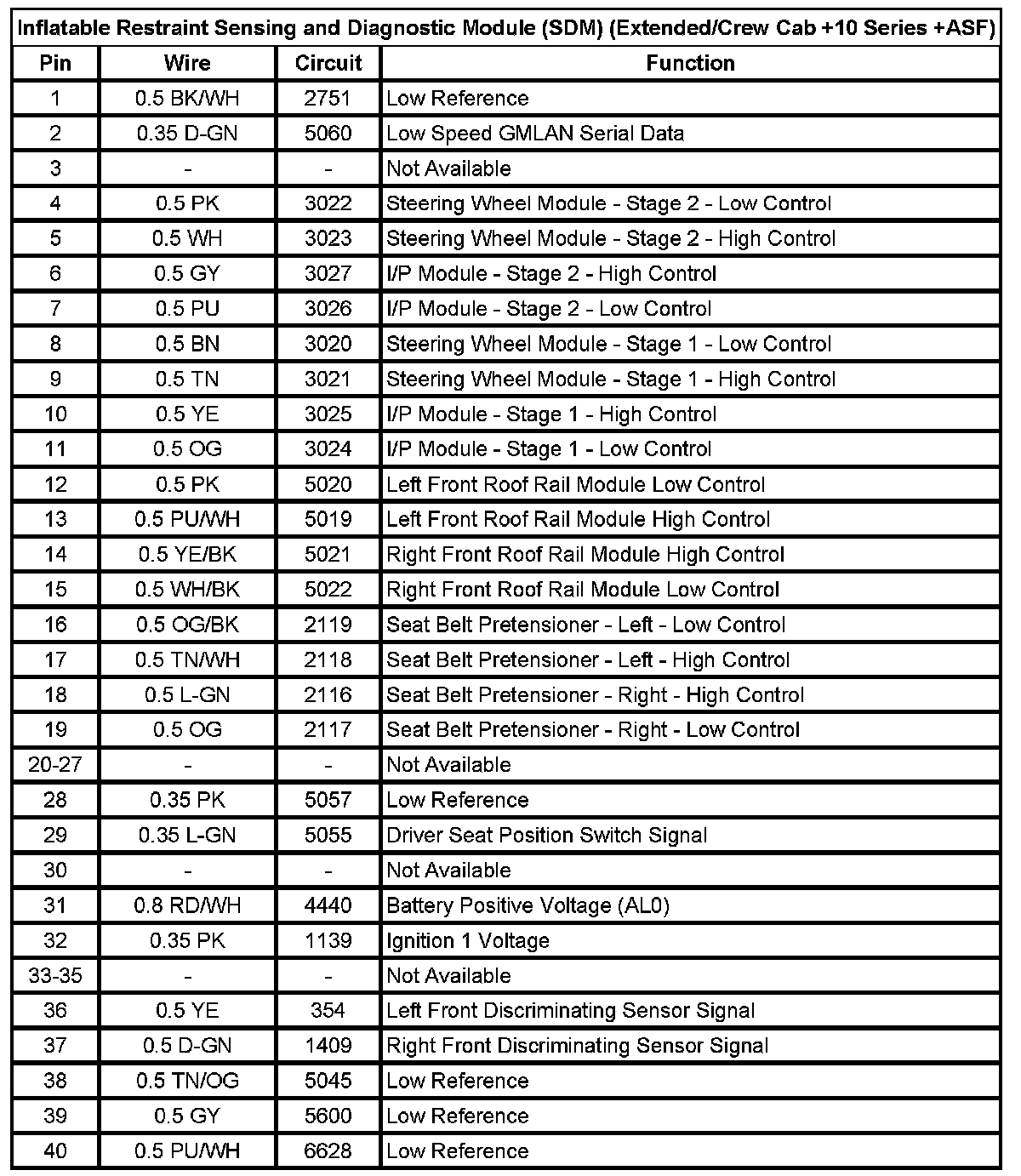

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Extended/Crew Cab +10 Series +ASF) (Pin 1 To 40):





Inflatable Restraint Sensing And Diagnostic Module (SDM) (Extended/Crew Cab +10 Series +ASF) (Pin 41 To 60):






Inflatable Restraint Sensing and Diagnostic Module (SDM) (Regular Cab +10 Series +ASF)

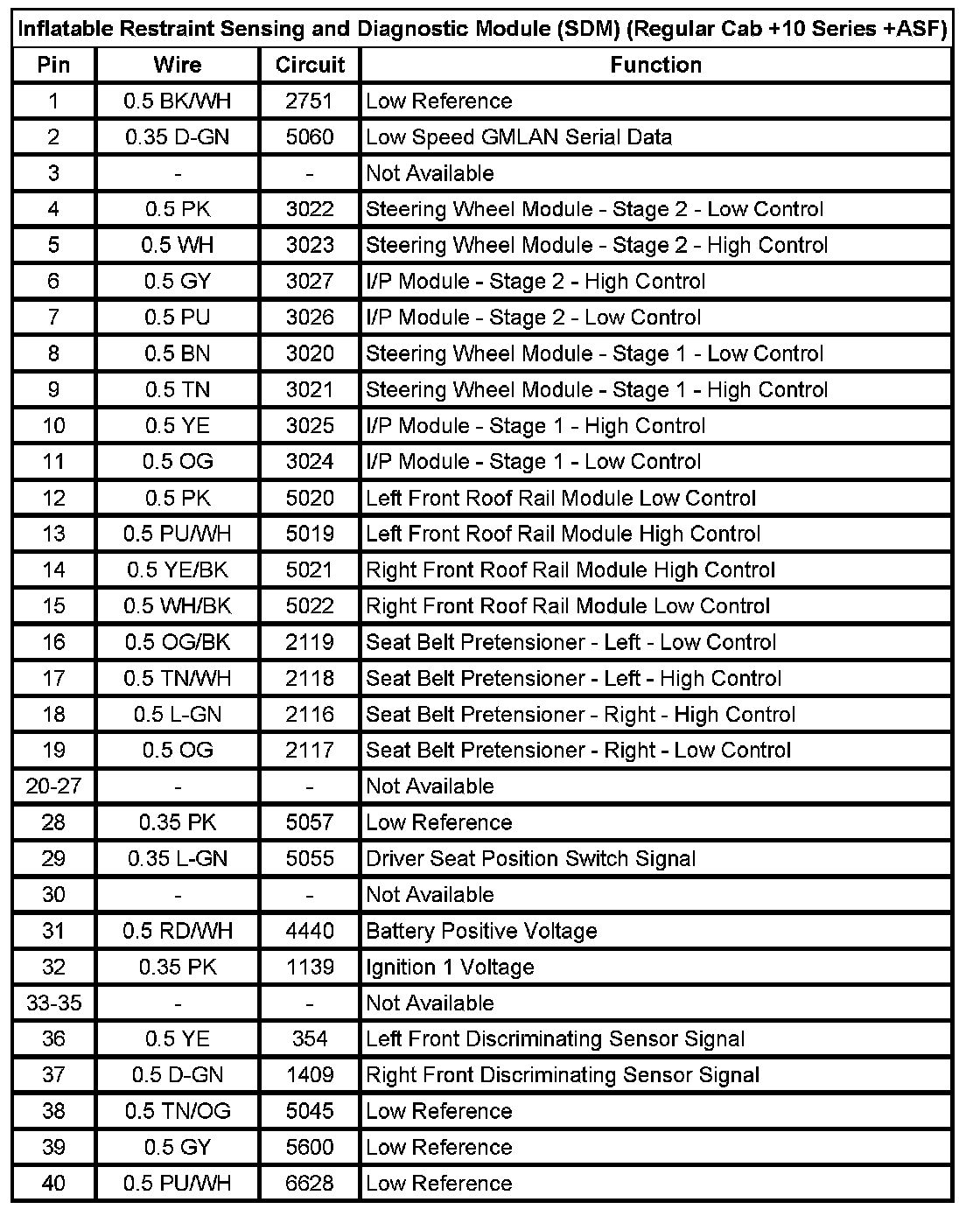

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Regular Cab +10 Series +ASF) (Pin 1 To 40):





Inflatable Restraint Sensing And Diagnostic Module (SDM) (Regular Cab +10 Series +ASF) (Pin 41 To 60):

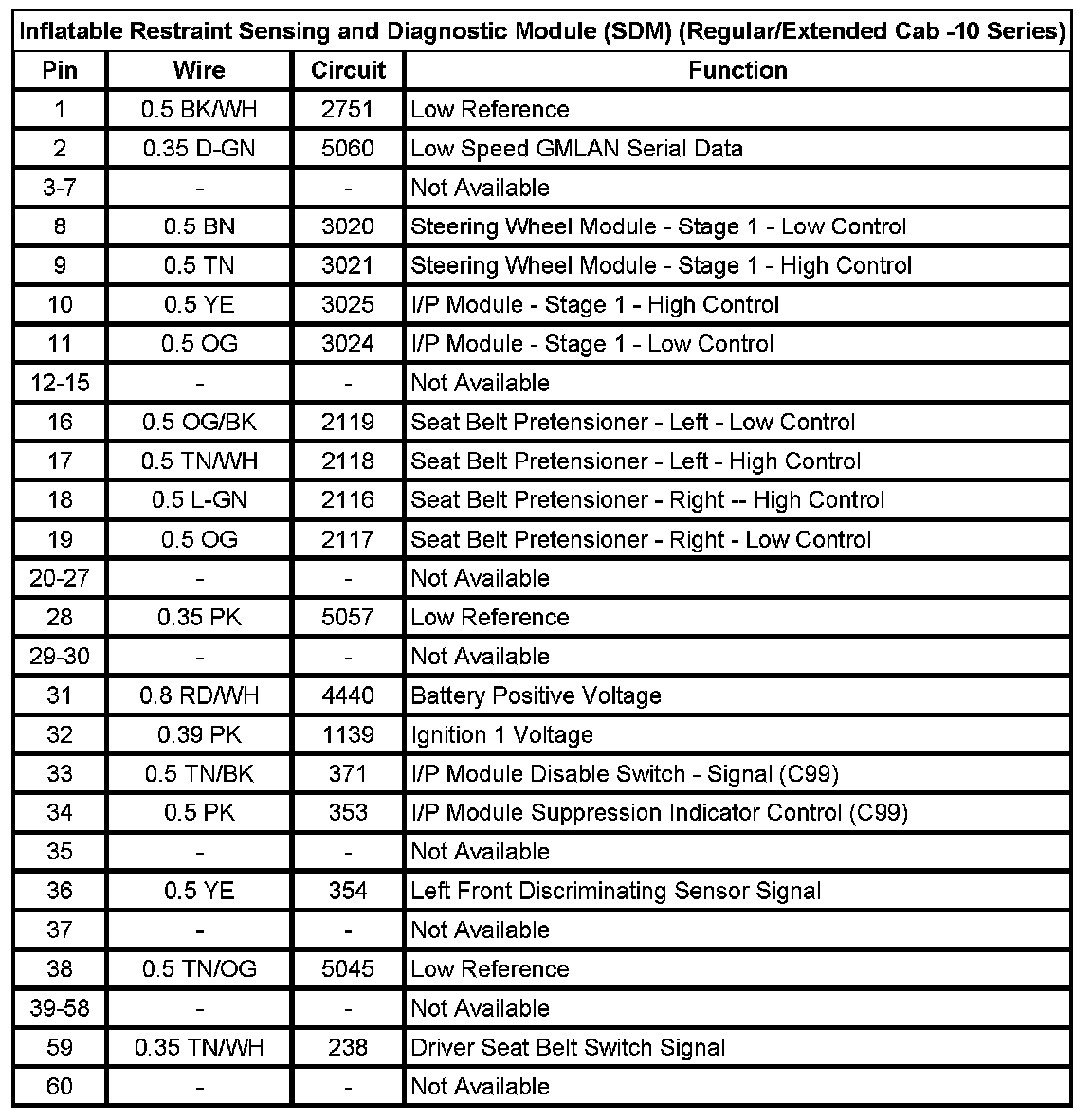

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Regular/Extended Cab -10 Series)
