Alarm Module, (Vehicle Antitheft)

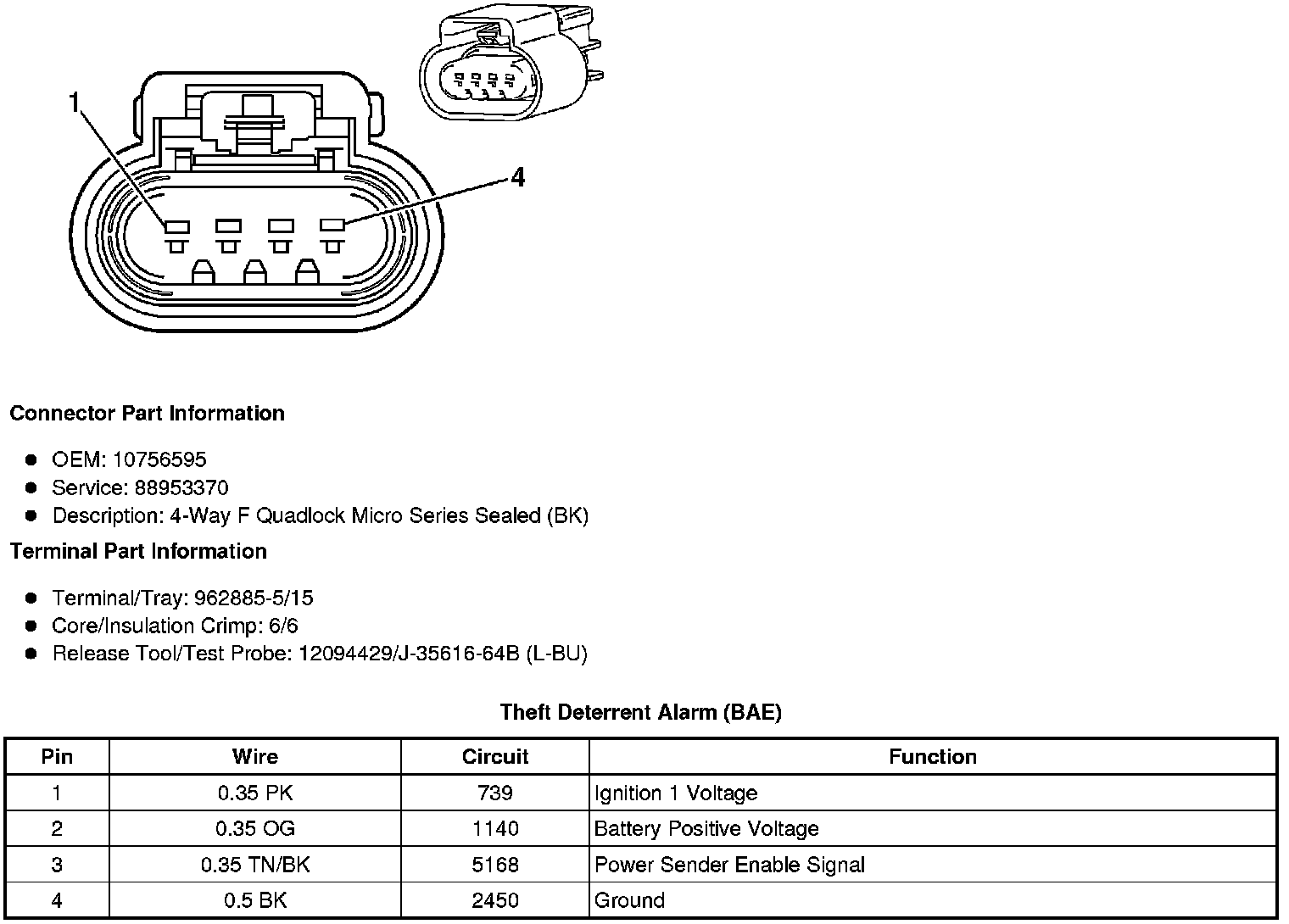

Component Connector End Views

Theft Deterrent Alarm (BAE)






Theft Deterrent Control Module (BAE)
