Amplifier, Sound System
Component Connector End Views

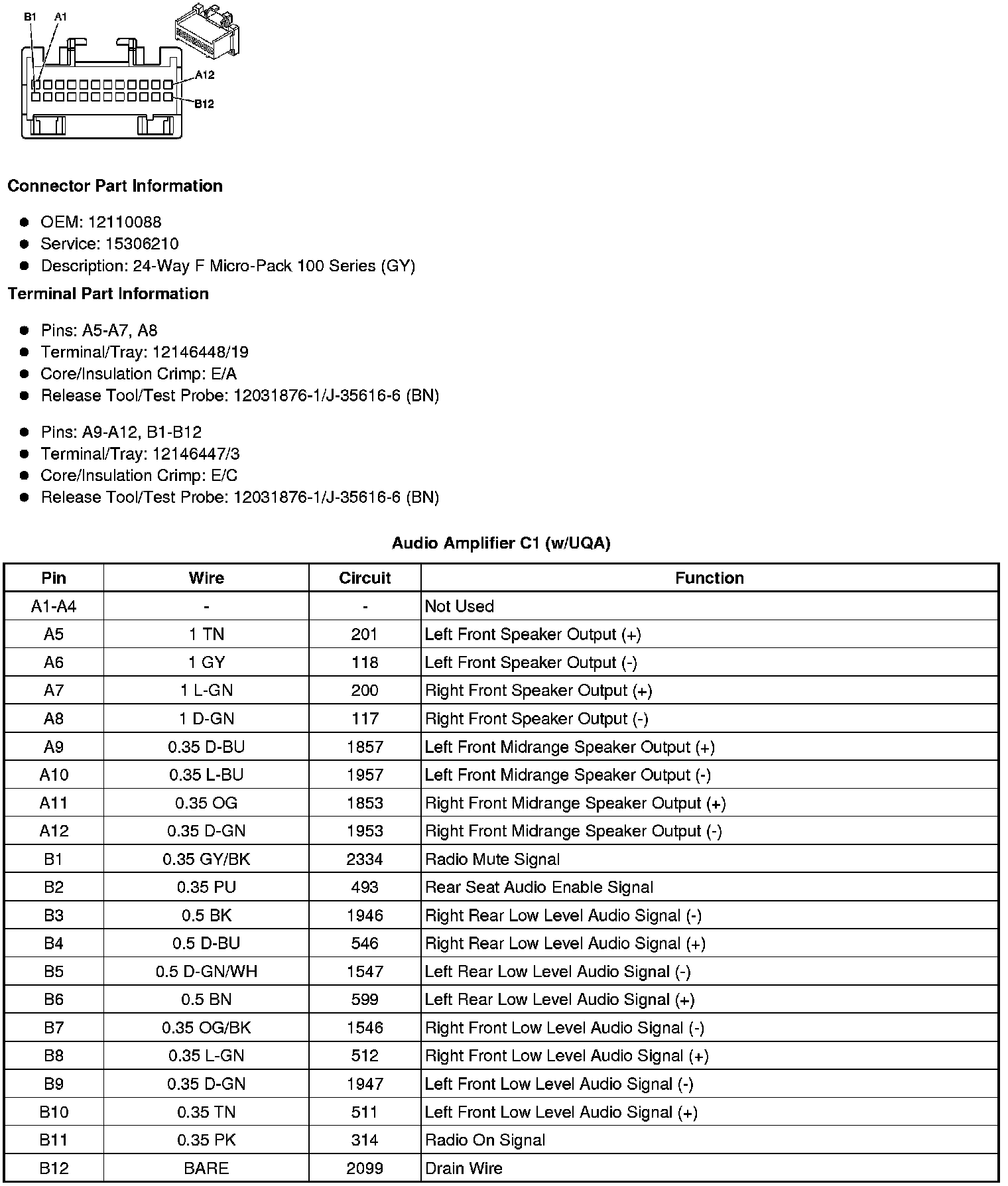

Audio Amplifier C1 (w/UQA)

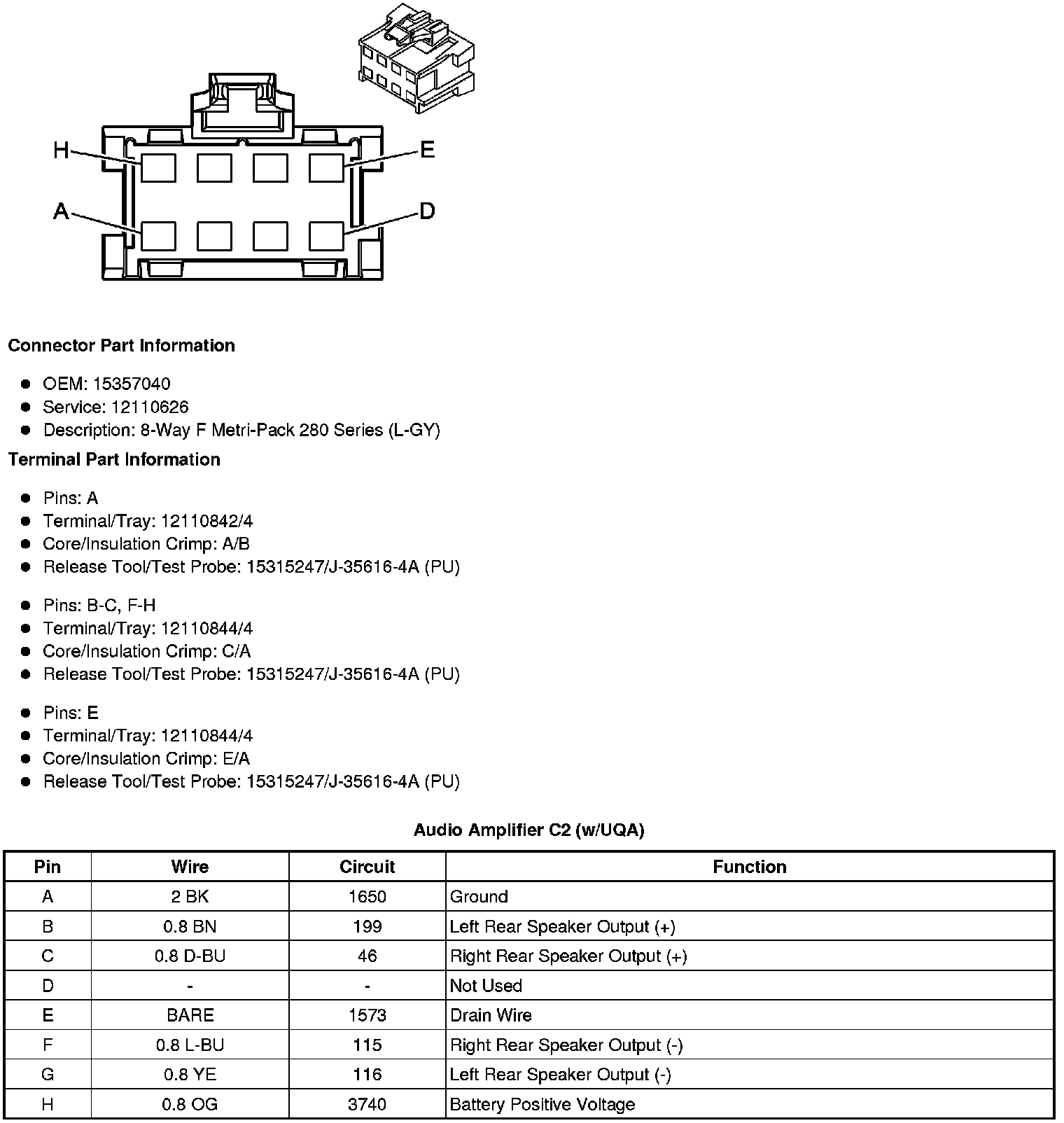

Audio Amplifier C2 (w/UQA)
