Map Light

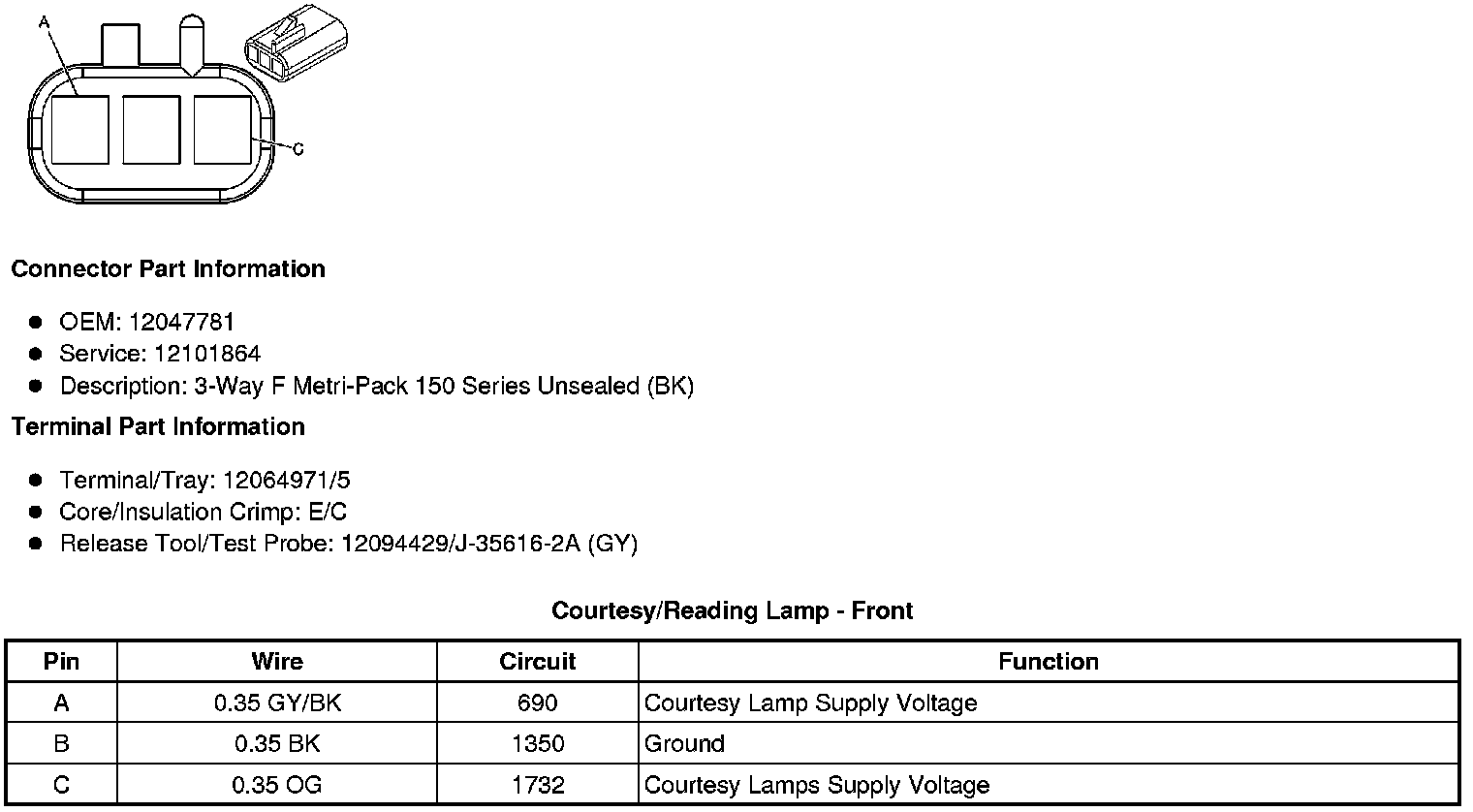

Component Connector End Views
Courtesy/Reading Lamp - Center
Courtesy/Reading Lamp - Front
