Steering Mounted Controls Transmitter




Component Connector End Views

Steering Wheel Control Switch Assembly - Lower Left (STW)






Steering Wheel Control Switch Assembly - Lower Right (STW)






Steering Wheel Control Switch Assembly - Upper Left (STW)

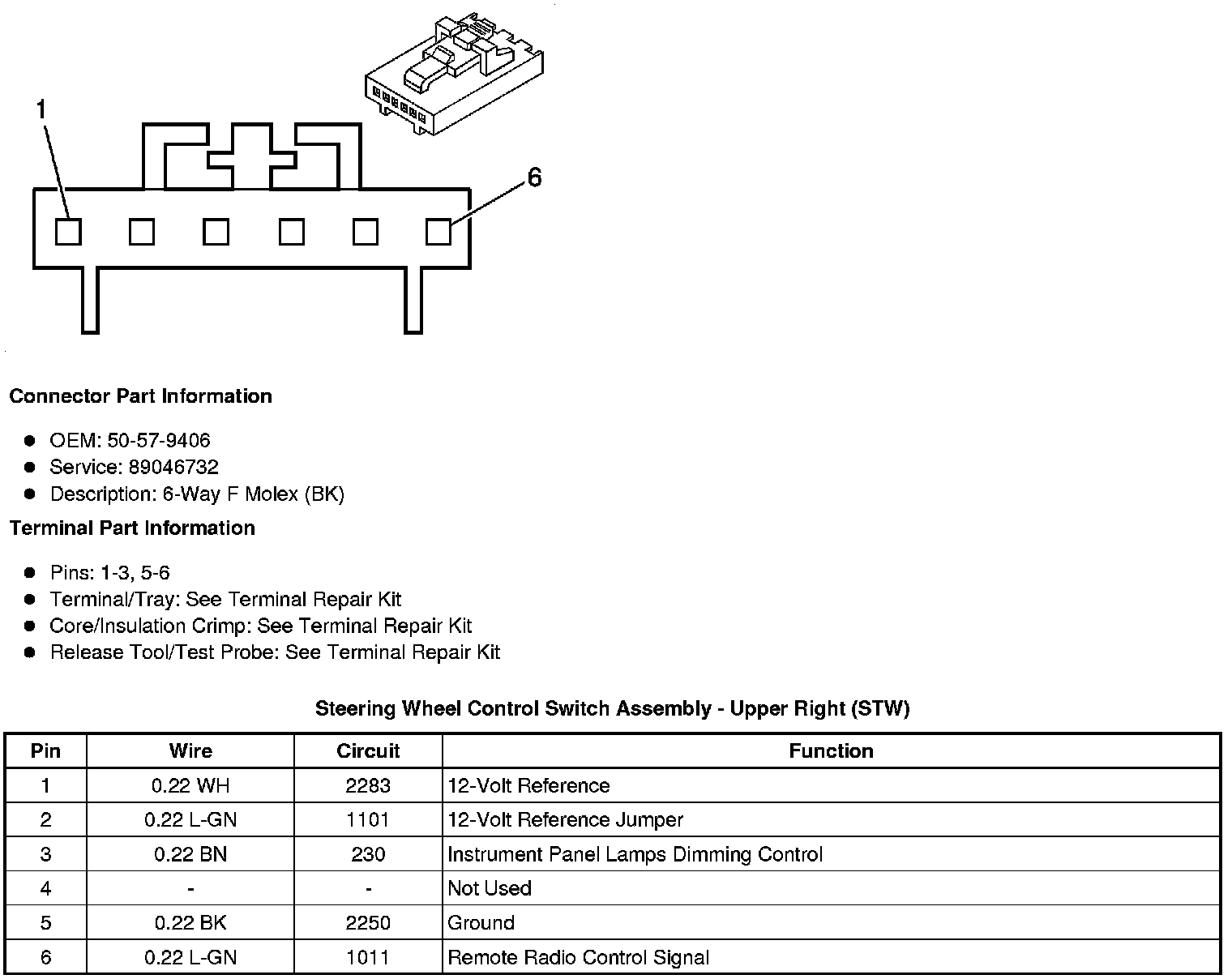

Steering Wheel Control Switch Assembly - Upper Right (STW)
