Flex Plate

FLYWHEEL/FLEXPLATE

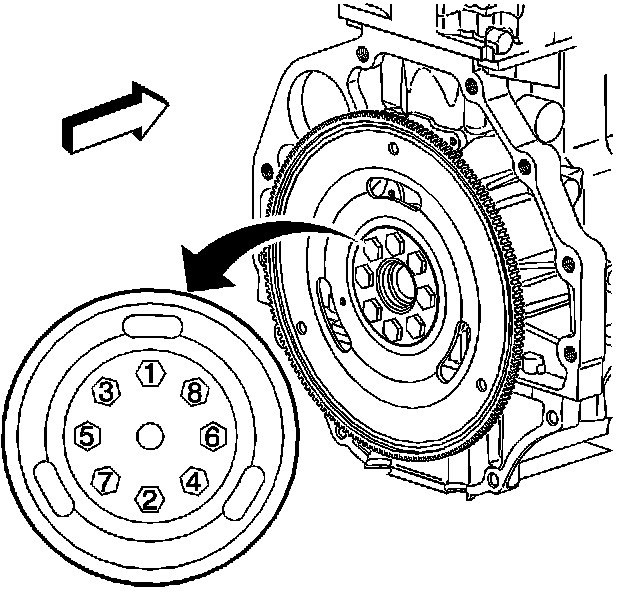

Engine Flywheel Bolt
First Pass 25 Nm (18 lb ft)
Final Pass 50 degrees
