Control Assembly: Diagrams




Component Connector End Views

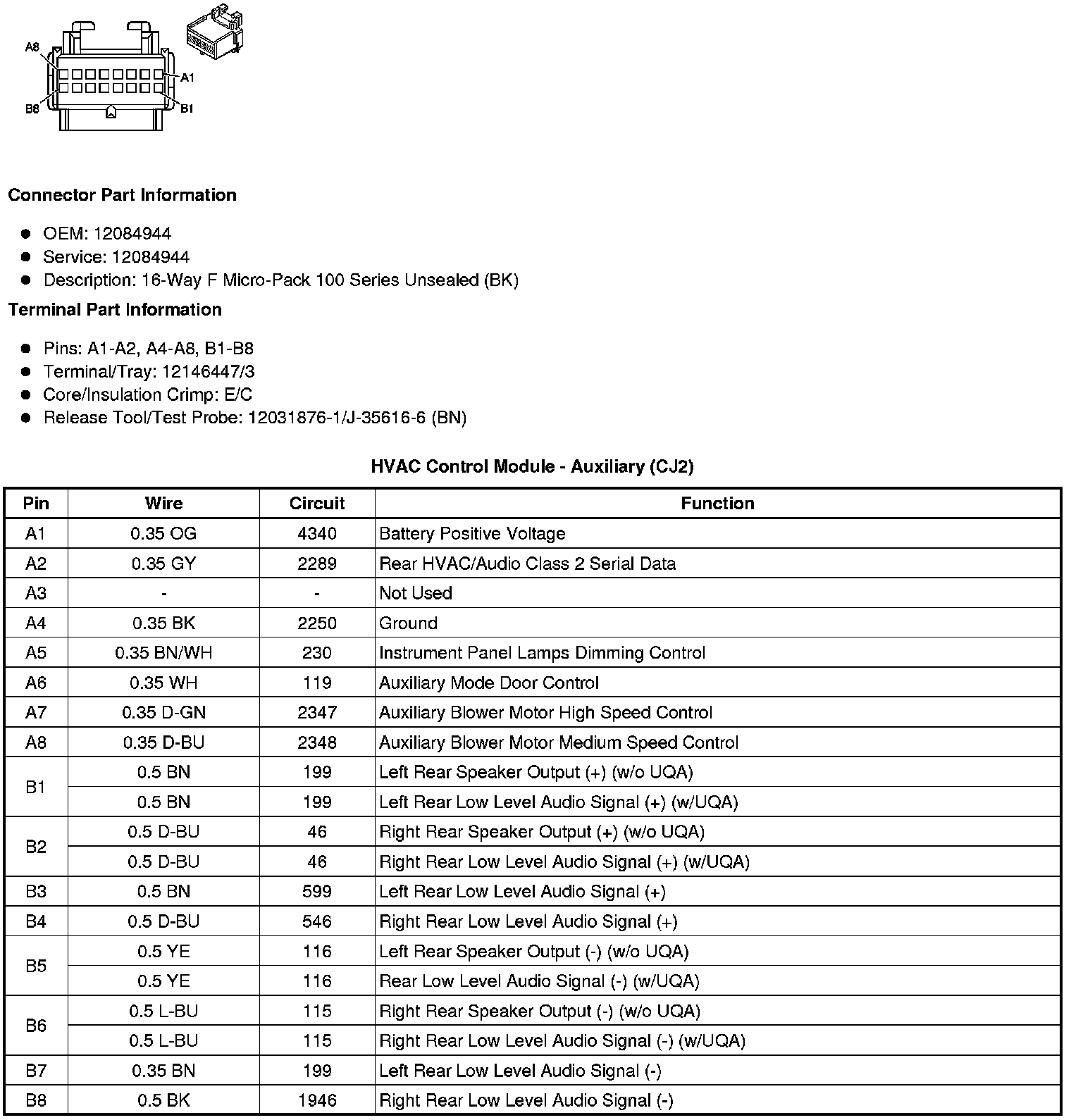

HVAC Control Module - Auxiliary (CJ2)






HVAC Control Module - Auxiliary (CJ3)

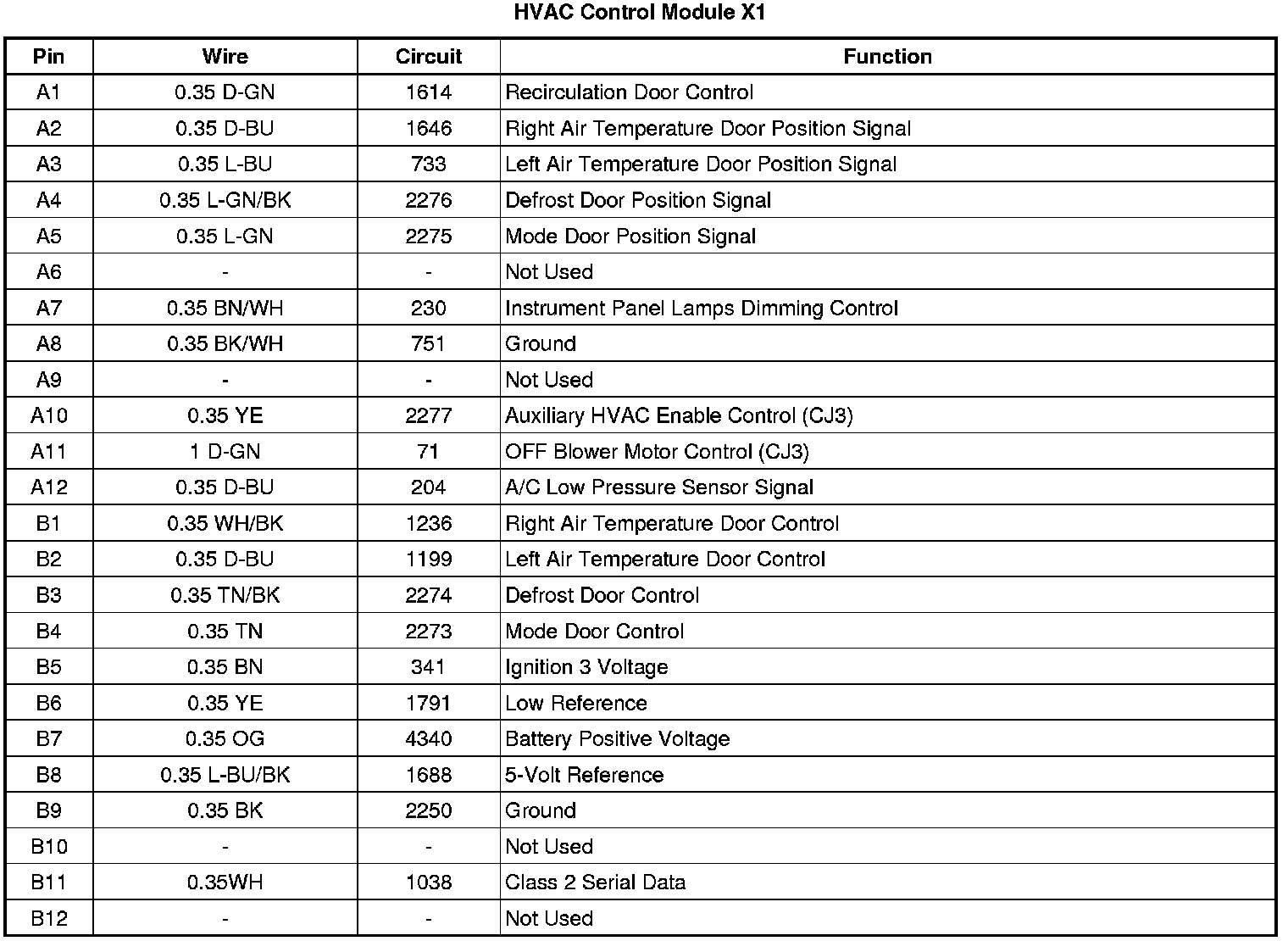

HVAC Control Module X1

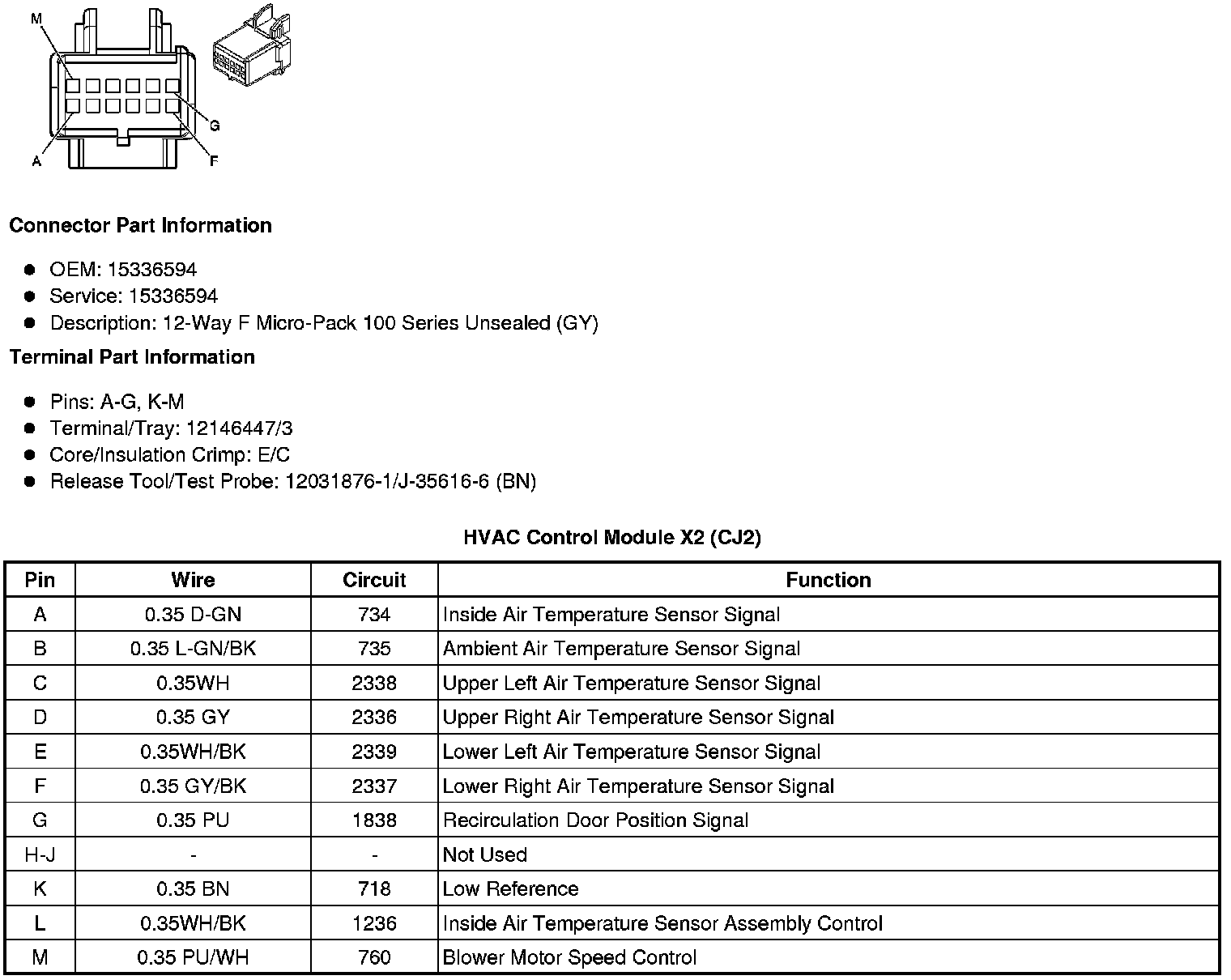

HVAC Control Module X2 (CJ2)

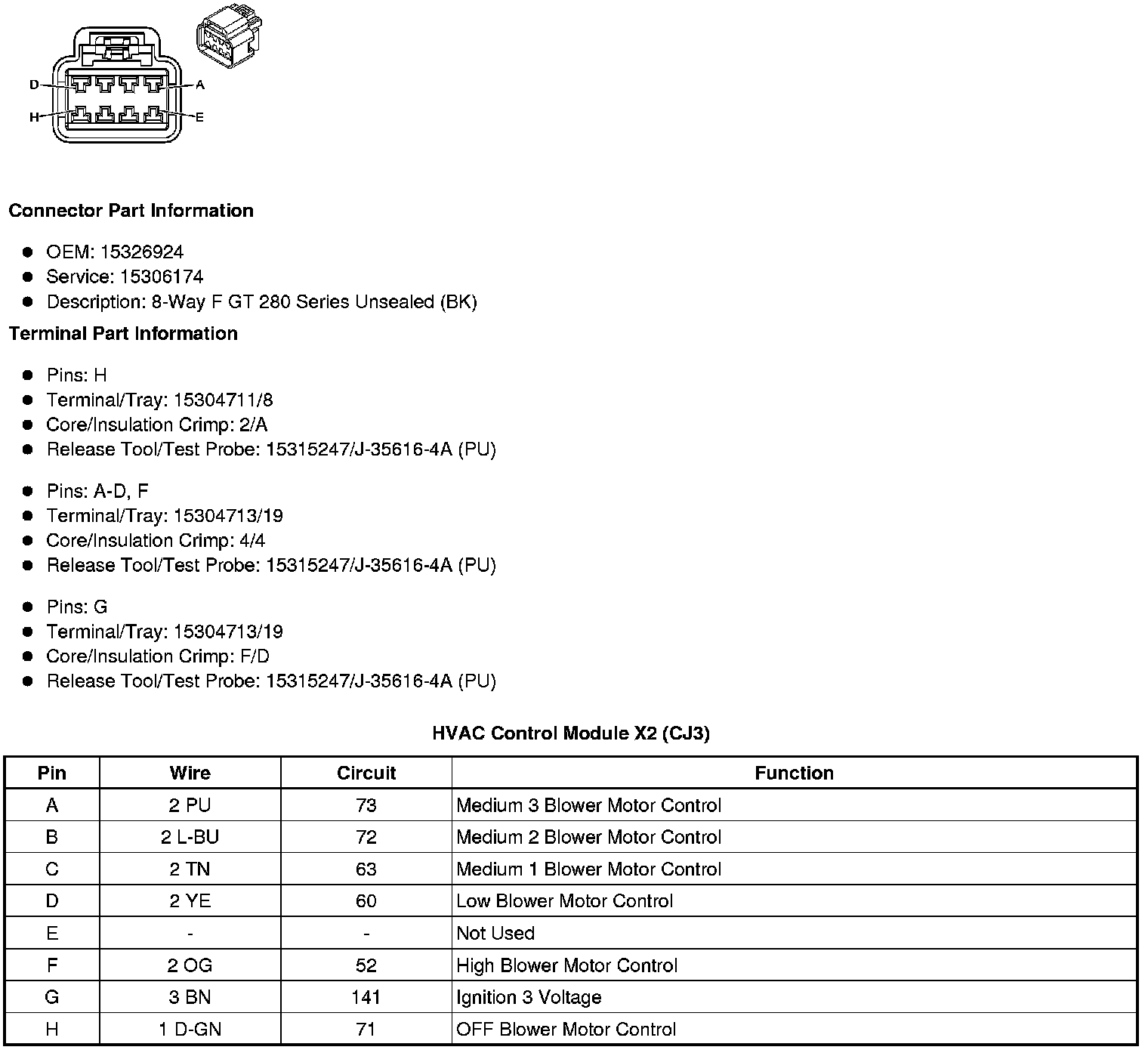

HVAC Control Module X2 (CJ3)
