Engine Mechanical Specifications

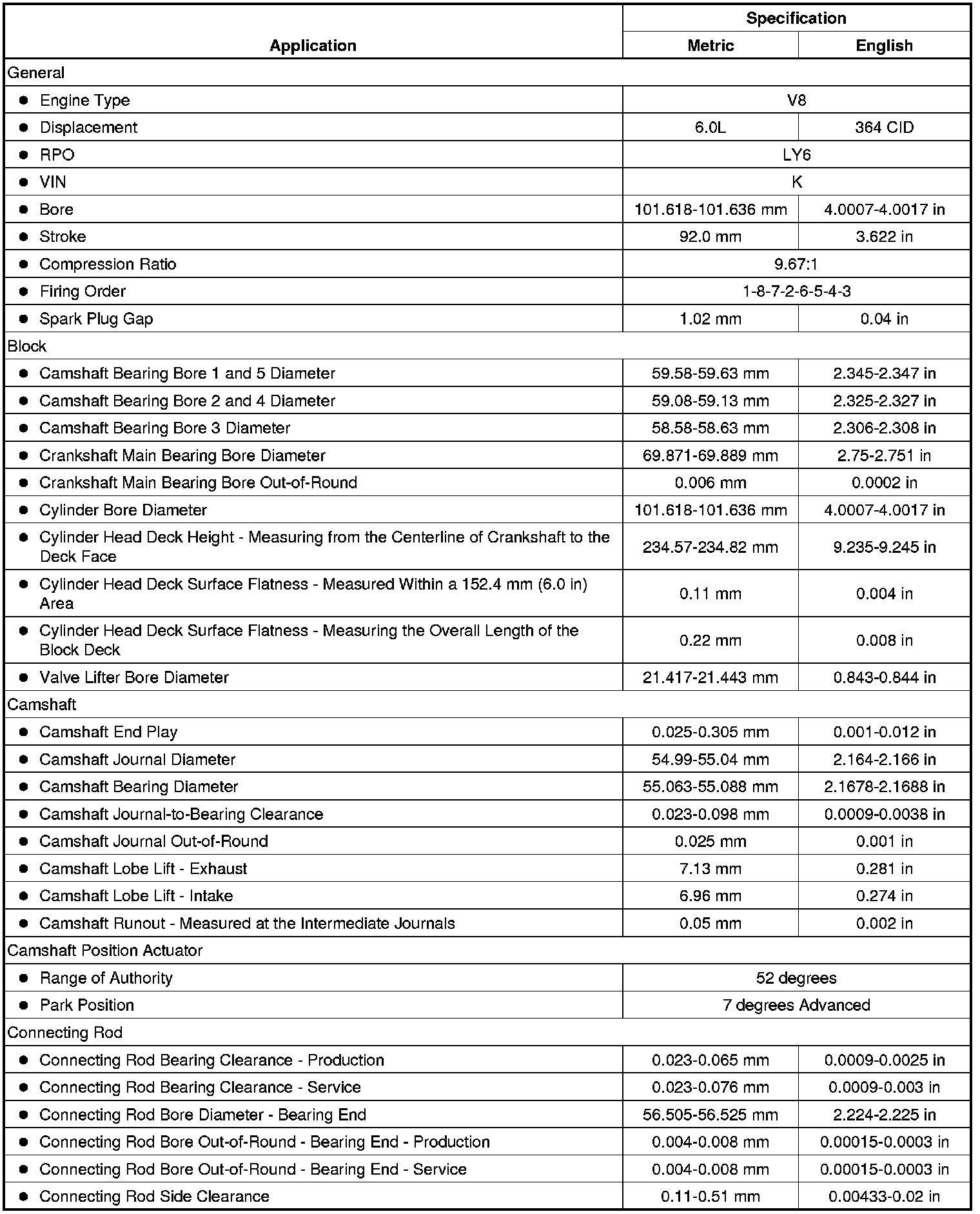

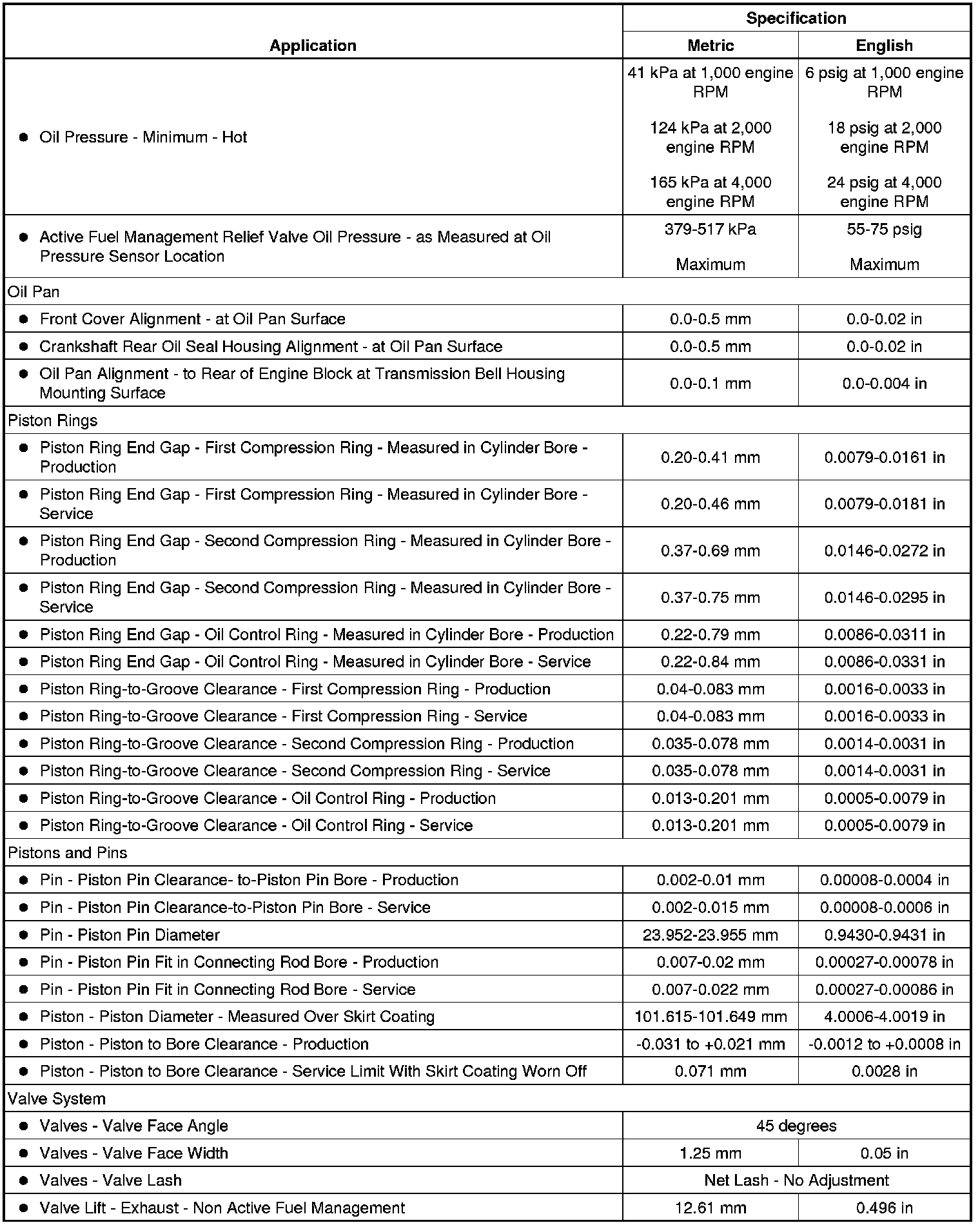

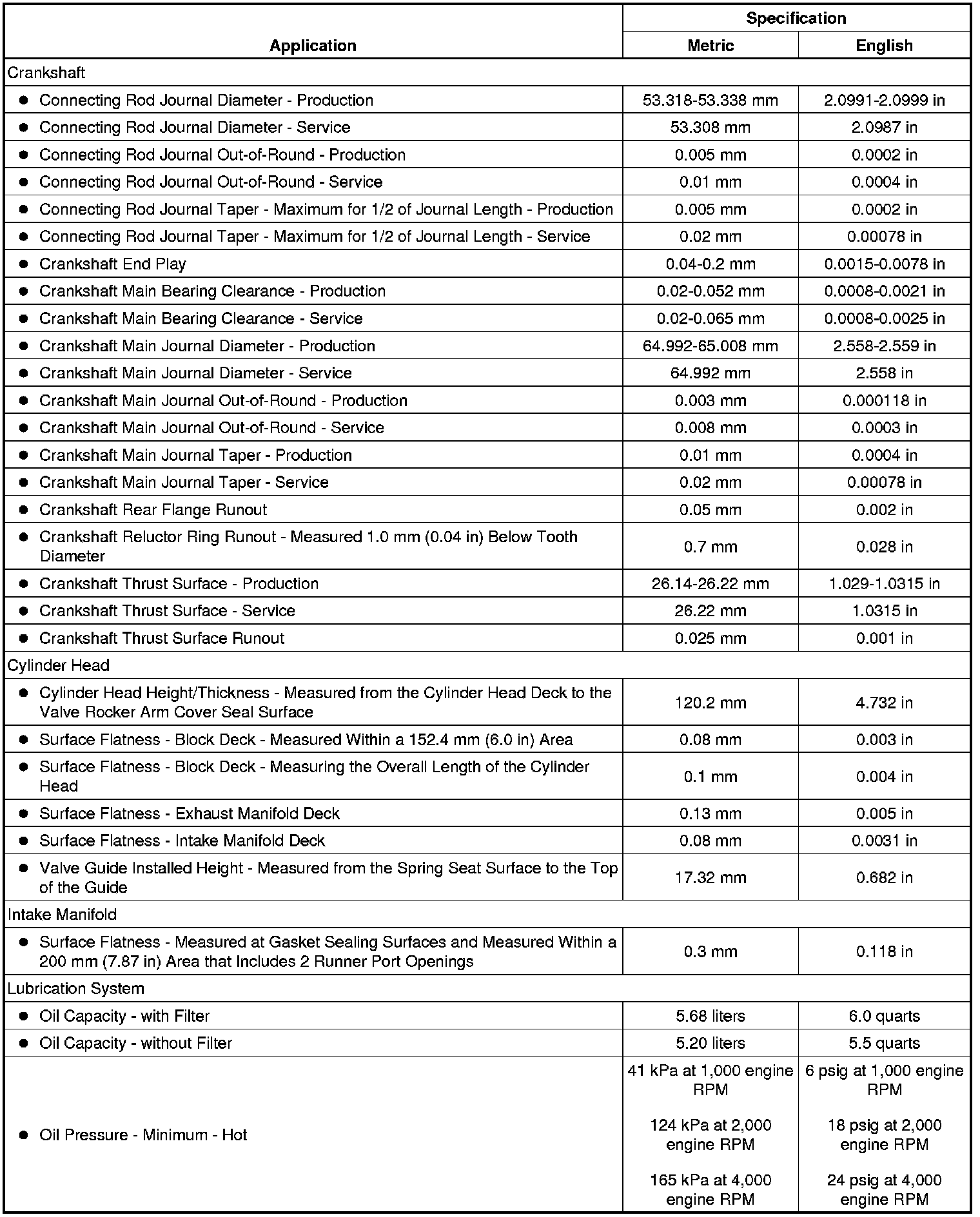

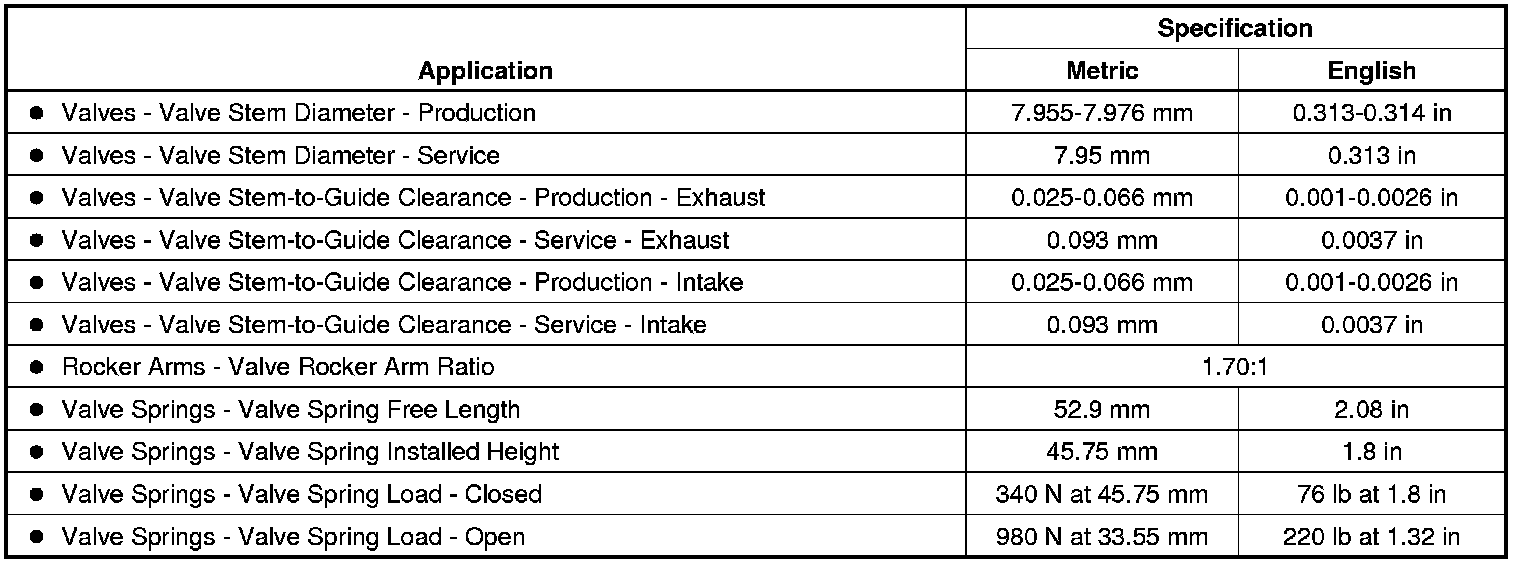

Engine Mechanical Specifications (RPO LY6 VIN K)

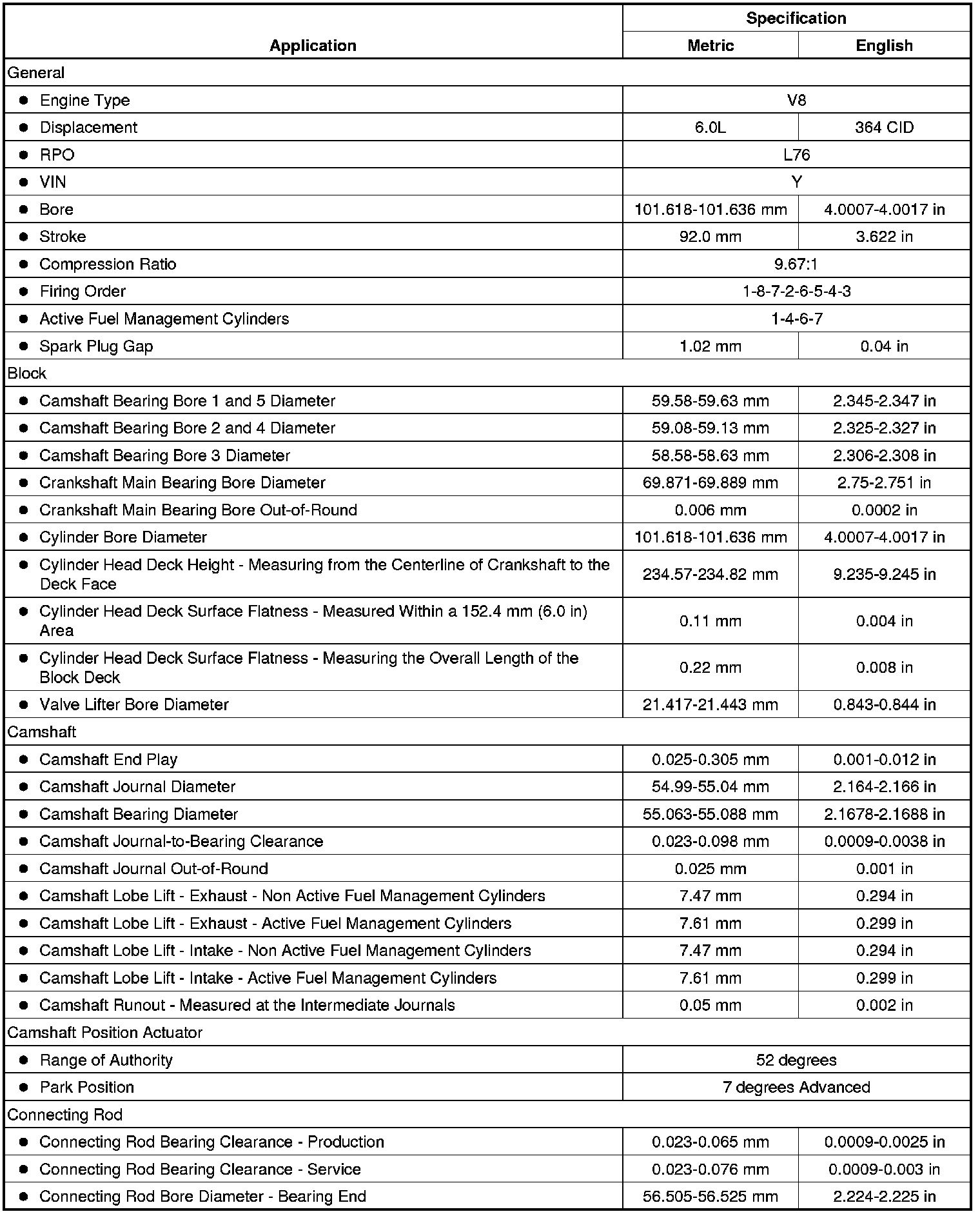

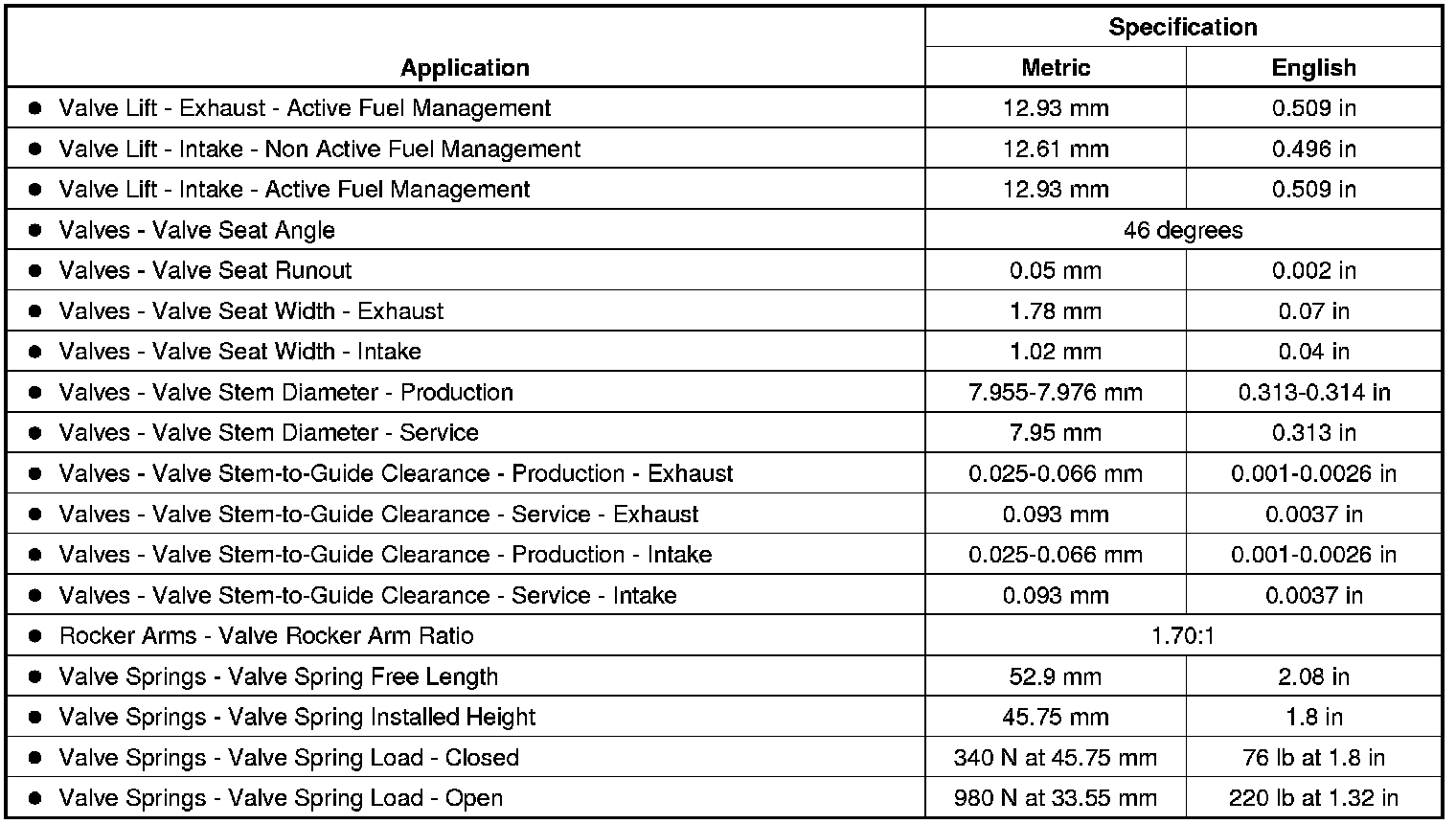

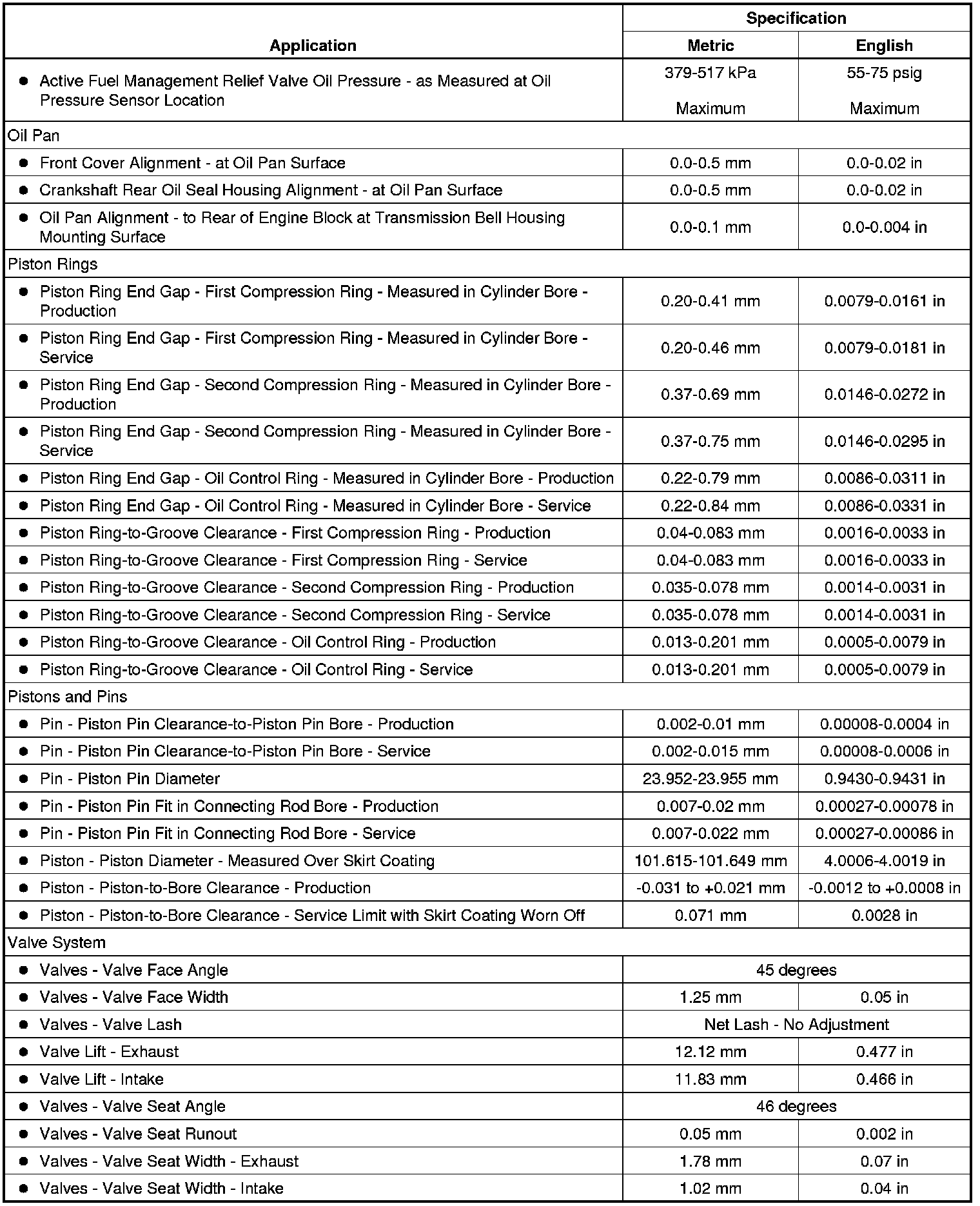

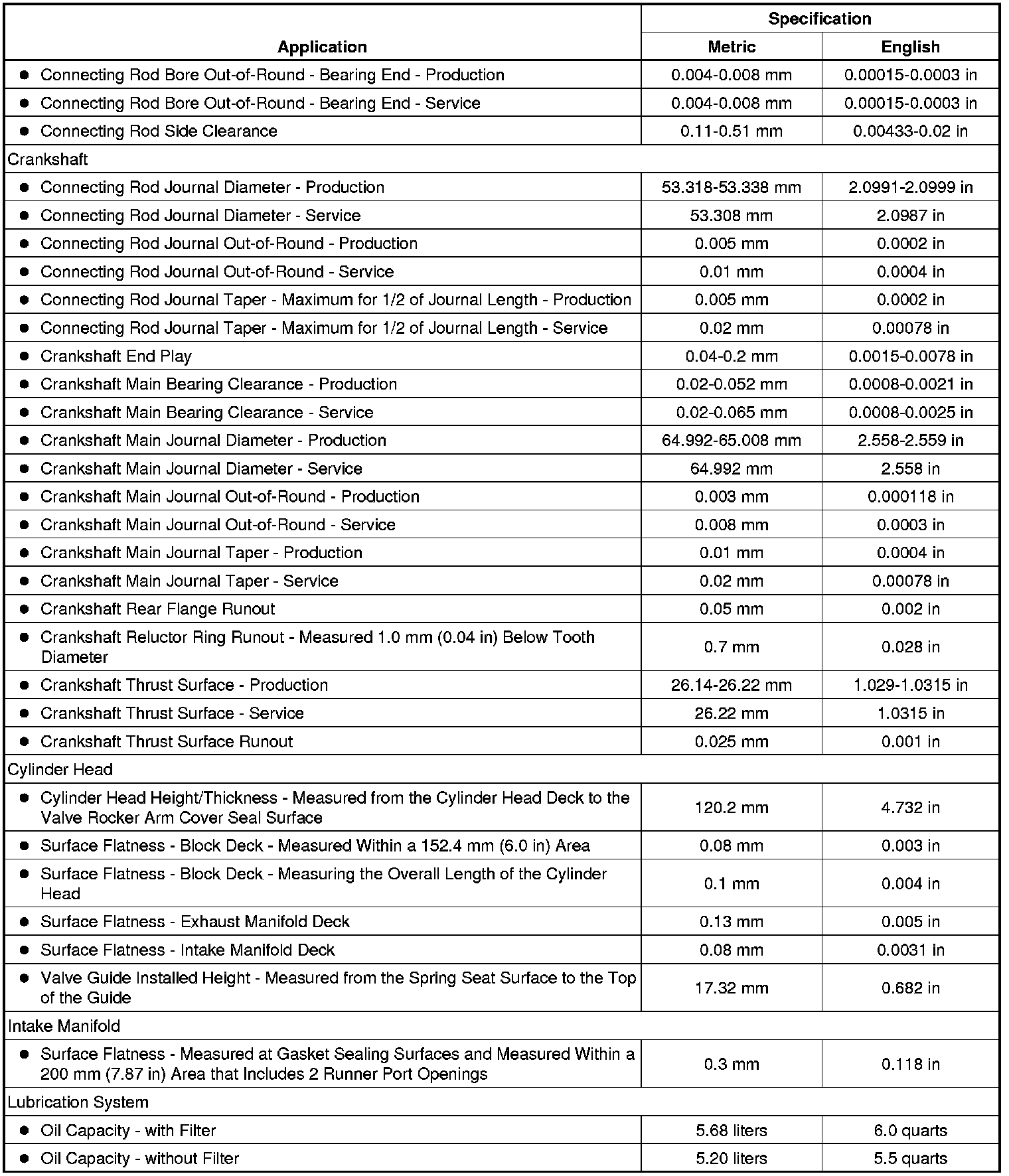

Engine Mechanical Specifications (RPO L76 VIN Y)
