Acceleration/Deceleration Sensor



Component Connector End Views

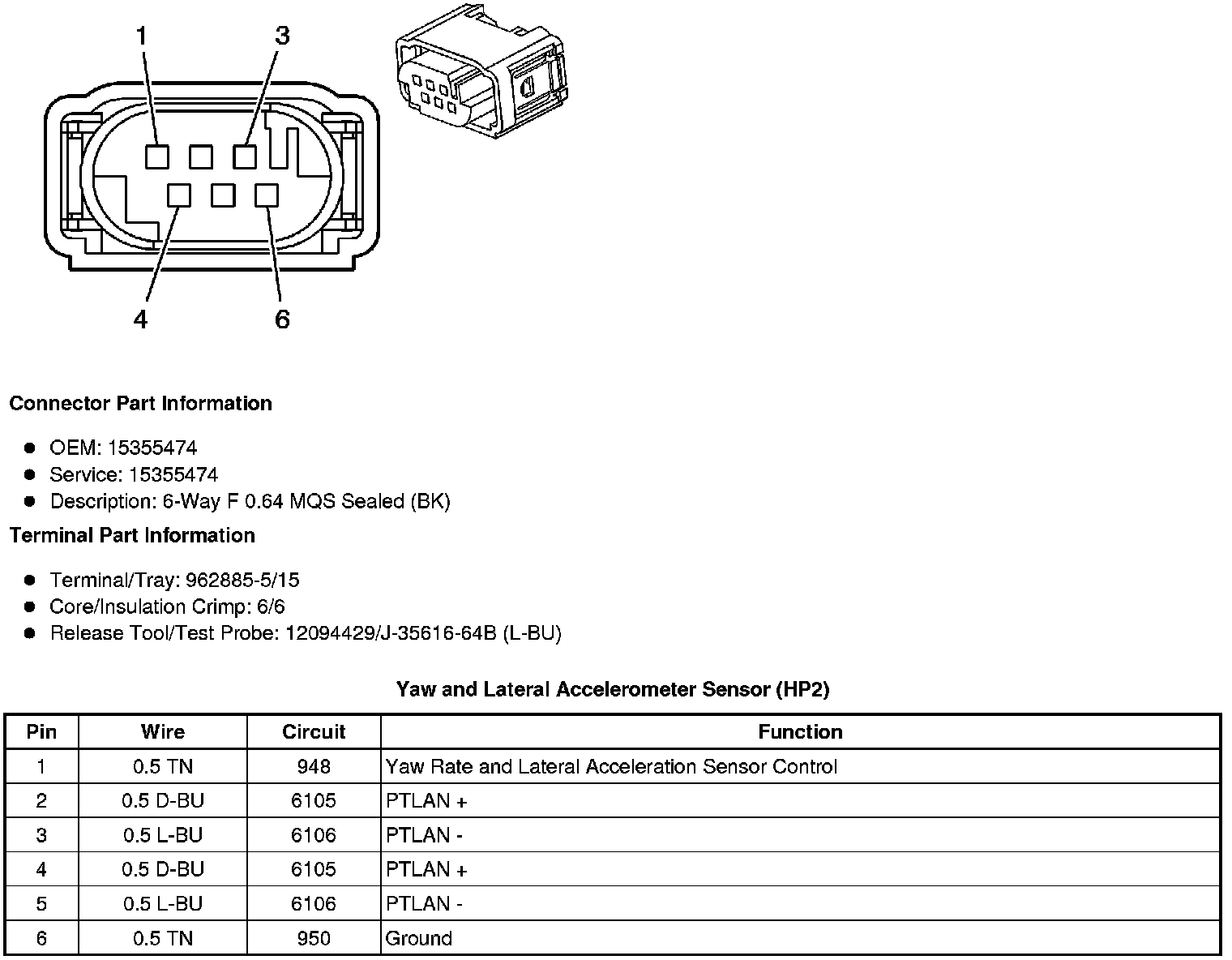

Yaw and Lateral Accelerometer Sensor (HP2)

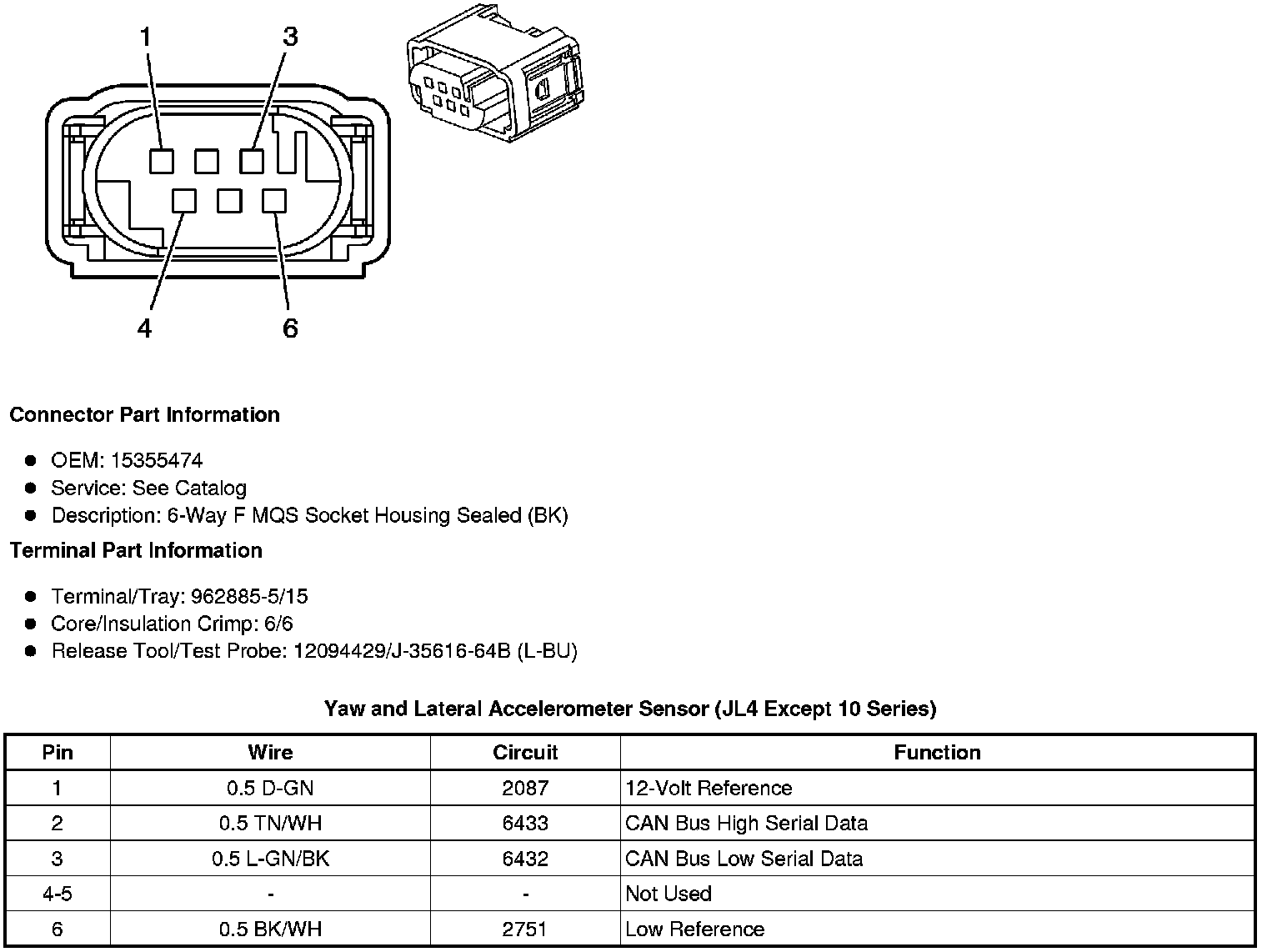

Yaw and Lateral Accelerometer Sensor (JL4 Except 10 Series)

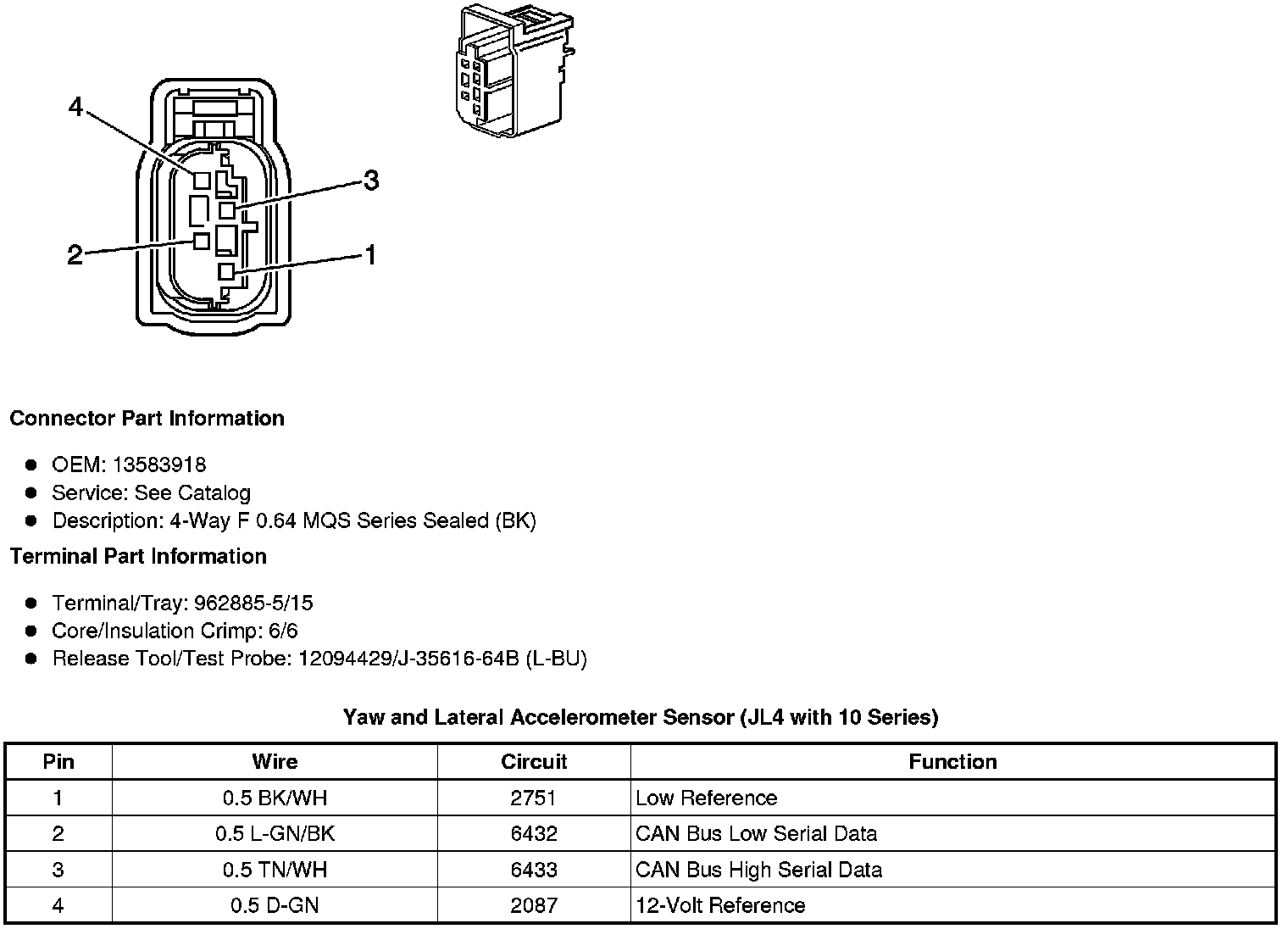

Yaw and Lateral Accelerometer Sensor (JL4 with 10 Series)
