Steering Mounted Controls Transmitter



Component Connector End Views

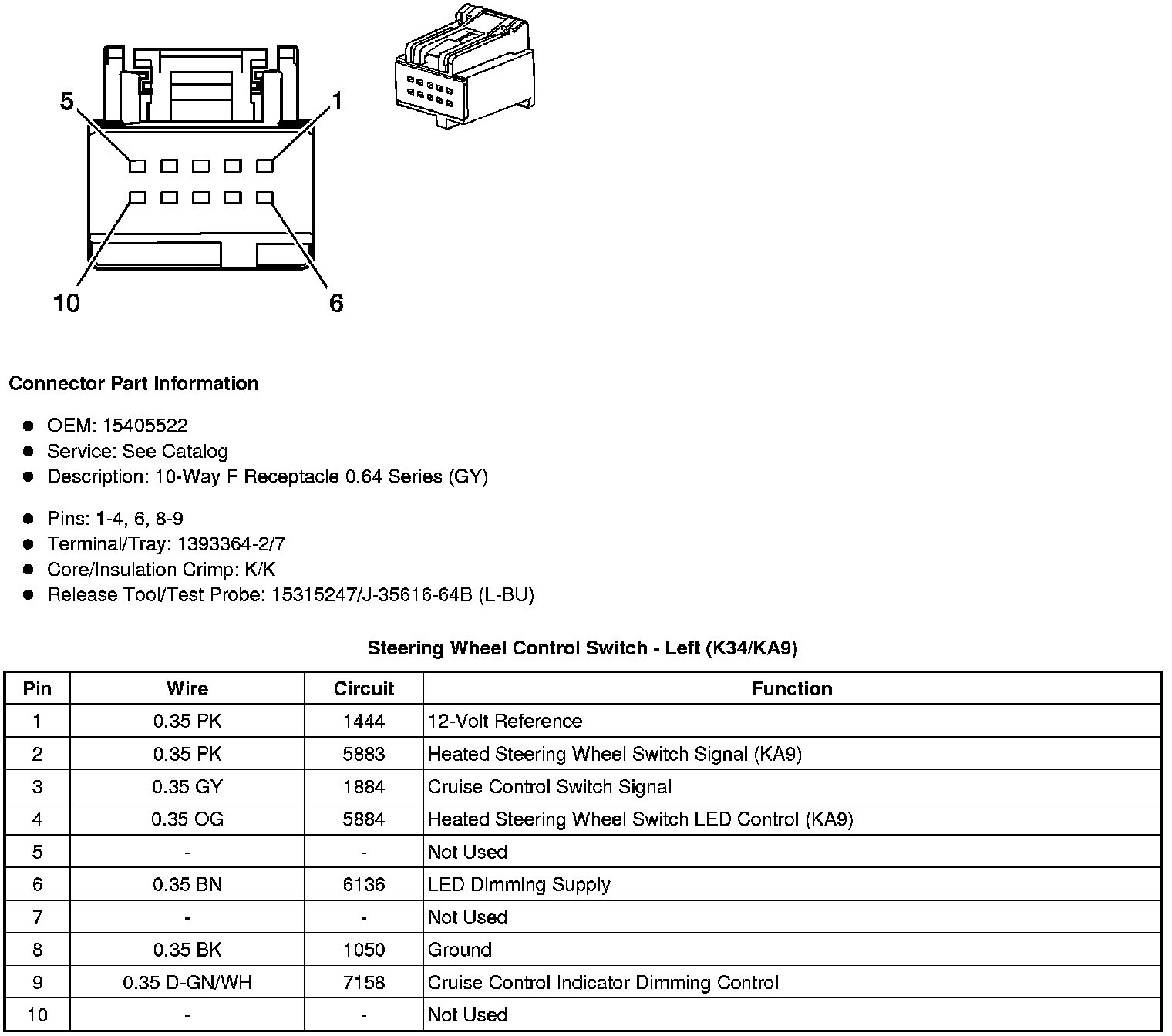

Steering Wheel Control Switch - Left (K34/KA9)

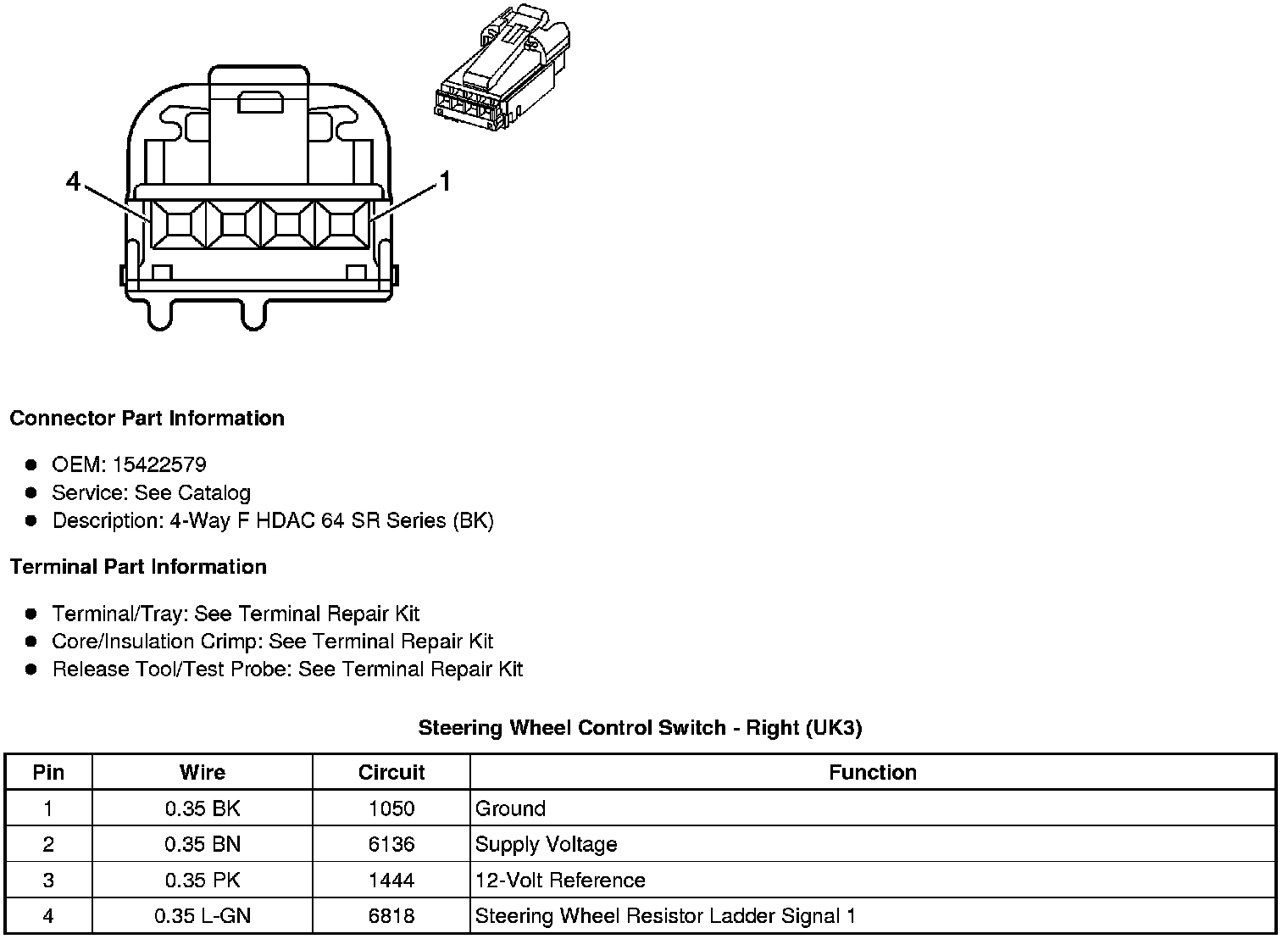

Steering Wheel Control Switch - Right (UK3)
