Air Bag Control Module

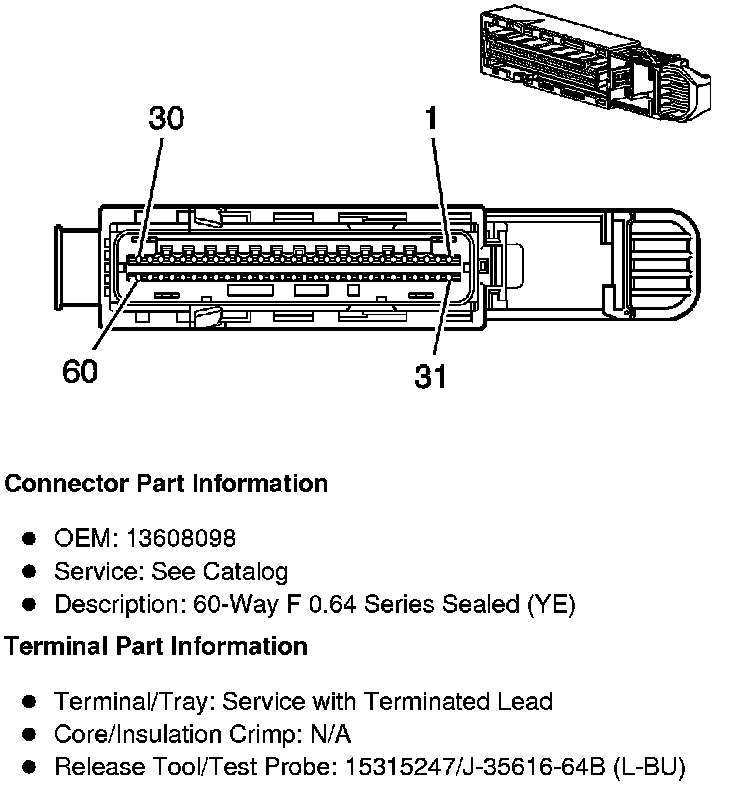

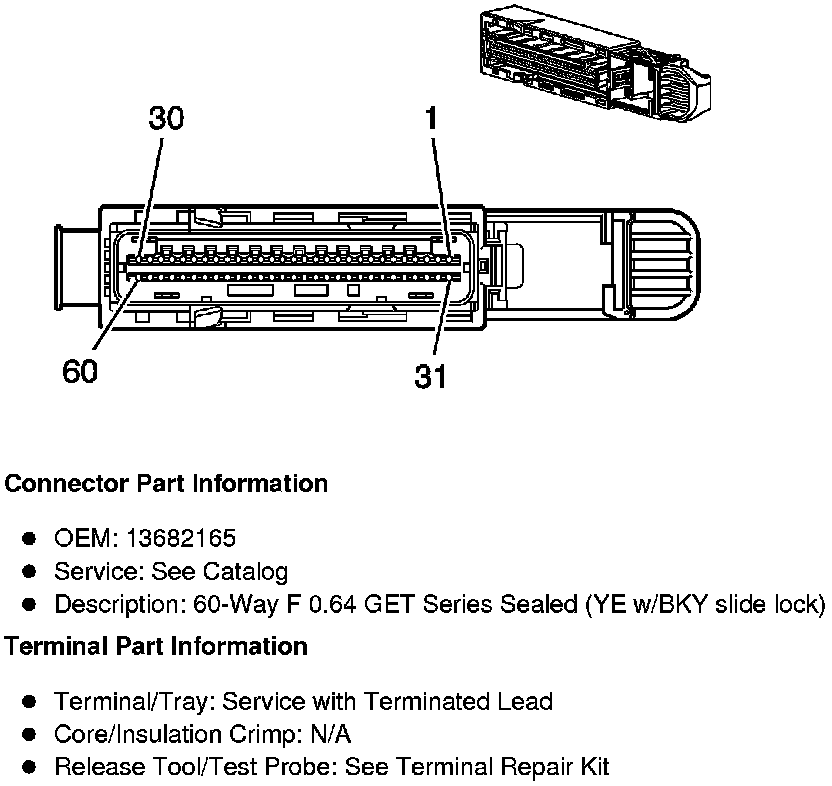

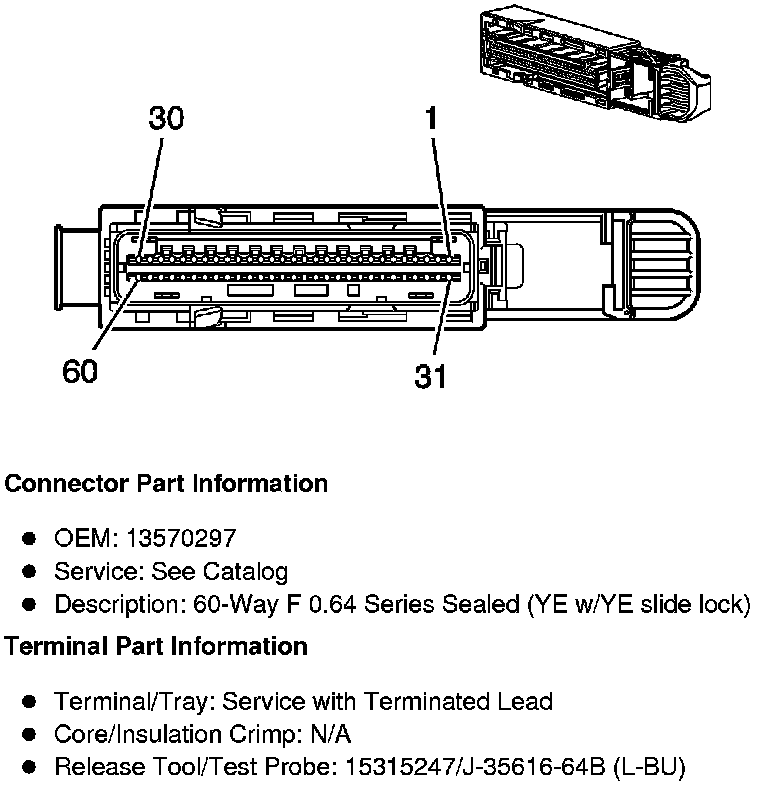

Component Connector End Views

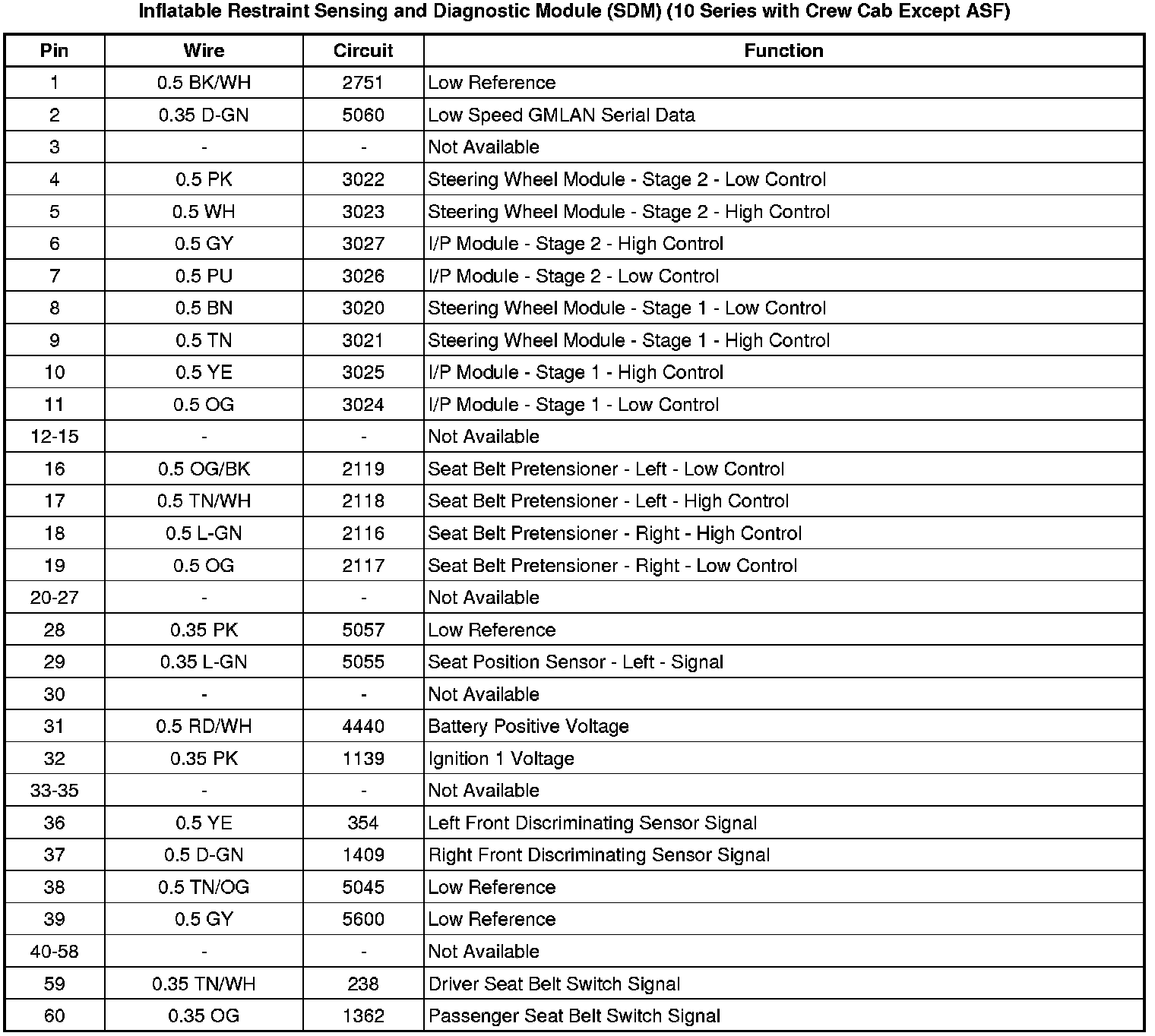

Inflatable Restraint Sensing and Diagnostic Module (SDM) (10 Series with Crew Cab Except ASF)

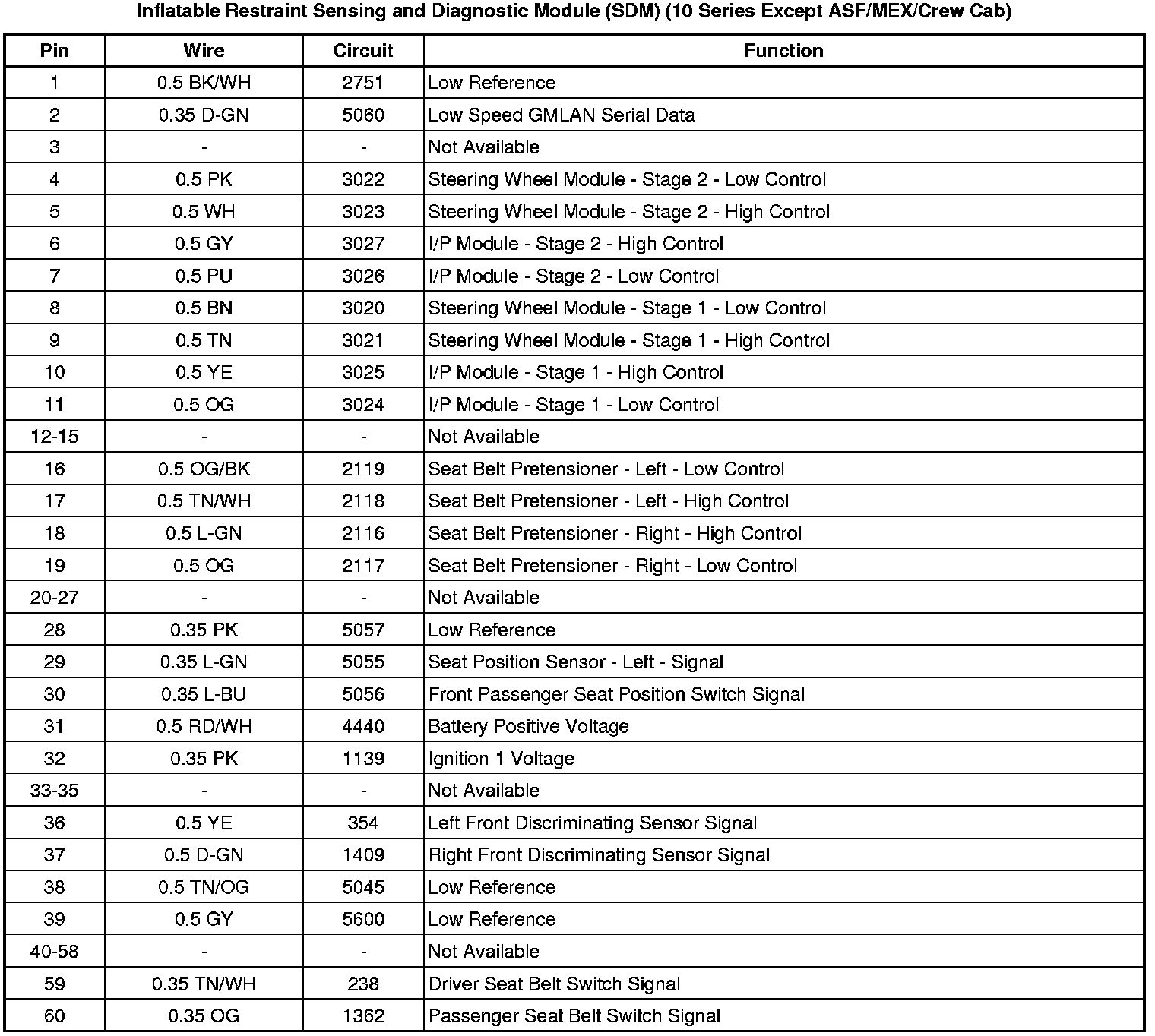

Inflatable Restraint Sensing and Diagnostic Module (SDM) (10 Series Except ASF/MEX/Crew Cab)

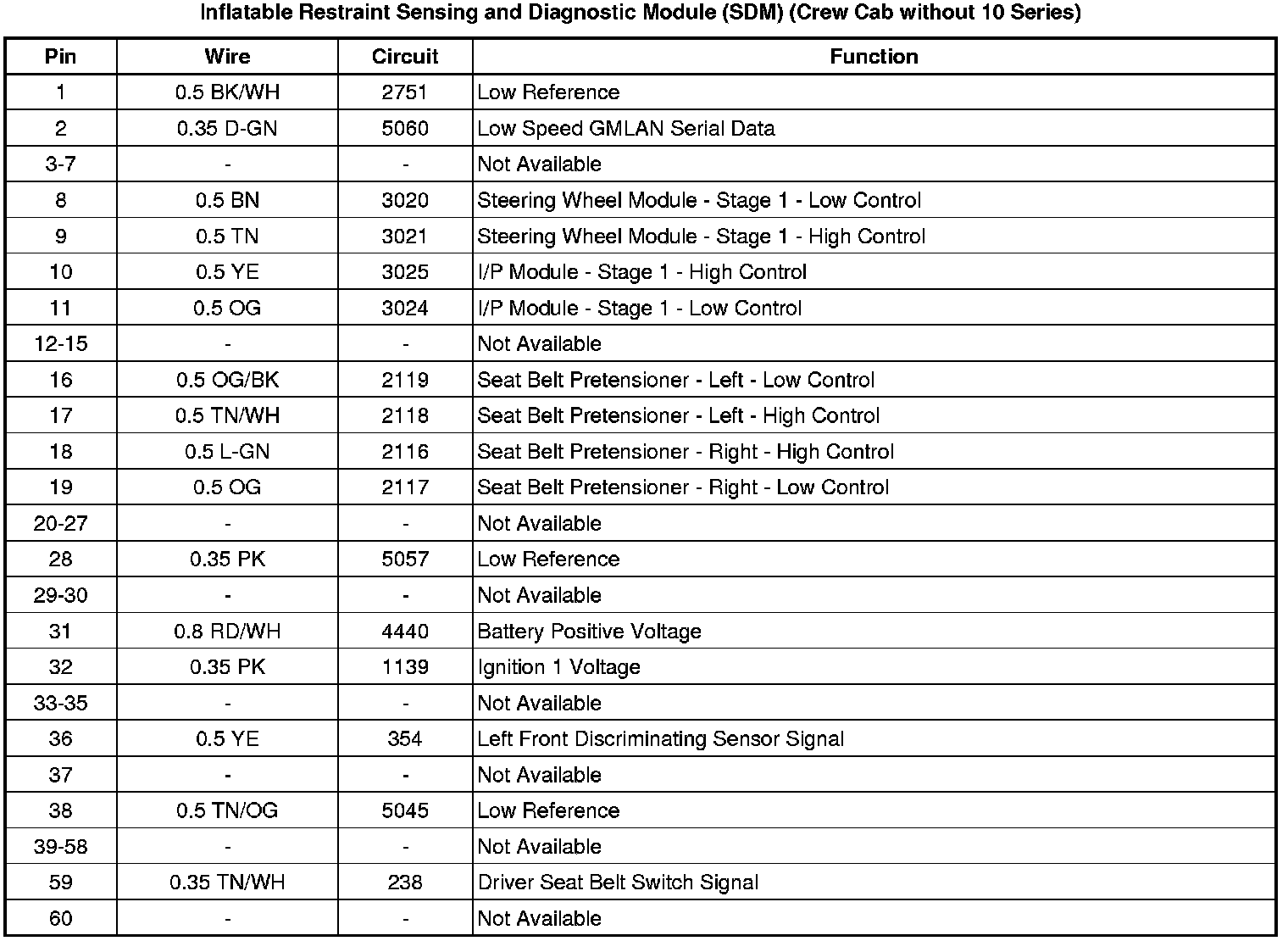

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Crew Cab without 10 Series)

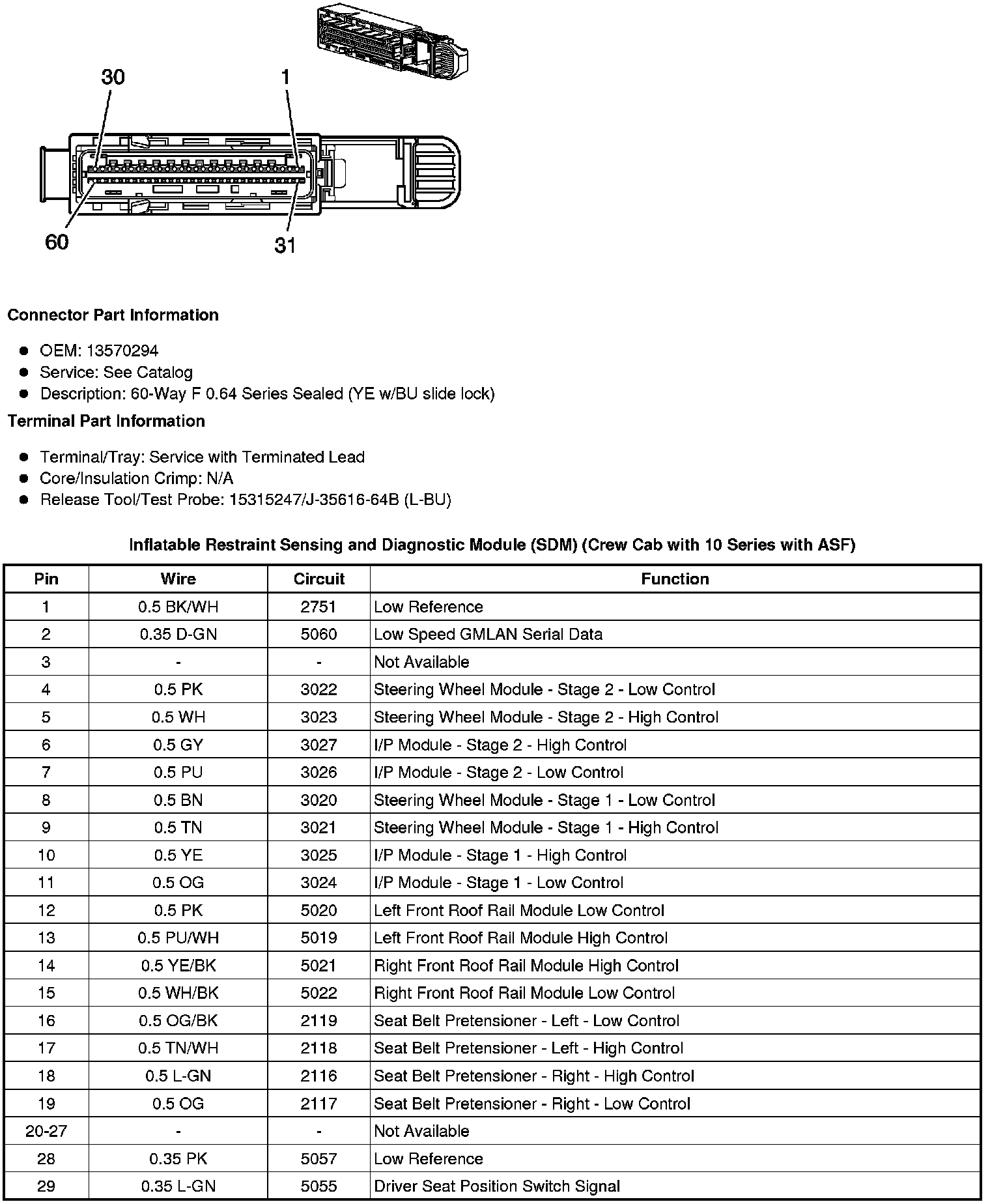

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Crew Cab with 10 Series with ASF)

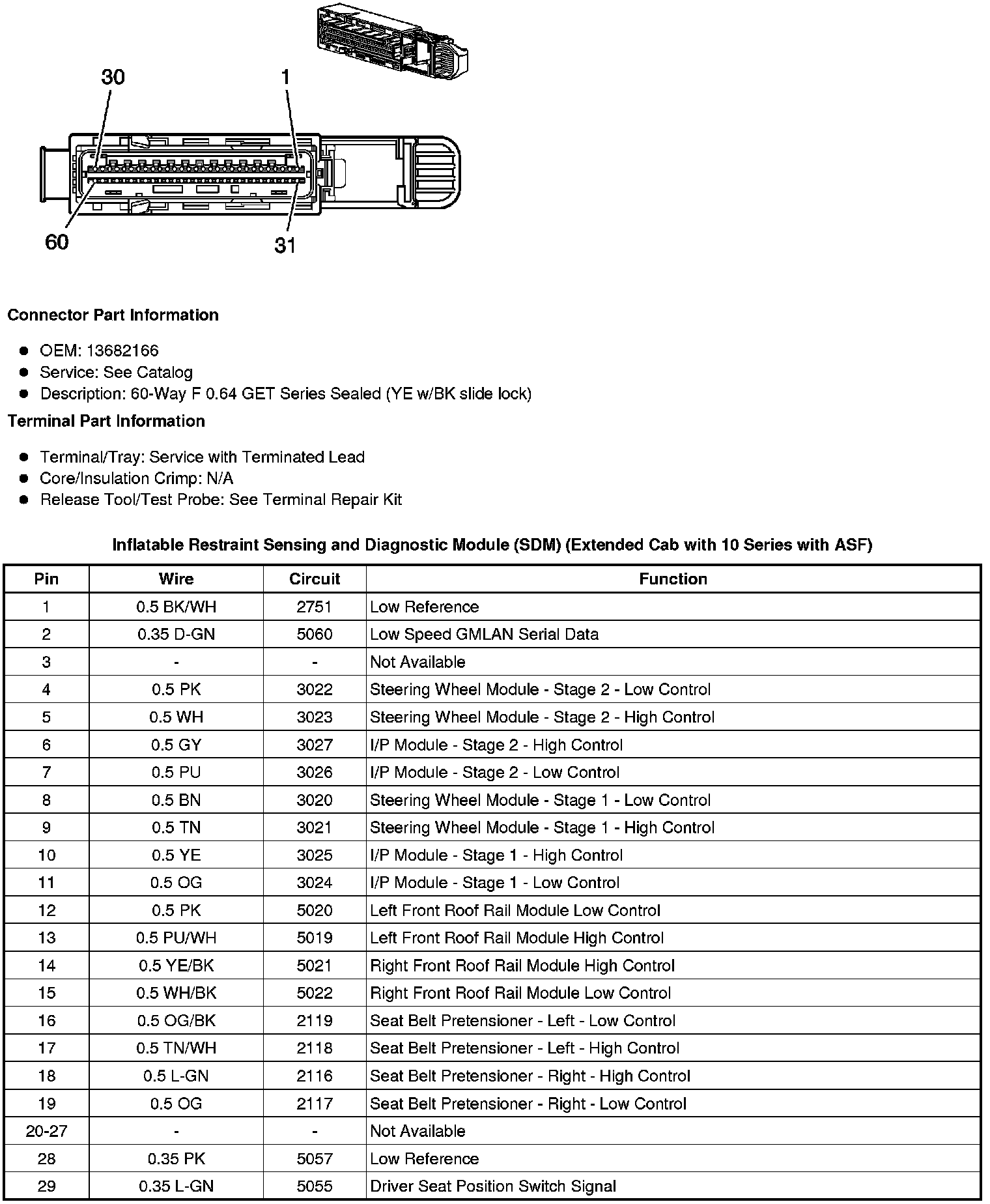

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Extended Cab with 10 Series with ASF)

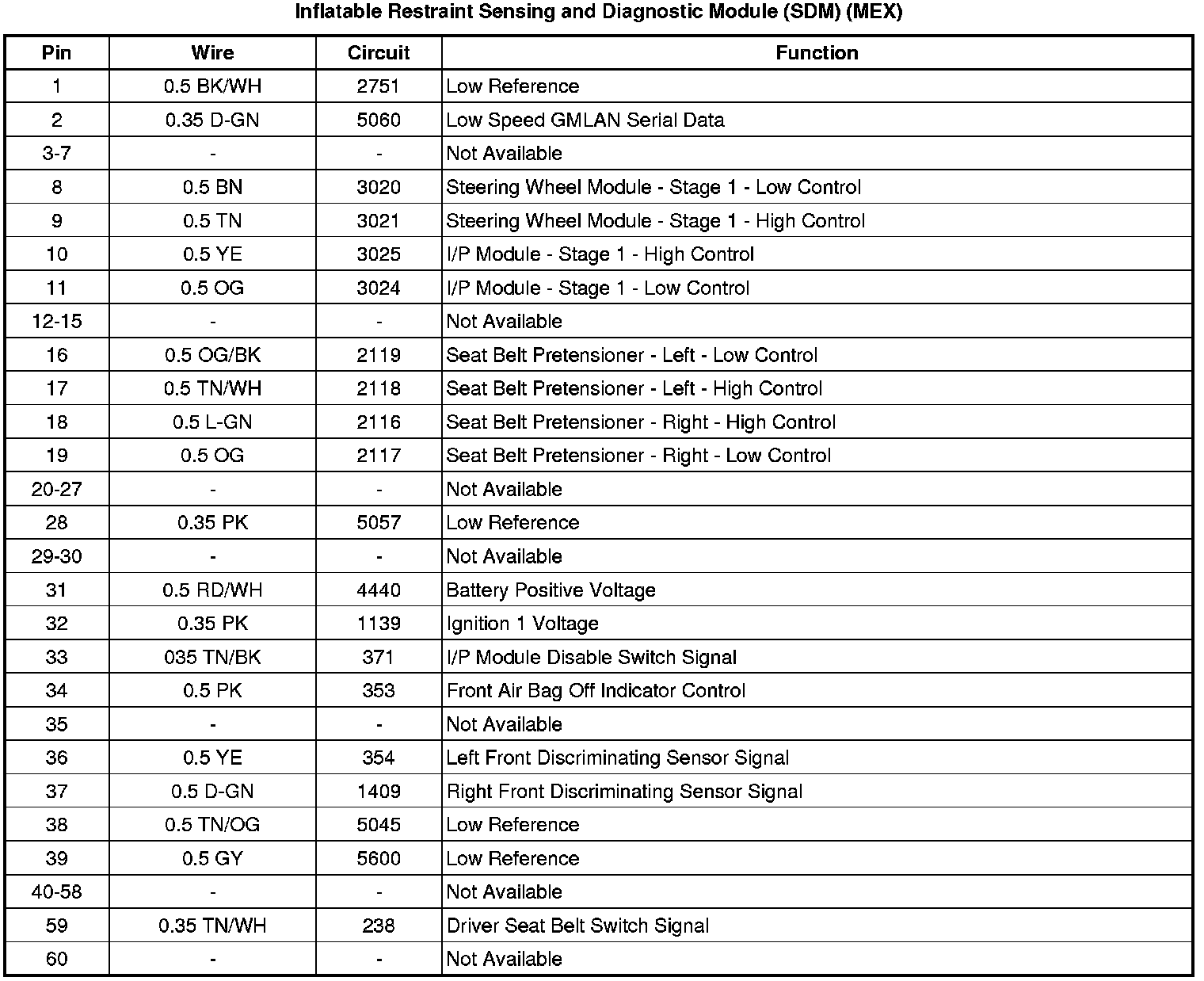

Inflatable Restraint Sensing and Diagnostic Module (SDM) (MEX)

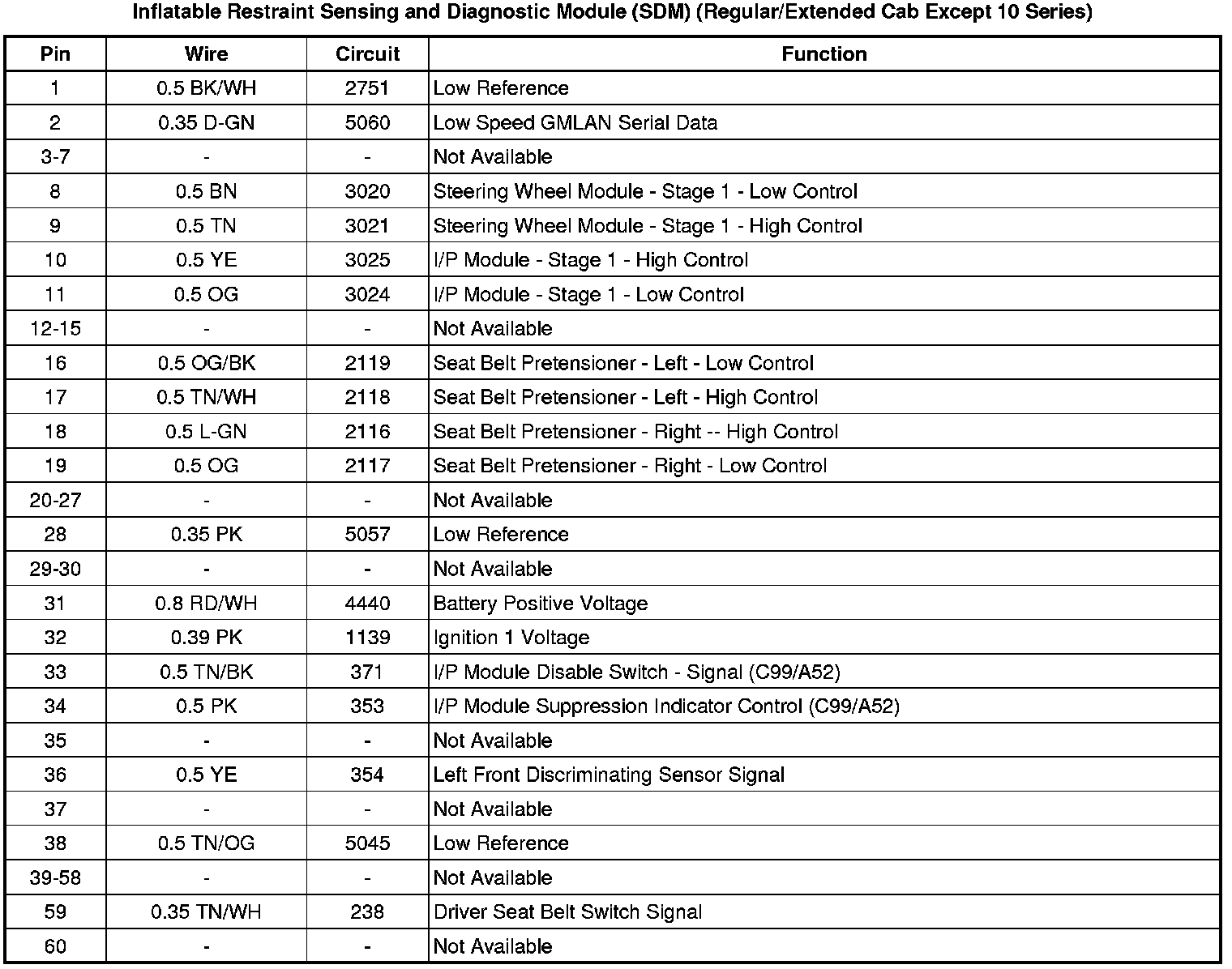

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Regular/Extended Cab Except 10 Series)

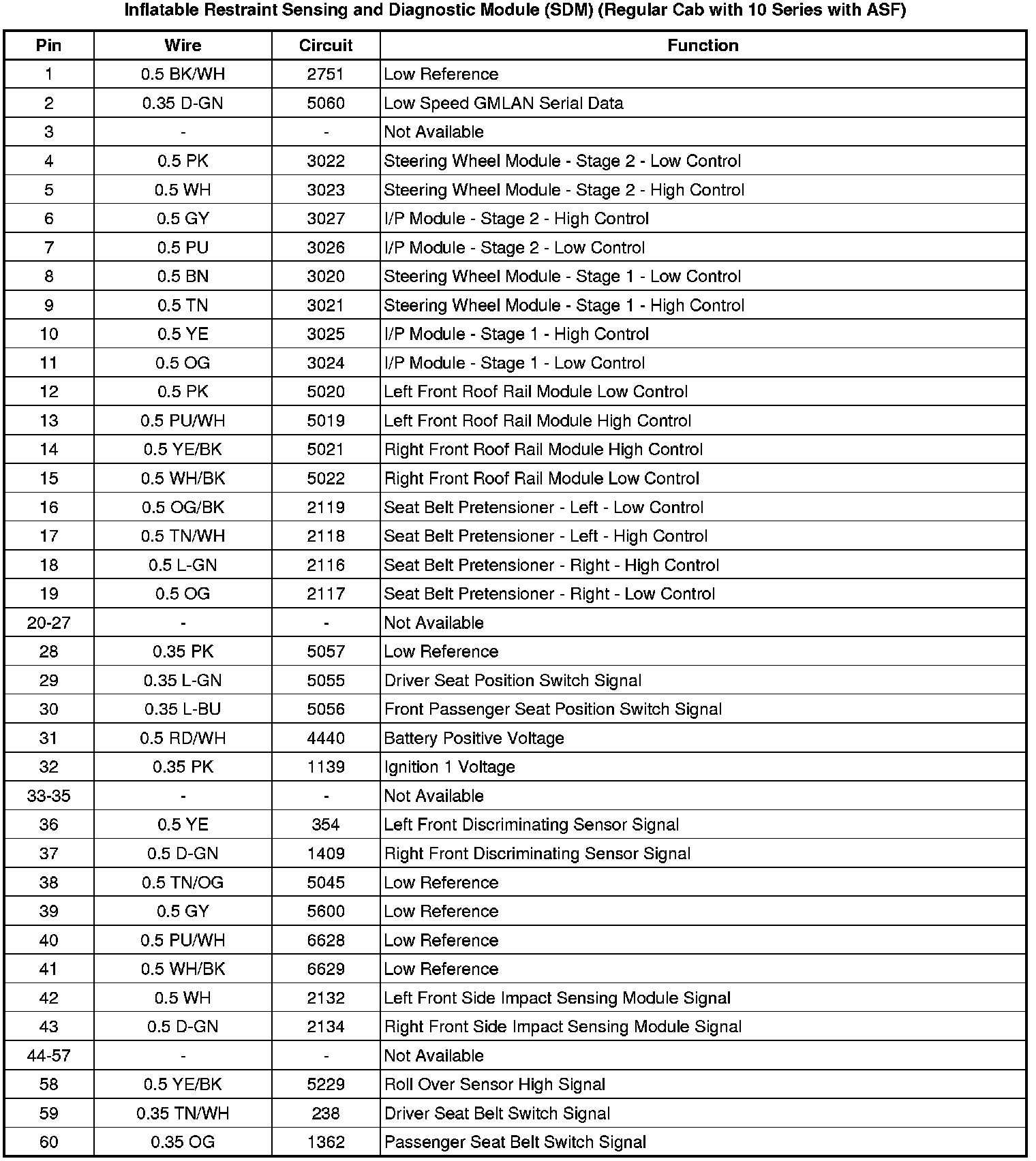

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Regular Cab with 10 Series with ASF)
