HVAC Control Module



Component Connector End Views

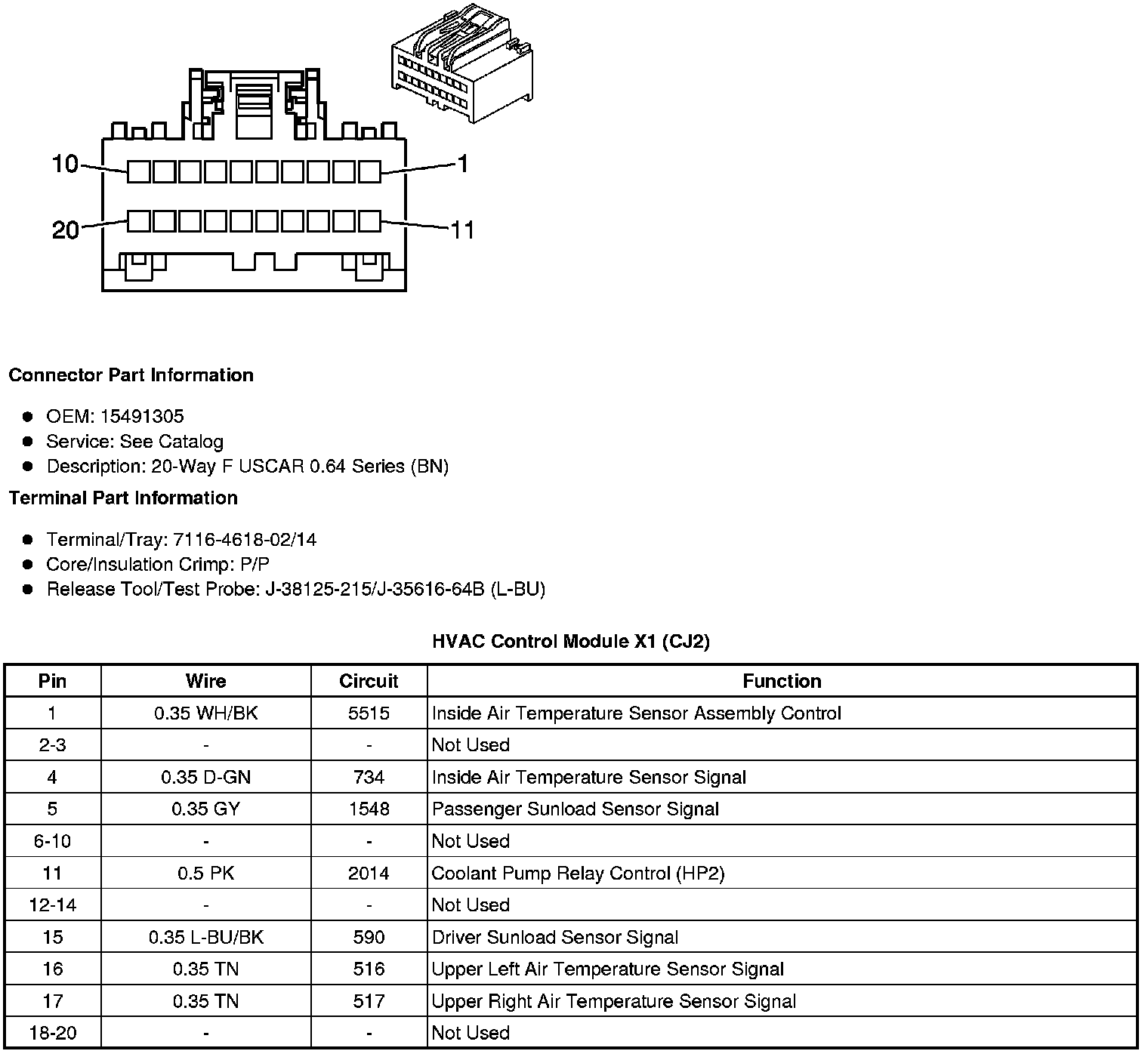

HVAC Control Module X1 (CJ2)

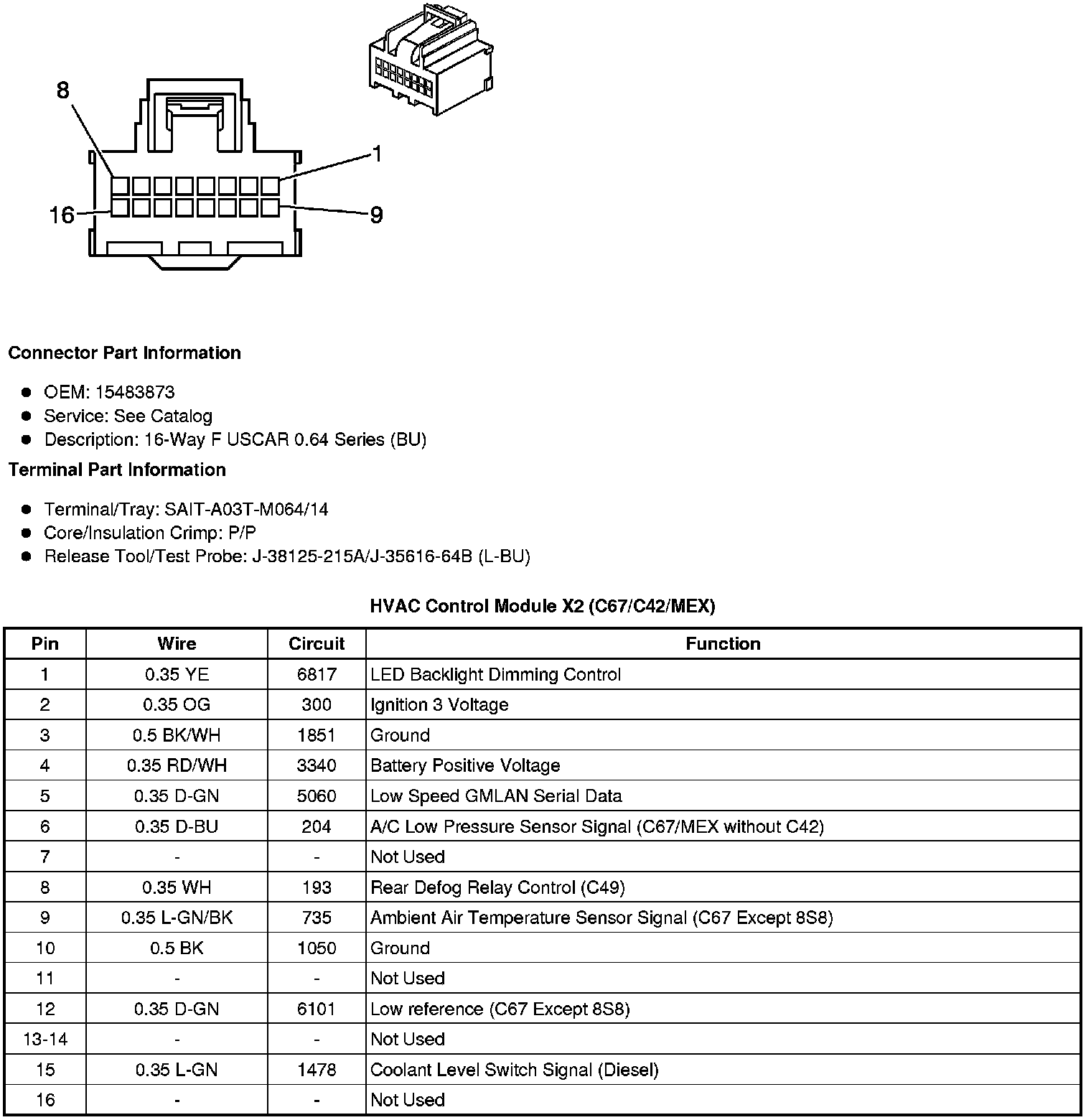

HVAC Control Module X2 (C67/C42/MEX)

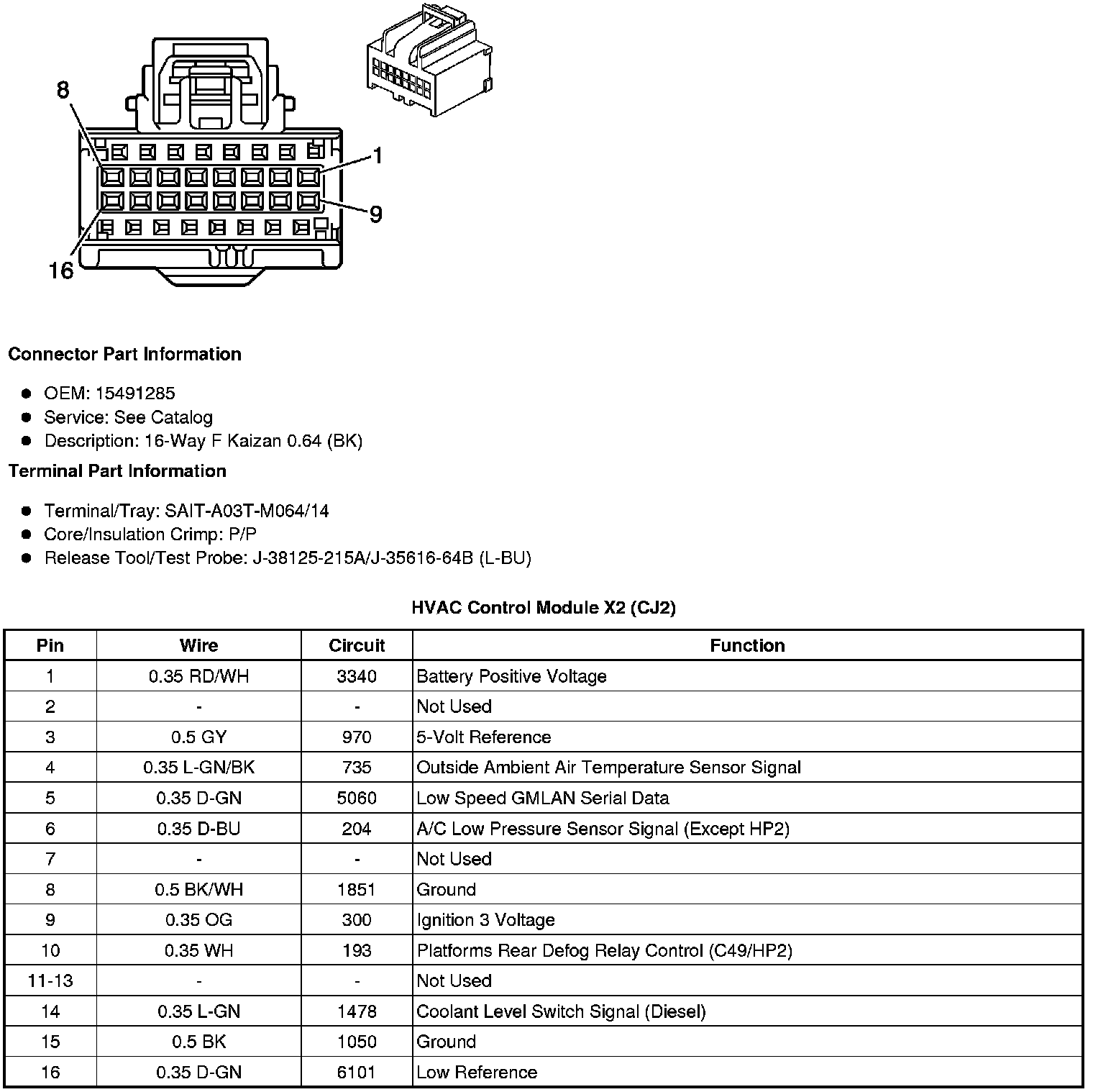

HVAC Control Module X2 (CJ2)

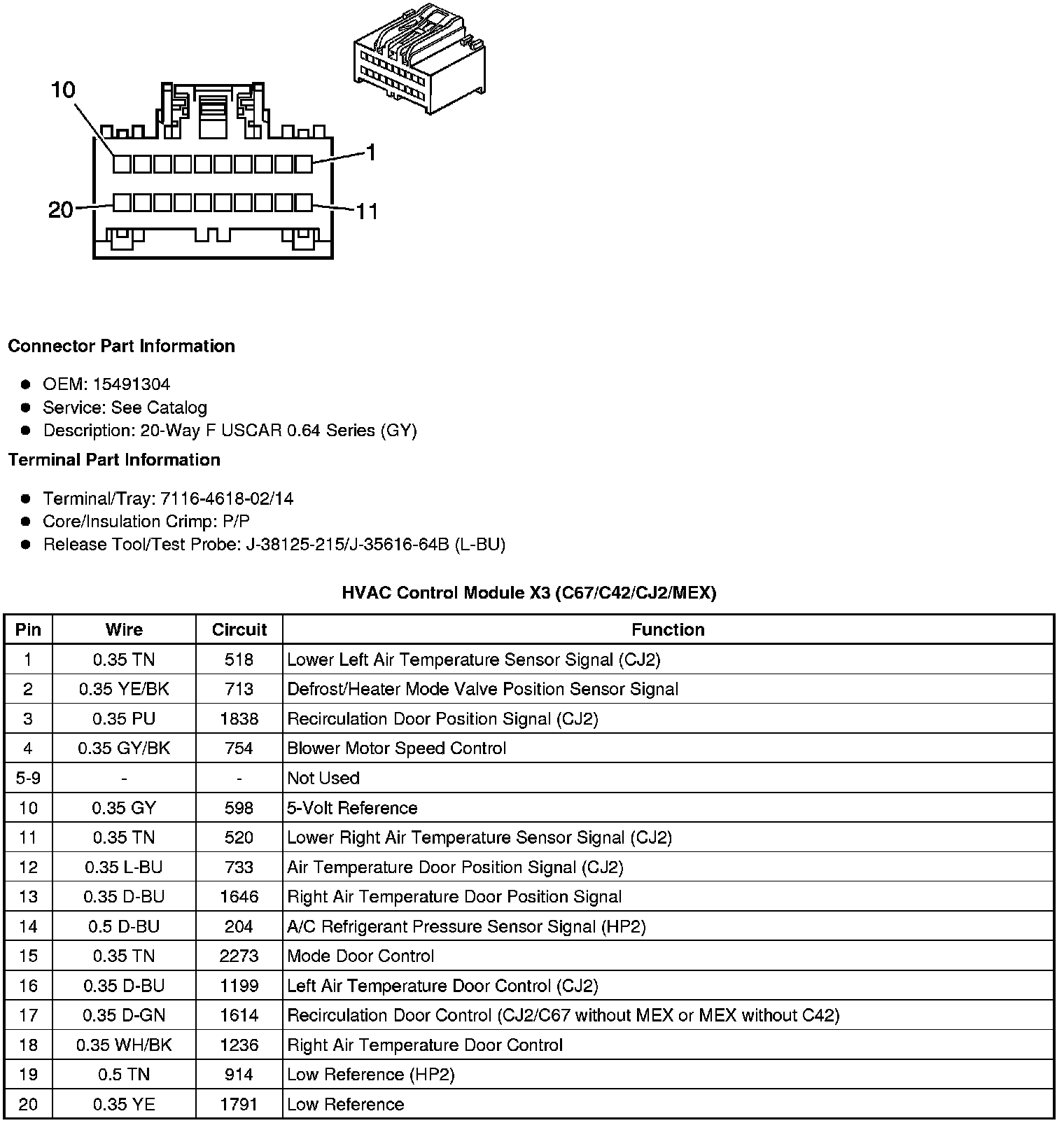

HVAC Control Module X3 (C67/C42/CJ2/MEX)
