Control Module, A/T



Component Connector End Views

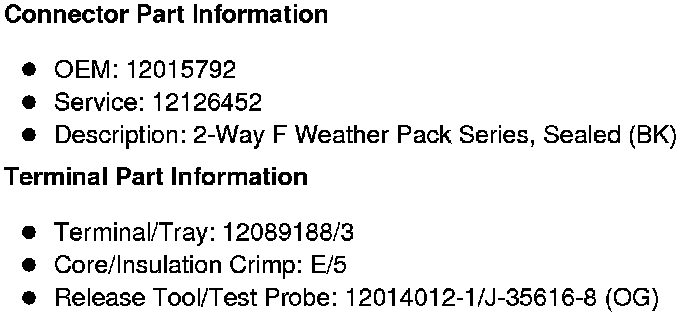

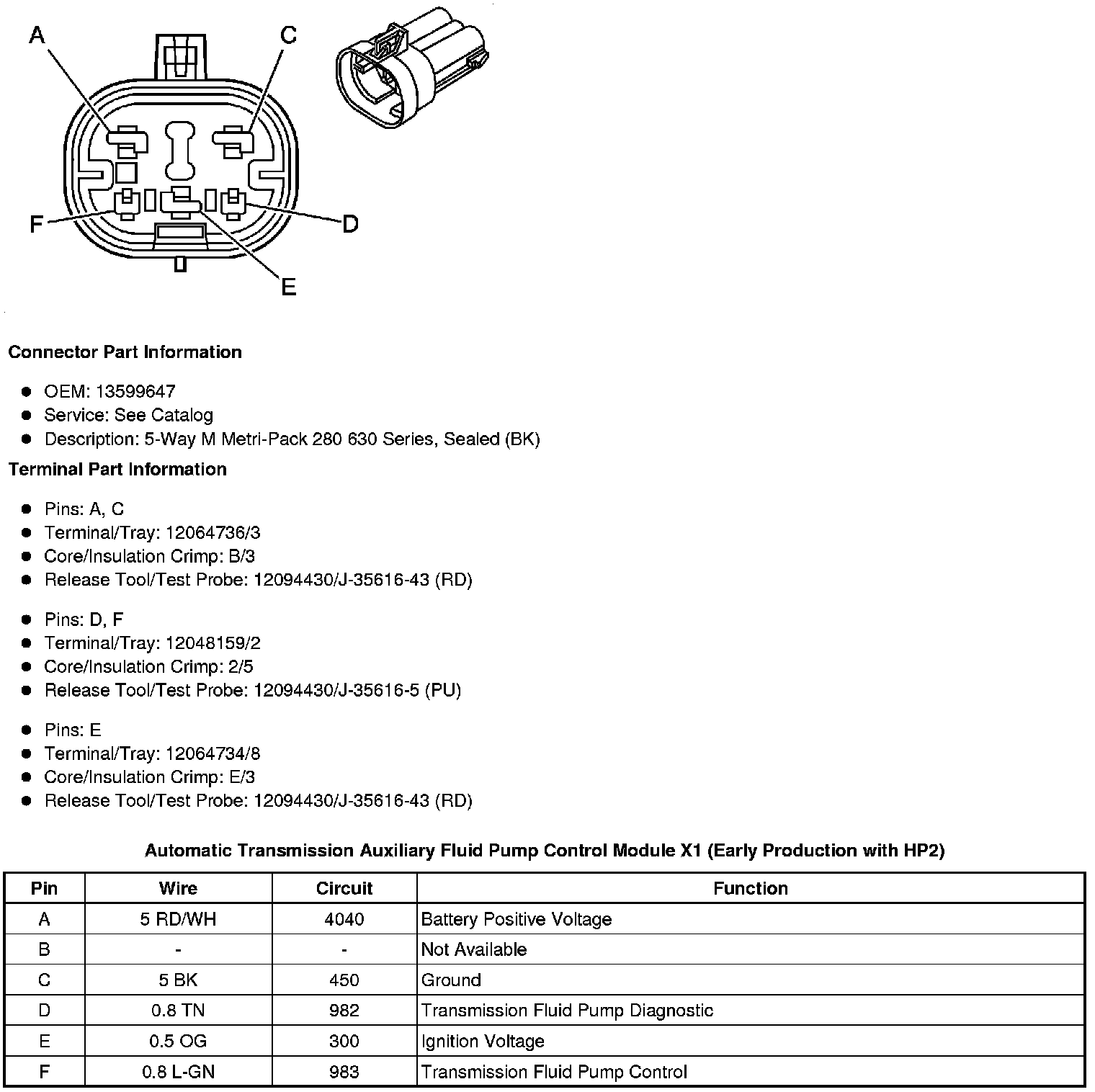

Automatic Transmission Auxiliary Fluid Pump Control Module X1 (Early Production with HP2)

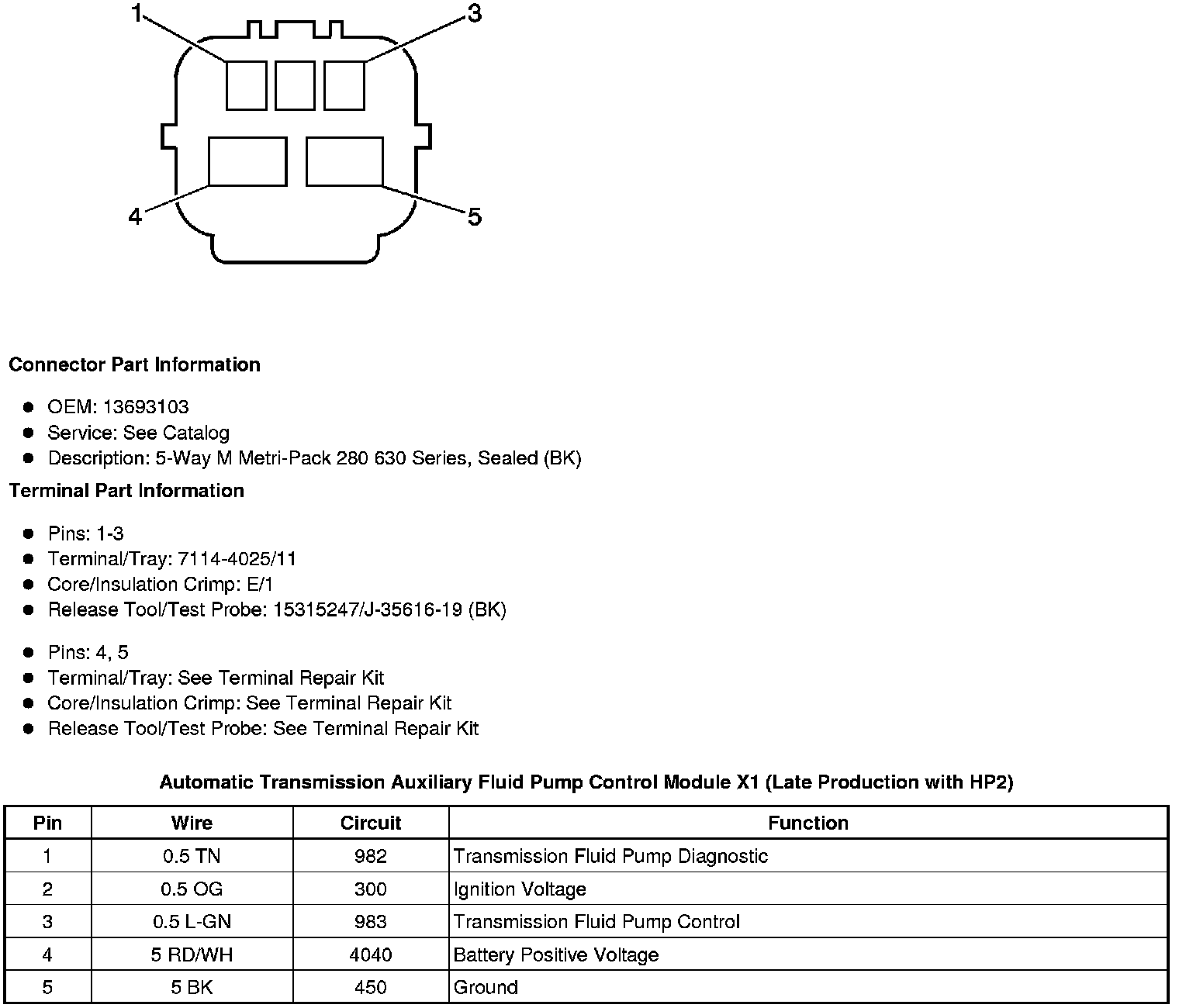

Automatic Transmission Auxiliary Fluid Pump Control Module X1 (Late Production with HP2)

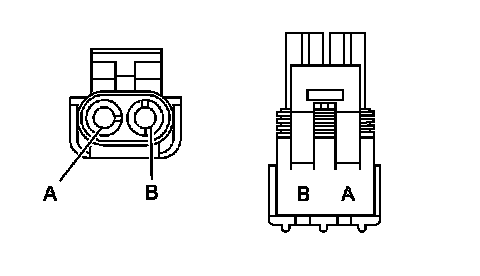

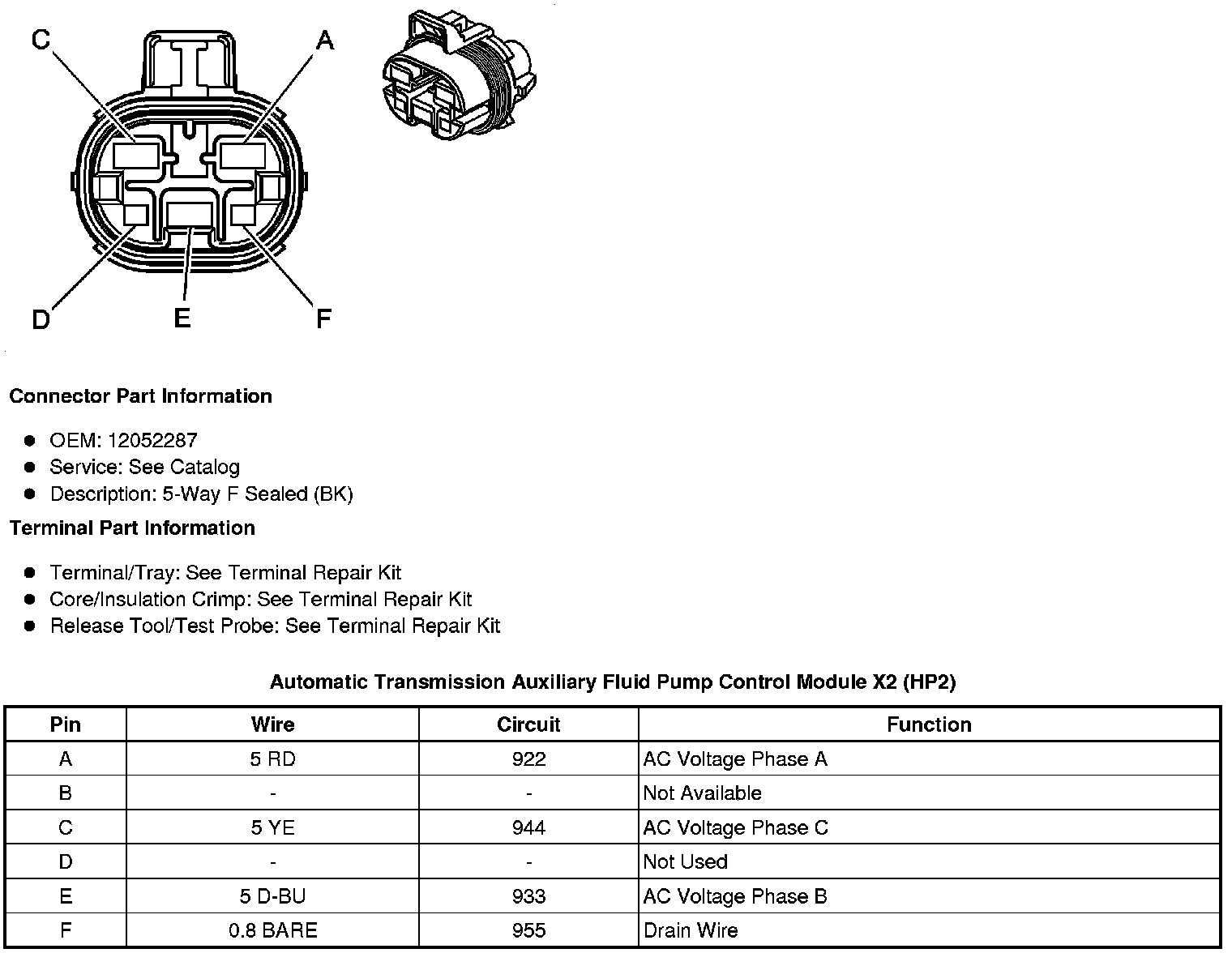

Automatic Transmission Auxiliary Fluid Pump Control Module X2 (HP2)

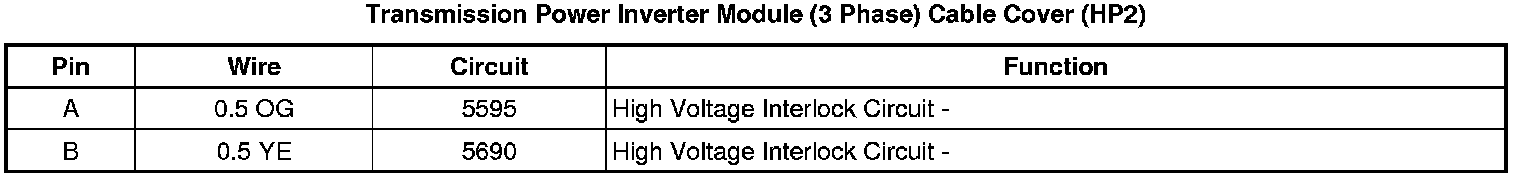

Transmission Power Inverter Module (3 Phase) Cable Cover (HP2)

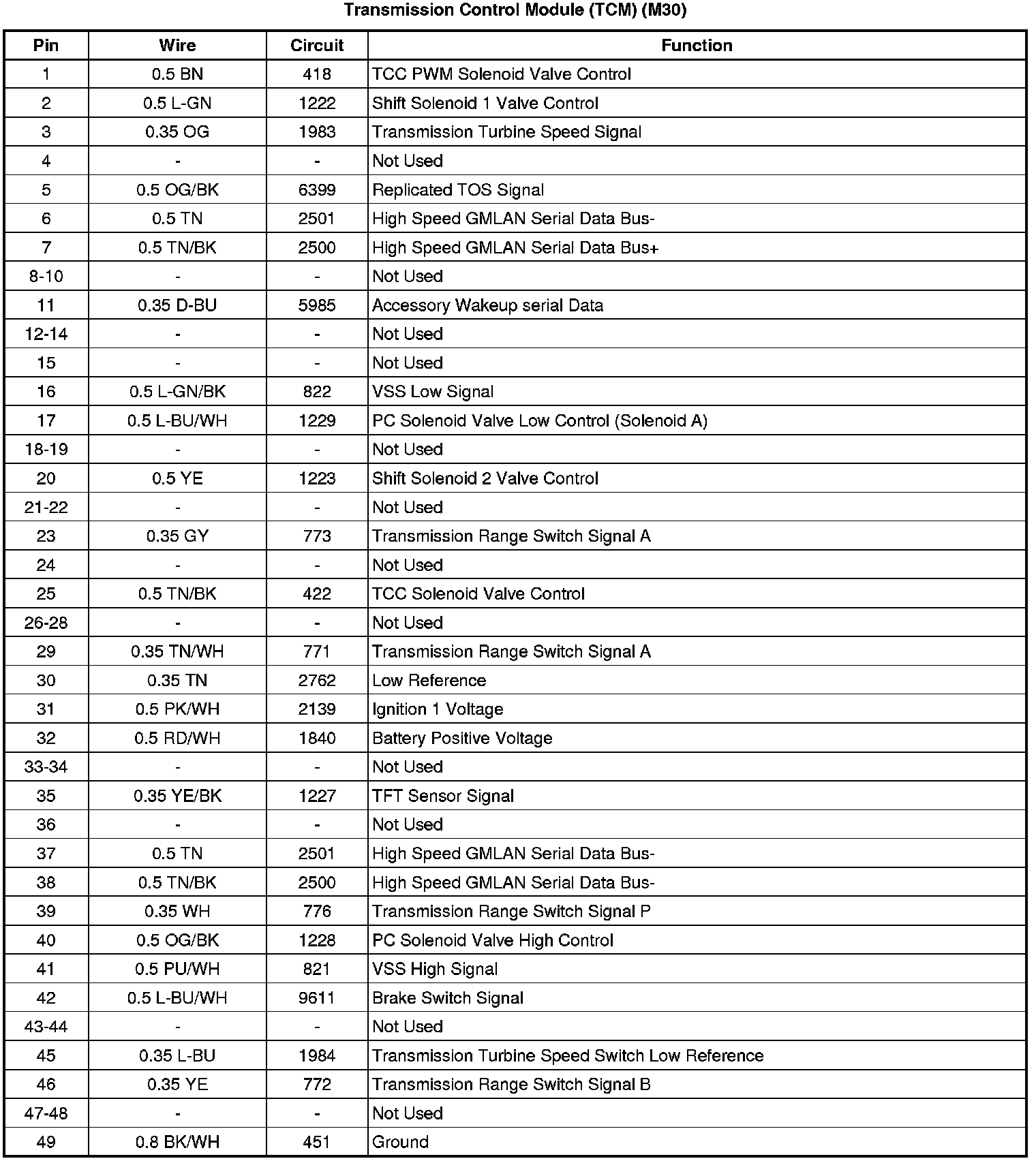

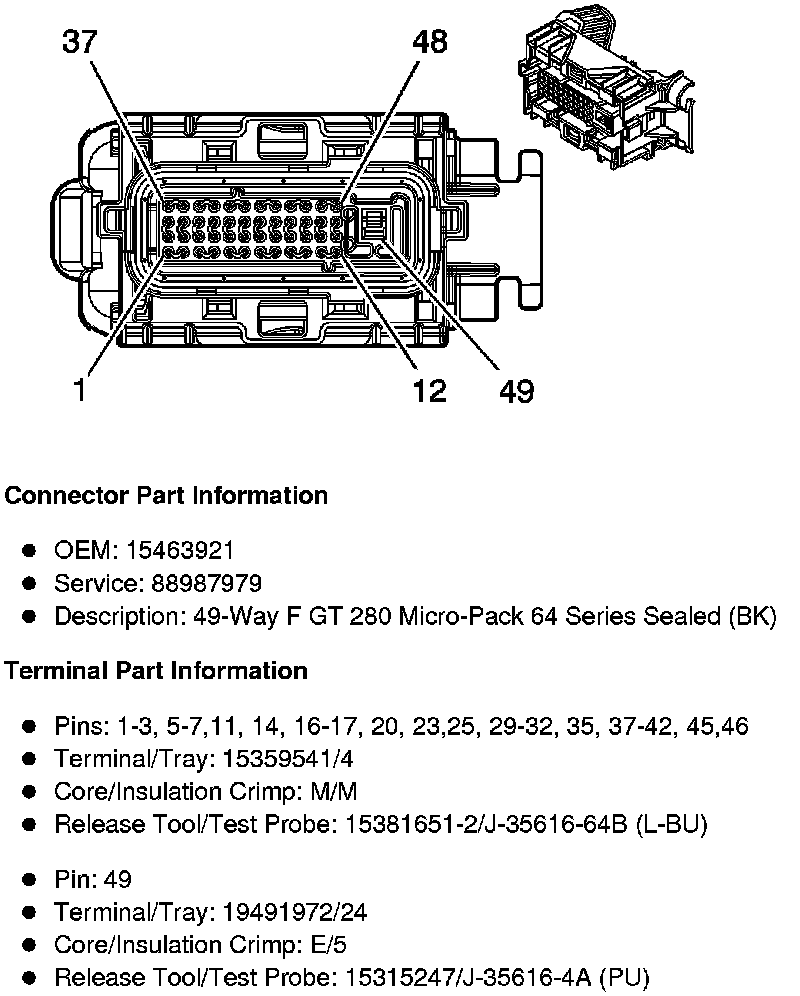

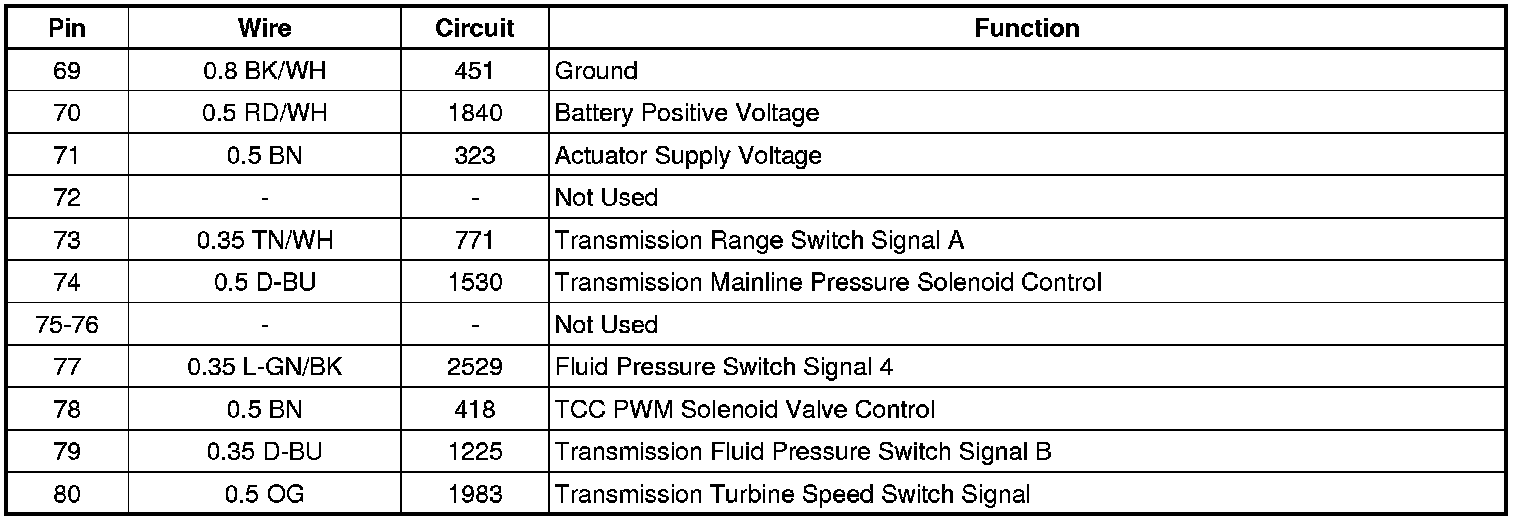

Transmission Control Module (TCM) (M30)

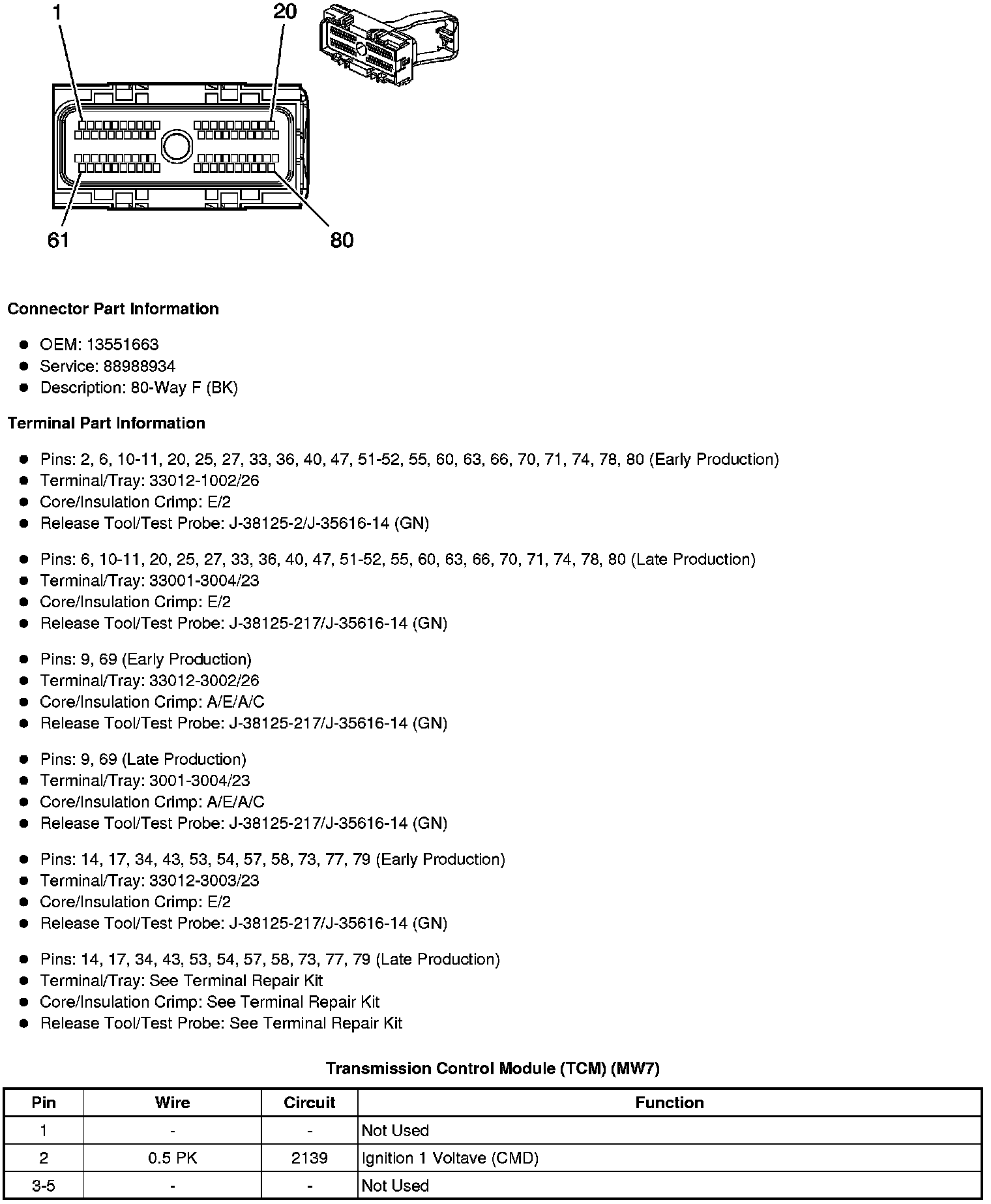

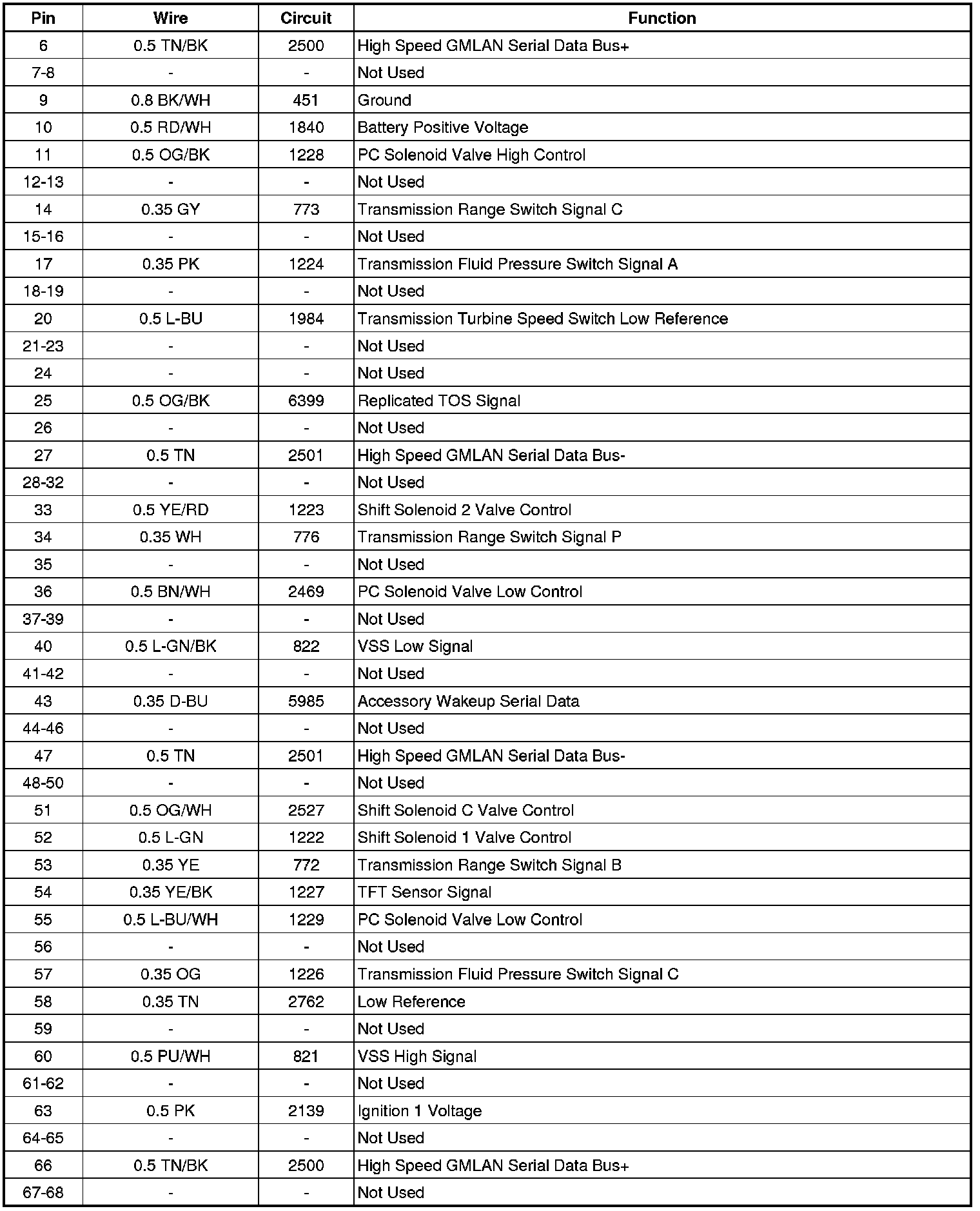

Transmission Control Module (TCM) (MW7)
