Power Distribution Module



Component Connector End Views

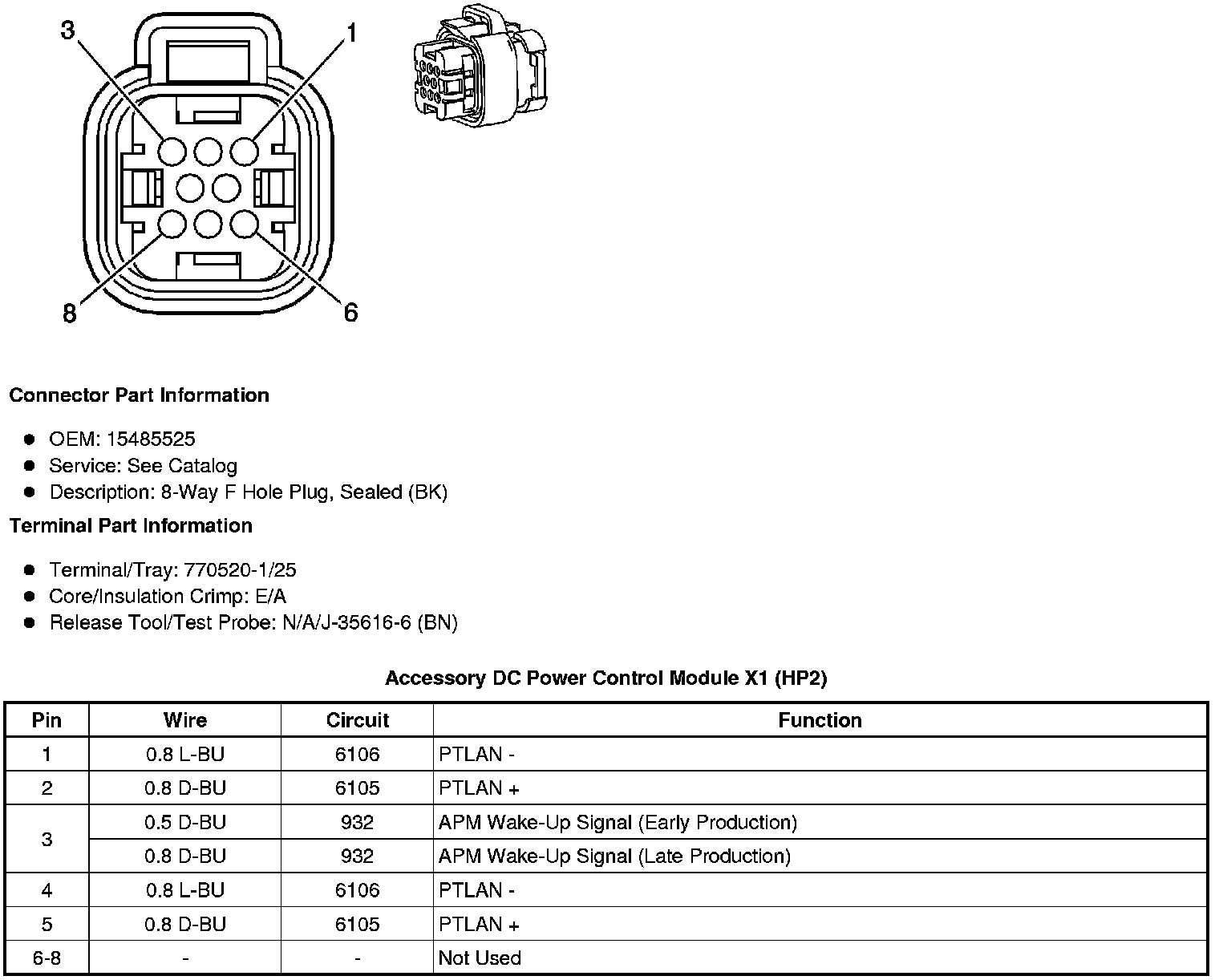

Accessory DC Power Control Module X1 (HP2)

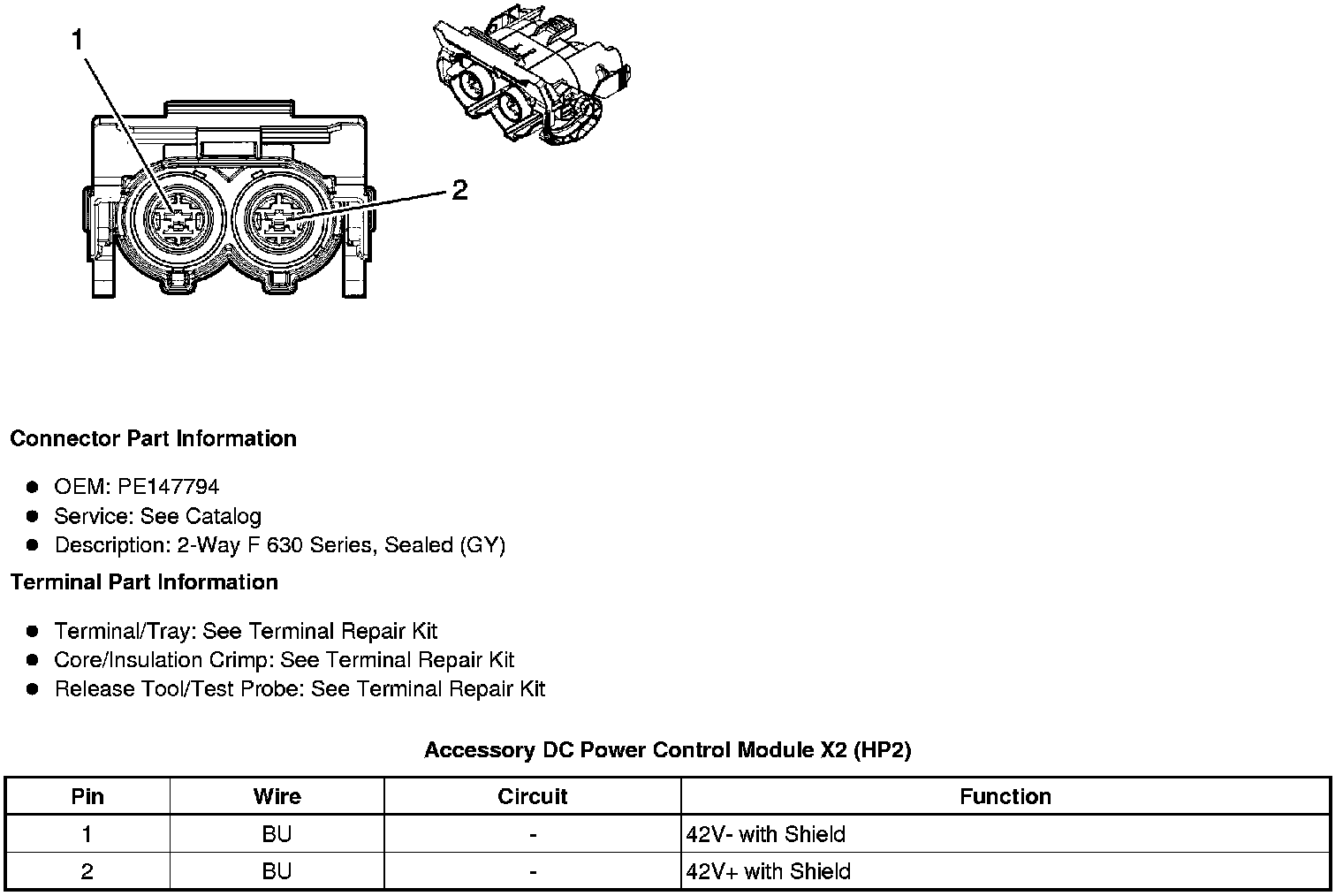

Accessory DC Power Control Module X2 (HP2)

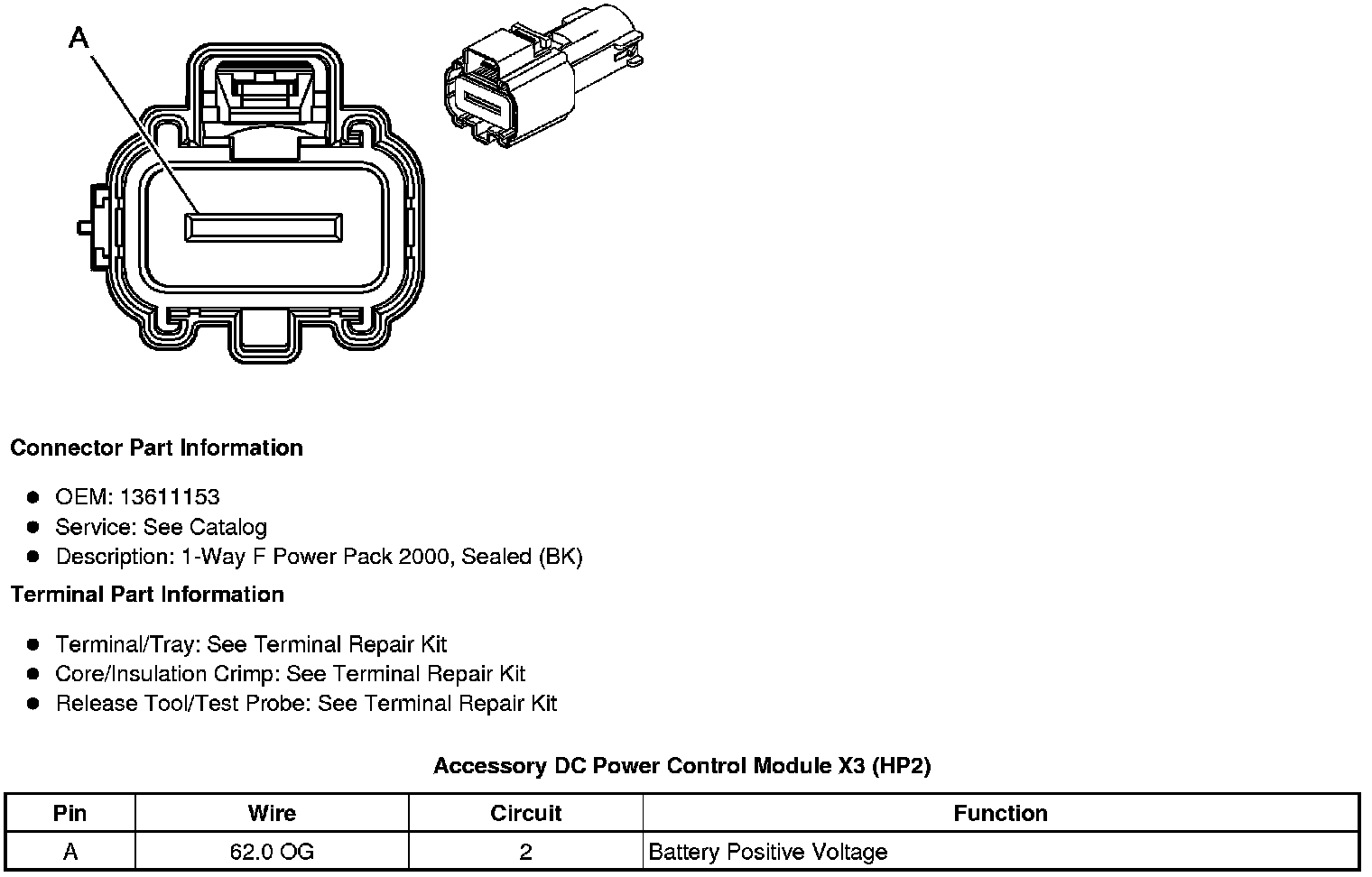

Accessory DC Power Control Module X3 (HP2)

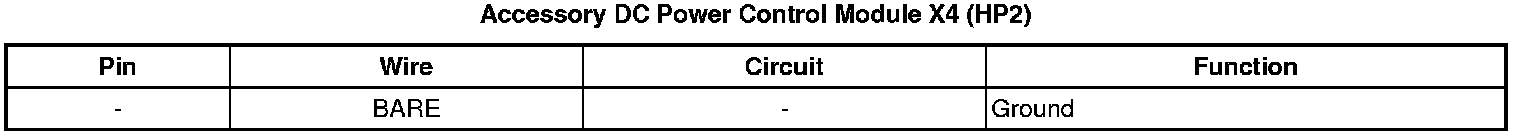

Accessory DC Power Control Module X4 (HP2)
