Seat Temperature Control Module
Component Connector End Views

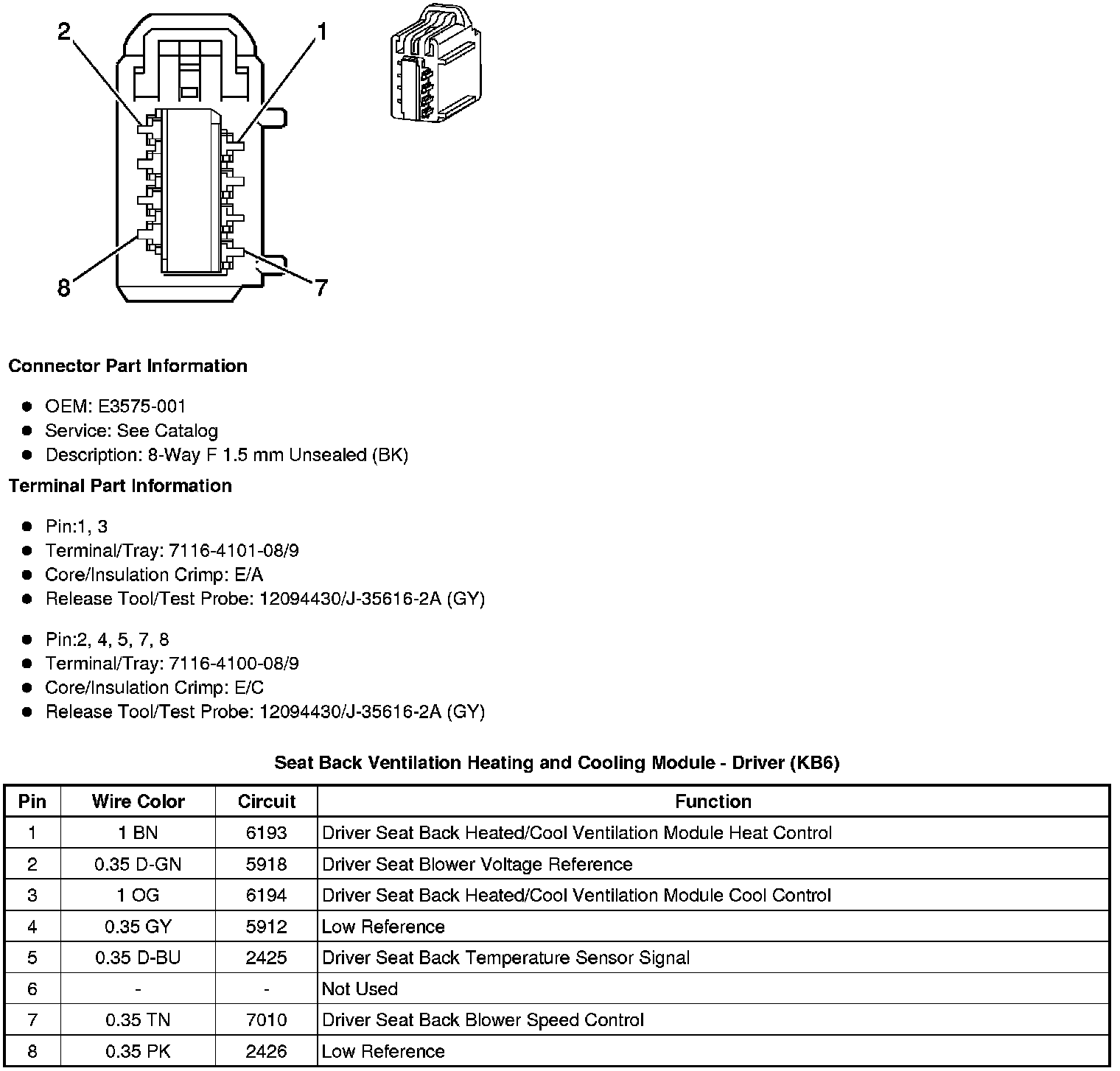

Seat Back Ventilation Heating and Cooling Module - Driver (KB6)

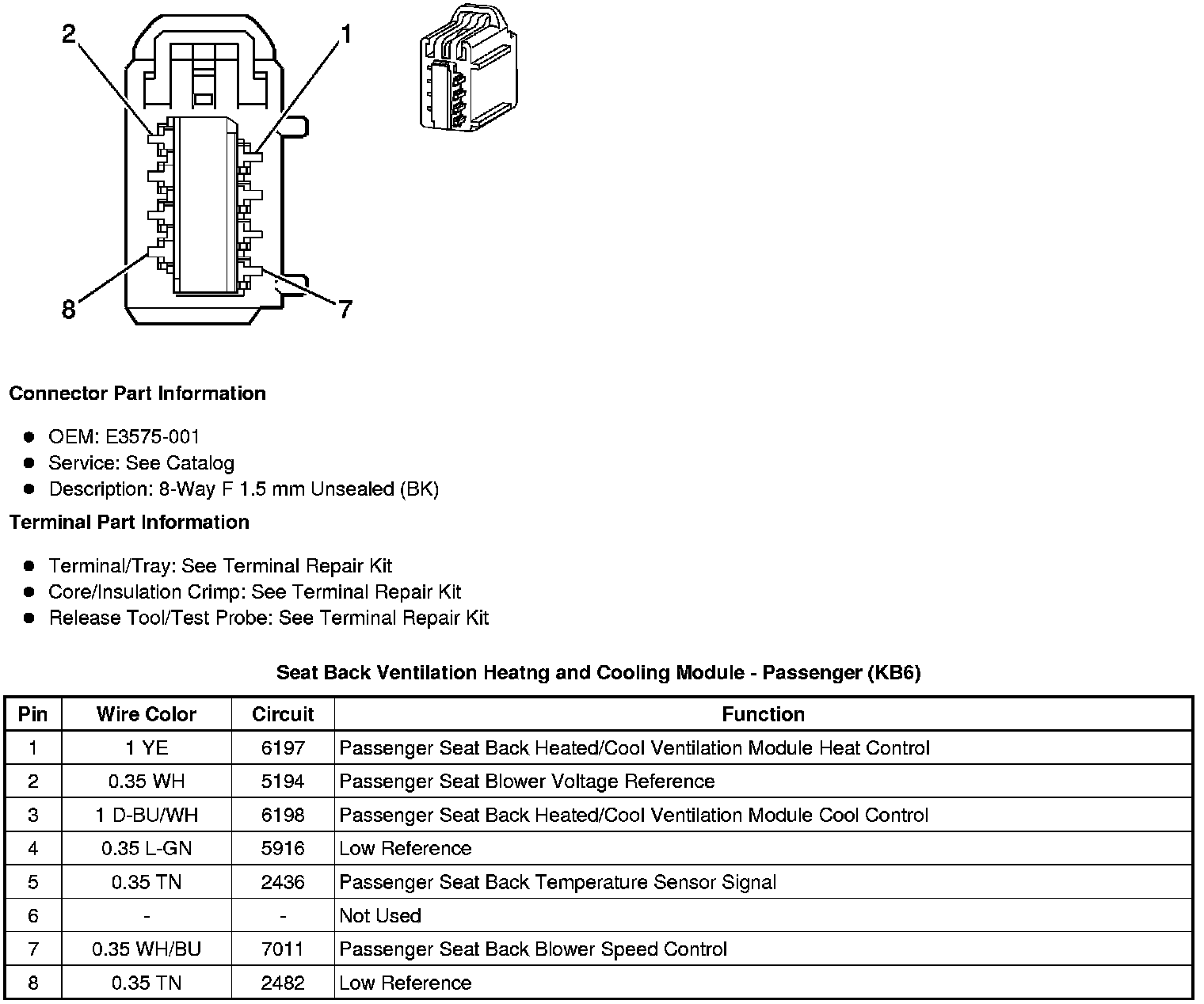

Seat Back Ventilation Heatng and Cooling Module - Passenger (KB6)

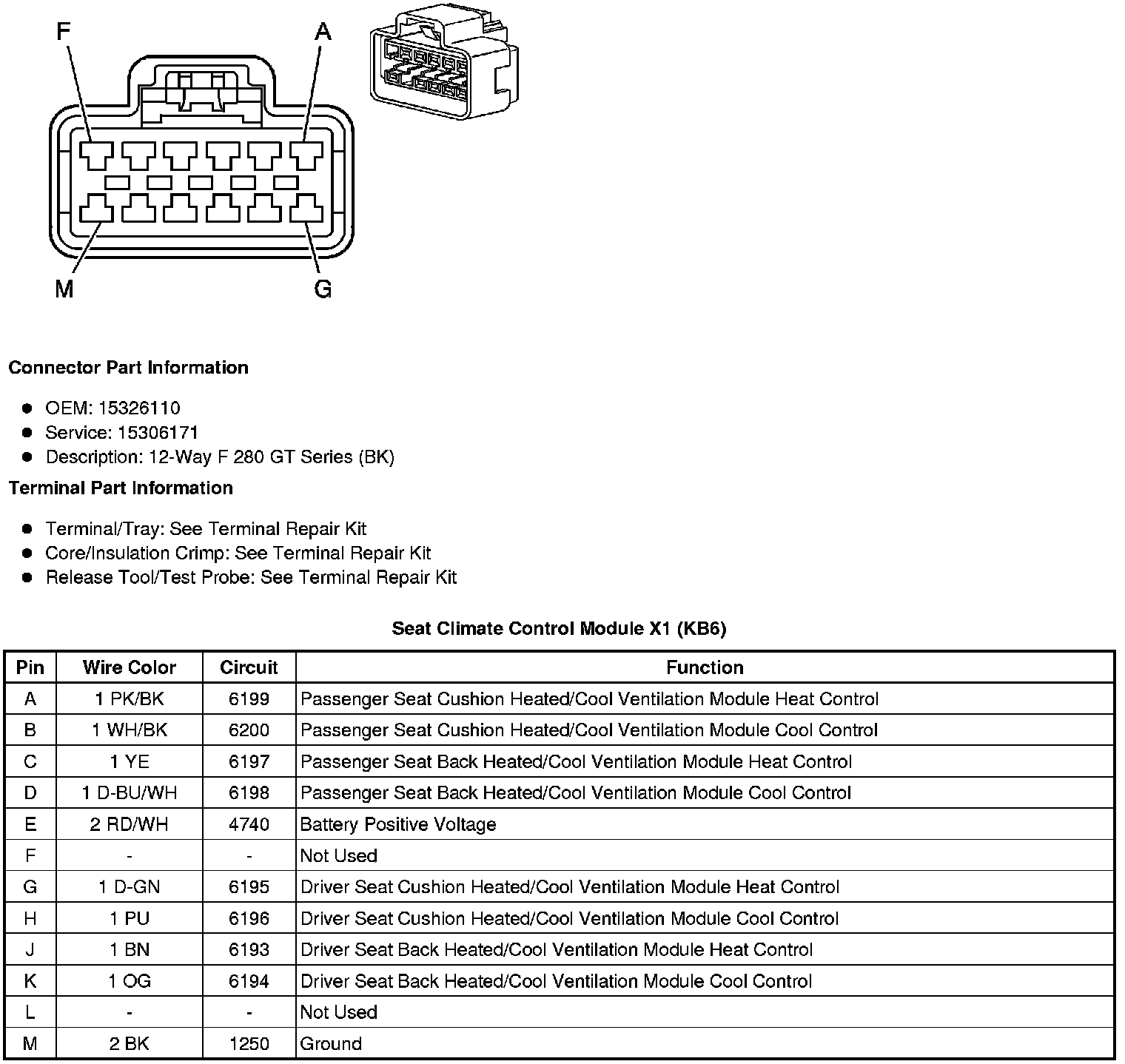

Seat Climate Control Module X1 (KB6)

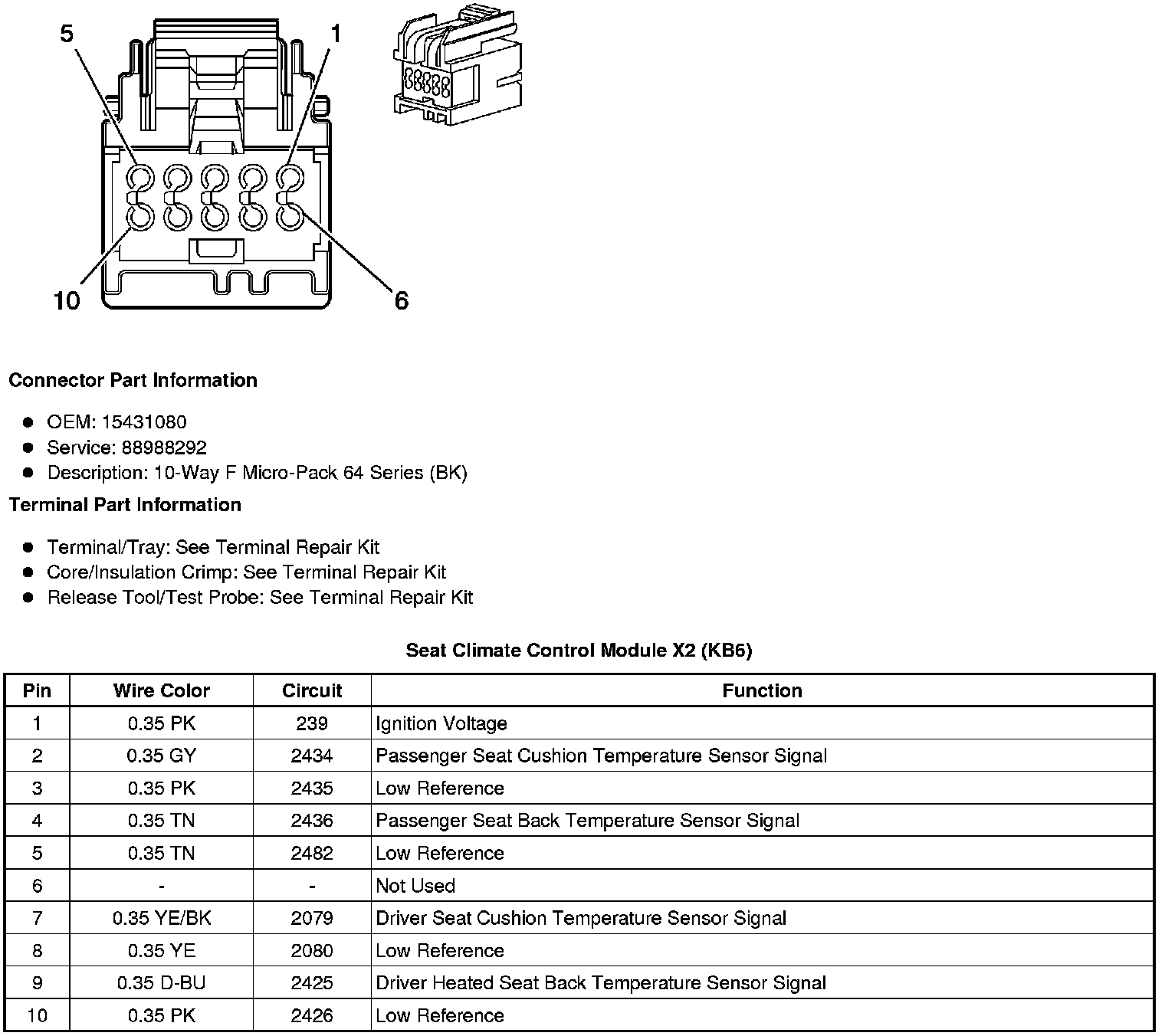

Seat Climate Control Module X2 (KB6)

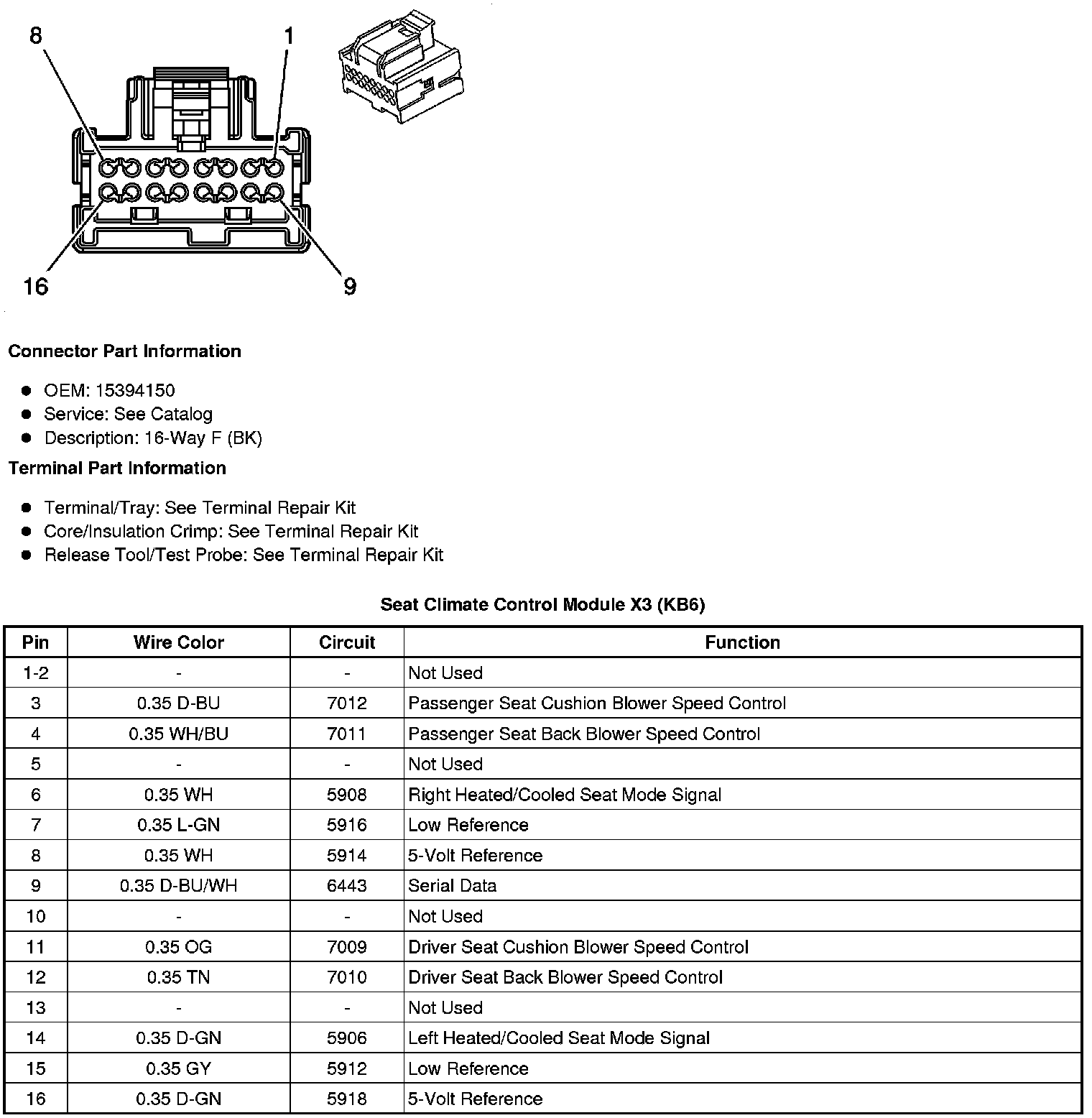

Seat Climate Control Module X3 (KB6)

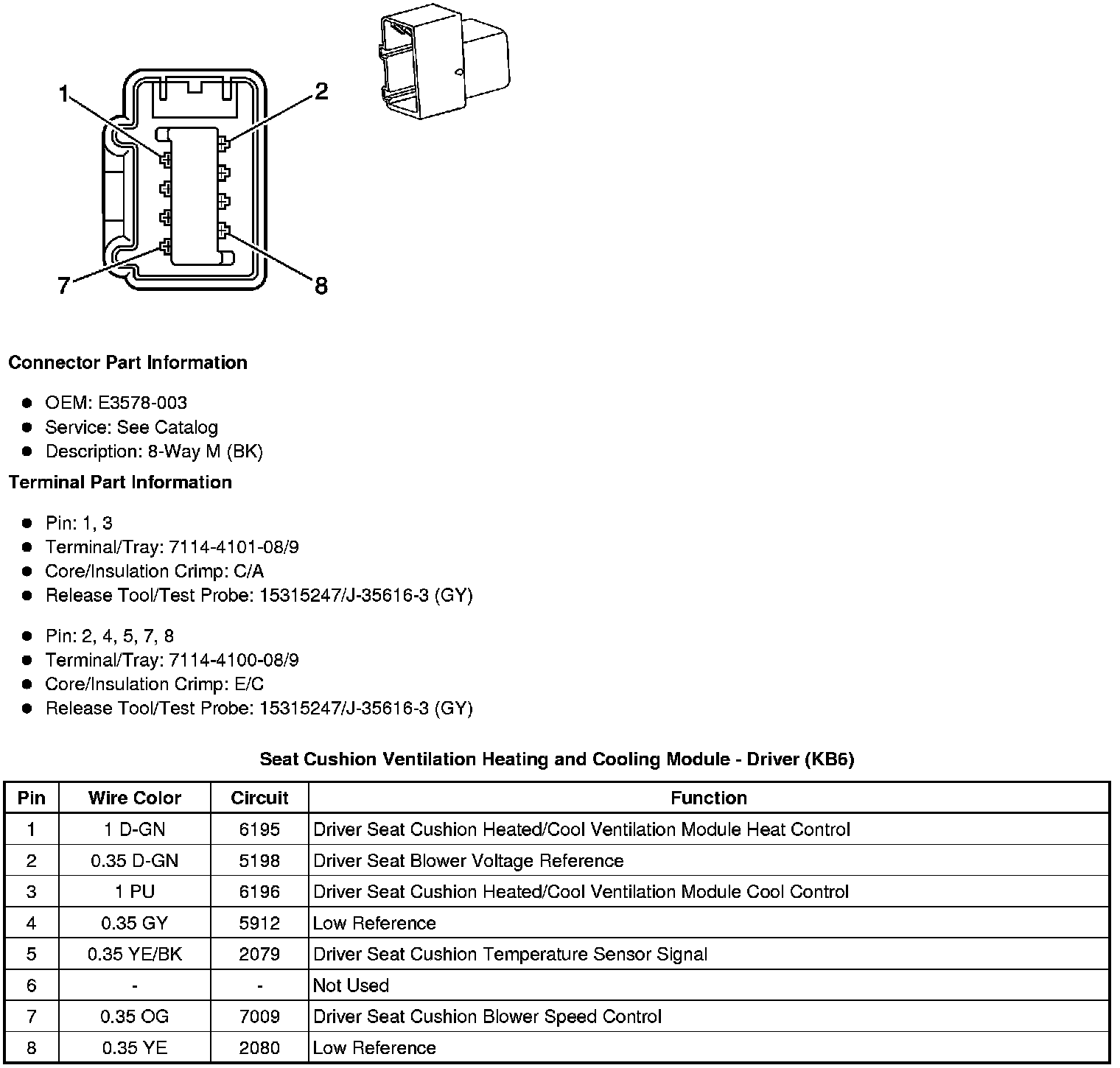

Seat Cushion Ventilation Heating and Cooling Module - Driver (KB6)

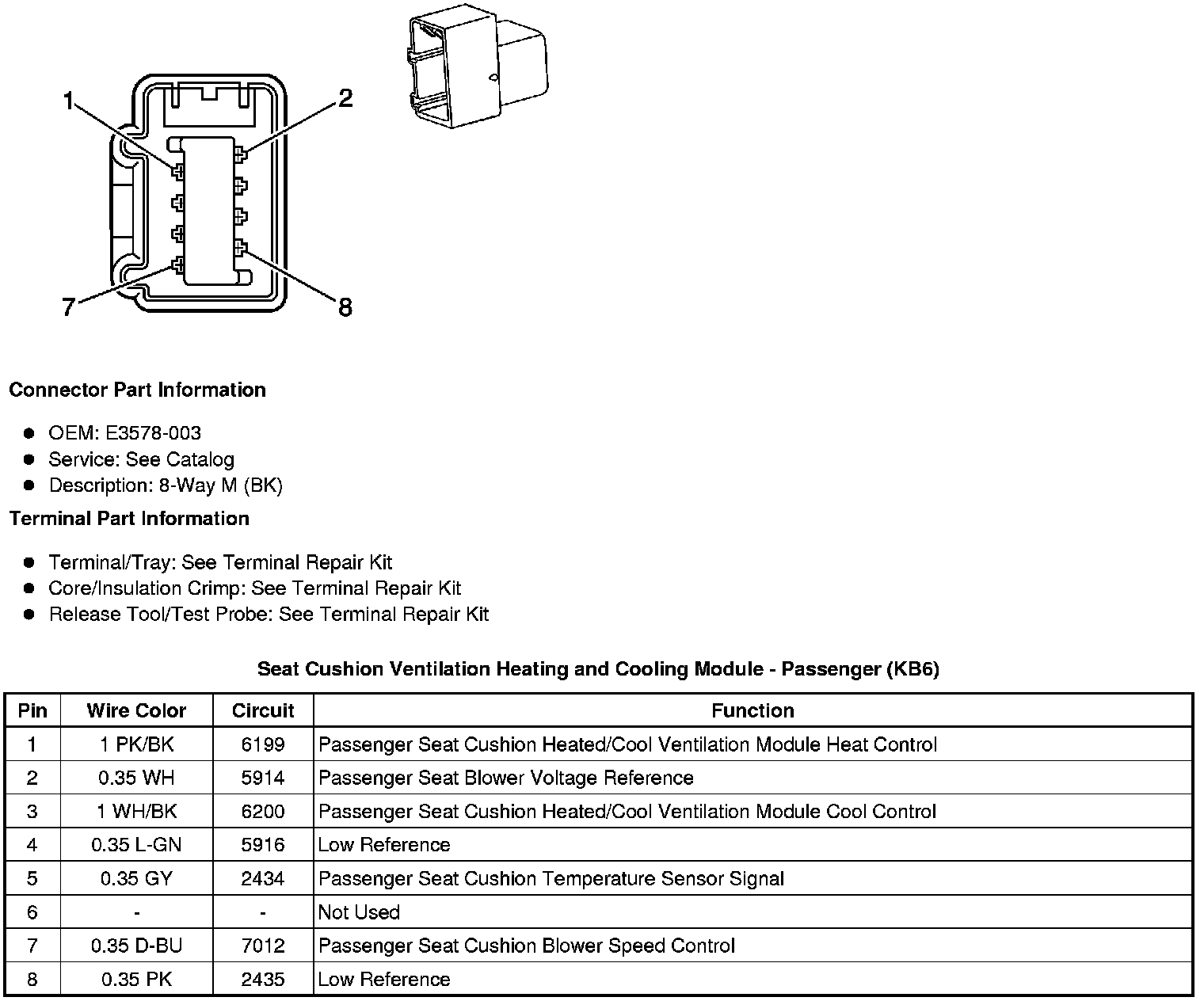

Seat Cushion Ventilation Heating and Cooling Module - Passenger (KB6)
