Trailer Brake Control Module

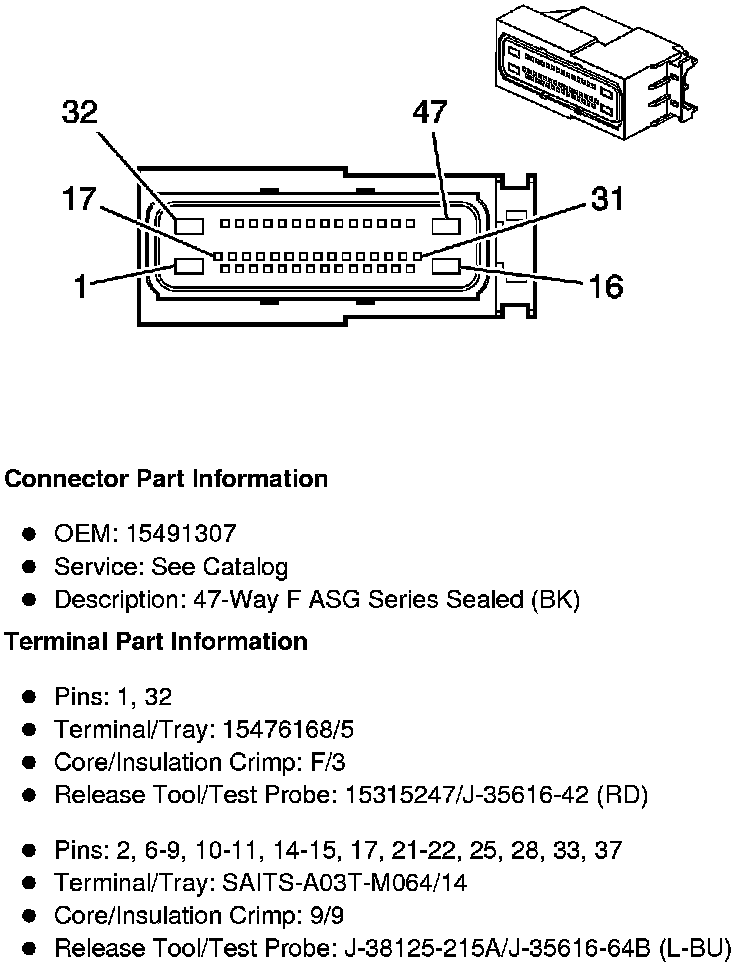

Component Connector End Views

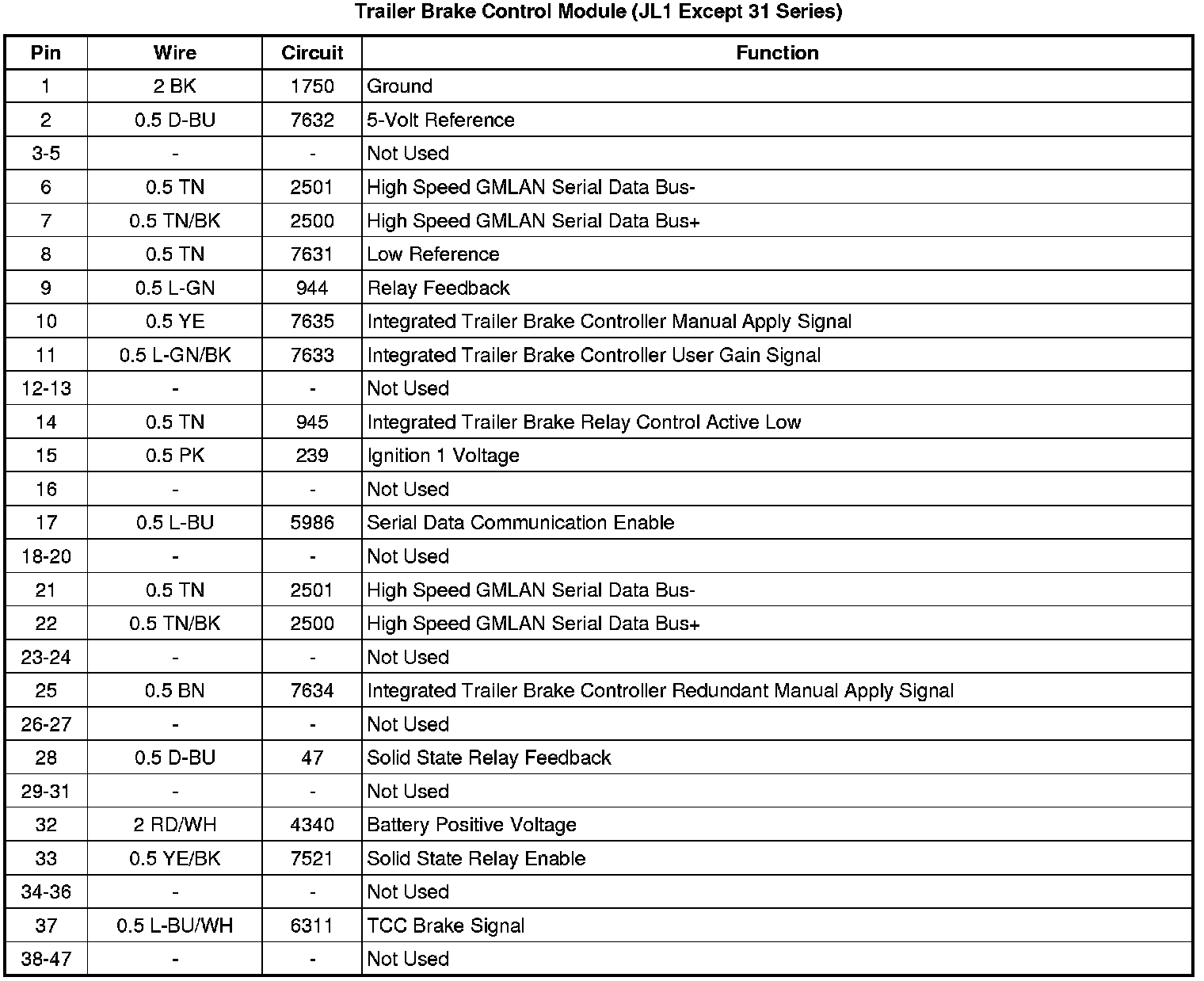

Trailer Brake Control Module (JL1 Except 31 Series)

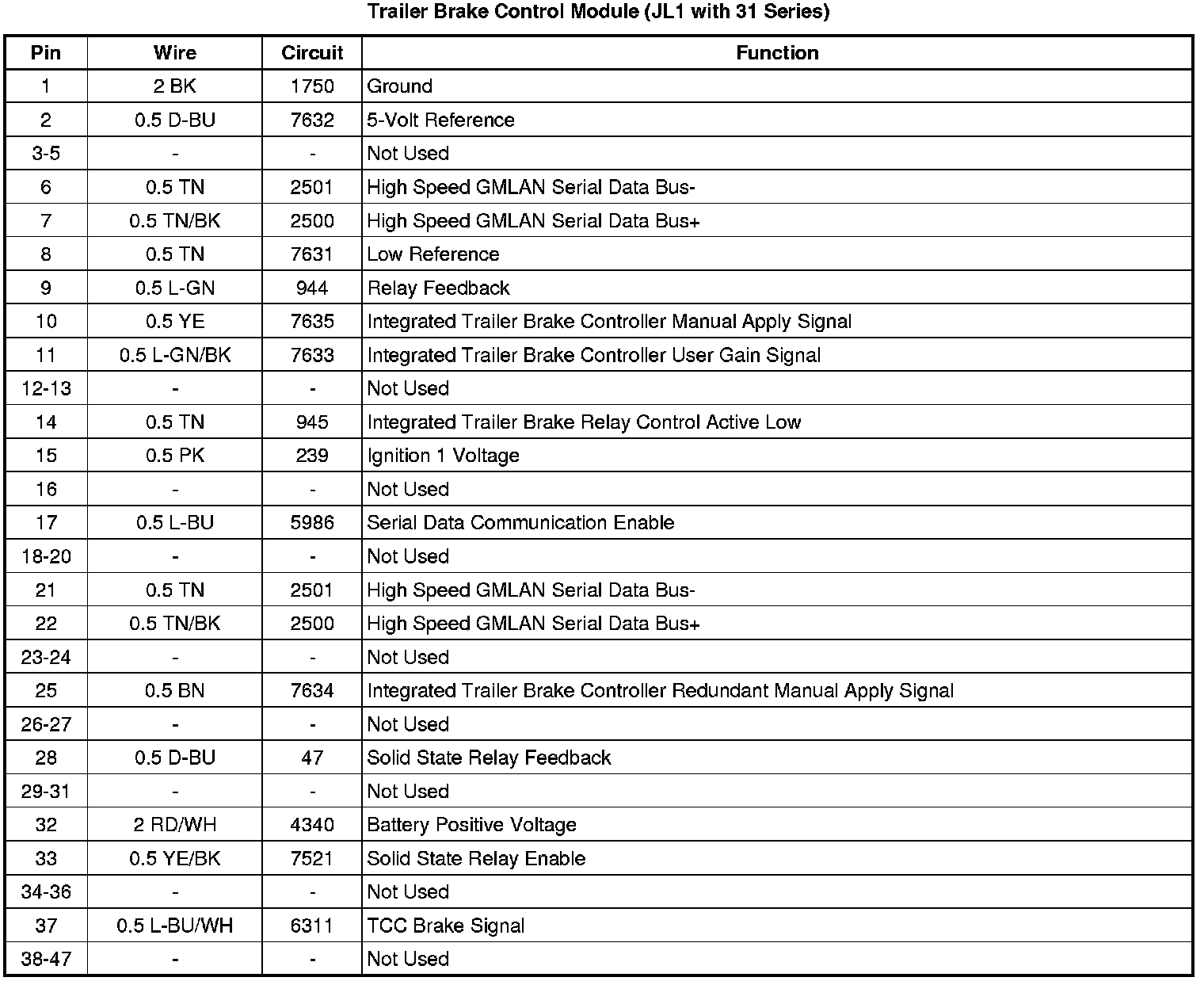

Trailer Brake Control Module (JL1 with 31 Series)
