Generator Battery Vent Fan (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

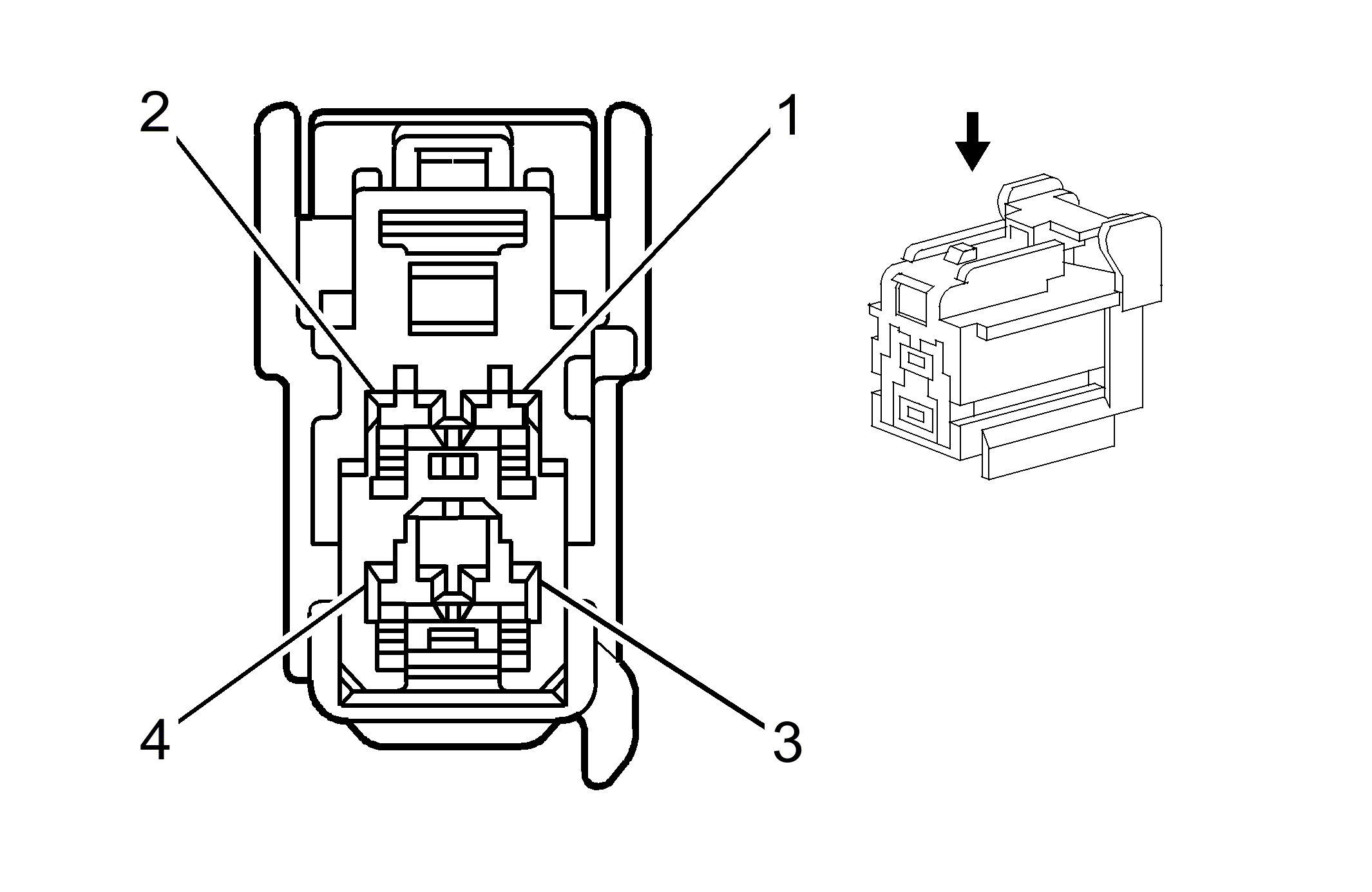

Fig 1: Generator Battery Vent Fan (HP2) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	L-GN	-	Not Used
2	PK/D-BU	-	Fan Motor Power Feed
3	BK/YE	-	Ground
4	L-GN/BK	-	5-Volt Reference

Connector Part Information

Harness Type: Drive Motor Generator Battery Control
OEM Connector: 7283-5531-40
Service Connector: Service by Harness - See Part Catalog
Description: 4-Way F YESC/USCAR Class III (D-GY)

Terminal Part Information

Terminal/Tray: Service by Harness - See Part Catalog
Core/Insulation Crimp: Not Available
Release Tool/Test Probe: Not Available
