Headlamp and Panel Dimmer Switch (except HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

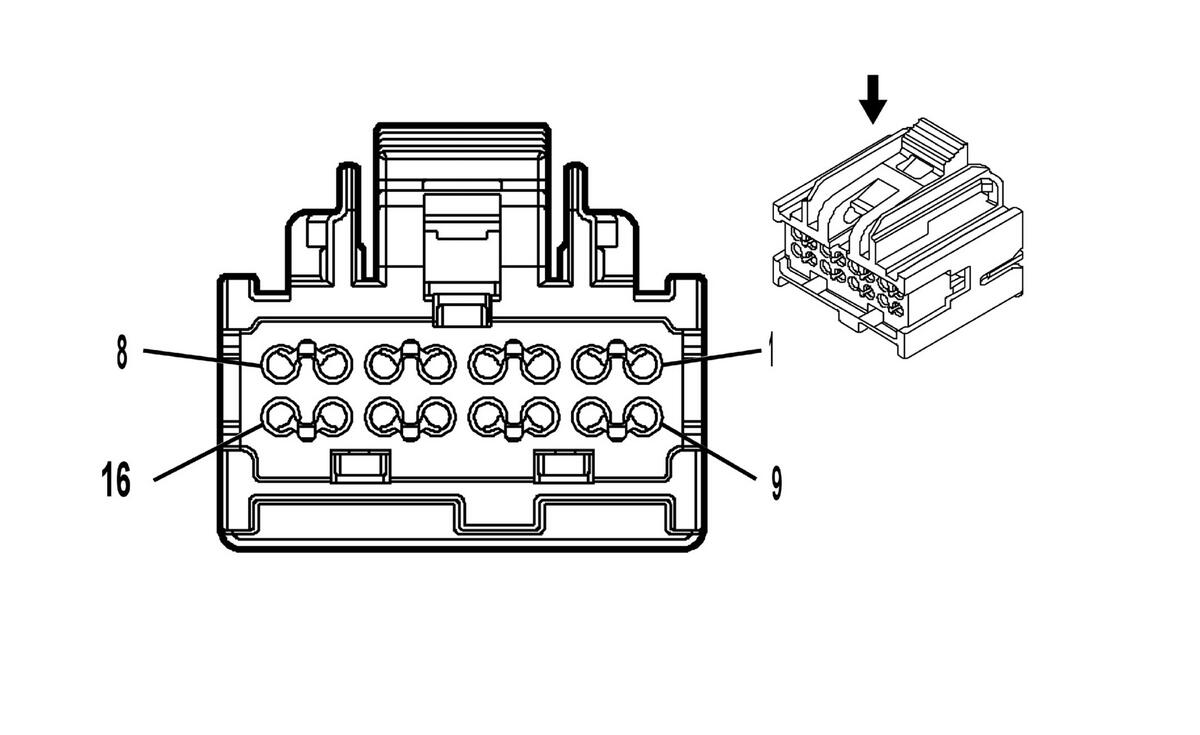

Fig 1: Headlamp and Panel Dimmer Switch (except HP2) Connector End View
GM2127936Courtesy of GENERAL MOTORS CORP.
Headlamp and Panel Dimmer Switch (except HP2)

Pin Wire Circuit Function
1 0.35 WH 103 Headlamp Switch On Signal
2 0.35 L-BU 13 Headlamp Switch Park Lamp Signal
3 0.35 D-GN 306 Headlamp Switch Headlamps Off Signal
4-5 - - Not Used
6 0.35 L-BU 187 Rear Fog Lamp Switch Signal (T79)
7 0.5 BN/WH 230 Instrument Panel Lamp Dimming Control (X88 or Z88)
0.35 YE 6817 LED Backlight Dimming Control (Z75)
8 0.35 BK 1850 Ground
9 0.35 PU 328 Interior Lamp Switch Voltage Control
10 0.35 OG 192 Front Fog Lamp Switch Signal (T96)
11 - - Not Used
12 0.35 D-BU/WH 149 Courtesy Lamp Control
13 0.35 D-GN 44 Instrument Panel Lamps Dimmer Switch Signal
14 - - Not Used
15 0.35 OG/WH 812 12-Volt Reference
16 - - Not Used
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13783349
  • Service Connector: 13578573
  • Description: 16-Way F Micro HVT Series (BK)
Terminal Part Information
  • Terminated Lead: 13575550
  • Release Tool: J-38125-559
  • Diagnostic Test Probe: J-35616-16 (L-GN)
  • Terminal/Tray: 15445905/23
  • Core/Insulation Crimp: J/J
